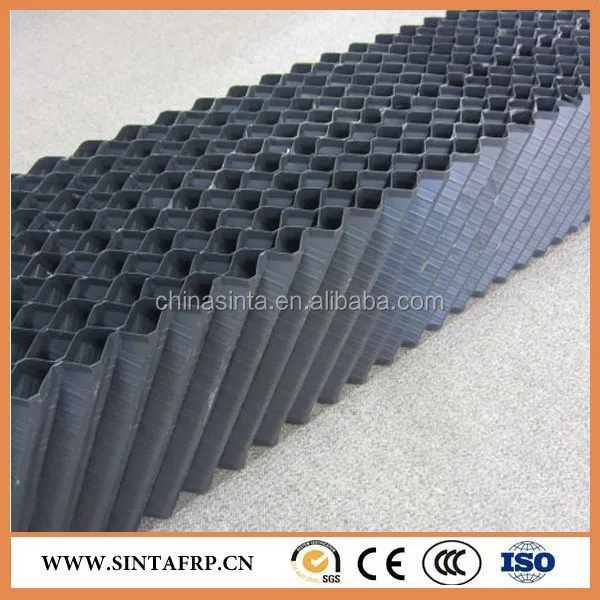

CF1200MA Cross Fluted Film Fill Media

Product Description

Cross Fluted Fills improve water distribution by splitting the water stream as it descends through the fill pack. The CF1200 MA splits the water stream 10 times in a 11.8” (300 mm) vertical path. High thermal performance (high KaV/L) and low pressure drop are simultaneously achieved through engineered flute/microstructure design and the highest manufacturing standards.

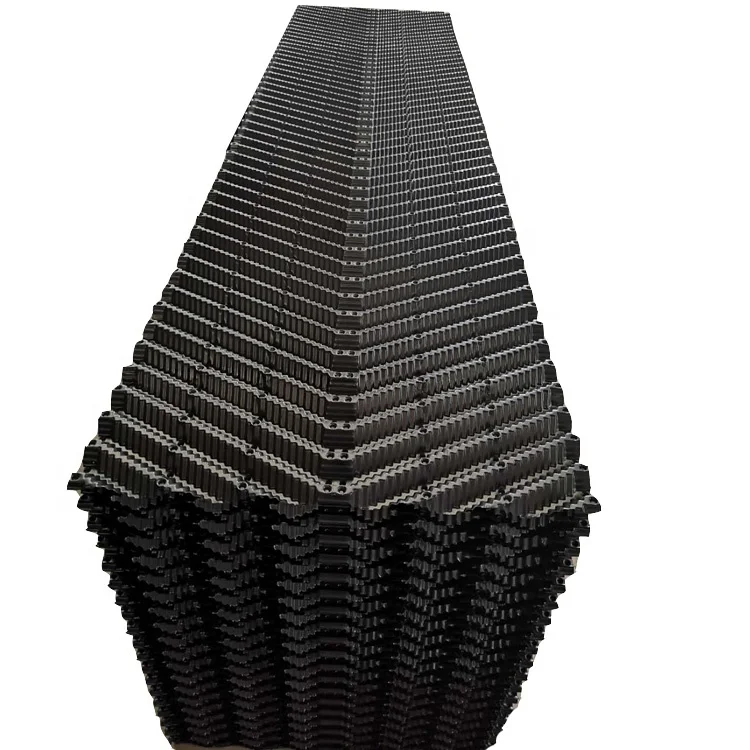

CF1200MA Cross Fluted Film Fill Media

Cooling tower fill media Features and Benefits:
• Bevel Tips promotes drainage at fill pack interfaces. Note: Packs are always installed with Bevel Tips at bottom of pack.
• Engineered microstructure for improved water distribution and thermal mixing
• High thermal performance
• Improved water distribution
• Proprietary edge trim that directs water to both sides of sheet
• Material meets Cooling Tower Institute (CTI) Standard 136
• Available in PVC

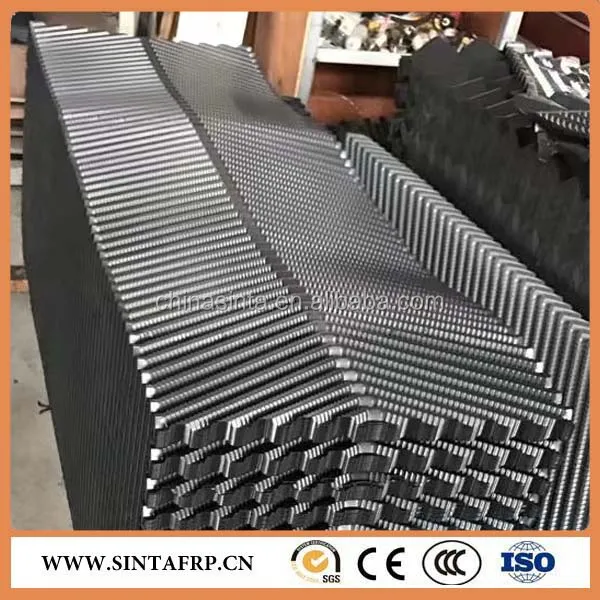

CF1200MA Cross Fluted Film Fill Media

pvc fill media Applications
The CF1200MA is for use in package counterflow towers (HVAC and light industrial applications) and as a distribution pad in 3.9 " and 5.9 " depths. Water quality must be "good to very good". Distribution pads will be supplied as a Solvent Bonded product.

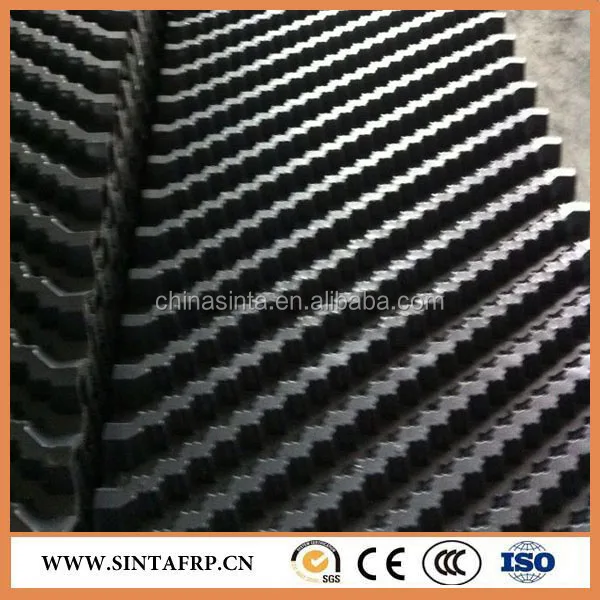

CF1200MA Cross Fluted Film Fill Media

Filter media Product Dimensions

SURFACE AREA	SHEET SPACING	FLUTE ANGLE	SHEETS PER FT.	MEDIA PACK SIZES: Depth (D), Width (W), Length (L)
				Minimum	Maximum	Standard
69 ft2/ft3 (226 m2/m3)	12 mm	30°	26	D: 3.9 in (100 mm) W: 6 in (153 mm) L: 1 ft (305 mm)	D: 11.8 in (300 mm) W: 12 in (305 mm) L: 10 ft (3048 mm)	D: 11.8 in (300 mm) W: 12 in (305 mm) L: 4 ft (1220 mm), 6 ft (1829 mm), 8 ft (2439 mm) or 10 ft (3048 mm)

Product Weights

NOMINAL GAUGE		DRY WEIGHT
mils	mm	lbs/ft3	kg/m3
8	0.20	2.5	38.4
10	0.25	2.9	44.8

Our sheet thicknesses are quoted in final gauge (as measured in field) of .008” (.203 mm), .010” (.254 mm), or your specific requirement. All our fill products are available in PVC and are UV stabilized. The PVC compounds used in fills have outstanding resistance to weather exposure and are nearly impervious to chemical degradation by alkali, acids, greases, fats, oils, and biological attack. Our PVC has excellent fire rating due to its self-extinguishing characteristics, and meets or exceeds Cooling Tower Institute Standard 136.

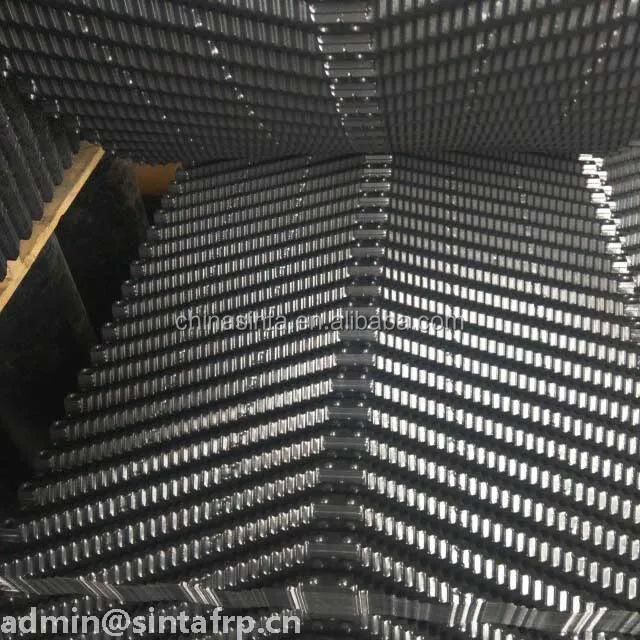

Production Line for Fluted Cooling Tower Fill:

CF1200MA Cross Fluted Film Fill Media
