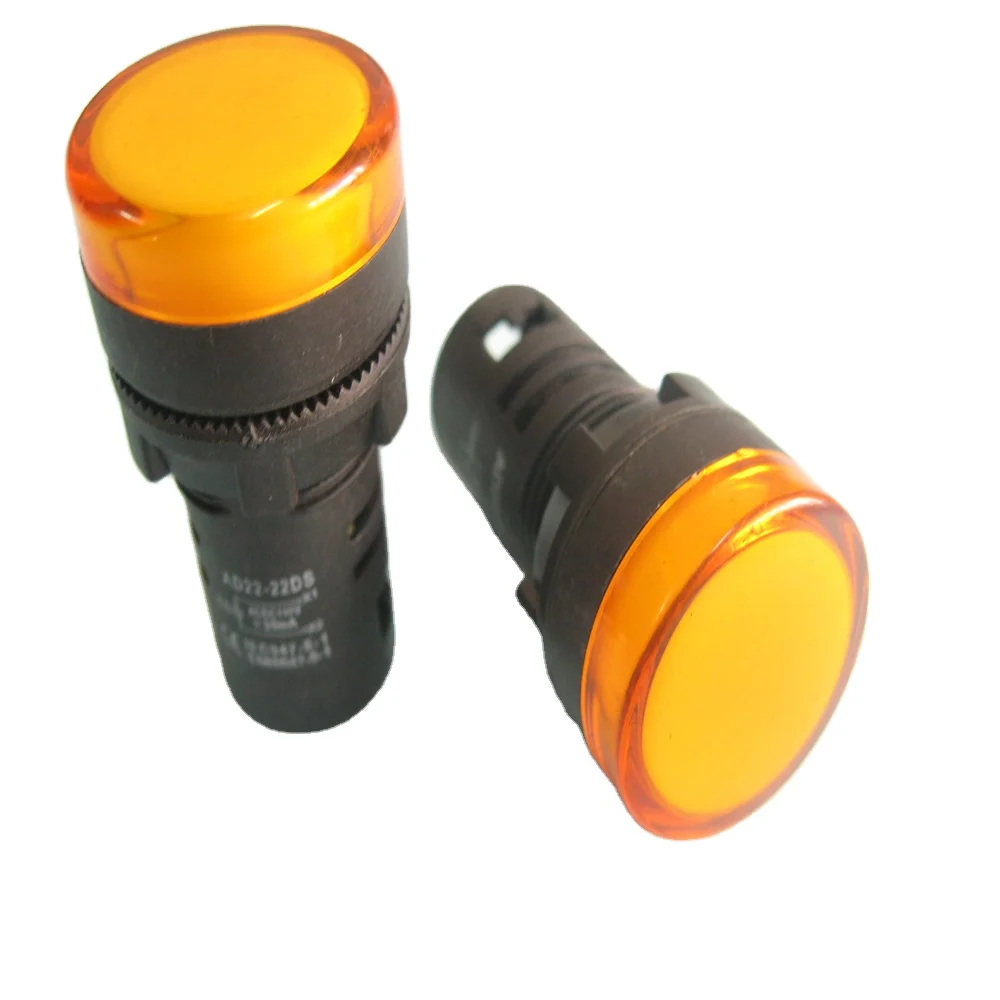

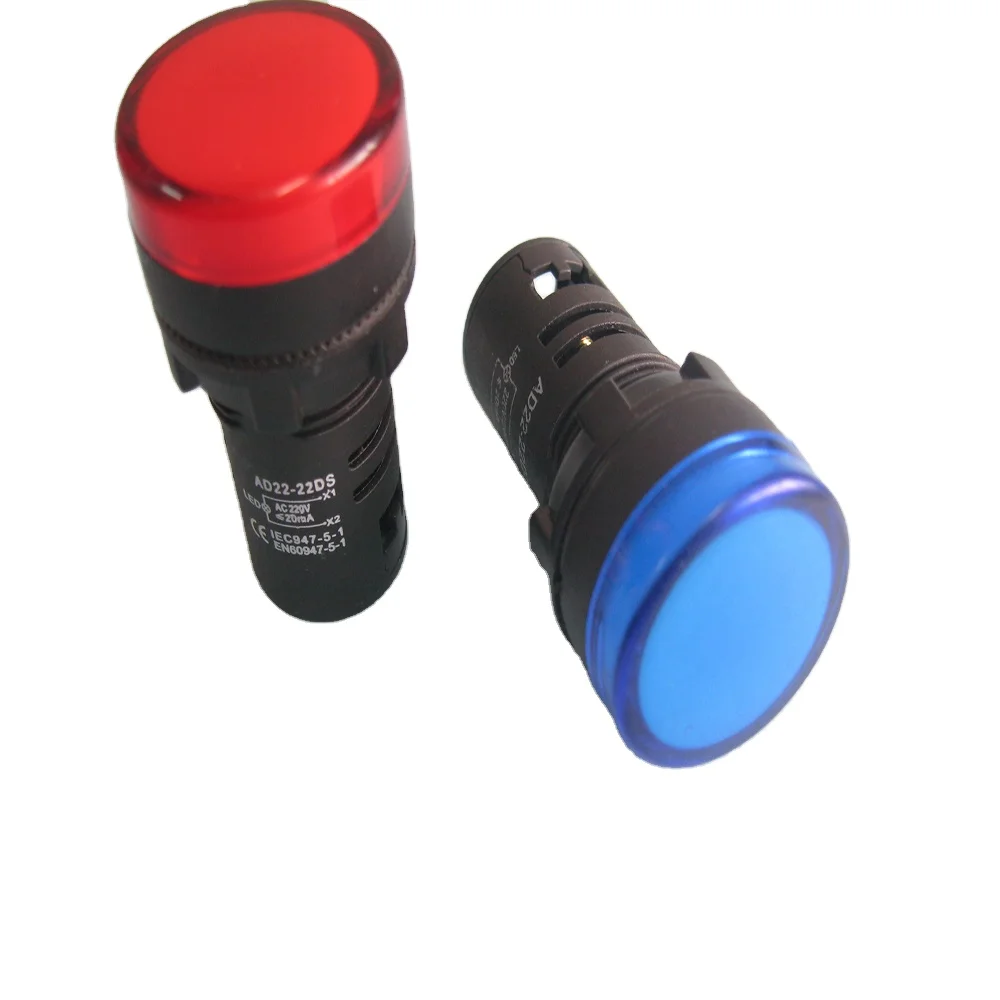

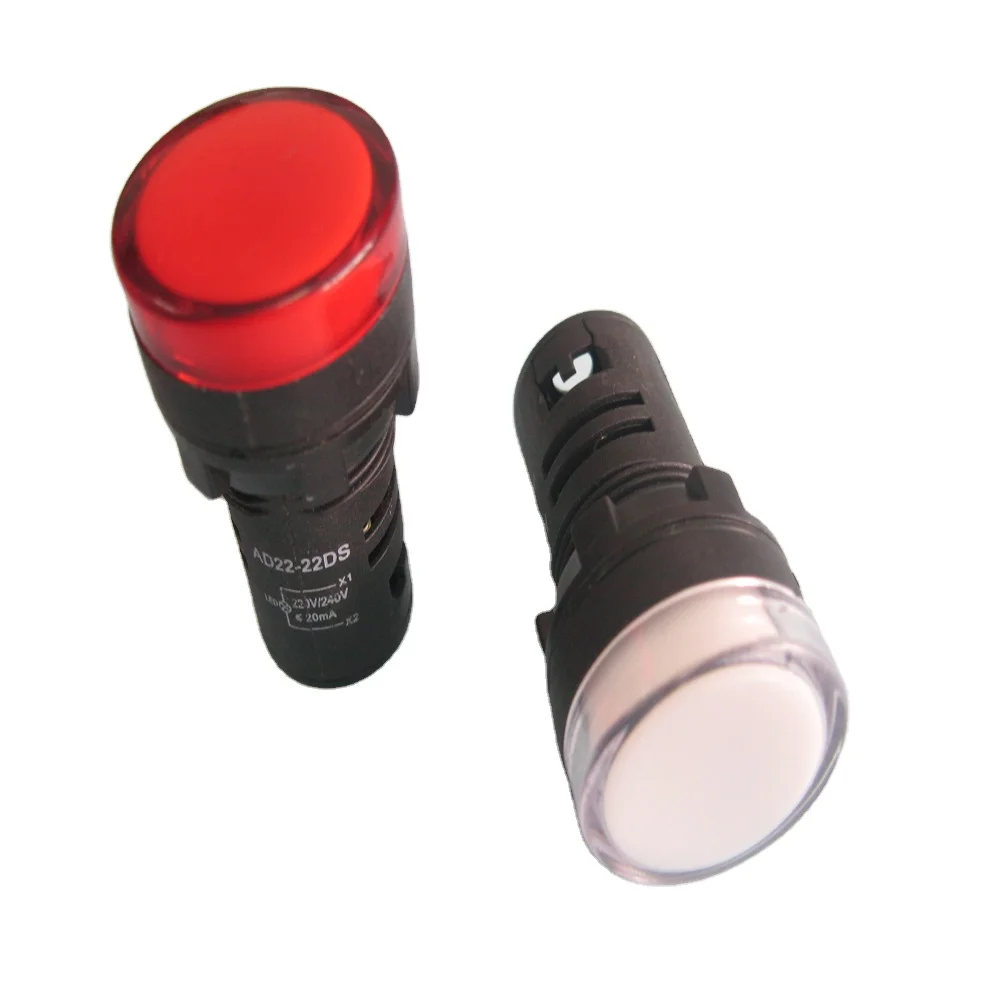

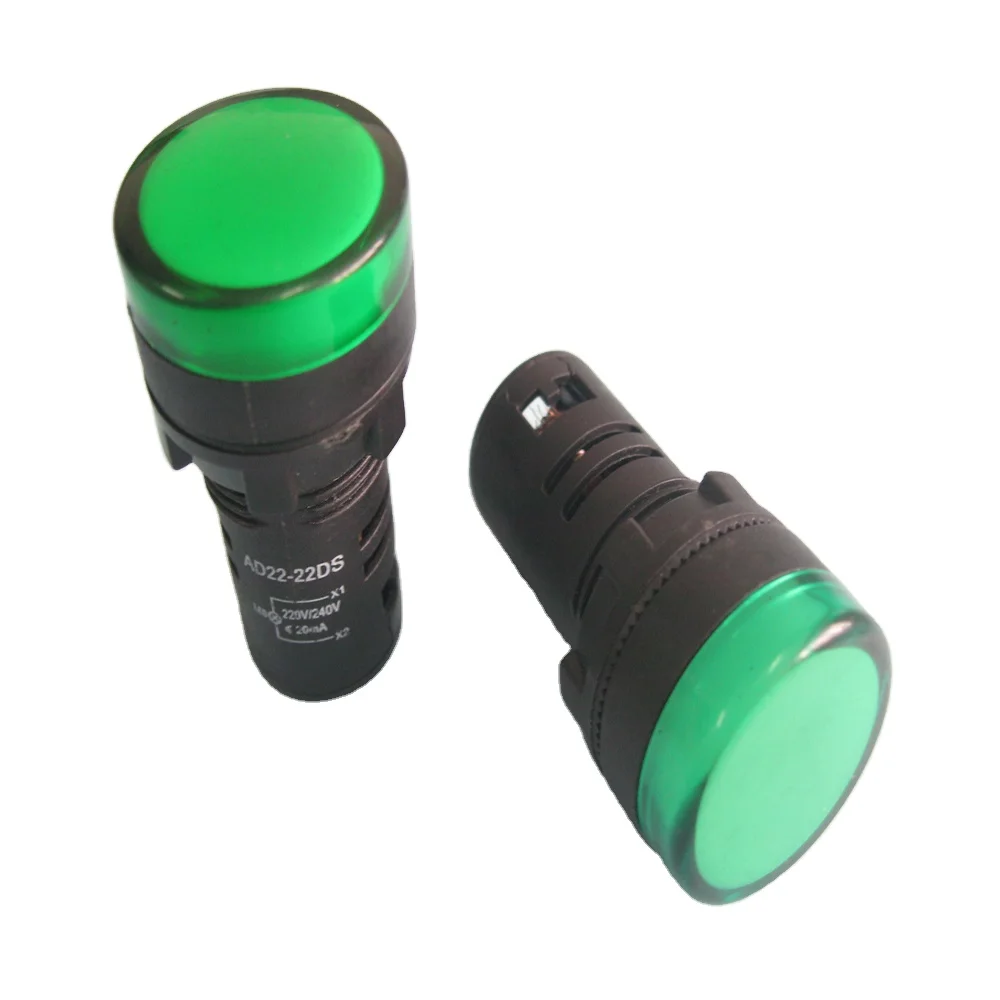

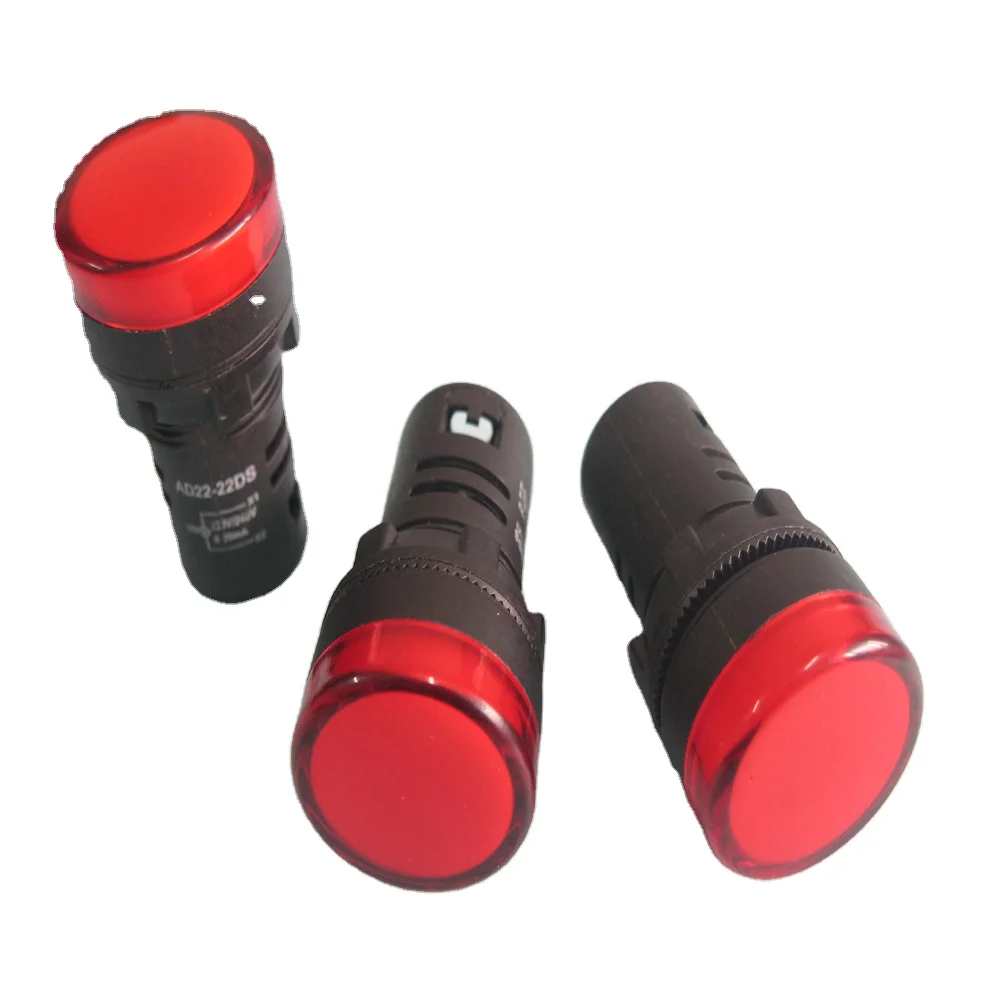

red/green/yellow/white/blue led signal lamp light 220varm lamp



1.Main Technical Parameters

Model	AD22-22DS
Installment Size	16mm dia or  22mm dia
Lighting source	Neon lamp/Filament lamp/led
Color of lens	Red,Orange,Green,Blue,White and Transparent
Voltage	3V,6V,12V,24V,110V,230V,400V
Current	2.2mA(max),40mA(max),5mA(max)
power	0.3w
Rated Temperature	T90/T125/T150
Life	10000/15000/25000HRS





2.Design Drawing





3.All Product Family



A:Indicator Light Series



red/green/yellow/white/blue led signal lamp light 220v





B:Light Source Series



We apply all kinds of our products and we can make according to your samples and technical drawing by opening tools.









LED:In adding to standard led there is the opportunity to have a customized led for the following characteristics:

♦ dimensions

♦ luminous intensity

♦ viewing angle

♦ colour emitted light

♦ lens colour



 Filament Lamp:By request ,we can use filament lamp as lighting source of 6v,12v,24v light indicators.















C:Wire harness series







D:Water heater spare parts





4.Our package







5.Our Working Place









6.CE Certificate











7.Payment



 T/T is the best ,we also supply L/C







8.The reason to choose us:

1)We have cooperated with  famous companies such as philips,our qulity is guaranteed



2)We can provide the best qulity with the best price in our industry



3)We can manufacture as your order and what you want





9.Our company









Ordering guide(Indicator light &Signal units)



If you are satisfied with our products and service,please leave us positive feedback and welcome to contact us for the details.



If you are dissatisfied for any reason,plese give us THE OPPORTUNITY TO MAKE THINGS RIGHT before you leave negative/neutral feedback. Your opinions are very important to us.





When enquiry or order,pls choose following items:

Code
Ligh source	Filament lamp	6v/12v/24v
	Neon and fluorescent	110/250/400v
	LED	3/6/12/24/110/220/400v
Color of lens	White( )  Red( )  Orange( )  Creen( )  Bule( )
Color of lamps	White( )  Red( )  Orange( )  Creen( )  Bule(  )
Cables	Material	( )PVC  ( )SILICONE
	Section	( )0.25mm2 ( )0.5 mm2 or on request
	Length	( )50mm ( )75mm ( )100mm ( )125mm ( )Xmm
Or TABS	4.8 or 6.3
Terminal	( )Yes ( )No   If yes,please show the terminal photo or drawing
