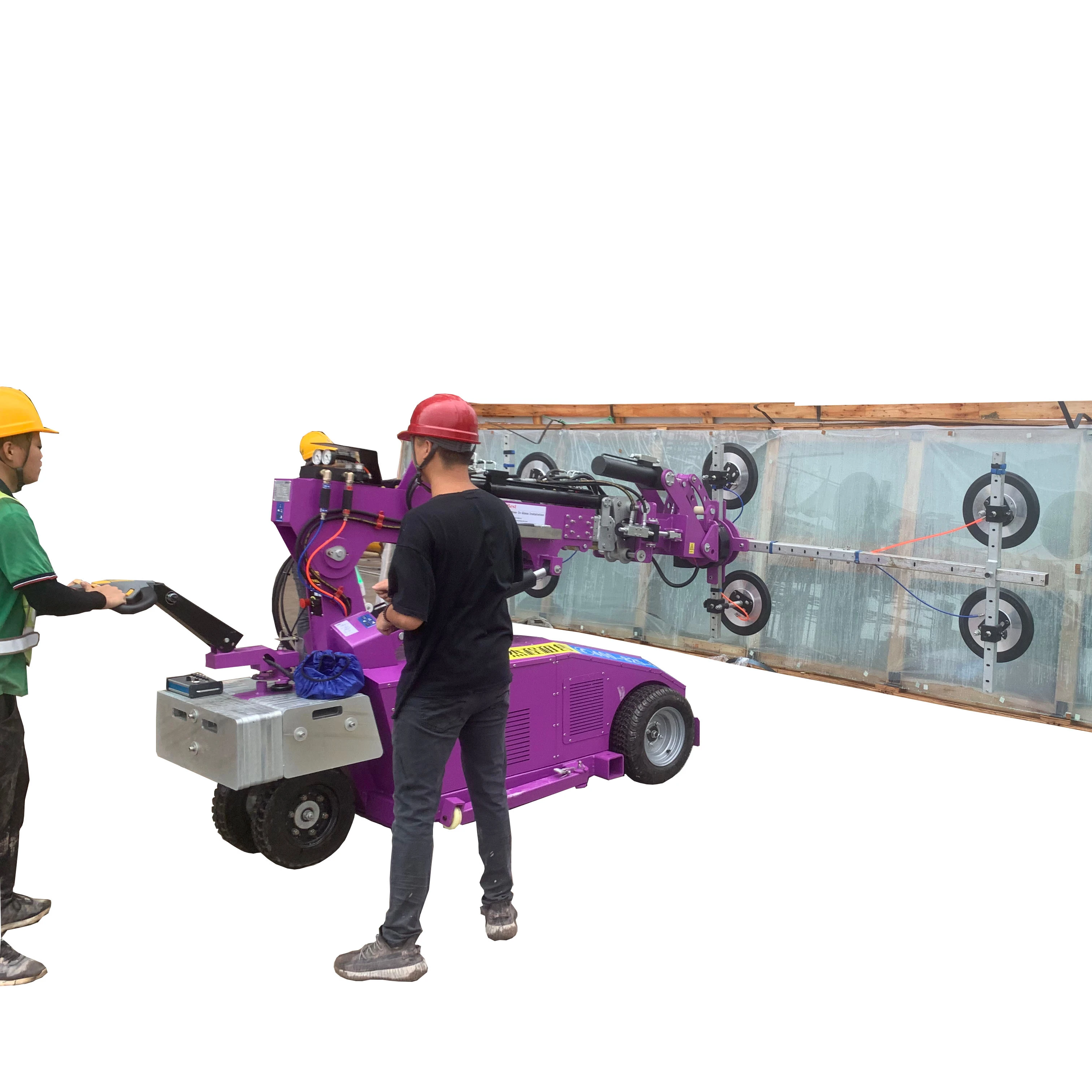

800 кг робот для установки большого размера стекла аппарат

Maximum load capacity: 780kg on ram retraced, 300kg on arm fully extended

Driving: by front wheels with differential unit

Driving motor: 2.2KW, DC 24V, brushless motor, 3000RPM

Driving control: sensible control by accelerator

Brake: eletro-magnet brake on motor

Tyres: 4*dia.450mm pneumatic tyres on front, 2 of dia.400mm solid tyres on rear

Hydraulic pump station: 1.5KW, 3L/Min, oil tank 10L

Extension: First arm extension distance 650mm, The second arm extension distance 500mm, by hydraulic ram

Lifting: maximum 4200mm, by hydraulic ram

tilting: maximum 180 degree, by hydraulic ram

Rotating: by hydraulic rotator, maximum 180 degree, 90 for each side

side moving: 100mm, by hydraulic ram

side shift: by hydraulic ram, 12.5 degree for each side, totally 25 degree

Cntrol panel: wire connected remote control, with selection buttons and up&down roller for sensiblly speed control for all hydraulic movements

vacuum cups: 4*dia.400mm pads and 2 of dia.300mm pads, or 10*300mm pads

Vacuum pump: Dual pumps with dual vacuum circle, pump power DC24V, 60W, 35L/m

Graph:

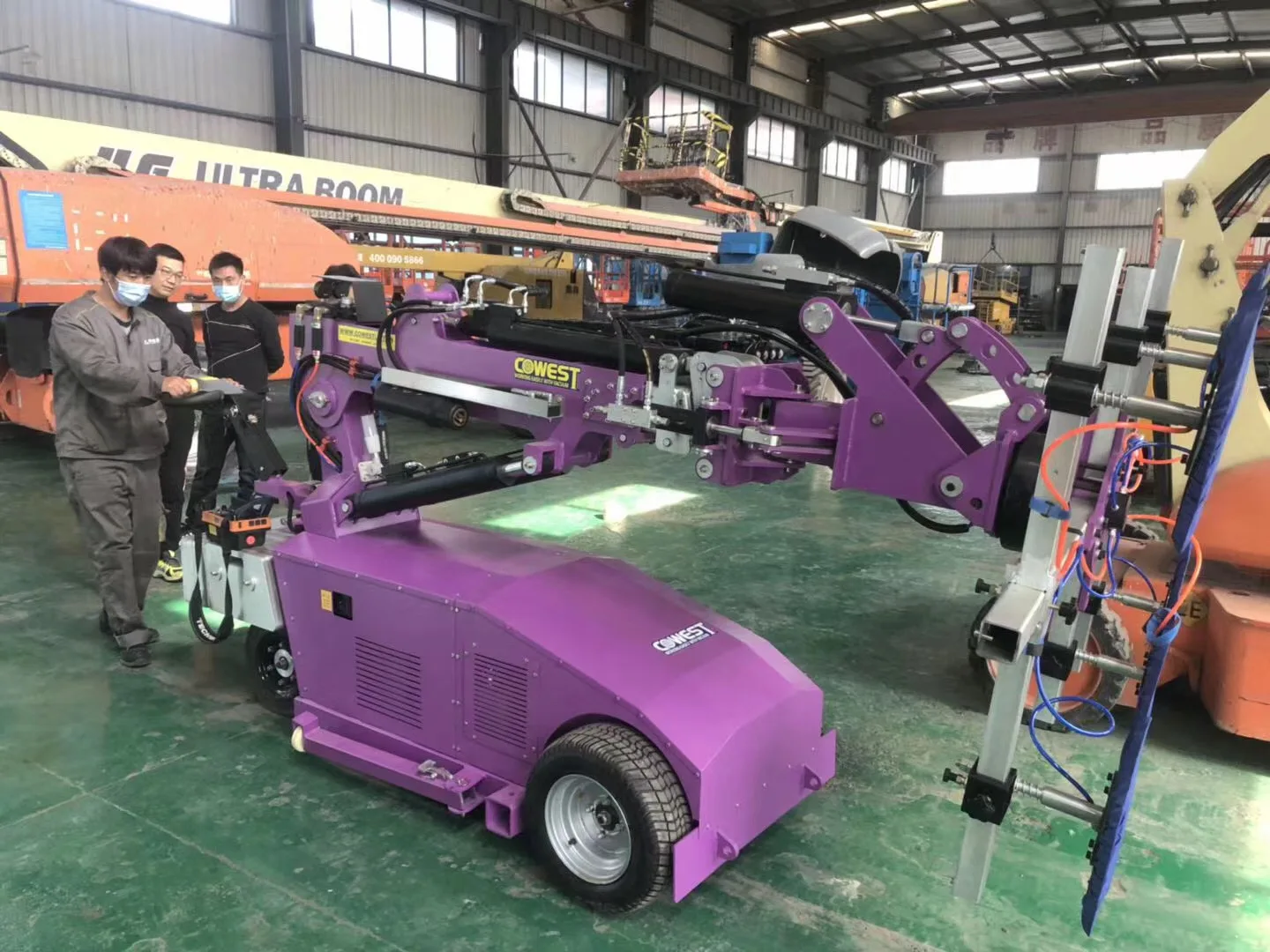

First arm extended

Second arm extended

Control panel:

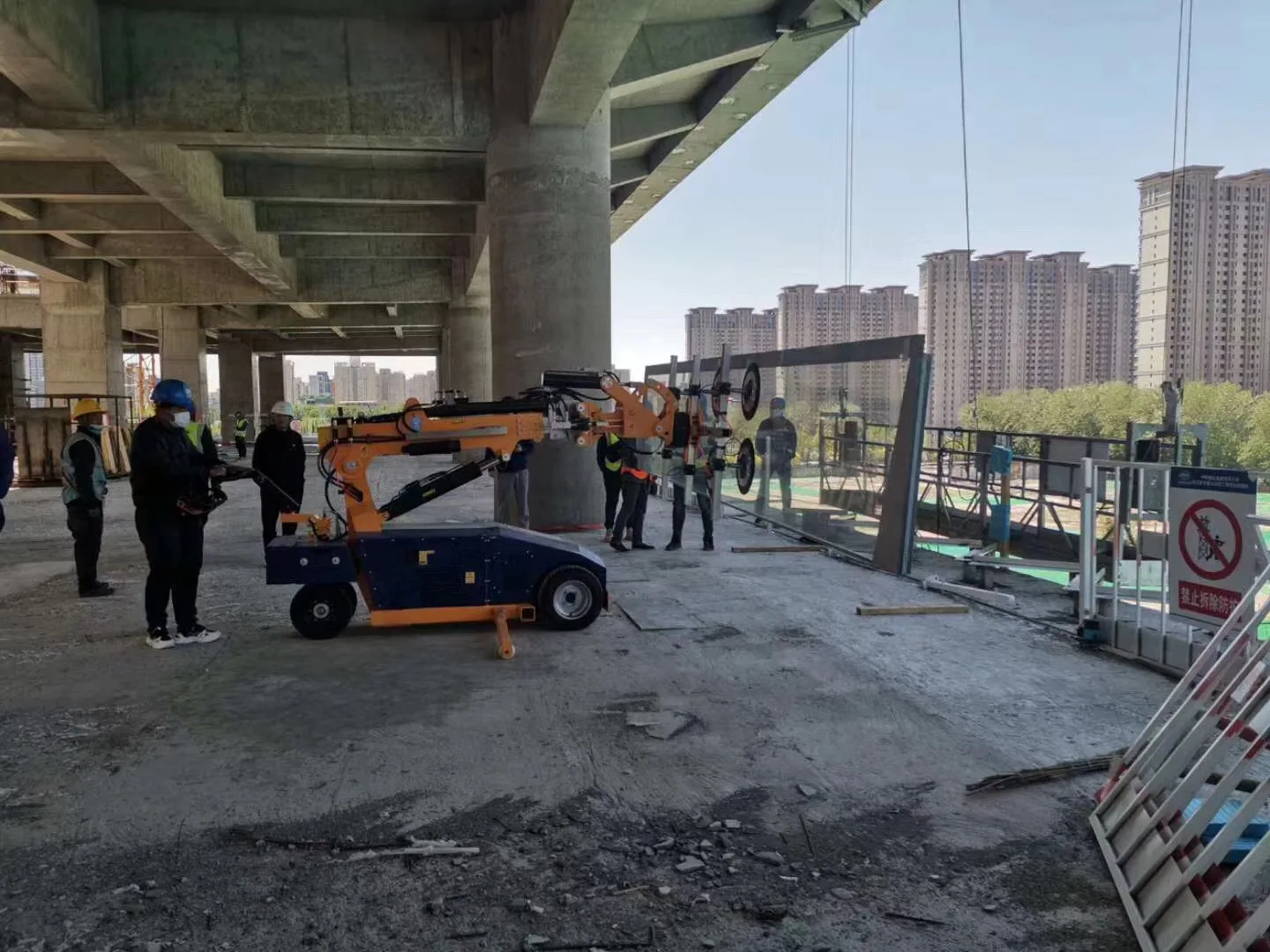

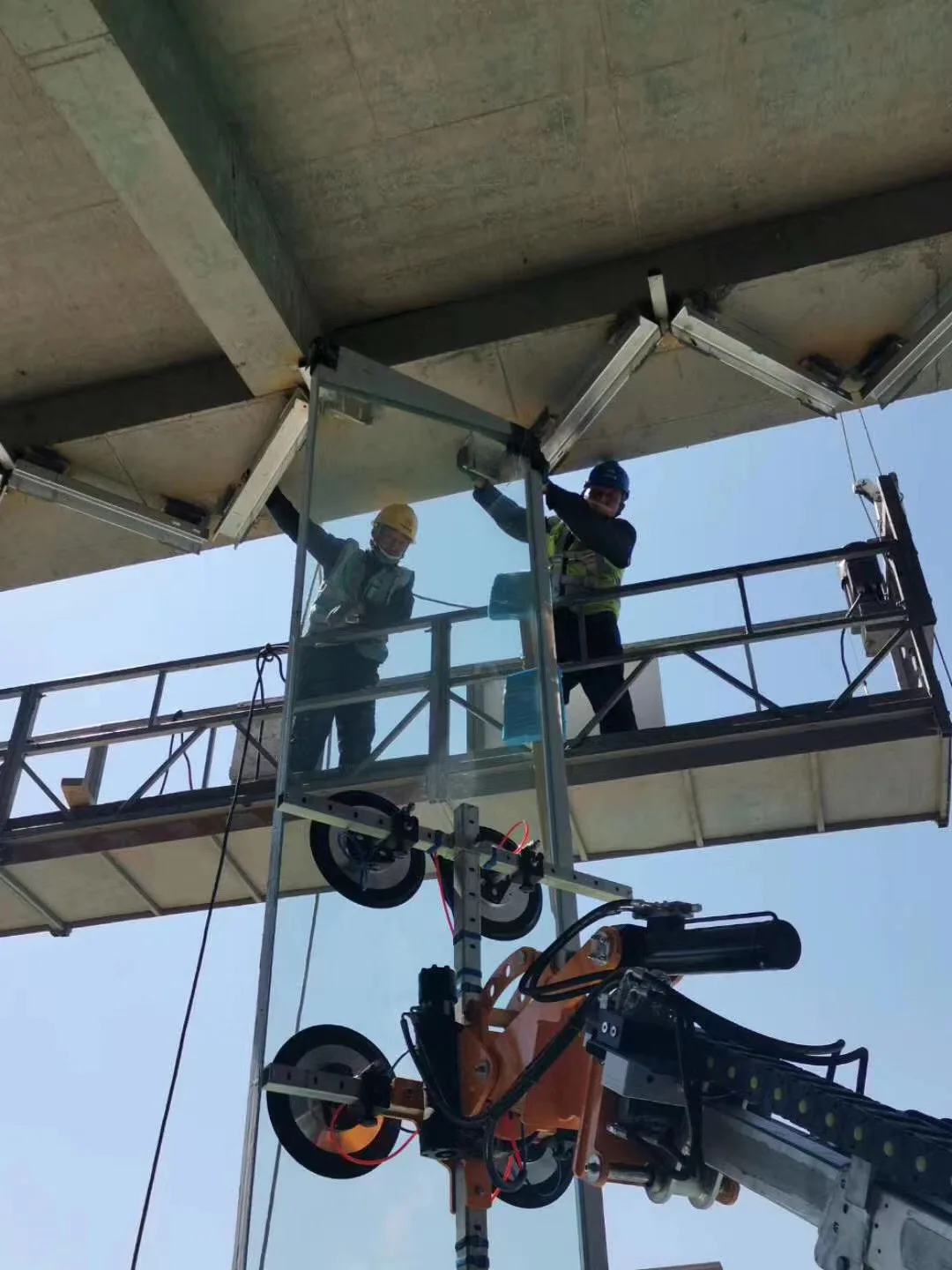

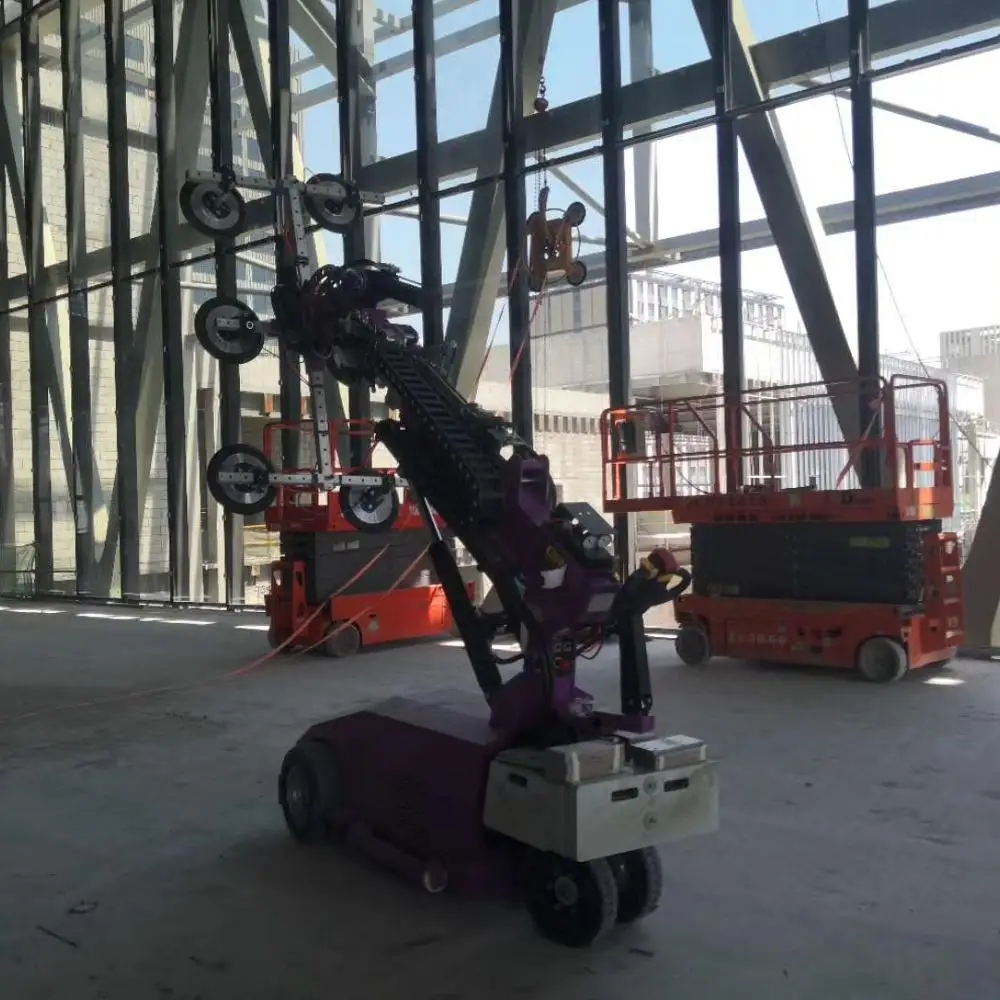

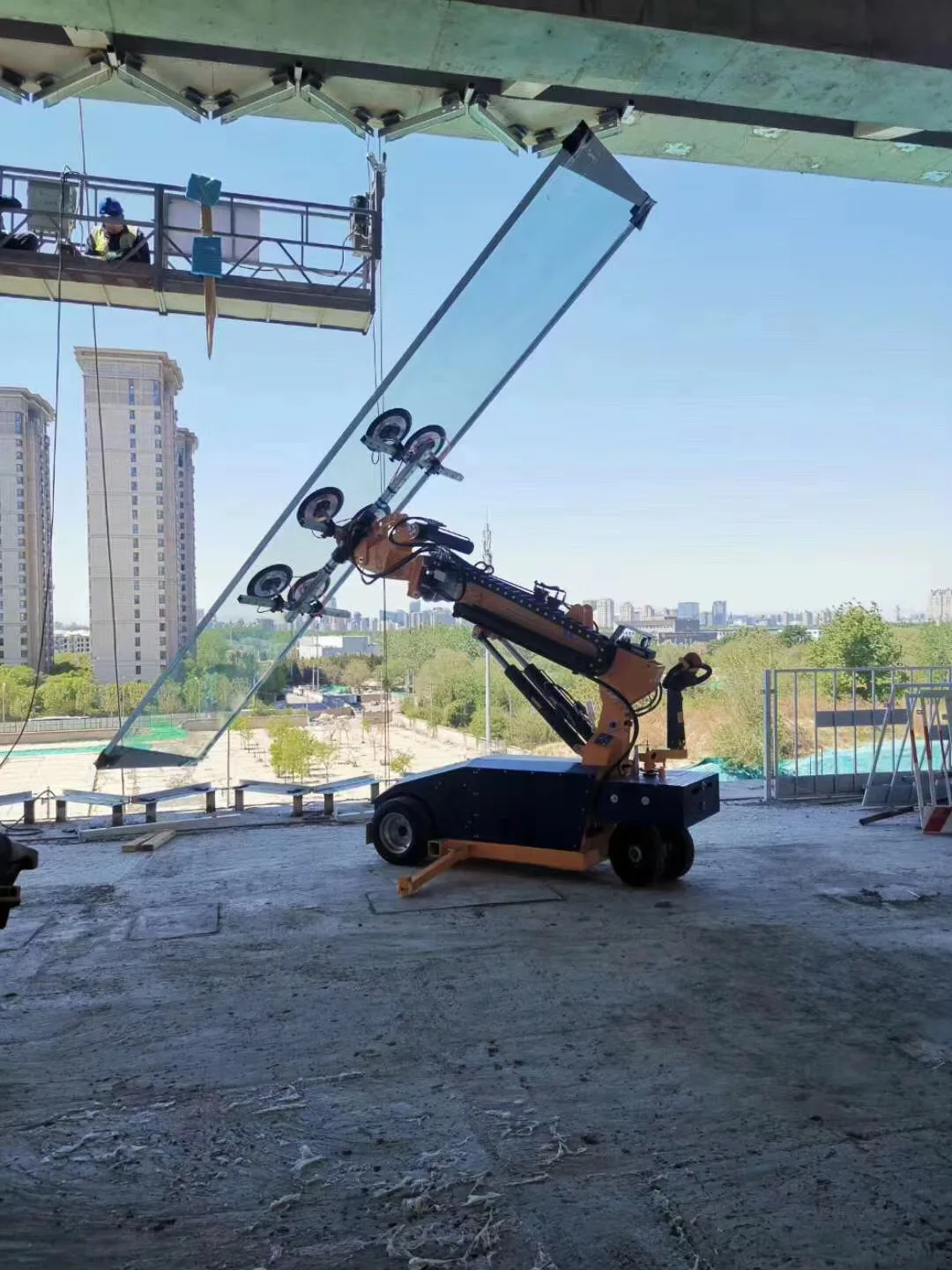

 Applications
