Характеристики
22DS/24DS Copper Fine wire drawing machine in china
1. Usage for 22D/24D High Speed Fine Wire Drawing Machine:
The high speed fine wire drawing machine is used for drawing wire from diameter 0.50-1.20mm to 0.08-0.40mm.
2. Technical Parameter for 22D/24D High Speed Fine Wire Drawing Machine:
Machine Type | 22DS | 24DS |
Inlet Diameter(mm) | Ø0.60-Ø1.20 | Ø0.50-Ø1.00 |
Outlet Diameter (mm) | Ø0.10-Ø0.40 | Ø0.08-Ø0.25 |
Max. Drawing Speed (m/min) | 2500 | |
Max. Drawing Dies No. | 22 | 24 |
Slip Ratio of m/c | 15% | 13% |
Fix Speed Capstan Slip Ratio | 8% | |
Capstan | Ceramic Plasma | |
Max. Capstan Dia. (mm) | Ø242 | |
Fix Speed Capstan Dia. (mm) | Ø207 | |
Frame | Ironed Cast | |
Main Motor | 11KW Three Phase Inductor Motor | |
Spooler Motor | 3.7KW Three Phase Inductor Motor | |
Revise System | PID Synchronous Spooler | |
Inverter Control | Dual Inverter Control | |
Transmission | Flat Belt | |
Send-Out Method | Over Head | |
Traversing Unit | Flat Belt + Timing Motor | |
Tension Control | Weight Balance by Swing Arm | |
Lubrication | Spray | |
Suitable Dia. of Spool (mm) | Ø300 | |
Capacity for Wire Receiving (KG) | 50-60 | |
Bobbin Loading & Unloading Type | Shaft | |
Power Source | 380V | |
Brake | Pneumatic | |
Machine Dimension (L×W×H) (mm) | 2050×1600×1900 | |
Weight (KG) | 2500 | |

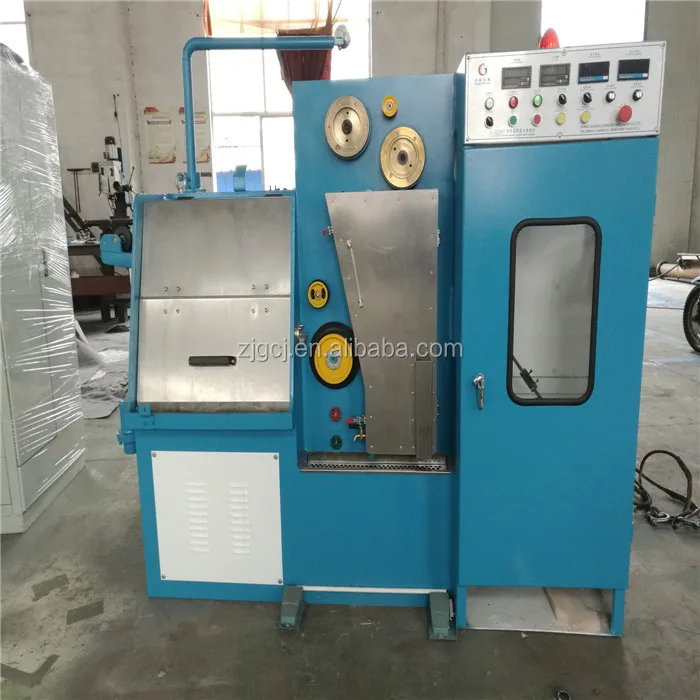

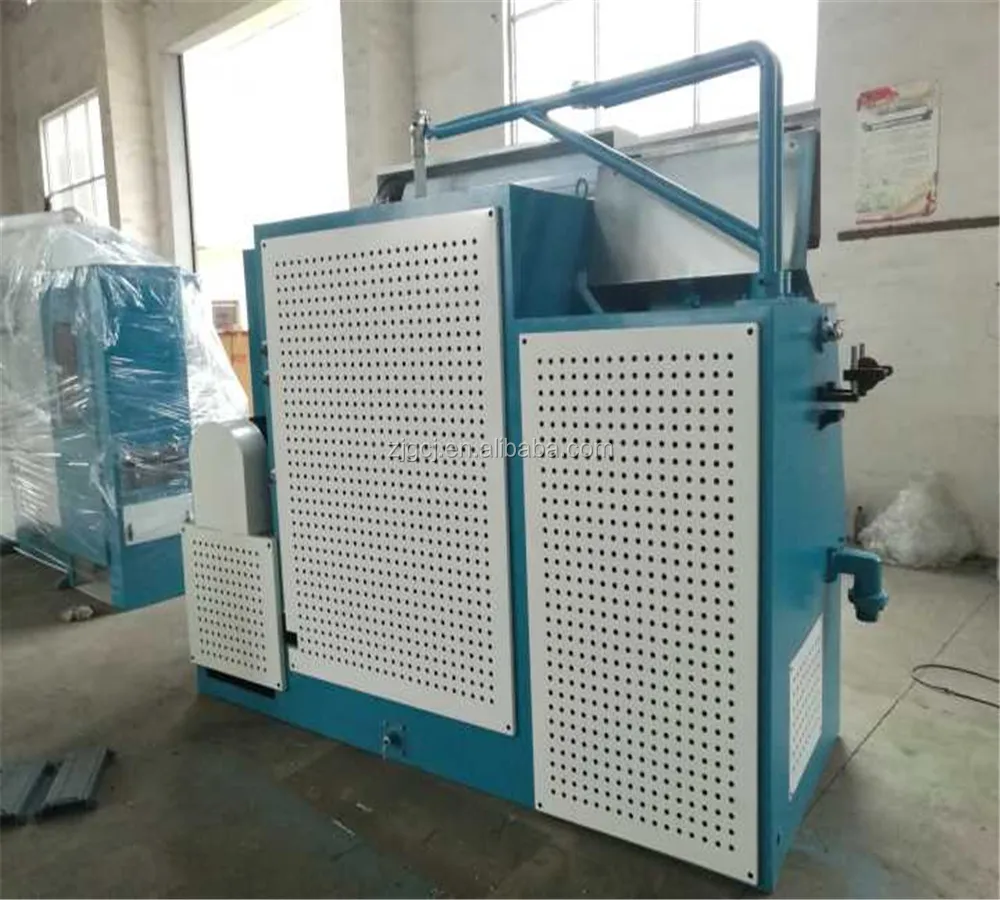

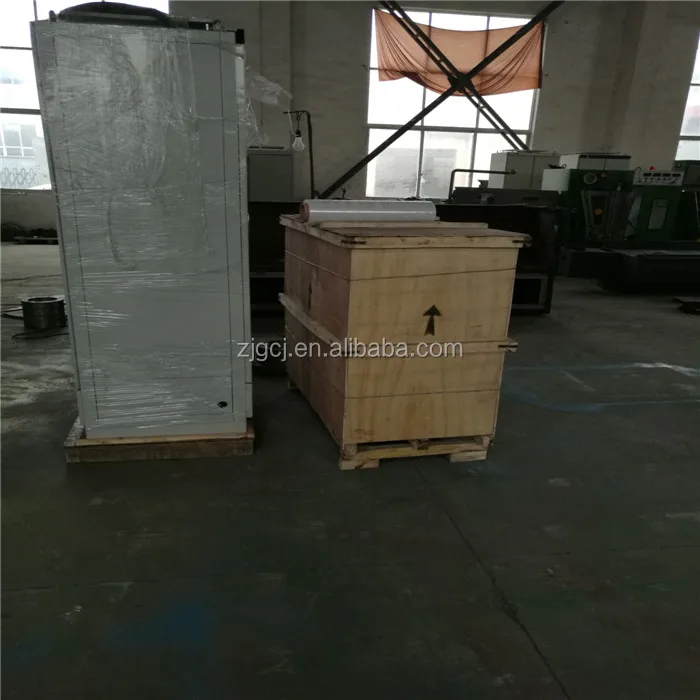

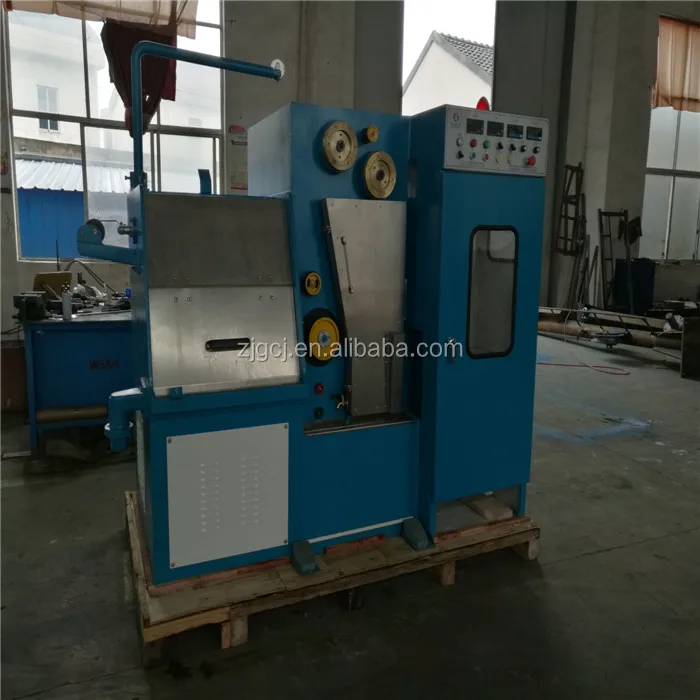

Photo of 22D/24D copper wire drawing machine and annealing machine:
After-Sale Service for LY-22DS/24DS High Speed Fine Wire Drawing Machine:
1: In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.
2: Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
We shall work with you as a team and to win as a team.
We provide not only quality products but also best service to you.
Quality, Innovation and Service
Some model machines running vedio link:
https://youtu.be/O1bV1NhKx9o dual wire Take up machine
https://youtu.be/gFGqezzFdwk
400-13D cheap model Copper Rod Breakdown Machine
https://youtu.be/OIsjFdgKe2Y
https://youtu.be/Mirun20VU9o
https://youtu.be/4NKPJshyigs
https://youtu.be/1wSoJ8SHJuQ
https://youtu.be/8mwzfAFmC2A
Dual intermediate wire drawing machine with annealer+double take up
https://youtu.be/VAr4SBYh-zM
CJ DBT20- 10wires drawing machine with continuous annealer running vedio
https://youtu.be/pc6oNzIpHLM
https://youtu.be/giWIl8HBL9s
https://youtu.be/SjjdeWbB1lM
LHD-450-13DT Copper Rod Breakdown Machine with Continuous Annealer+630Double Take-up +Down Coiler
https://youtu.be/5wMHY7PL4Z0 LHD-450-13DT Aluminium Rod Rod Breakdown Machine with Continuous Annealer+Take-up +Down Coiler
https://youtu.be/q9PL5fMdkzk
18DT intermediate fine wire drawing machine with annealer
https://youtu.be/Cdzuvv4gBHk
flat wire production machine
https://youtu.be/OB7IhloJoyQ
automatically cable coil machine
https://youtu.be/hvkCReNY-fU
9D large intermediate wire drawing machine +650Down Coiler
