waveguide accessories,aluminum waveguide for microwave magnetron

Definition of waveguide

• A hollow, the lining is very bright and clean metal ducts or metalized tube; Waveguide is used to transmit ultra high frequency electromagnetic wave, through which the pulse signal can be sent to destination with minimum loss;


• The size of the waveguide inner diameter varied from the wavelength of the transmitted signal; For cm more affected millimeter-wave radio communications, radar, navigation, and other areas of the radio.


• Made from metal material ( copper, aluminum, etc.), rectangular cross section, the internal rules of filling air medium metal waveguide is called rectangular waveguide.

Characteristics of Rectangular Waveguide

• A rectangular waveguide does not transmit TEM wave, but transmit TE wave or TM wave.


• In general (a>b) the main mode of the rectangular waveguide is TE10 mode


• The cutoff wavelength of the rectangular waveguide is 2A


• Single mode transmission condition is more than 2B and wavelength is less than A and 2A


• The power capacity of the rectangular waveguide is larger and the attenuation is smaller.

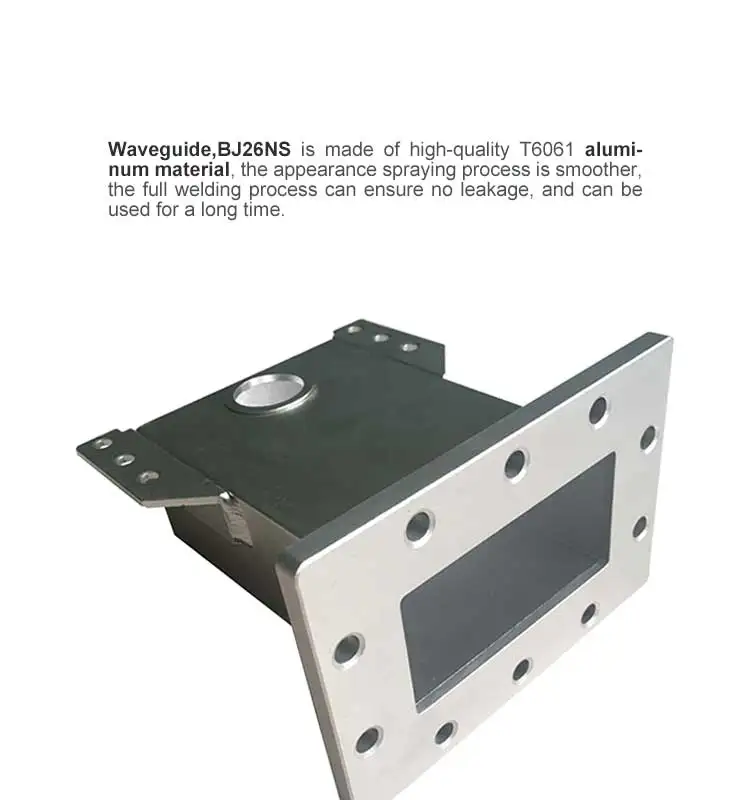

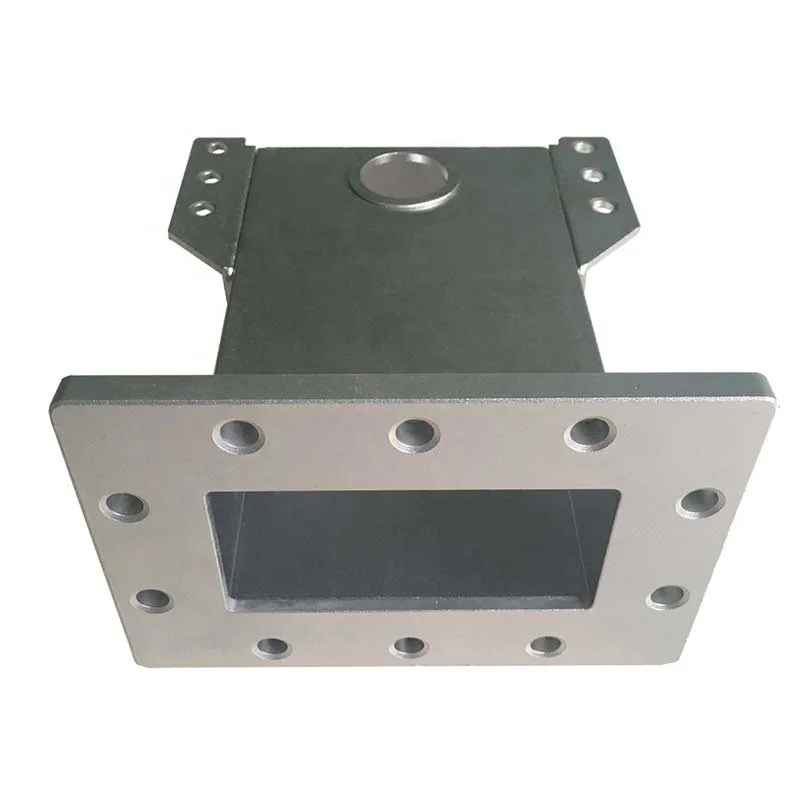

• Industrial microwave rectangular waveguide BJ26NS, using the T6061 aluminum national standard profile stretch forming, anodized surface treatment.


• Rated withstand power 2.17-3.3GHZ, with power 1000W/1500W

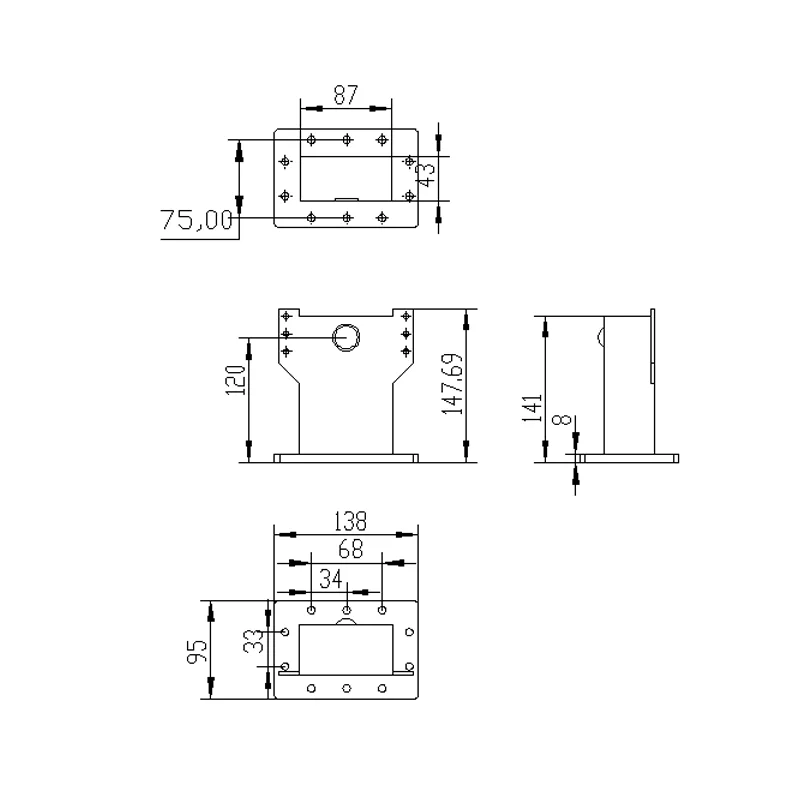

Installation size:

• Waveguide height: 155 mm


• Bed dimensions: 138mm*95mm*8mm


• The 2nd long side mounting hole center distance: 33 mm


• The 3rd hole center distance: 66 mm


• The 2nd short side vertical mounting hole center distance: 16.5 mm


• Hole diameter 7 mm


• Weighs 0.47 kg

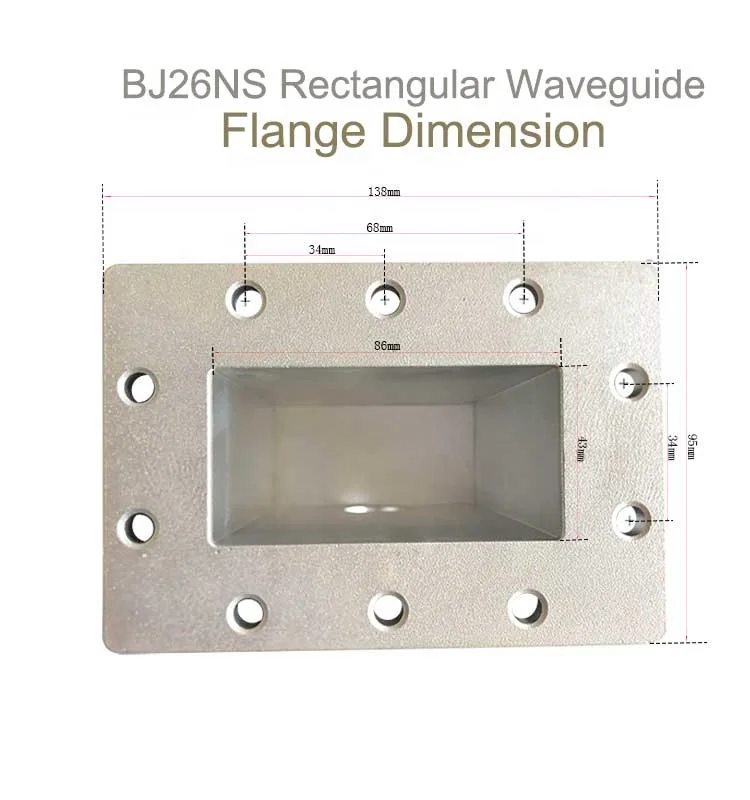

• Cross section inside the hole size: length 86.36 mm width: 43.18 mm

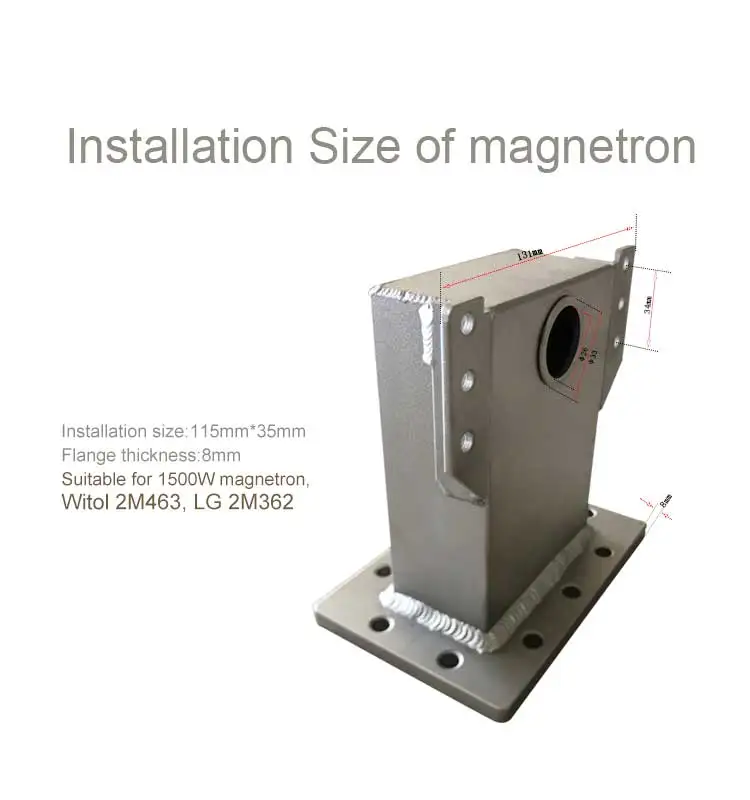

• Magnetron mounting plate length 131 mm, 75 mm wide


• Hole spacing (two hole center distance): 17mm


• Mounting holes diameter 5 mm.
