Полностью автоматическая ротационная Трехцветная пластиковая машина для литья шнурков под

Описание и отзывы

Трекер стоимости

Характеристики

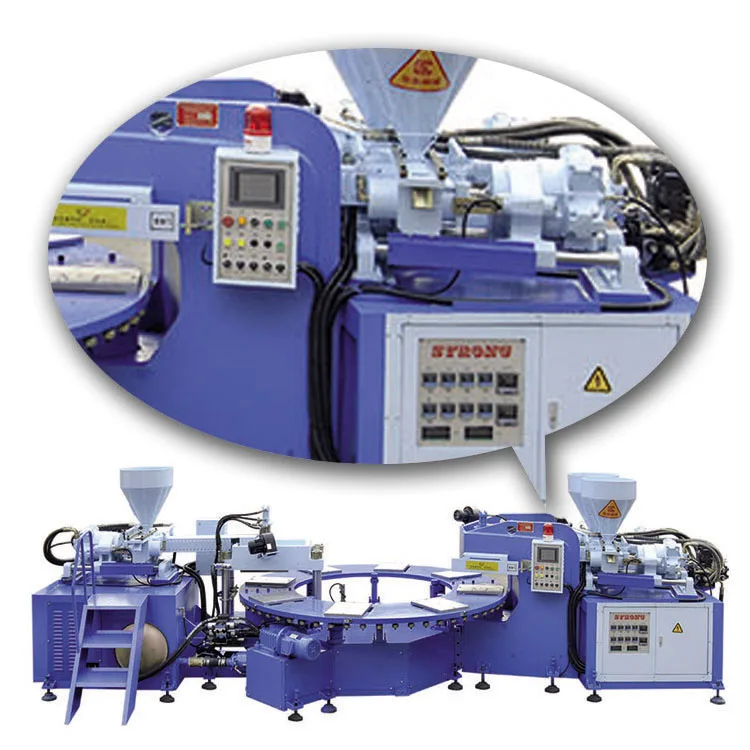

Full-auto rotary three color plastic shoelace injection moulding machine

1. This machine with multi-function operation system can product one/two/tree color pvc strap and sole of children shoes .
2. The speed of injection is very fast, and the clamping force is strong.
3. The installation is very simple.
4. The operation is easy, and the workers required are less than before.
5. It is very exact to use industrial human machine interface and PLC program control.
6. The operation is safe and reliable.
7. Selecting servo energy conservation system to save 30% energy.

   model	SC606-2W-80T	SC606-3W-80T
   station	6stations	6stations
   injection capacity	250/150cm3	250/150cm3
   diameter of screw	50/40	50/40
   injection measuring accuracy	0.2g	0.2g
   screw rotary speed	1-120r/min	1-120r/min
   clamping force	80ton	80ton
   max.space of mould	300*300*130	300*300*130
   heating power	3.6*2(kw)	3.6*2(kw)
   power of motor	11*2(kw)	11*2(kw)
   whole machine power	28(kw)	33(kw)
   pimp pressure	14(mpa)	14(mpa)
   machining material	pvc/tpr	pvc/tpr
   machine size L*W*H	6.5*2.5*1.65	6.5*2.5*1.65
   machine weight	9300(kg)	10000(kg)
