Высокое качество 12 В-30 В постоянного тока 42В 2A автомобильное зарядное устройство е-байка 36В
- Категория: Car Charger >>>
- Поставщик: Dongguan,Fuyuan,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.84 $* | 0.41 $* |
| Aug-18-2025 | 0.63 $* | 0.80 $* |
| Jul-18-2025 | 0.31 $* | 0.27 $* |
| Jun-18-2025 | 0.88 $* | 0.23 $* |
| May-18-2025 | 0.82 $* | 0.78 $* |
| Apr-18-2025 | 0.94 $* | 0.44 $* |
| Mar-18-2025 | 0.71 $* | 0.0 $* |
| Feb-18-2025 | 0.50 $* | 0.38 $* |
| Jan-18-2025 | 0.92 $* | 0.51 $* |
Характеристики

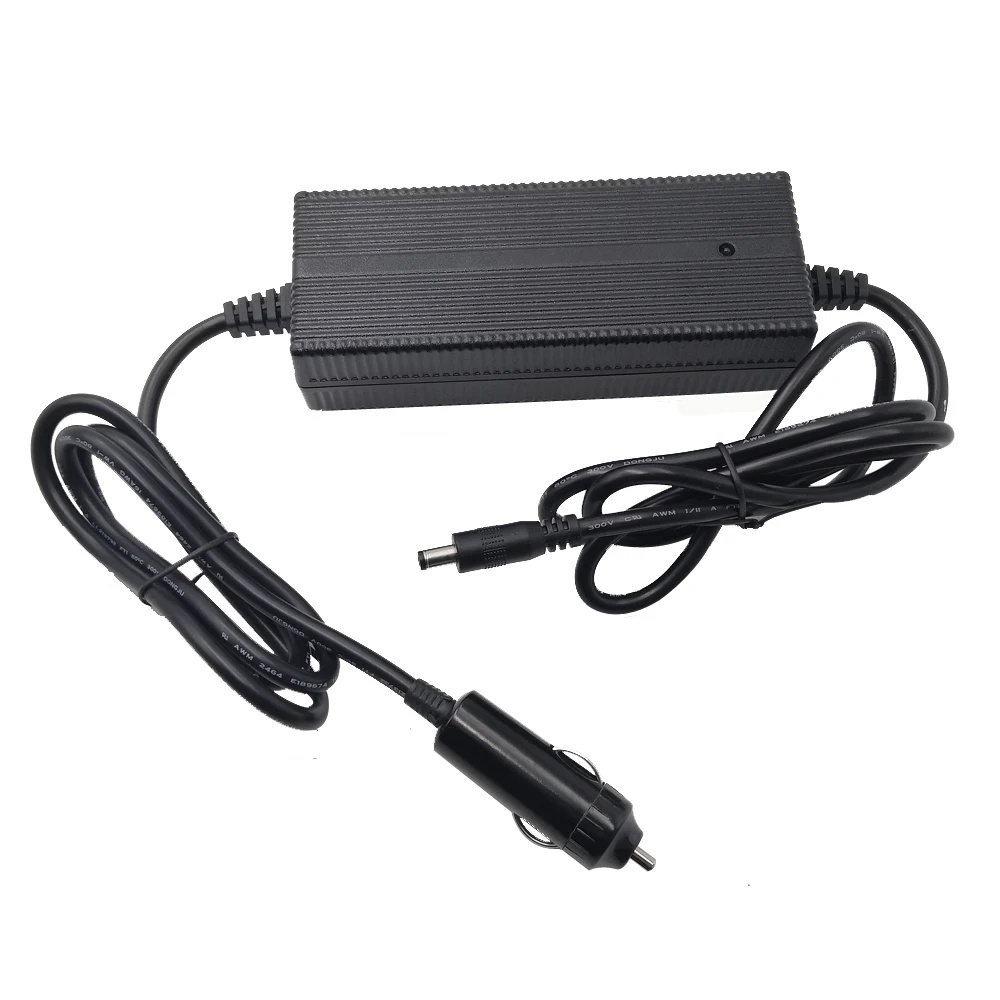

High quality car charger 2A 36v hoverboard charger
Product Description
Our Advantage :
*Global certificates: CE,GS,CB,UL,CUL,FCC,PSE,SAA,C-TICK,RCM,KC,CCC,ROSH,REACH,ERP,MEPS,NRcan.
*All power supply,battery chargers and power adapters are 100% burn-in tested and inspected with automatic test equipmrnt(ATE).
*100% inspection: no load voltage, load voltage,short circuit, OCP,OVP, Ripple Voltage, Primary, HIPOT test and general appearance.
*Safety standard:IEC 60950, IEC 61347, IEC 61558, IEC 62321, EN 62233, EN 55022, EN 61000, EN 61558,EN61347, EN 62493, EN 60335, EN 62233, EN 60950, UL 60950, UL1012
*We back our items with three-year guarantees.
*Key components made by ourselves, such as Transformer, case, and DC cord.
*Lead by general engineer of 25 years experience.
*Both OEM and ODM are vailable
Parameter:
| Item | Parameter |
| Part name: | High quality car charger 2A 36v hoverboard charger |
| Model No. | FY3601500 |
| AC Input: | 100-240V,50/60HZ |
| Max charging voltage: | 36V |
| Max charging current: | 1.5A |
| Inrush current: | Limited 15A when cold starting |
| Protection: | short circuit, over current and over voltage protection. |
| Efficiency: | 88% |
| Power factor: | 0.89 |
| HIPOT testing: | 3000-3700V |
| Drop testing: | meet UL standard. |
| Temperature: | Case 65 ºC Max. |
| Operating temperature | -29ºC~ +45.5ºC |
| Storage temperature: | -40ºC~ +75ºC |
| MTBF: | 30000 hours full rated load at 25ºC |
| Energy Efficiency: | Level VI( DOE or COC) |
| AQL: | MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0 |
| Weight | 0.40kg/pcs. |
| packing | 48pcs/ctn. |
| dimension: | 53*37*21cm/CTN |

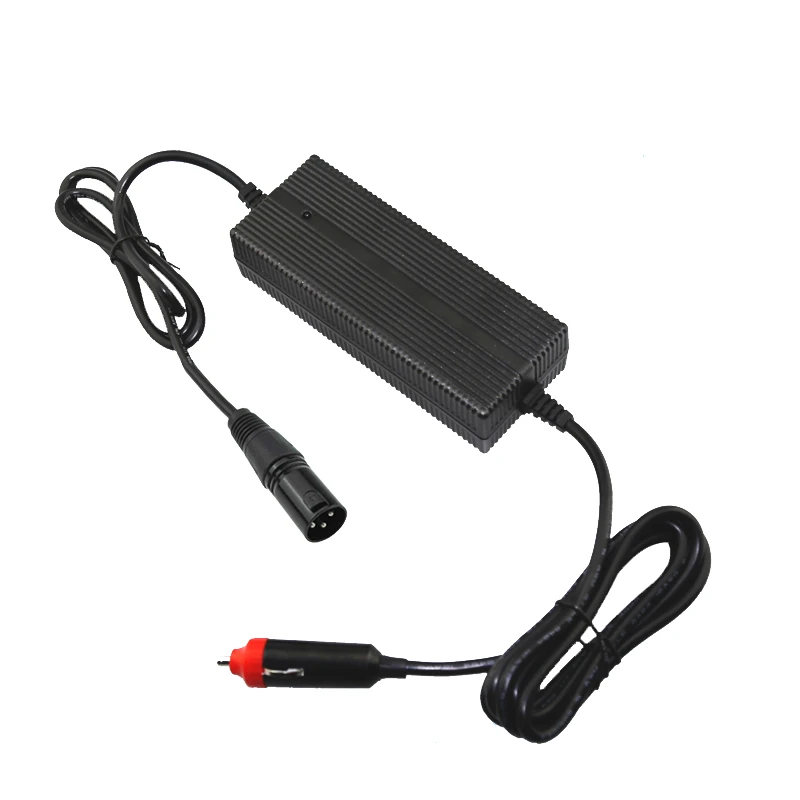

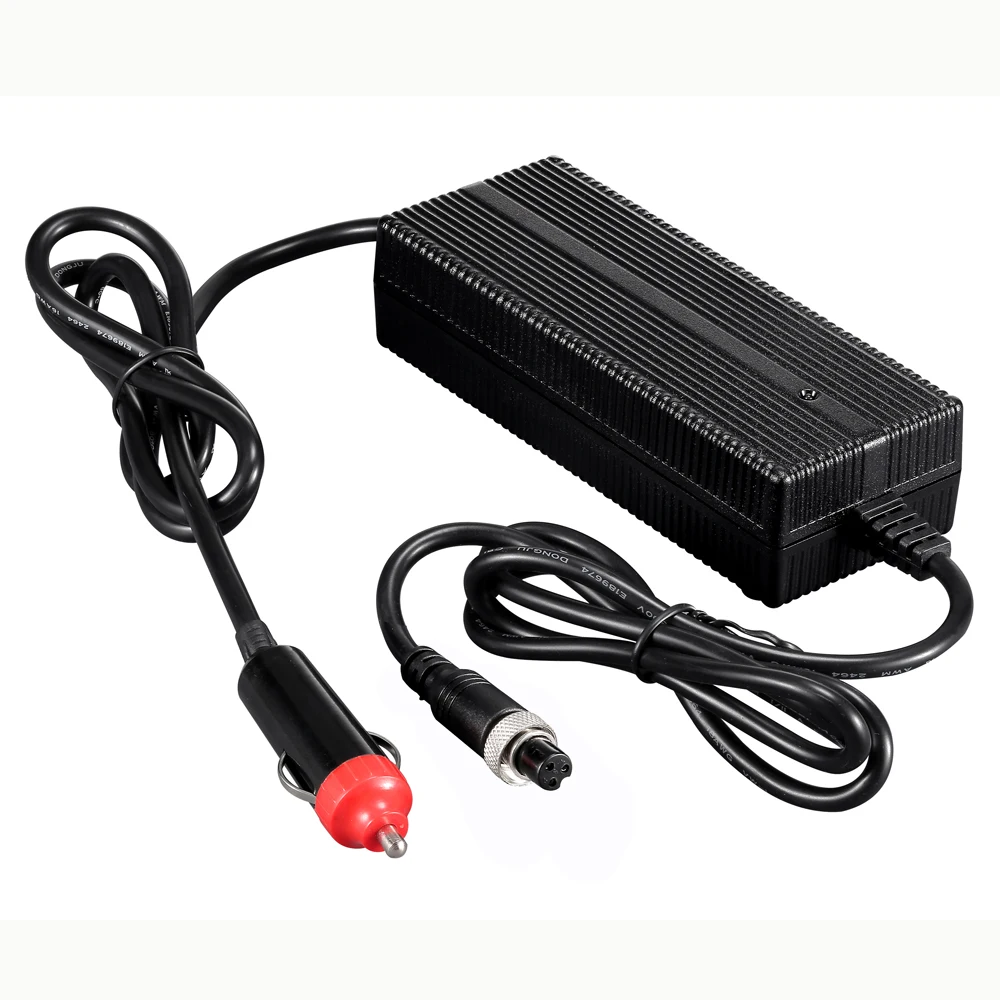

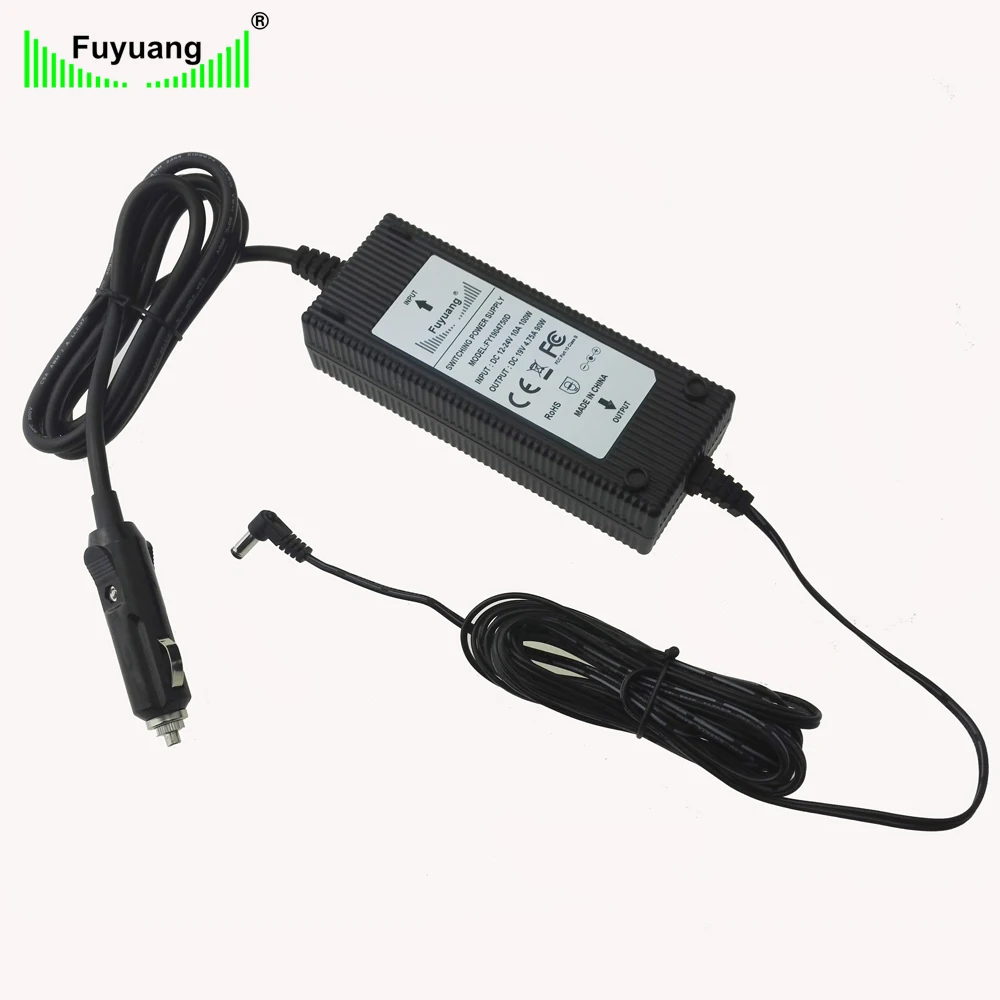

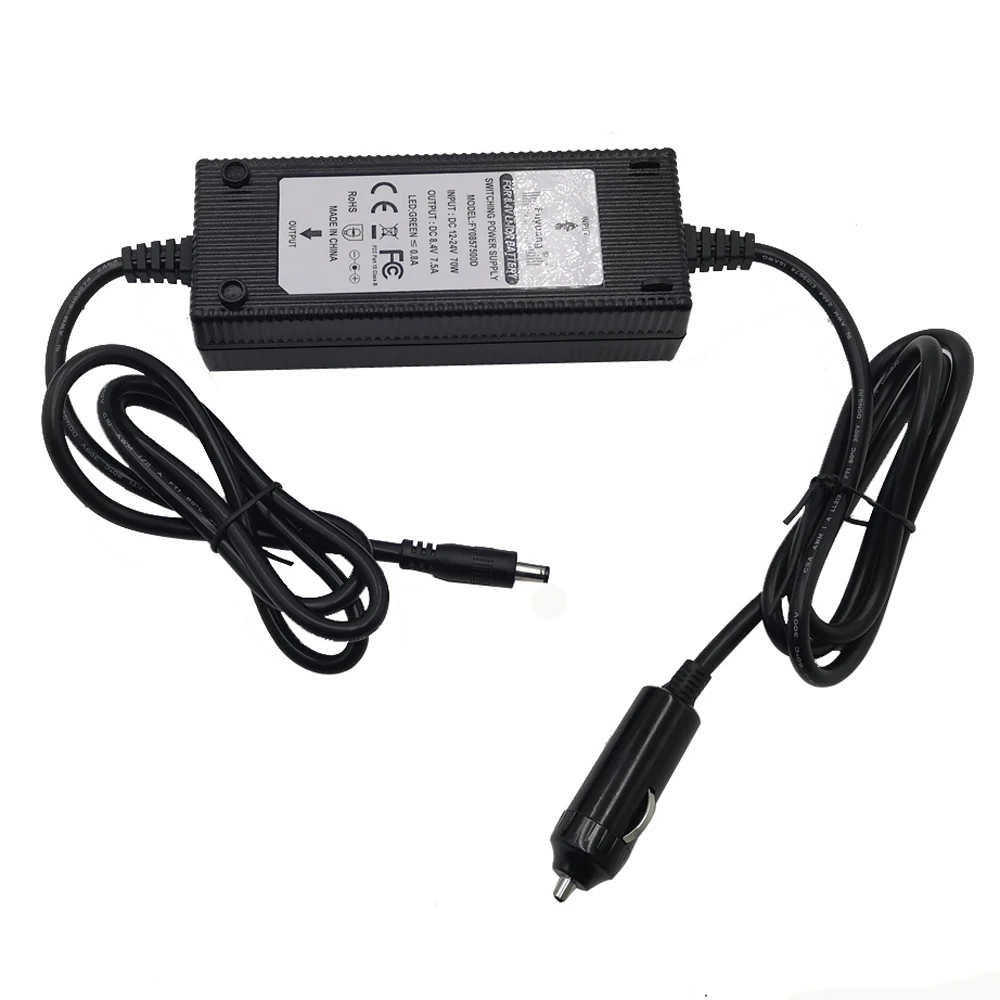

More Pictures:
Customize Input Connector and Output Connector as per your needs
Application:
Based on 25 years' engineering experience, we specialized in 60-500W high-power power supply products. Our power adapter,battery charger and LED power supply are widely used in battery pack (Lithium battery, LifePO4 battery, Lead acid battery, Ni-MH battery), iRobot Scooba, Roomba Vacuum Cleaner, E-bike, Electric Golf Cart, Electric Vehicle, Electric Toys, Power tools, Motor, Massage, Equipment, Monitoring System, Beauty instruments, medical instruments, Safety Security Products, Humidifier, Water-pump, Wheel Chair, Self-balance Scoober, Air Cleaner, Print Device, Precise Digital Measuring Apparatus, Audio Amplifier, LED Lighting, Digital Communication Products, LCD, LED Display ,etc
Production Capability:
Certifications:
Certifications File No:
- UL file No.:Power Supply: E304160 ; Waterproof LED driver -E343215 Check here:www.ul.com
- TUV/GS file No.:S1 50224721& S150205925 & S150203696 & S1 50272098& S1 50278124& S1 50270517 Check here:www.tuv.com
- SAA file No.:ESO110651(replace of Q061232)& SAA131909EA & SAA130561 & EAE1308371 Check here https://equipment.erac.gov.au/Public/
- C-tick file No.:N17653 & N136, Check here: http://www.cotek.sg/approval.html
- PSE file No.:JD50195547 & JD50248227 & JD 50287481 Check here: http://www.certipedia.com
- EK file No.:HU10419-7001A Check here: www.ktc.re.kr,
- KC file No.:HU10419-9002A Check here: www.ktc.re.kr
- CE file No.:E0604412-01&S1403017 Check here:www.usai.cn
- RoHS file No.:CANEC1313005401 Check here: http://rsts.cn.sgs.com/zh-cn/cheres_cn.asp
- CCC file No.:2014010907681379 Check here: http://www.cnca.gov.cn
- CB Certification No.:JPTUV-042130&JPTUV-037849&DE 2-014922&DE 2-017489 Check here:www.tuv.com
Buying Guides:
The range of li-ion battery charger we can make
| Battery Qty (cell) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| Max charging voltage(V) | 4.2 | 8.4 | 12.6 | 16.8 | 21 | 25.2 | 29.4 | 33.6 | 37.8 | 42 | 46.2 | 50.4 | 54.6 | 58.8 |
| Max charging current(A) | ≤10A | ≤8.5A | ≤7.5A | ≤6.5A | ≤5.5A | ≤5A | ≤4.5A | ≤4A | ≤3.6A | |||||
The range of lifepo4 battery charger we can make
| Battery Qty (cell) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Max charging voltage(V) | 3.65 | 7.3 | 10.95 | 14.6 | 18.25 | 21.9 | 25.55 | 29.20 | 32.85 | 36.5 | 40.15 | 43.8 | 47.45 | 51.1 | 54.75 | 58.4 |
| Max charging current(A) | ≤10A | ≤9.5A | ≤8.5A | ≤7.5A | ≤6.5A | ≤6A | ≤5A | ≤4.5A | ≤4A | ≤3.5A | ||||||
The range of Lead acid battery charger we can make
| Battery Qty (cell) | 1 | 2 | 3 | 4 |
| Max charging voltage(V) | 14.5 | 29 | 43.5 | 58 |
| Max charging current(A) | ≤10A | ≤7.5A | ≤5A | ≤3.5A |
Packaging & Shipping
