Карбоновые велосипедные рамы LightCarbon 27 5 plus 29er для пересеченной местности с полной подвеской
- Категория: Велосипедная рама >>>
- Поставщик: Xiamen,Lightcarbon,Composite,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.88 $* | 0.51 $* |
| Aug-19-2025 | 0.65 $* | 0.25 $* |
| Jul-19-2025 | 0.38 $* | 0.47 $* |
| Jun-19-2025 | 0.7 $* | 0.90 $* |
| May-19-2025 | 0.61 $* | 0.28 $* |
| Apr-19-2025 | 0.42 $* | 0.33 $* |
| Mar-19-2025 | 0.31 $* | 0.66 $* |
| Feb-19-2025 | 0.85 $* | 0.6 $* |
| Jan-19-2025 | 0.72 $* | 0.58 $* |
Характеристики
Products Description

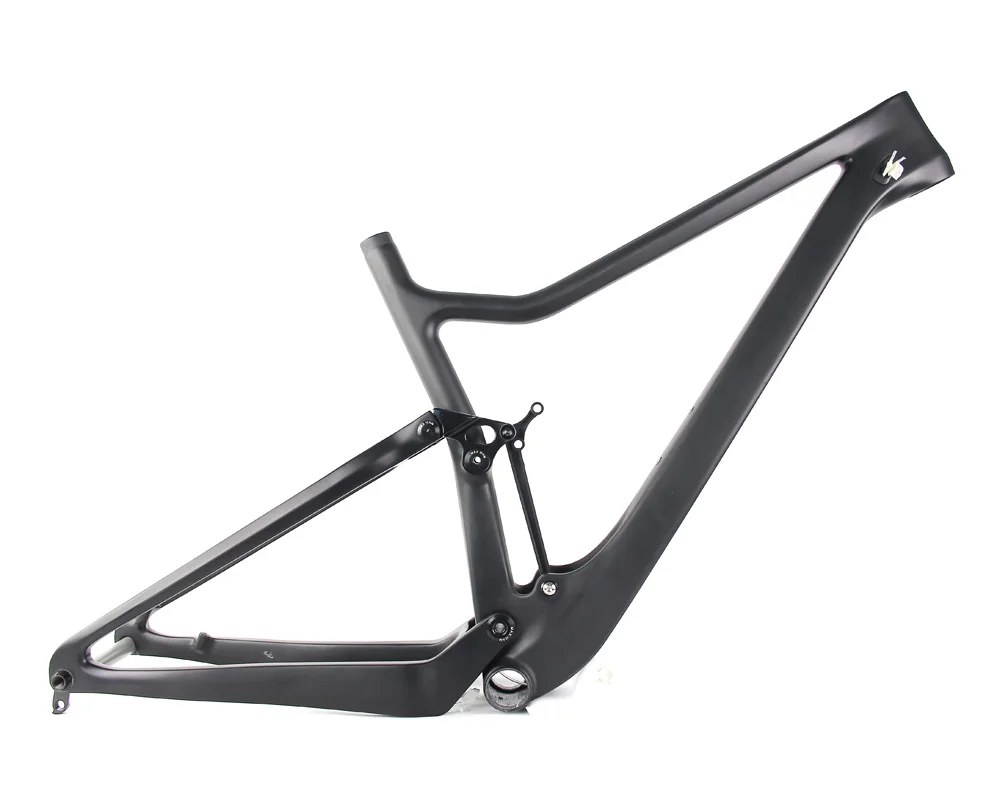

LightCarbon 27.5plus 29er Cross Country Full Suspension Mountain Carbon Bike Frames LCFS911
- Carbon 650B plus/ 29er full suspension XC frame
- 165*38mm or 165*40mm rear shocks
- rear travel 100mm, front travel 100~120mm
- 12*148mm boost thru axle
- 165*38mm or 165*40mm rear shocks
- rear travel 100mm, front travel 100~120mm
- 12*148mm boost thru axle
Frame | LightCarbon New 27.5plus 29er cross country mountain bike frame |
Material | High modulus Toray T700 carbon fiber |
Size | 15.5'', 17.5'', 19'' (Small, Medium, Large) |
FrontTravel | 100~120mm |
Rear Travel | 100mm |
Headtube | Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB) |
Weight | 1980g/size 17.5'' |
Seatpost Diameter | 31.6mm(34.9 clamp)- Droper seat post insert length 15.5--150MM 17.5-180MM 19--210MM |
Bottom Bracket | Press Fit BB92 |
Max Tire Clearance | 27.5er*2.8'' or 29er*2.35'' |
Max Compatible Chainring | 34T |
Brake Type | Post Mount Disc brake 160mm (Not compatible with 4 pistons brakes, Eg: Magura M5 and Shimano Deore 4 pitons brakes) |
Rear Shock | Mount 165*38mm or 40mm shocks get 100mm travel -Up M8*22 mm/down M10*54mm hardware compatible (compatible with standard mount and trunnion mount) |
Dropout | Thru Axle 12*148mm |
Test Standard | ISO4210 |
Warranty | 2 years |
Geometry
S | M | L | |
SEATPOST INSERT LENGTH | 150mm | 180mm | 210mm |
REACH | 393.3mm | 420.9mm | 454.2mm |
TOP TUBE LENGTH, HORIZONTAL | 567mm | 597mm | 630mm |
STACK | 592mm | 592.3mm | 601.3mm |
WHEELBASE | 1122.5mm | 1155.5mm | 1186.7mm |
CHAINSTAY LENGTH | 443mm | 443mm | 443mm |
FRONT CENTER | 681.6mm | 718.6mm | 745.7mm |
BB DROP | 36mm | 36mm | 36mm |
BB HEIGHT | 339mm | 339mm | 339mm |
SEAT TUBE ANGLE | 73° | 73° | 73° |
HEAD TUBE ANGLE | 68° | 68° | 68° |
SEAT TUBE LENGTH | 410mm | 440mm | 490mm |
HEAD TUBE LENGTH | 95mm | 95mm | 105mm |
BIKE STANDOVER HEIGH(29“*2.35”) | 710mm | 733.5mm | 756mm |
FORK RAKE/OFFSET | 51mm | 51mm | 51mm |
FORK LENGTH, FULL | 502mm | 502mm | 502mm |
TRAIL | 105mm | 105mm | 105mm |
LCFS911 full internal cable routing
Technology & Test
Who is LightCarbon?
Xiamen LightCarbon Composite Technology Co., Ltd. is the leading manufacturer of carbon bike components in China.
Our main products are: carbon frames and carbon rims.
2012 – We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then we started developing and manufacturing of carbon frames and carbon forks.
2015 – We took shares of a carbon rim factory in Xiamen City, Fujian Province. At the same time, we set up international
LightCarbon team, handling international sales and after-sales service.
Since 2016, we started to exhibit in global bike exhibitions, including Eurobike, Interbike, Cosmo Bike, etc. And have established business relationship with many well-known brands. After 7 years fast development, now we have served customers in over 50 countries.
Our main products are: carbon frames and carbon rims.
2012 – We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then we started developing and manufacturing of carbon frames and carbon forks.
2015 – We took shares of a carbon rim factory in Xiamen City, Fujian Province. At the same time, we set up international
LightCarbon team, handling international sales and after-sales service.
Since 2016, we started to exhibit in global bike exhibitions, including Eurobike, Interbike, Cosmo Bike, etc. And have established business relationship with many well-known brands. After 7 years fast development, now we have served customers in over 50 countries.
Why Trust Us?
We have more than 20 engineers in our R&D Dept. Some of them have over 15 years experience in carbon frame bicycle industry, plus worked in OE factories for brands of Specialized, Cannondale, Pinarello etc... With the support of experienced R&D Dept., we are always in the leading for new products developing.
All of our carbon frames and rims are made of high modulus carbon fiber (Toray T700, T800 and T1000), and they are tested under new ISO4210 standard.
In addition, we raise the test standard up to 20% to do stricter testing. We never start mass production until our new products pass all the tests successfully.
Warranty: 2 years quality warranty is offered for all our carbon frames and forks, carbon rims and wheels.
At present, there are about 180 workers in our carbon rim factory, and about 150 workers in our carbon frame factory. Our current production capacity is:
carbon frame ---> 2000 sets/month
carbon fork ---> 3500 pcs/month
carbon rim ---> 4500 pcs/month
carbon wheel ---> 1000 pairs/month
All of our carbon frames and rims are made of high modulus carbon fiber (Toray T700, T800 and T1000), and they are tested under new ISO4210 standard.
In addition, we raise the test standard up to 20% to do stricter testing. We never start mass production until our new products pass all the tests successfully.
Warranty: 2 years quality warranty is offered for all our carbon frames and forks, carbon rims and wheels.
At present, there are about 180 workers in our carbon rim factory, and about 150 workers in our carbon frame factory. Our current production capacity is:
carbon frame ---> 2000 sets/month
carbon fork ---> 3500 pcs/month
carbon rim ---> 4500 pcs/month
carbon wheel ---> 1000 pairs/month
Exhibition
2019 LIGHTCARBON Eurobike Show
2019 Taipei Cycling Show
2018 Interbike E-bike Show
2018 Eurobike Show
2017 Italy Cosmo Bike Show
2017 Spain UNIBIKE SHOW
2016 Italy Cosmo Bike
2016 America Interbike show
......
2019 Taipei Cycling Show
2018 Interbike E-bike Show
2018 Eurobike Show
2017 Italy Cosmo Bike Show
2017 Spain UNIBIKE SHOW
2016 Italy Cosmo Bike
2016 America Interbike show
......
Product Packaging
Contact Us
Skype: Carol-LightCarbon
WhatsApp/Mob: 0086-18250750130
