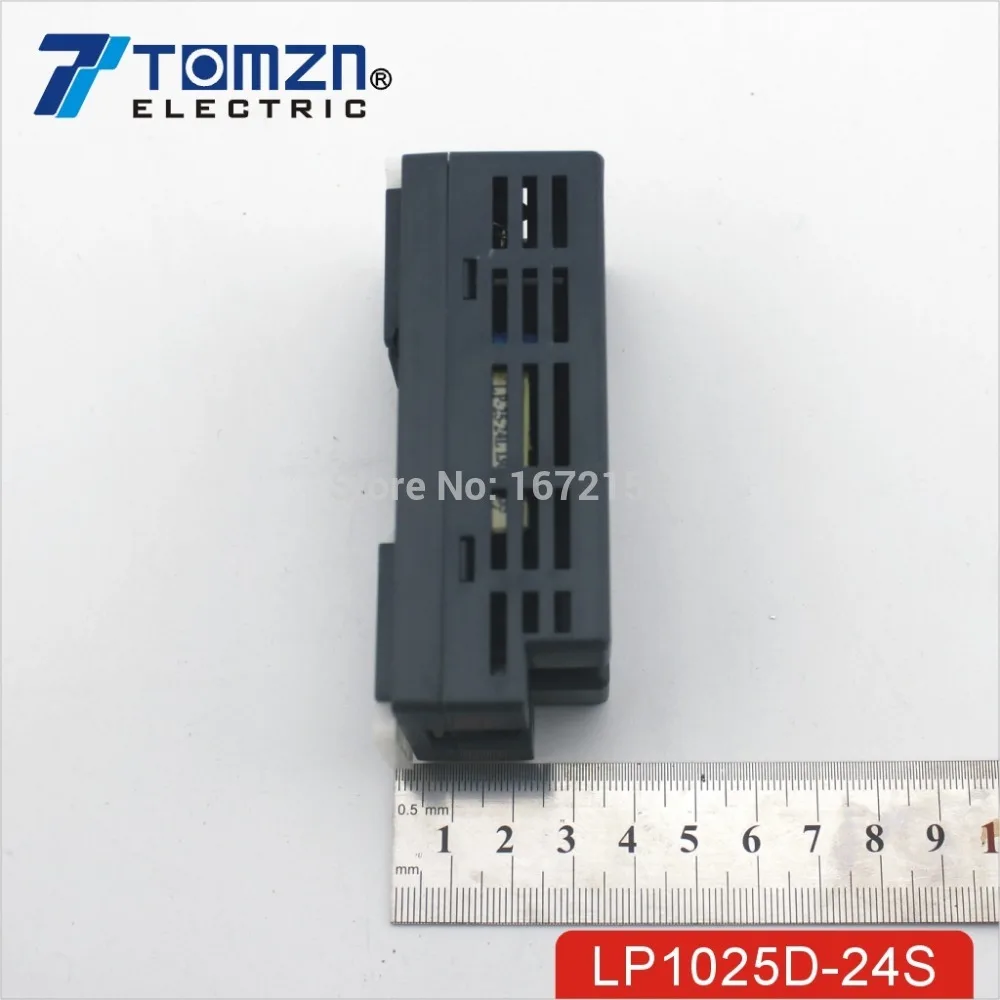

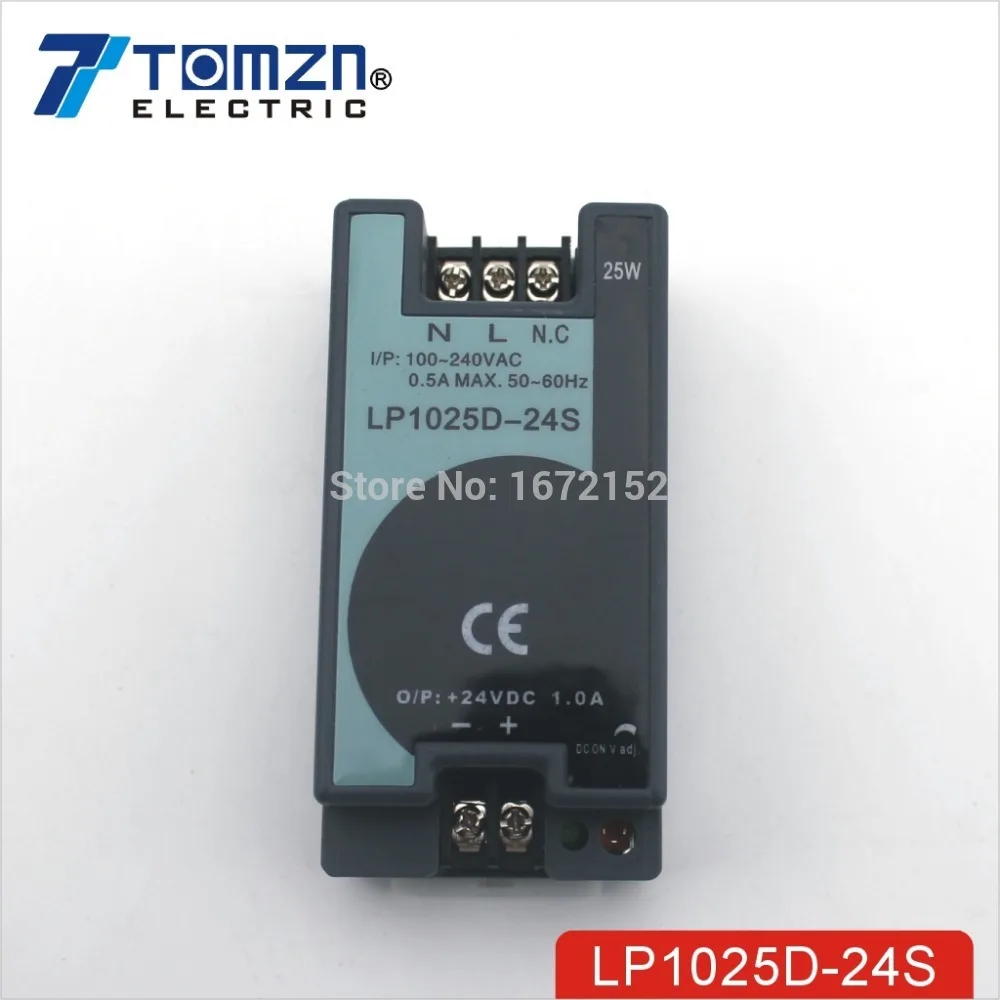

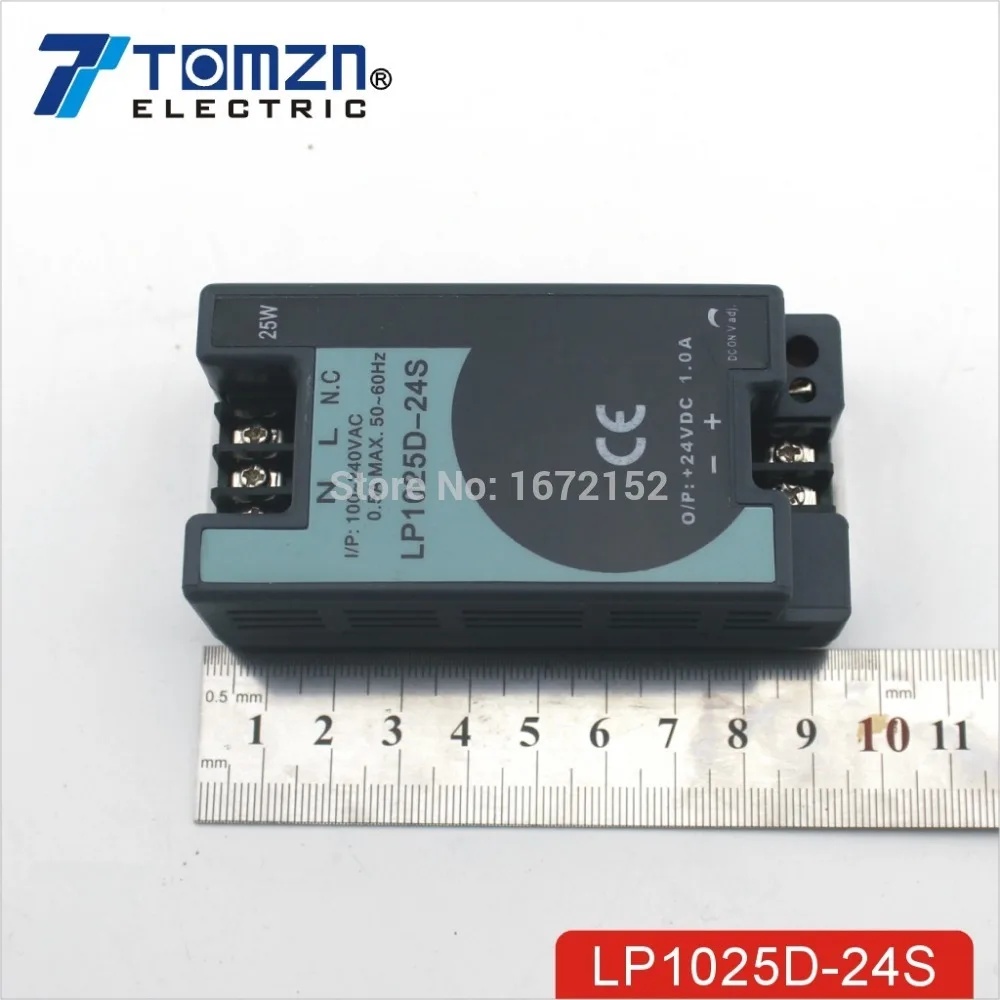

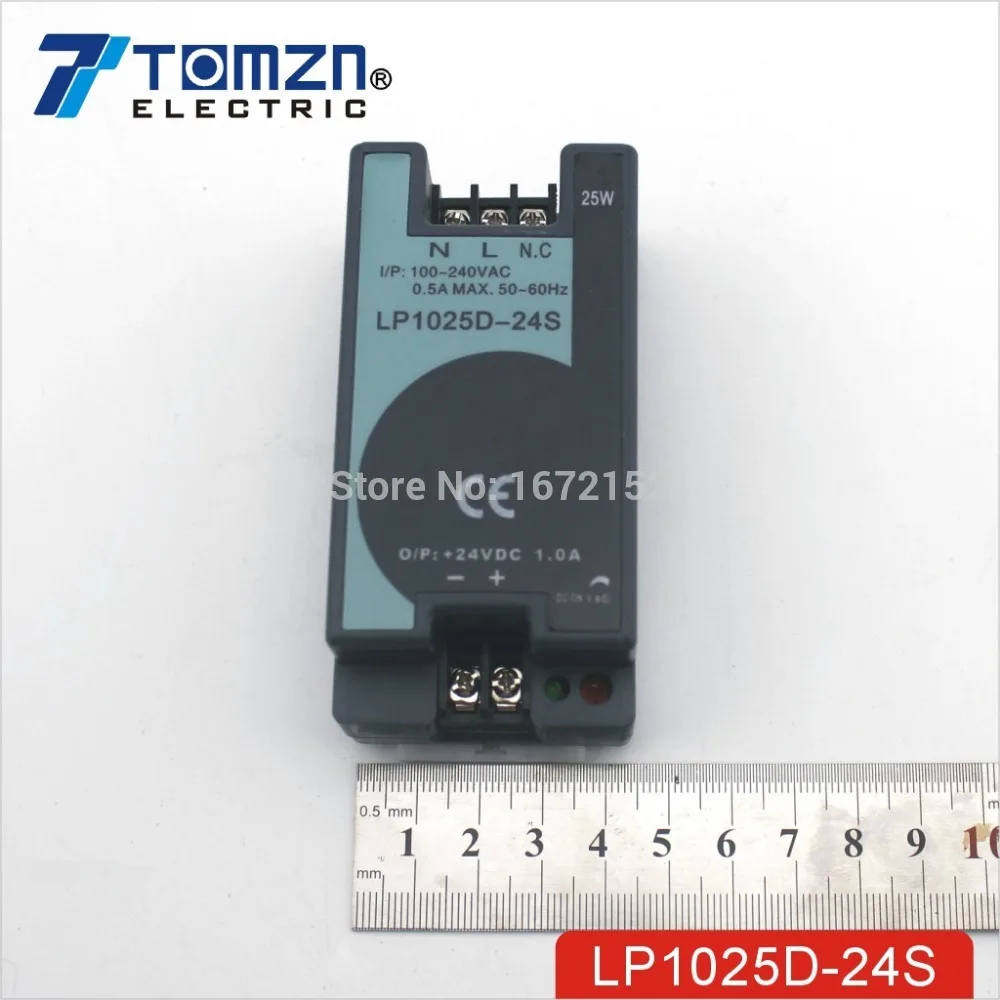

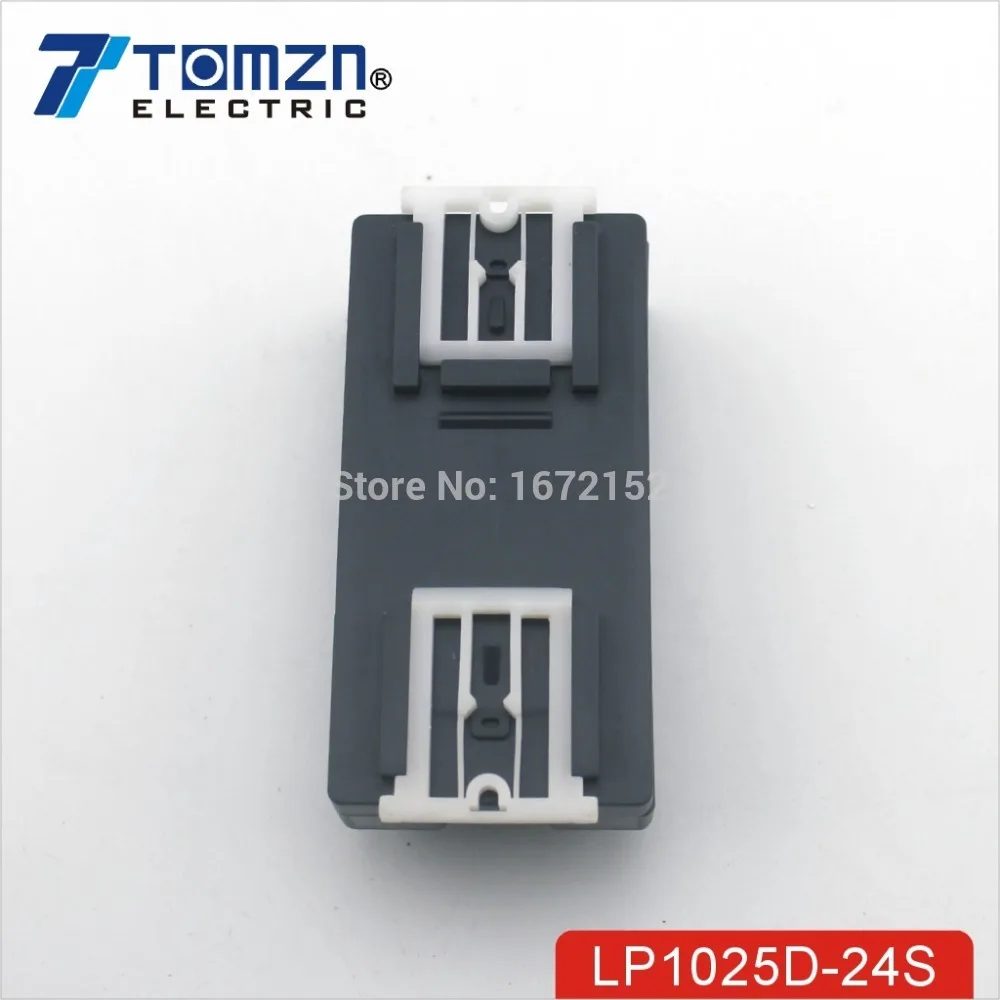

25 Вт 24 В 1 А мини-размер Din-рейка одиночный выход импульсный источник питания вход
- Категория: Power Supplies >>>
- Поставщик: Zhejiang,Tongzheng,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 11.57 $* | 11.1 $* |
| Jul-15-2025 | 9.28 $* | 9.15 $* |
| Jun-15-2025 | 11.82 $* | 11.77 $* |
| May-15-2025 | 11.99 $* | 11.36 $* |
| Apr-15-2025 | 9.16 $* | 9.56 $* |
| Mar-15-2025 | 11.5 $* | 11.61 $* |
| Feb-15-2025 | 11.48 $* | 11.51 $* |
| Jan-15-2025 | 11.42 $* | 11.3 $* |
Характеристики
Features:
Protection characteristic: short circuit/overload/overvoltage
High efficiency, high reliability and long service life
Natural air cooling
100% full load burning test
| Model | LP-25W-5 | LP-25W-12 | LP-25W-24 | |
| Output | DC output voltage | 5V | 12V | 24V |
| Output voltage tolerance | 2% | 1% | 1% | |
| Rated output current | 4A | 2.1A | 1A | |
| Output current range | 0~4A | 0~2.1A | 0~1A | |
| Output power | 20W | 25.2W | 24W | |
| Ripple and noise | 80mVp-p | 120mVp-p | 240mVp-p | |
| Adjustable DC voltage range | 4.75~5.5V | 11.4~13.2V | 20.5~26.5V | |
| Input | Input voltage range | 90~264VAC or 100~360VDC 47~63Hz | ||
| AC input current | 0.45A/115VAC 0.25A/230VAC | |||
| Efficiency | 78% | 83% | 85% | |
| Impulse current | Cold starting current: 10A/115VAC 20A/230VAC | |||
| Leakage current | <2mA/240VAC | |||
| Protection characteristic | Overload protection | 110%~150% | ||
| Protection mode: cut off output and restart | ||||
| Overvoltage protection | 5.75~6.75V | 13.8~16.2V | 27~30V | |
| Protection mode: cut off output and reset automatically | ||||
| Environment | Work temperature, humidity | -10~+50;20%~90 %RH | ||
| Storage temperature, humidity | -20~+85;10%~95 %RH | |||
| Shock resistance | 10~500Hz,2G 10min./1 cycle,duration: 60min, each shaft | |||
| Safety | Voltage withstand capacity | Input-output: 2KVAC Input-earth: 1.5KVAC Output-earth: 0.5KVAC | ||
| Insulation resistance | Input-output, input-earth, output-earth: 100M Ohms/500VDC | |||
| Executive standard | Safety standard | Conforms to CE1012 | ||
| EMC standard | Design refer to FCC Part15 J Conduction Class B | |||
| Others | Weight | |||
| Package | ||||
| Outline size | 35*45*96mm(L*W*H) | |||
| Notes | 1. All parameters, except special situation, are measured under 230VAC voltage input and rated load at 25 . | |||
| 2. The ripple and noise voltage are measured in condition that capacitance of 0.1 and 47 are applied to ends of 12inch twisted-pair of 20MHz bandwidth oscilloscope. | ||||
| 3. The tolerance is the sum of setting voltage error, voltage and current regulation factor. | ||||
