Китай производитель питания переменного тока адаптер Выход 7 4 v 8 зарядное устройство для литий-ионного аккумулятора 1A 1000ma игрушка
- Категория: Charger >>>
- Поставщик: Shenzhen,Yinghui,Yuan,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-14-2025 | 0.90 $* | 0.90 $* |
| Aug-14-2025 | 0.80 $* | 0.76 $* |
| Jul-14-2025 | 0.72 $* | 0.50 $* |
| Jun-14-2025 | 0.8 $* | 0.76 $* |
| May-14-2025 | 0.35 $* | 0.81 $* |
| Apr-14-2025 | 0.32 $* | 0.23 $* |
| Mar-14-2025 | 0.77 $* | 0.1 $* |
| Feb-14-2025 | 0.97 $* | 0.95 $* |
| Jan-14-2025 | 0.18 $* | 0.64 $* |
Характеристики

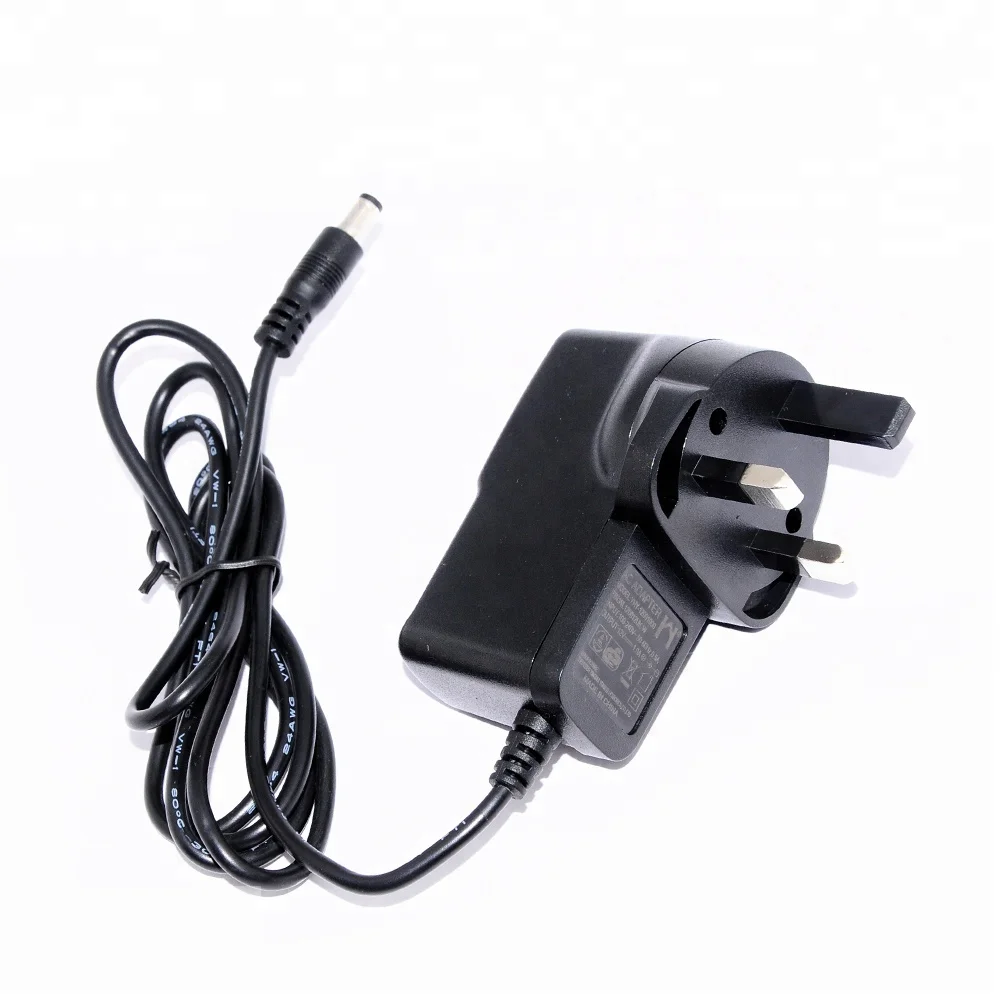

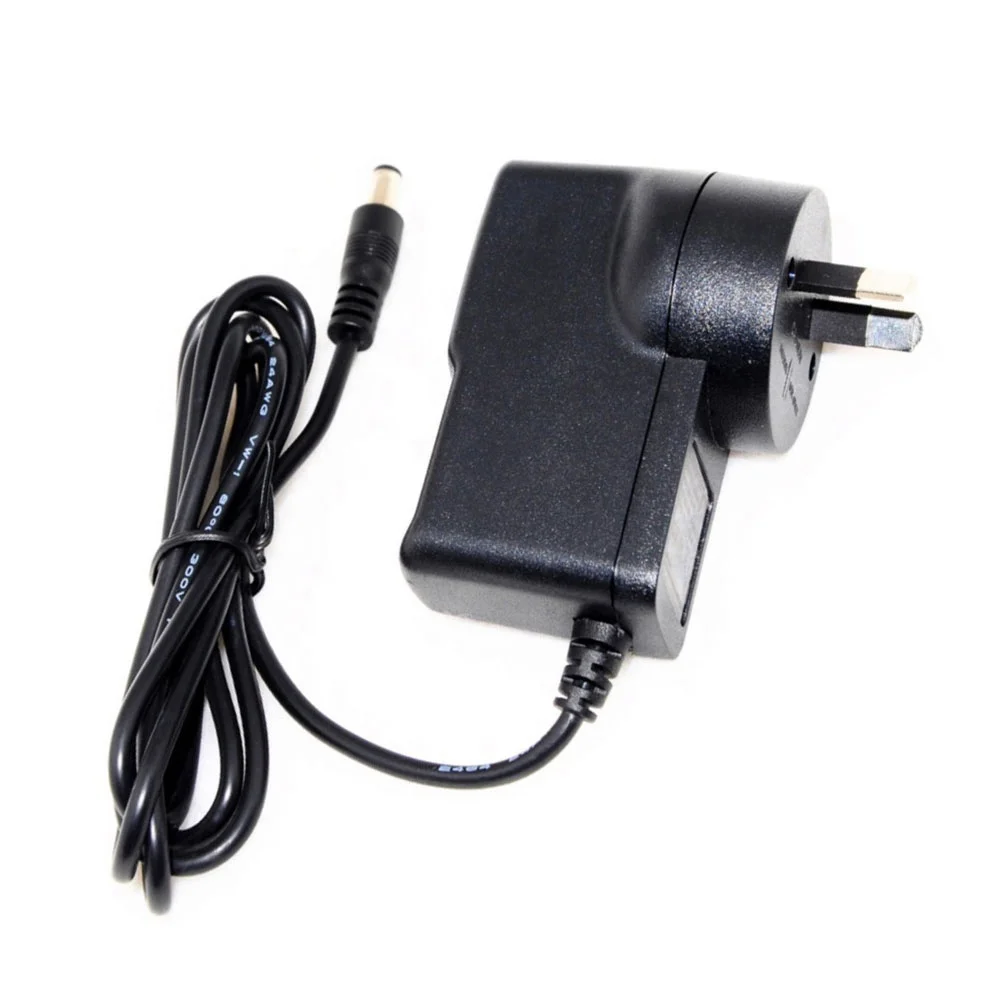

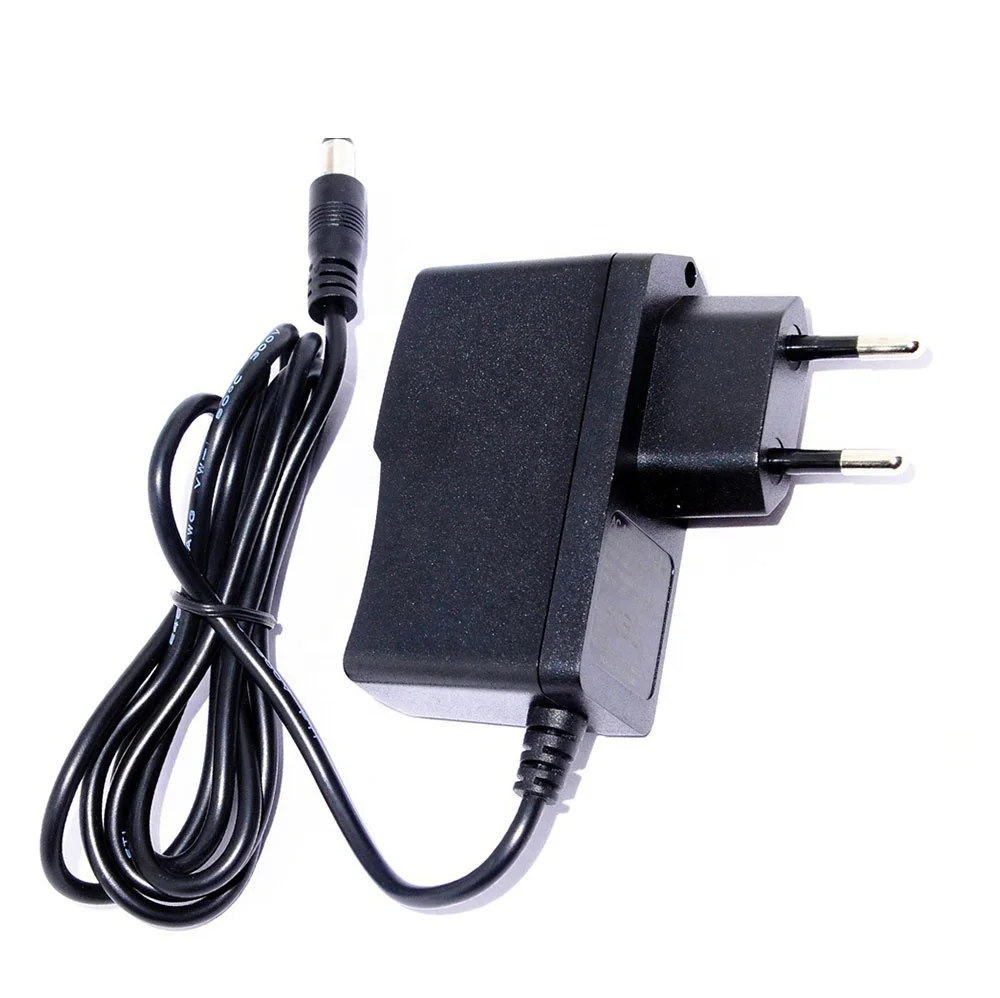

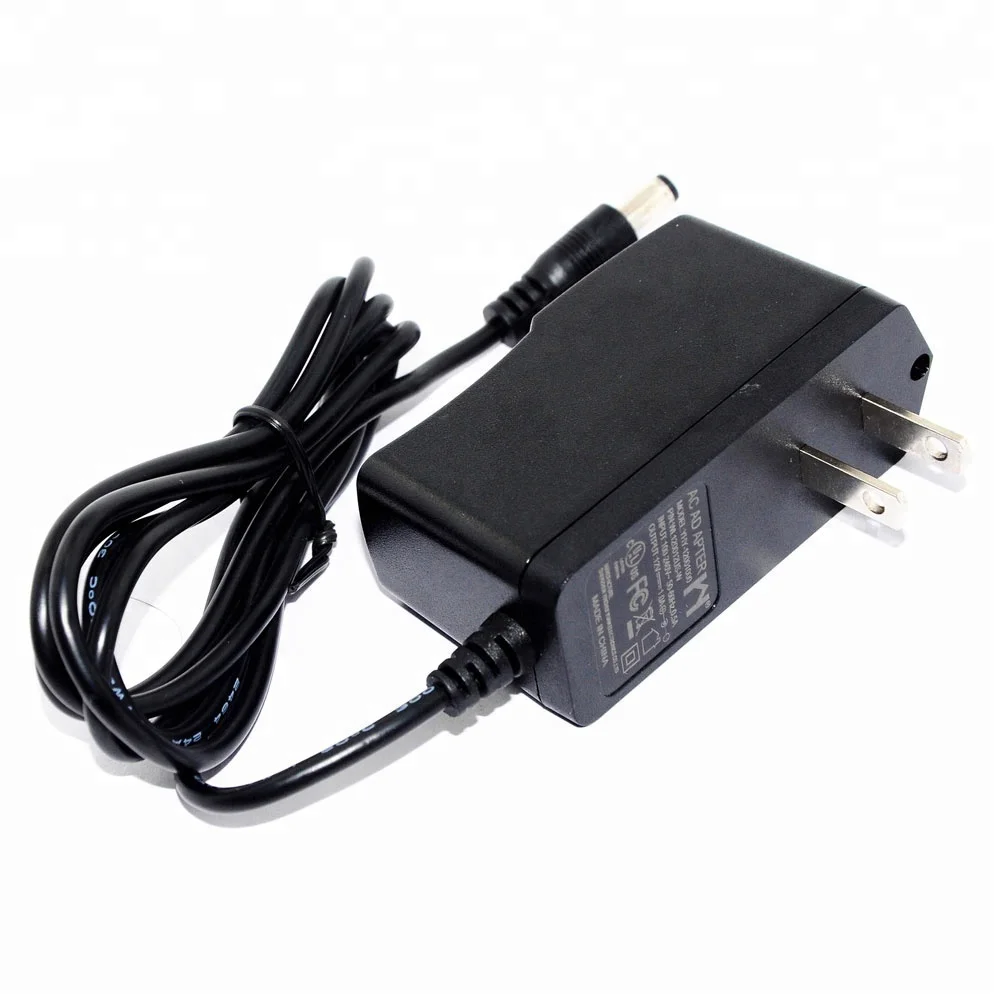

China manufacturer ac power adapter output 8.4v li-ion battery charger 1A for toy robot drone
Product Detials
| NO. | Items | Specification |
| Input Characteristics | Input voltage | 100-240V~, 50/60Hz |
| Min. Input current | 0.5A | |
| Output Characteristics | Max. Output Voltage | As below list |
| Max. Output Current | As below list | |
| Battery Capacity | 1000mAh Min | |
| Efficiency | 80% Min | |
| Power Indication | LED=Green: Fully charged | |
| LED=Red: In charging | ||
| Charging Supervision and Protection Mechanism | Over Voltage Protection | YES |
| Output Reverse Protection | YES | |
| CC CV | YES | |
| Envrionment | Operation Temperature | 32-140F |
| Operation Humidity | 20-85% | |
| Storage Temperature | 40-80F | |
| Storage Humidity | 10-95% | |
| Mechanical | Dimension | --- |
| AC Plug | EU US UK AU KR JP CN | |
| Weight | 110G | |
| Output Cable | 1.2m 2464 24AWG | |
| Connector | 5.5x2.1mm (Customizable ) | |
| Charge Instruction | ||
| 1. Make sure your AC supply source is 100-240V and your battery pack match with the battery requirement. | ||
| 2. Connect the charger to the AC outlet. LED=Green: it means power on and no battery connected. | ||
| 3. Connect DC output to battery pack terminals. LED turn into red. It means in charging. | ||
| 4. When LED turns Green, the battery pack is fully charged. You can charge next battery pack or switch off the power. | ||
| Notice | ||
| 1. Make sure your battery voltage match with your charger. | ||
| 2. Always place the charger in well-ventilated, dry environment and indoor use only. | ||
| 3. Never charge other type batteries except Li-ION/Polymer. | ||
| 4. Subject to change without prior notice, please contact us for the latest information. | ||
| 5. Indoor used only, never expose the charger to water such as rain and splash. | ||
| 6. Make sure good ventilation is provided when charger operation. Never place the charger near radiator, heat register or similar heat source when in charging. | ||
| Output Ratings | ||||
| Model | Output | Output Max. | Power Max. | DOE VI |
| (V) | (A) | (W) | ||
| YHY-0500YYYY | 5 | 0.1-1 | 5 | √ |
| YHY-0580YYYY | 5.8 | 0.1-1 | 6 | √ |
| YHY-0720YYYY | 7.2 | 0.1-1 | 7 | √ |
| YHY-0750YYYY | 7.5 | 0.1-1 | 7.5 | √ |
| YHY-0840YYYY | 8.4 | 0.1-1 | 8 | √ |
| YHY-0900YYYY | 9 | 0.1-1 | 9 | √ |
Company Information
Shenzhen Yinghui Yuan Electronics Co.,Ltd is a leading manufacturer of power supplies in China
-Since 2007
-Real Service From Real PeopleTM
-Global certifications,ISO 9001 Quality management
-More Than 2000 clients from all over the world
Our products are widely used by led lighting,3D Printer,Laptop,loudspeaker box,digital products,house-hold appliances,security products,etc
Certifications
Packaging & Shipping
Shipment:
- The delivery time is strarting from we confirm the payment.
- In case of delay the delivery,so hope you charge it as soon as possible .
- Exact lead time is based on your amounts and fact. so you'd better show me your exact qty,not uncertain
- Some delivery time as follow:
Qty
(pcs)
Delivery Time
(working days)
less than 100
5-7
100-800
7-10
800-3K
10-12
3K-10K
15-18
10K-20k
20-22
*Data is a reference for buyer, Specification situation will be given to you after asking us.
Remark
1.Samples (less than 10pcs) can be provied, lead time with 3days.
2.Please carefully check all the details before you take a order.
Our Services
- Your inquiry related to our products or prices will be replied in 24hrs.
- Well-trained and experienced staffs to answer all your enquires in fluent English
- OEM&ODM, any your custo mized lightings we can help you to design and put into product.
- Distributoership are offered for your unique design and some our current models
- Protection of your sales area, ideas of design and all your private information
