Ремень трансмиссии THREEV узкие

Категория: Rubber Belts >>>
Поставщик: Zhejiang,Sanwei,Rubber,Item,Co.,Ltd.

Цена:1,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	1.93 $*	1.73 $*
Jul-19-2025	1.75 $*	1.18 $*
Jun-19-2025	1.30 $*	1.69 $*
May-19-2025	1.14 $*	1.75 $*
Apr-19-2025	1.24 $*	1.95 $*
Mar-19-2025	1.22 $*	1.22 $*
Feb-19-2025	1.90 $*	1.75 $*
Jan-19-2025	1.47 $*	1.51 $*

Характеристики

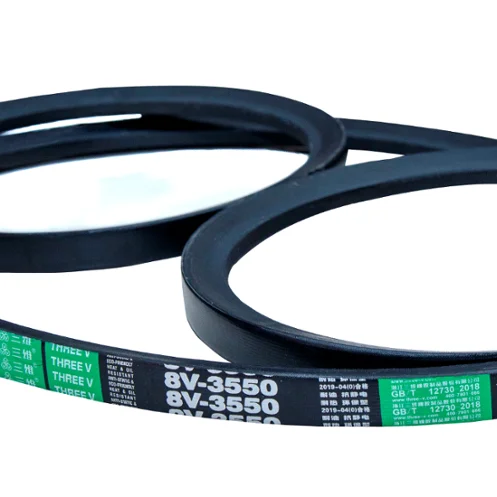

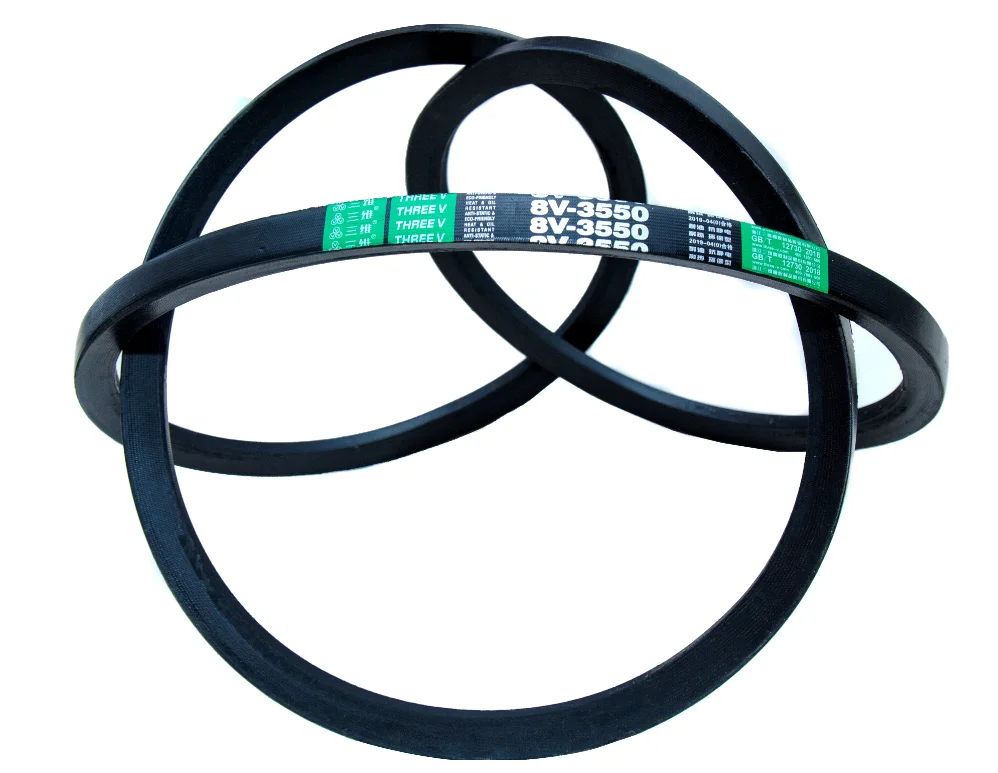

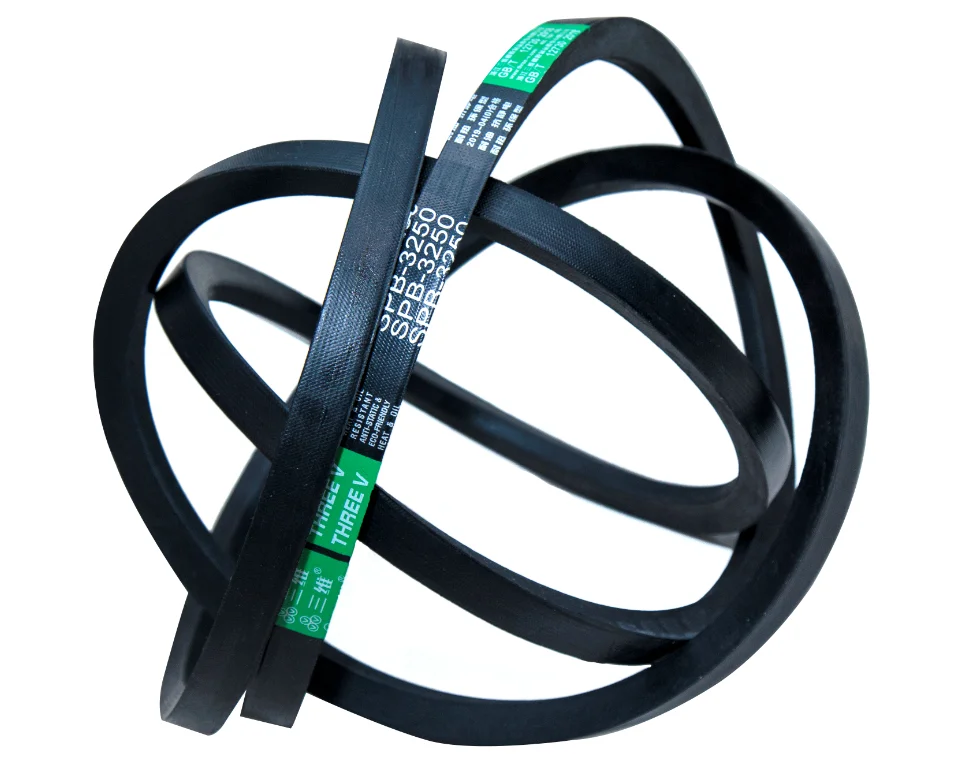

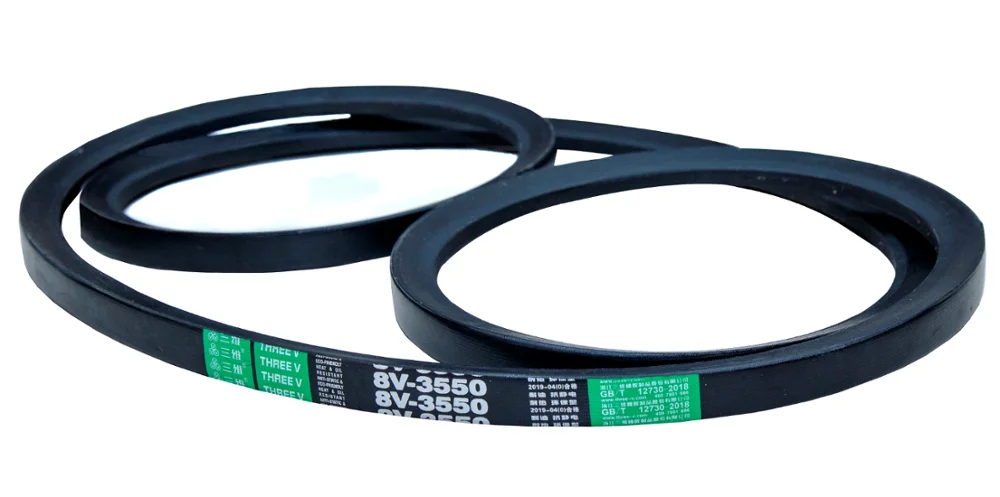

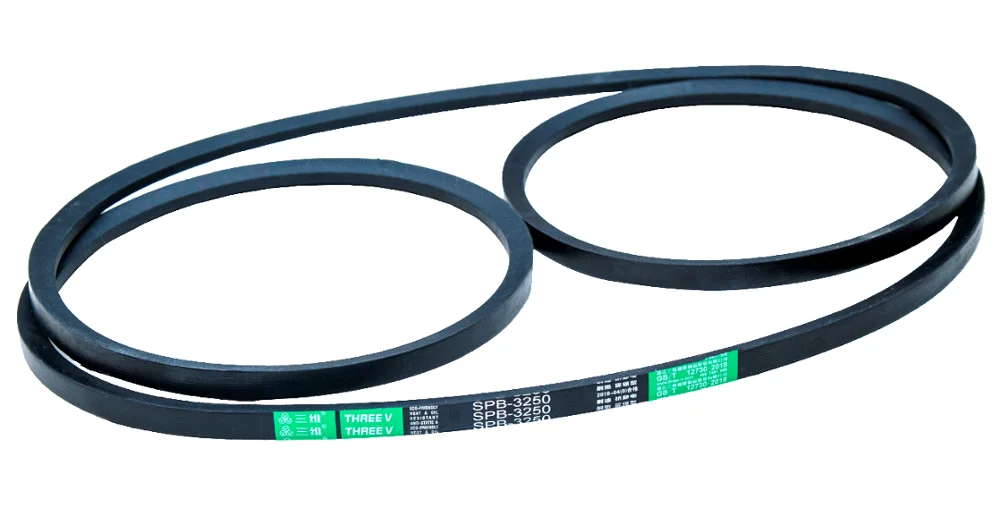

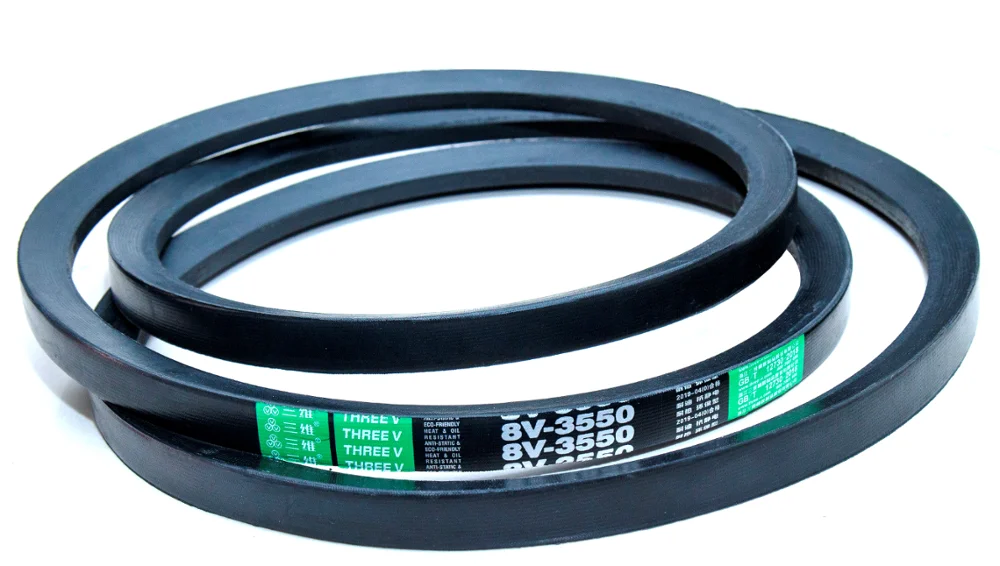

Wedge V-Belts and Narrow V-Belts 3V / 5V / 8V / SPZ / SPA / SPB / SPC

THREE V ANTI-STATIC / ECO-FRIENDLY USE CR MATERIAL Wedge / Narrow V-Belts are designed provides more tensile member support than classical V belts. Narrow belts handle an equivalent load, but with narrower face width and smaller diameters than the traditional V belts.

CONSTRUCTION:

①Special CR material dipped, more flexible 120° wide angle weave fabric ,anti-static and eco-friendly.
②Special adhesion rubber, mainly use CR material.
③Half hard Polyester Cord , higher strength ,lower elongation .
④Special compression rubber , mainly use CR material .

FEATURES:

◆high speed transmission , energy saving , and compact design.
◆anti-static , oil / heat resistance and electrical conductivity.
◆working temperature -22℃ ~ +100℃.
◆transmission power increased30-50% than classical v belt.
◆recommended max. transmission speed 40m/s.
◆transmission efficiency over 95% .

◆Longer service life.

APPLICATION:

They are primarily used in industrial drives,mining, crushing,metallurgy,textile,lifting and other industrial equipment.

Classical Belts are recommended in special applications such as V-flat drives. These belts are advantageous where reverse idlers have to be used, because of the smaller thickness.
