KEY words: corrugated flat pipe, flat drainage pipe, HDPE flat tube for drainage, quick response drainage pipe

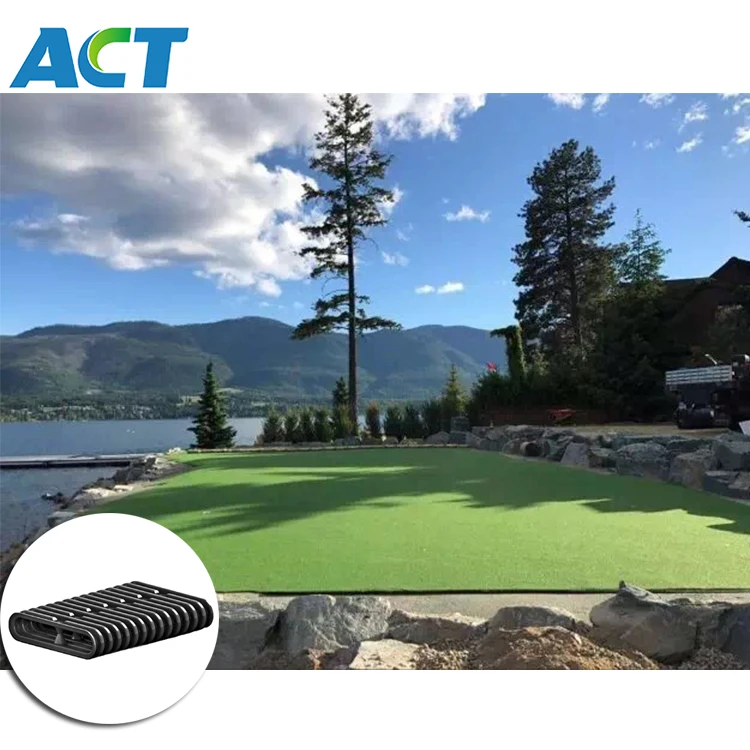

ACT Tube X158 flat drainage pipe offers quick drainage response and is ideal for time-critical applications such as high-traffic roads and track beds. Other popular uses include building foundation drainage, golf courses, athletic fields, airport runways, railroad truck ballast, and perimeter "curtain" drainage for landfills and leaching fields.

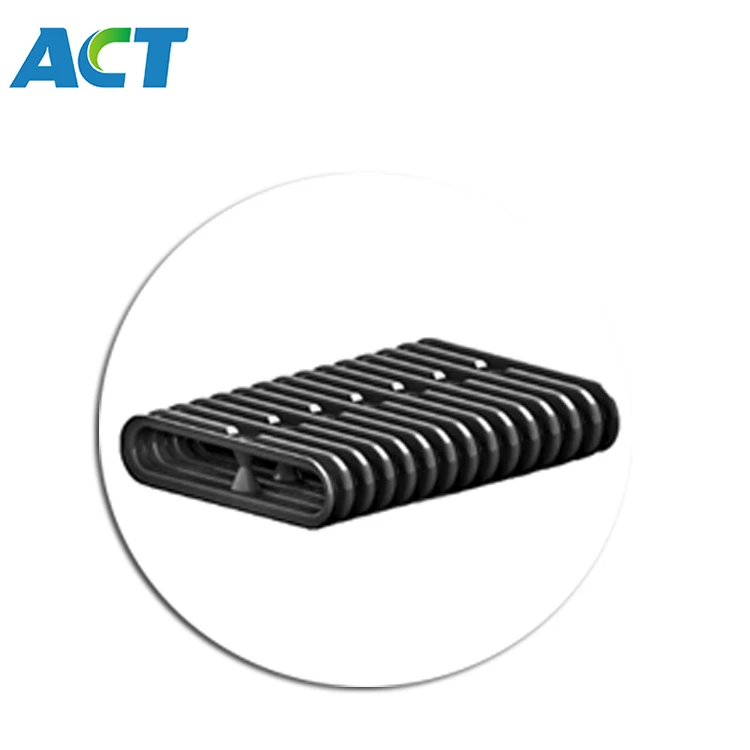

Corrugated Drainage flat pipe - QUICK RESPONSE drainage system for permeable subbase
ACT tube X flat pipe drainage system is an effective and dimensional stable solution for subsurface drainage, which can be used in a wide range of applications including sports field, golf green and fairway, highway engineering, airport, building foundation and retaining walls etc.
Material
Made from durable HDPE

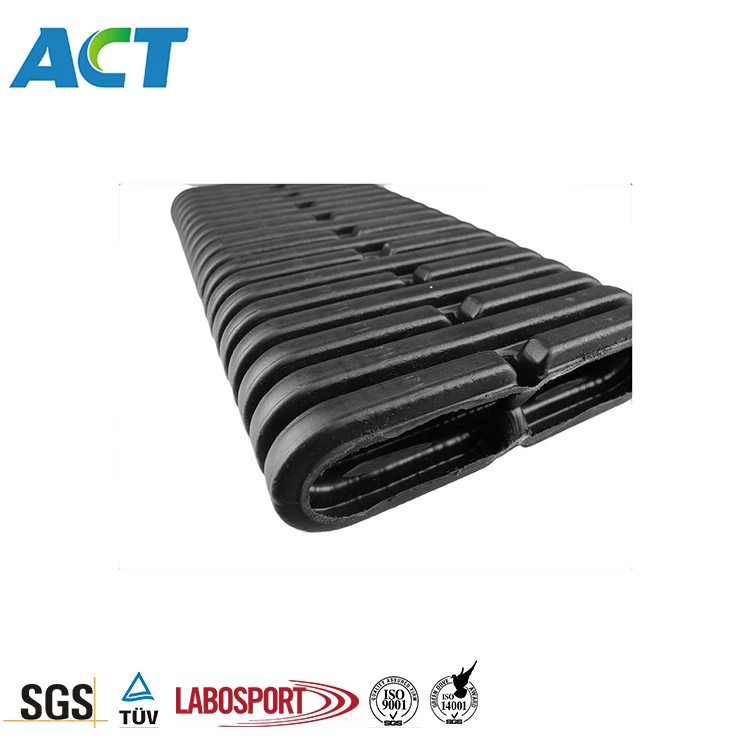

The flat pipe is made from HDPE and slotted to allow rapid water infiltration and discharge. Lateral pillars give a significant
advantage in horizontal and vertical compressive strength. It is recognized as an effective and cost efficient alternative to
conventional round pipe drainage system.
advantage in horizontal and vertical compressive strength. It is recognized as an effective and cost efficient alternative to
conventional round pipe drainage system.

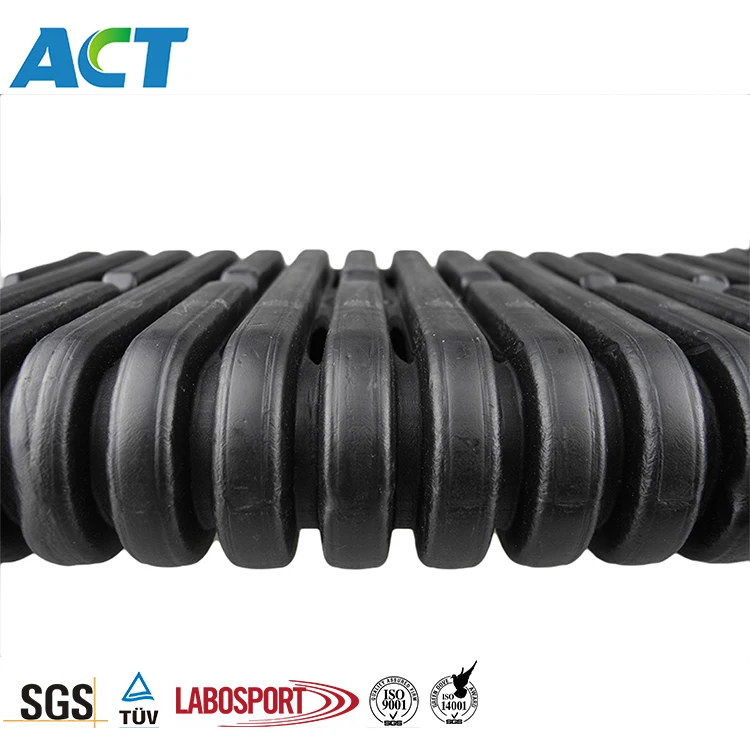

Structure
TUBE X158 is probably the most effective and consistent sub-surface drainage solution.
The flat pipe is made from HDPE and slotted to allow rapid water infiltration and discharge. Lateral pillars give a significant
advantage in horizontal and vertical compressive strength. It is recognized as an effective and cost efficient alternative to
conventional round pipe drainage system.
advantage in horizontal and vertical compressive strength. It is recognized as an effective and cost efficient alternative to
conventional round pipe drainage system.
Low installation cost
Lower installation cost in terms of trench excavation and backfill materials.
A complete system with all necessary fitting

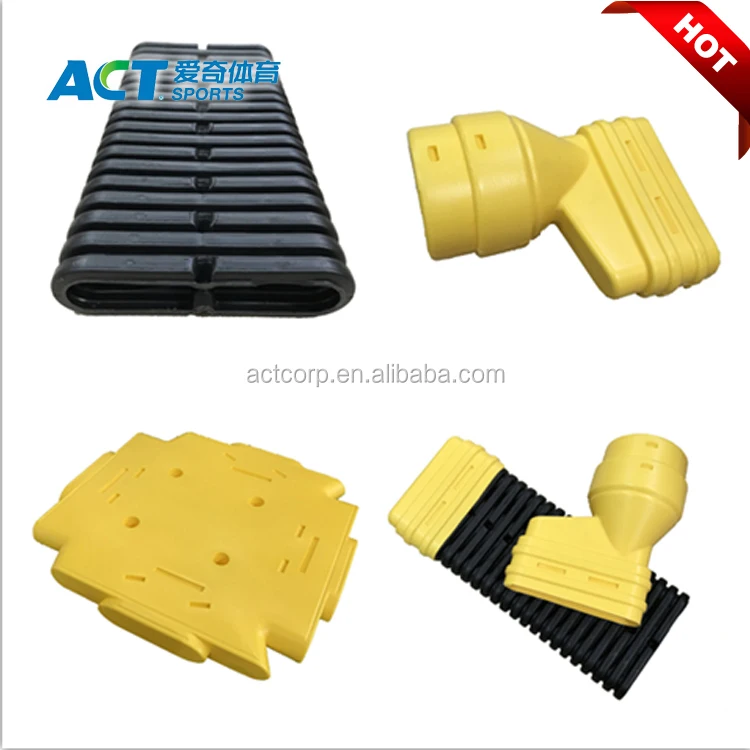

We provide all necessary fittings that you need for the whole system including:
4-way joint
Outlet (connect to round tube)
End caps
Save labor cost during installation
Narrow or trenchess installation to guarantee the lowest installation labor cost as possible.

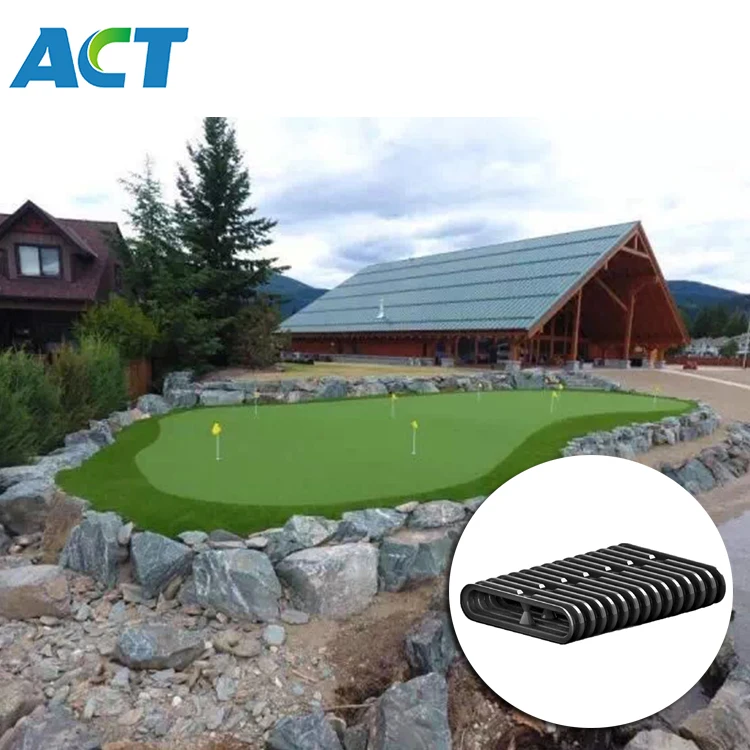

Application
Mining ;Retaining walls; Landfills; Sports fields;
Landscaping fields; Roadside edge drains
Golf courses
Landscaping fields; Roadside edge drains
Golf courses
Packing in coil
Flat drainage pipe is packed in coil to save up space. With loading capacity of up to 3300meter for one 20ft container, our flat pipe can save your cost from the begining.
TECHNICAL DATA | ||||||
Properties | Specifications | Unit | Standard | |||
Pipe Width | 158 | mm | ||||
Pipe Length | 100 | m | ASTM D2122 | |||
Pipe Height | 42 | mm | ASTM D2122 | |||
Slot Size | 3.0 × 25 | mm x mm | ASTM D2122 | |||
Horizontal Compressive Strength | > 200 | kPa | ASTM D2412 | |||
Vertical Stiffness (@5% deflection) | > 1000 | kN/m 2 | AS2439 | |||
