Характеристики

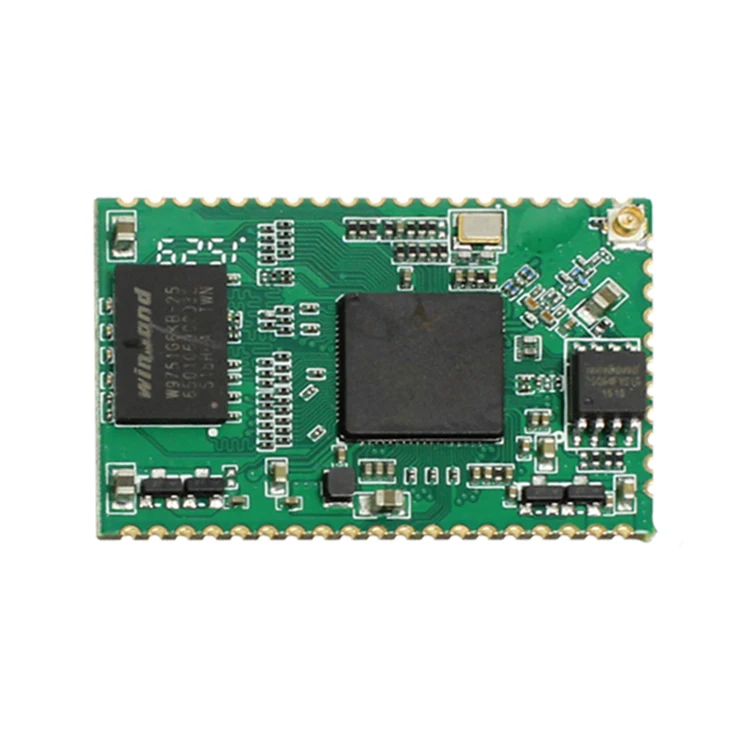

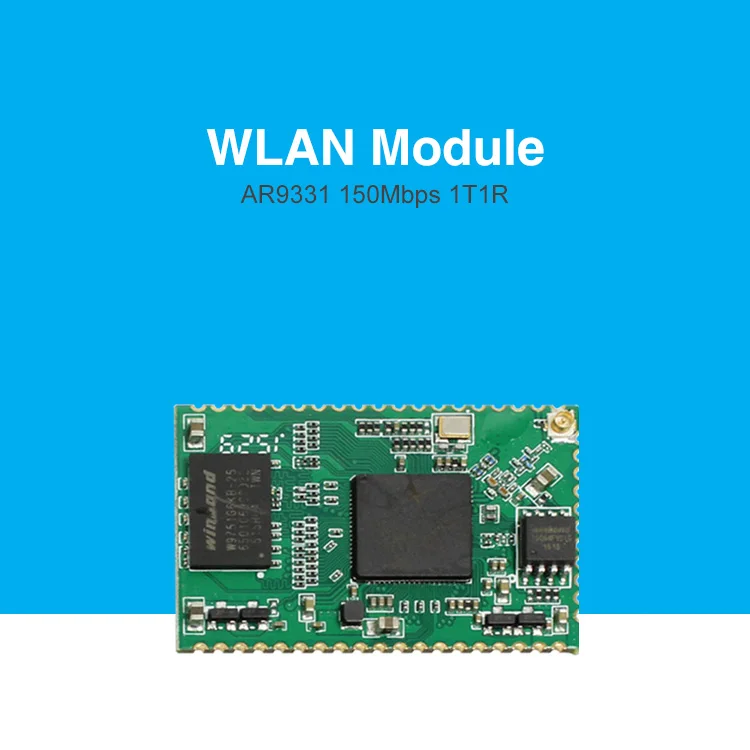

Half Hole AR9331 WLAN Module
ComIoT M1000 is a complete stamp size 2.4GHz WLAN module suitable for low power, stable performance and highly intergrated Industrial AP and embedded products.
It delivers rich wifi functions in one single PCB.
It requires nothing more than 3.3V power input to power up and operating.
It supports AP and Client modes which is ideal for low cost WIFI end product design and solution.
Stable Performance - Powerful and Stable Performance Qualcomm AR9331 SoC.
2.4GHz WiFi - 802.11n data speed up to 150Mbps.
U.FL Connector - Common connector type for WiFi Antenna.
Rich Interfaces - Support Ethernet, UART, USB, SPI
Low Power Consumption - Less than 2W.
Hardware Specifications
CPU | Qualcomm AR9331 | ||
Wireless Frequency | 2.4GHz | ||
WiFi Standard | 802.11b/g/n | ||
Wireless Modulation | 11n: MCS0~7 OFDM 11g: BPSK, QPSK, 16QAM, 64QAM and OFDM 11b: DBPSK, DQPSK, CCK and DSSS | ||
Form Factory | Half Hole | ||
Interface | Ethernet, UART, USB, SPI | ||

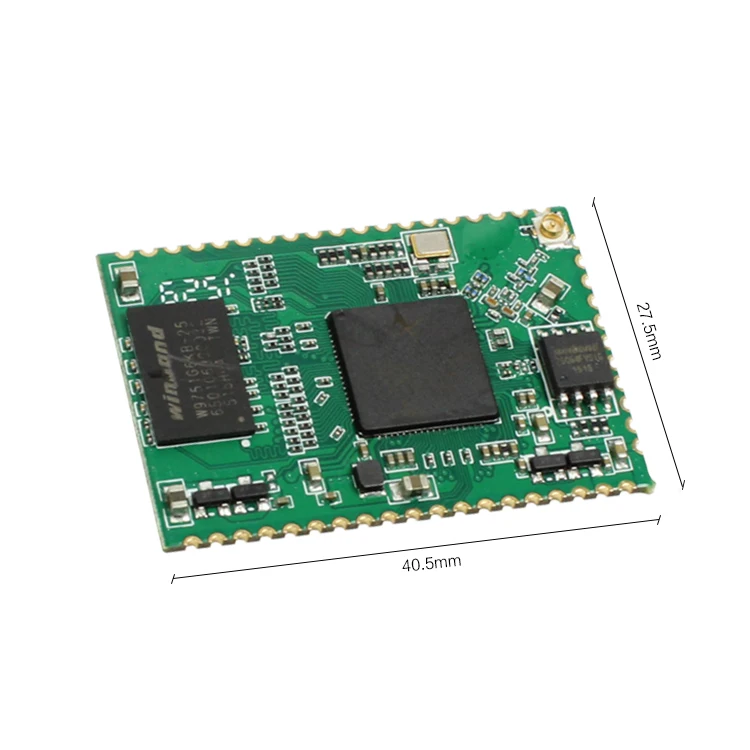

PCI Dimension | 40.5 x 27.5 x 2.5 (typical) | ||
Antenna | U.FL Connector for External Antenna | ||
Operating Temperature | -10°C to 70°C | ||
Working Voltage | 3.3V +/-10% | ||
GPIO Voltage | 2.5V +/-10% | ||
Others | RoHS Compliance | ||
