2265HPL neodymium 15 inch woofer speaker unit price
Overview
2265HPL Differential Drive 15" woofer is a capable, durable, touring-quality PA speaker. Compared with traditional driver designs, patented Differential Drive employs a pair of inline voice coils in separate magnetic gaps instead of a single voice coil-gap configuration.
Available space is more effectively utilized, and heat is removed from the motor structure more efficiently.
Specifically, the voice coils are wound reversely and are immersed in magnetic fields of opposite polarity.
This ensures reduced magnetic leakage flux and focuses more magnetic energy in the gaps where it is needed.
Features
A. Neodymium magnet,
B. Aluminum frame
C. Dual voice coil
D. Differental Drive
E. Imported paper cone
F. Light weight
2265HPL neodymium driver/woofer suitable for the following speakers:
VRX915M monitor/ pro audio
SRX715 pro speaker/speaker box
SRX725 dual 15" professional speaker/ pro audio
VRX915M monitor/ pro audio
SRX715 pro speaker/speaker box
SRX725 dual 15" professional speaker/ pro audio
Specifications:
| 2265HPL neodymium woofer Specifications | |
| Nominal Diameter | 15" |
| Power Handling (RMS) | 800 Watts |
| Power Handling (max) | 1400 Watts |
| Impedance | 8 ohms |
| Sensitivity | 97 dB 1W/1m |
| Voice Coil Diameter | 3" |
| Thiele-Small Parameters | |
| Resonant Frequency (Fs) | 37 Hz |
| DC Resistance (Re) | 5.1 ohms |
| Voice Coil Inductance (Le) | 1.7 mH |
| Mechanical Q (Qms) | 3.3 |
| Electromagnetic Q (Qes) | 0.36 |
| Total Q (Qts) | 0.32 |
| Compliance Equivalent Volume (Vas) | 6.22 ft.³ |
| Maximum Linear Excursion (Xmax) | 8 mm |
| Materials of Construction | |
| Cone Material | Paper |
| Magnet Material | Neodymium |
| Mounting Information | |
| Overall Outside Diameter | 15.125" |
| Baffle Cutout Diameter | 11.375" |
| Depth | 8" |
| # Mounting Holes | 8 |
| Optimum Cabinet Size | |
| Sealed Volume | 1.18 ft.³ |
| Sealed F3 | 91Hz |
| Vented Volume | 2.44 ft.³ |
| Vented F3 | 56 Hz |
Product details:

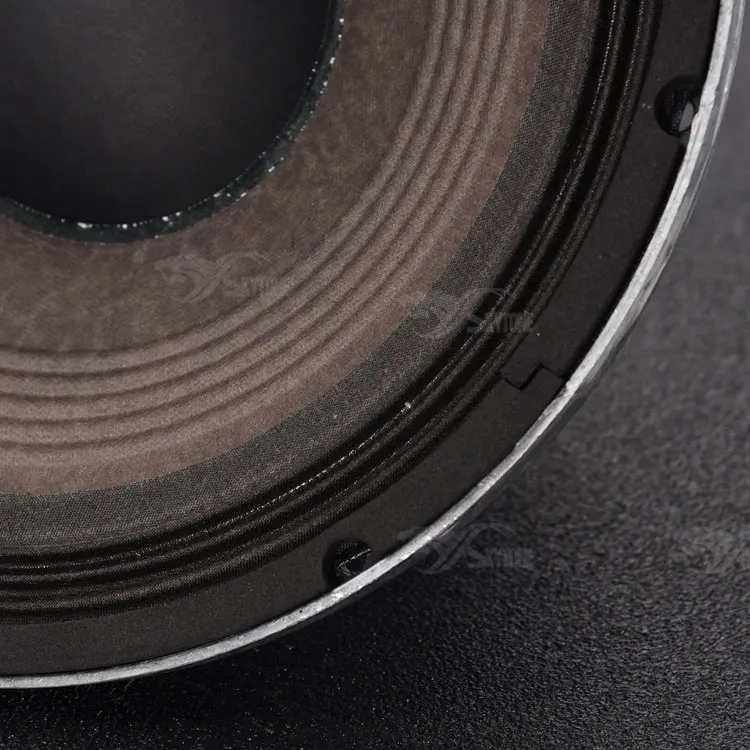

Imported paper cone
Dual voice coil, Driffental Drive
Customers' feedback
Performance show in whole speakers
