Solar Water Heaters
Оптовая продажа тепловая труба солнечный коллектор 24

Оптовая продажа тепловая труба солнечный коллектор 24

Категория: Solar Water Heaters >>>
Поставщик: Haining,Jixiang,New,Material,&,Technology,Co.,Ltd.

Цена:160,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	190.15 $*	200.9 $*
Aug-15-2025	189.86 $*	198.2 $*
Jul-15-2025	158.84 $*	166.41 $*
Jun-15-2025	186.80 $*	195.84 $*
May-15-2025	162.84 $*	170.91 $*
Apr-15-2025	182.41 $*	191.44 $*
Mar-15-2025	181.9 $*	190.27 $*
Feb-15-2025	179.95 $*	188.9 $*
Jan-15-2025	178.91 $*	187.89 $*

Характеристики

Company Information

Haining Jixiang Solar Energy Co.,Ltd(Lucky) is a new high-tech company specializing in developing and utilizing of solar energy, Locating in Haining city, we are specialized in the research and application of solar energy and manufacture of all kinds of solar water heaters, eco-friendly oven and integrative ceiling and PVC panels ect.

Our ability : 5000pcs/month.

China factory supplier. Take sample order, min order 1pcs.

CE EN12975 KEYMARK Split Pressurized Solar Water Heater

CE EN12975 KEYMARK Split Pressurized Solar Water Heater General Info.:

The JXSP-SERIAL solar system is combined with solar collector, pressurized storage tank, intelligent controller, solar station, expansion vessel, pipeline etc.

1. Collector: JXSPC-SERIAL, JXSC-SERIAL, or U pipe collectors
2. Tank: pressurized tank, 100L-1500L
3. SP-106, SP116, SP328, SR962, SR962 …solar working station
4. SR868, SR868C8Q…temperature differential controller

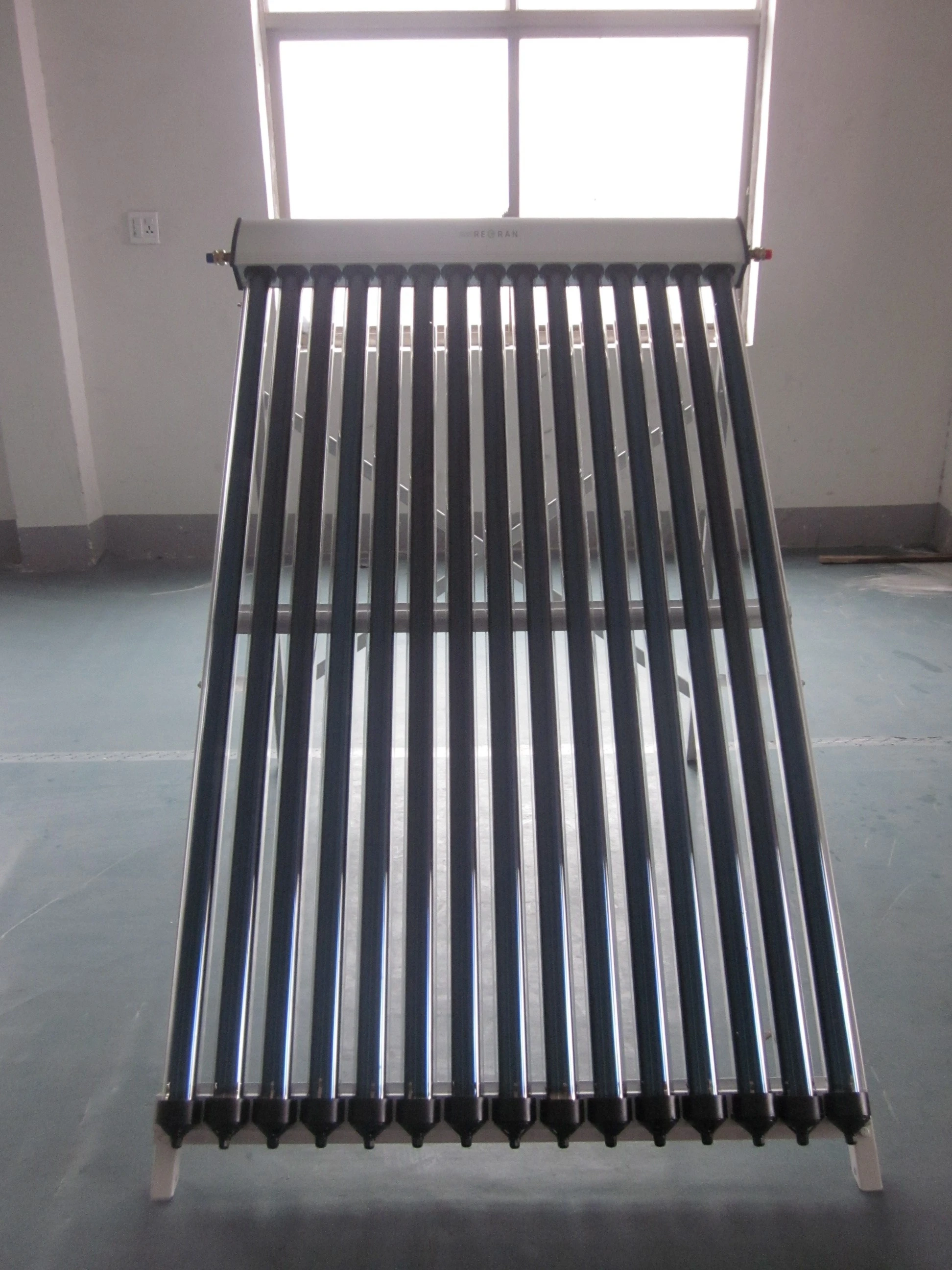

CE EN12975 KEYMARK Split Pressurized Solar Water Heater Premium Solar Collector Specification:

Three-target Vacuum Tube Performance and Specification:
Tube structure		All-glass double deck co-axial structure
Glass material		High borosilicate 3.3 glass
Outer tube diameter and glass thickness		Ø58±0.7mm; Glass thickness 1.6±0.15mm
Inner tube diameter and glass thickness		Ø47±0.7mm; Glass thickness 1.6±0.15mm
Tube dimension		58*1800mm
Absorption coating property	Coating material	CU/SS-ALN(H)/SS-ALN(L)/ALN
	Sediment method	Three Target magnetron sputtering plating
	Absorptivity	α =0.92~0.96 (AM1.5)
	Emission ratio	Emission: ε=0.04~0.06(80°C±5°C)
Vacuum degree		P≤5.0X10^-3(PA)
Stagnation temperature (temperature inside of empty evacuated tubes)		260~300 °C
Average heat loss		ULT 0.4~0.6 W/(m2 *°C)
Hail resistance		Ø25 mm

24mm Premium Heat Pipe Performance and Specification:
Heat pipe material	Oxygen free copper (TU1),Cu=Ag>99.99%(o_2<16ppm)
Condenser dimensions	Top: Ø24mm 65mm,Body: Ø80.6mm.length:1750± 10mm
Heat-transfer-fins	0.3mm/0.0098’’ thick sets of Aluminum fins,1630mm
Starting speed	30s
Max. operation pressure	6bar
Max. testing pressure	12bar
Stagnation temperature	236°C

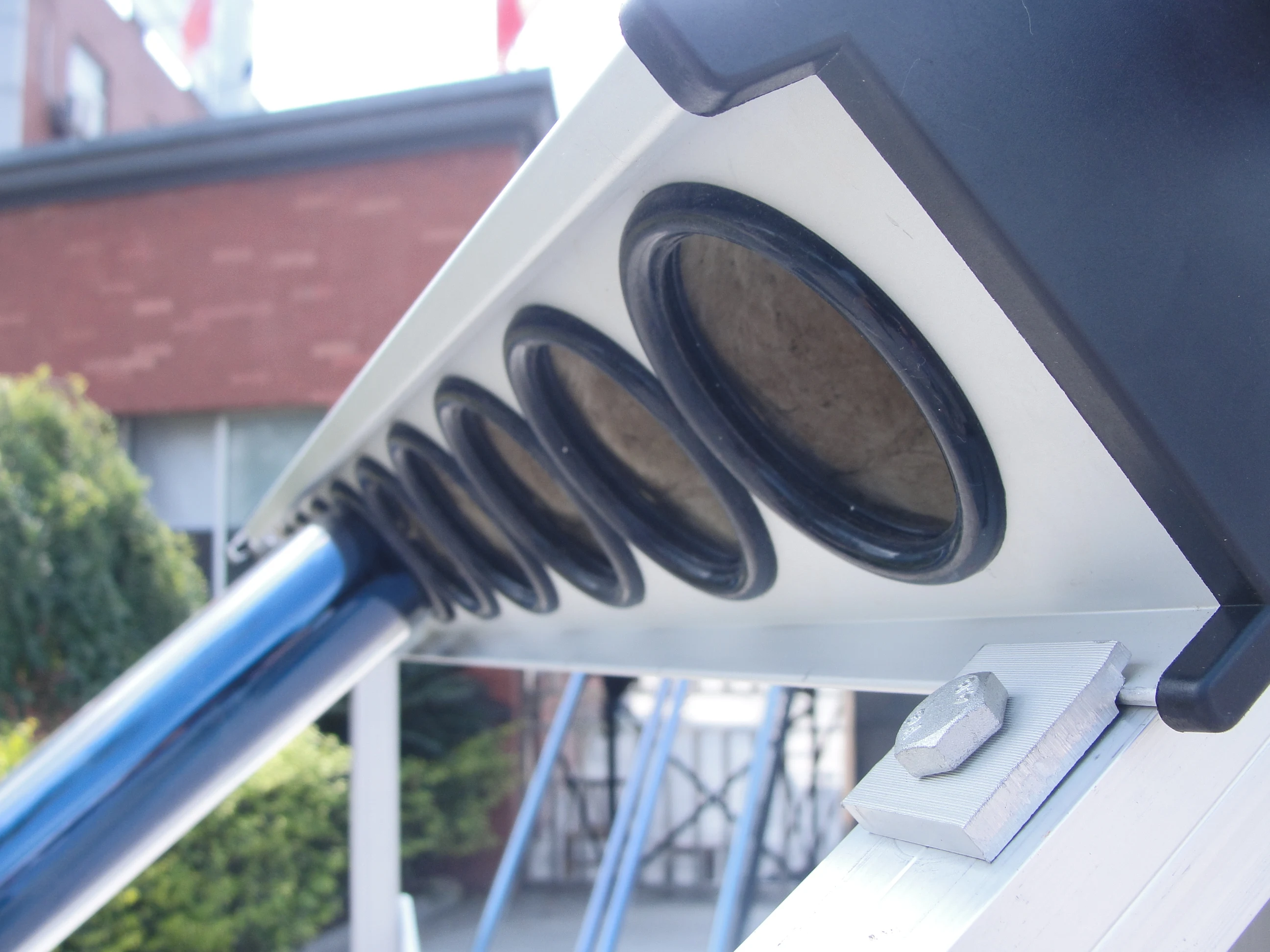

Manifold Performance and Specification:
Manifold header pipe	TU2 copper
Manifold casing	Anodized aluminum alloy (6063-T5/T6)
Insulation layer	Compressed rock wool.

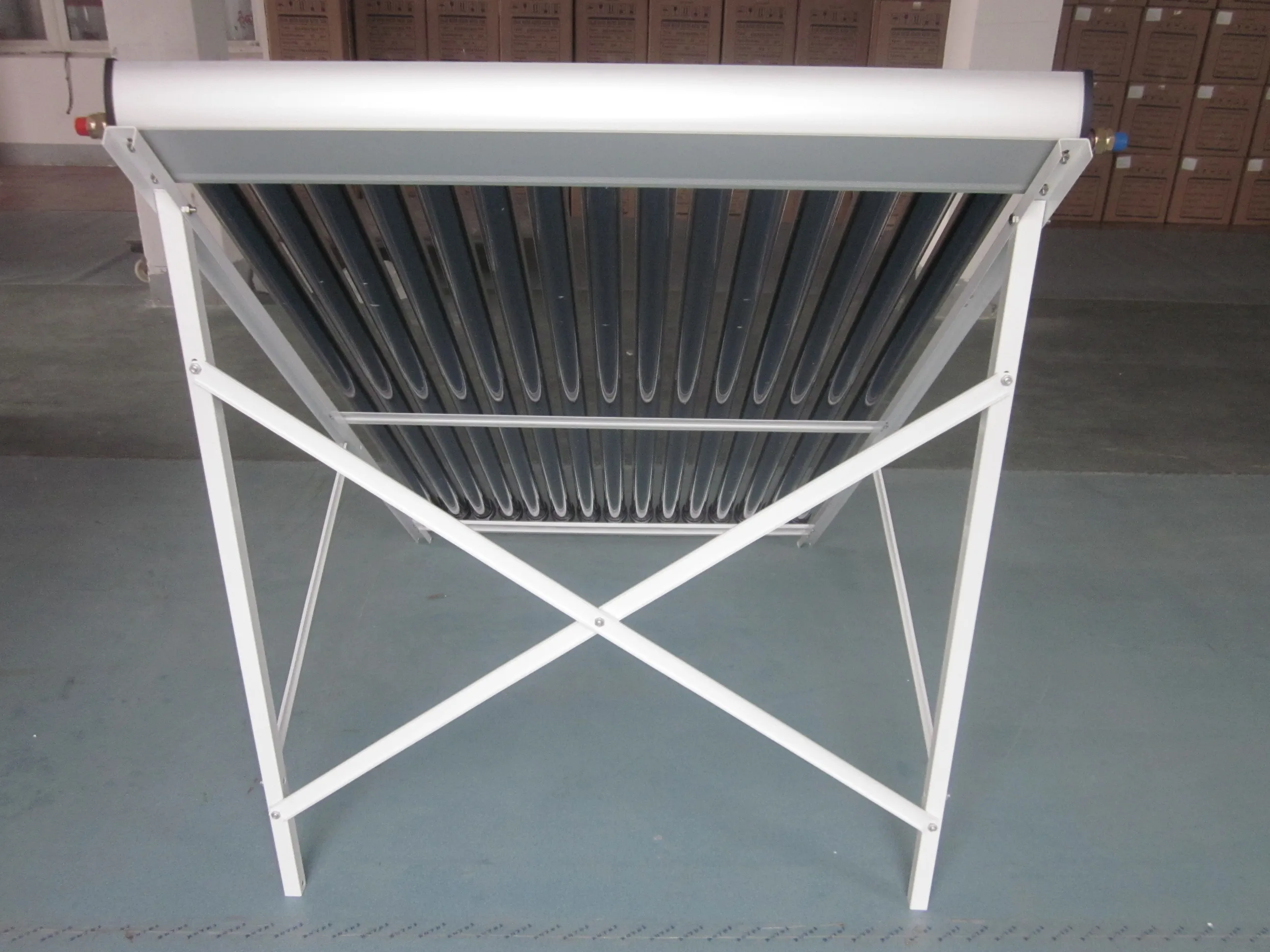

Bracket Performance and Specification:
Bracket	Stronger galvanized steel structure
Vertical installation angle	Flat roof 0~70⁰

Other Components Performance and Specification:
58 dia. Anti dust rubber ring	Cymene ethylene silicon rubber(110)
58 dia. White inner stopper of heat pipe	Cymene ethylene silicon rubber(110)
58 dia. Tube holder	Nylon 1013-(B)
58 dia. Tube holder cover	Nylon 1013-(B)
End cover for manifold	Nylon 1013-(B)
Left seal ring	Silicon rubber(110)
