Характеристики

Product Description

F8913 embedded low cost gsm wireless zigbee module.

● ZigBee Module Support UART
● ZigBee Module Low power consumption design, support multi-sleep and trigger modes to reduce the power dissipation farthest
● ZigBee Module Supply 5 I/O channels,compatible 3 analog inputs and 2 pulse input counters
● ZigBee Module Support ZigBee wireless data transmission
● ZigBee Module Support Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh network

\t Product Specification
\t F8913 Model Sheet
\t Model		\t Content
\t F8913-N-MS		\t Without PA，SMT
\t F8913-E-MS		\t With PA，SMT
\t F8913-N-NS		\t Without PA，DIP
\t F8913-E-NS		\t With PA，DIP
\t ZigBee Specification
\t Item		\t Content
\t MCU		\t Industrial ZigBee Platform
\t Communication Protocol and Band		\t IEEE 802.15.4 ISM2.4～2.5GHz
\t Indoor/Urban Range		\t 30m 90m(With PA)
\t Outdoor/RF Line-of-Sight Range		\t 500m 2000m(With PA)
\t Transmit Power		\t 2.82 mw (+4.5dBm) 100 mw (+20dBm) (With PA)
\t RF Data Rate		\t 250Kbps
\t Receiver Sensitivity		\t -97dBm -103dBm (With PA)
\t Network Topologies		\t Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh
\t Channels		\t 11 to 26
\t Max serial buffer size		\t 300 Bytes
\t Interface Type
\t Item		\t Content
\t UART		\t Data bits: 8 Stop bits: 1, 2 Checksum: none,odd,even Baudrate: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400,57600, 115200 bps
\t Antenna		\t U.FL RF connector, impedance 50 ohm
\t Package		\t Support 2.0mm spacing stamp hole for SMT and 2.0mm spacing through-hole pins simultaneous
\t Power Input
\t Item		\t Content
\t Recommended Power		\t DC 3.3V/0.1A
\t Power Range		\t DC 2.0~3.6V
\t Physical Characteristics
\t Item		\t Content
\t Dimensions		\t 37.5 x 22.1 x 2.8 mm
\t Weight		\t 3.5 g

\t Environmental Limits
\t Item		\t Content
\t Operating Temperature		\t -40~+85ºC (-104~+185 ºF)
\t Storage Temperature		\t -40~+125ºC (-104~+257ºF)
\t Operating Humidity		\t 95% ( unfreezing)

Environmental Adaptability.

Designed for harsh and unattended environment.

ZigBee Module Small Size, Easy to Embed.

ZigBee Module Small size, light weight, easy for embedded development. Support UART hole, SMT hole, DIP hole..

Low Power Consumption, Long Continuous Working Time.

Supports multi-sleep and trigger modes, power consumption of deep sleep is less than 0.5uA.

2KM Communication Distance.

Point to point communication of ZigBee module is up to 2KM, support multi-level relay route, is helpful for creating large networking of long distance.

Large Network Capacity.

Network capacity up to 65,000 nodes, hardened steel consumption monitoring, agricultural irrigation and other large projects application.

Modules Can be Remotely Configured, Batch Management, Greatly Reducing the Intensity of Work.

Compatible with a Variety of Industrial Applications Protocols.

Support for smart home, digital oilfield industry and other rich application protocols.

Strong Project Adaptable, Flexible in Use.

Integrated transparent transfer, API, AT mode, working mode of ZigBee module can be configured according to the project needs.

Support analog and digital data automatic acquisition and reported, no need for secondary development, shorten the project development cycle.

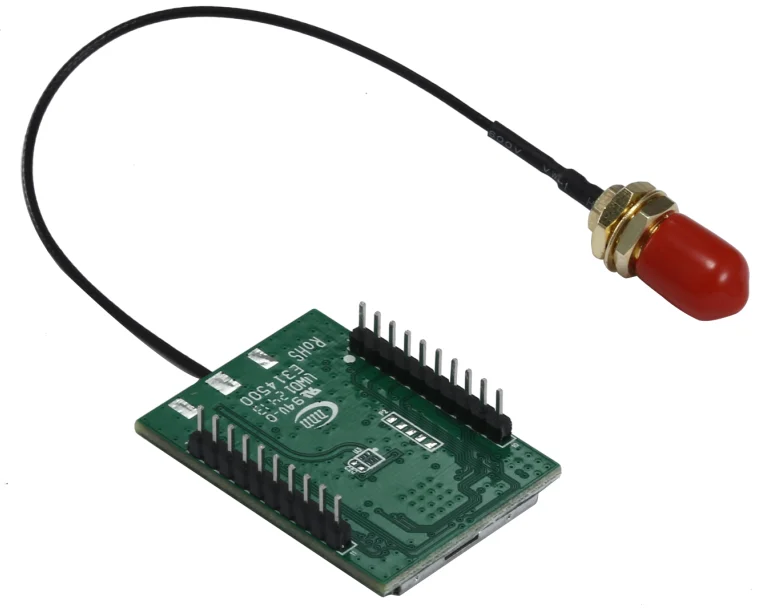

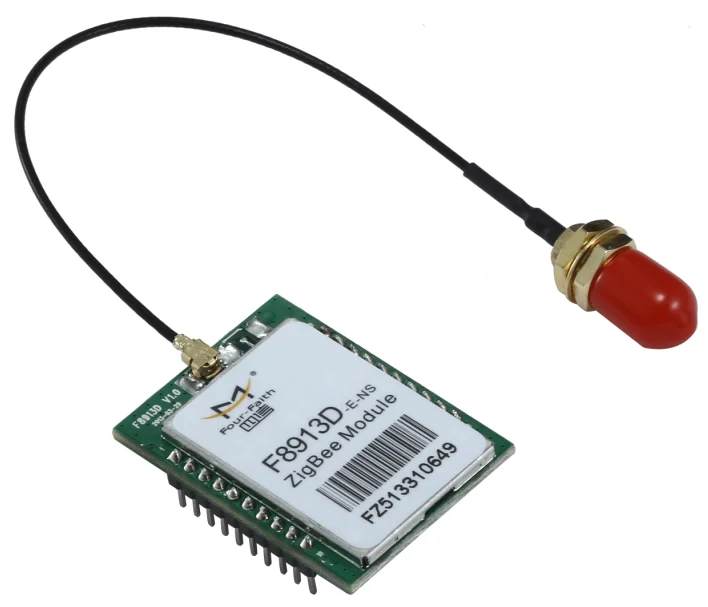

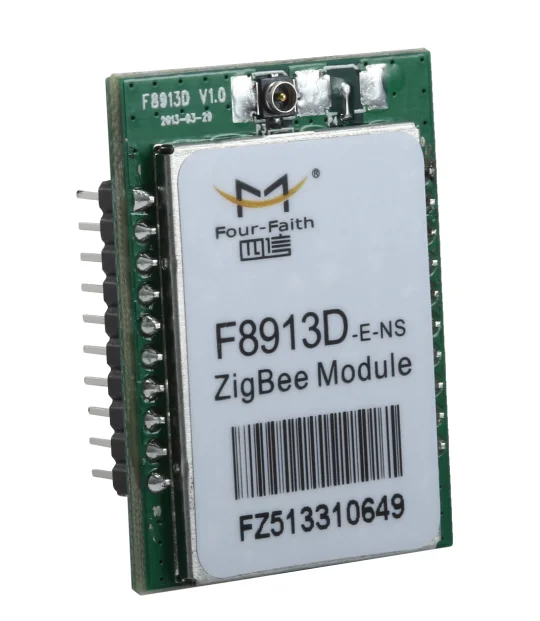

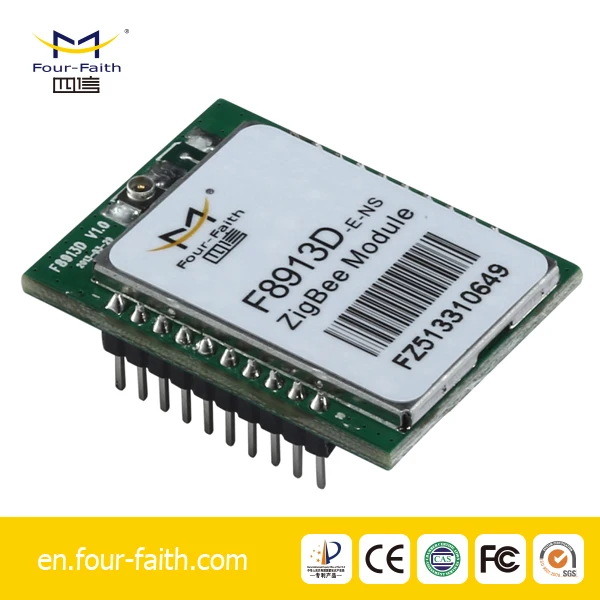

Detailed Images
