Водонепроницаемый ударопрочный пластиковый чехол tricase ru110 ip67
- Категория: Tool Storage >>>
- Поставщик: Shanghai,Tricases,Plastics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.57 $* | 0.90 $* |
| Aug-15-2025 | 0.68 $* | 0.62 $* |
| Jul-15-2025 | 0.35 $* | 0.32 $* |
| Jun-15-2025 | 0.26 $* | 0.53 $* |
| May-15-2025 | 0.69 $* | 0.82 $* |
| Apr-15-2025 | 0.53 $* | 0.7 $* |
| Mar-15-2025 | 0.8 $* | 0.65 $* |
| Feb-15-2025 | 0.45 $* | 0.83 $* |
| Jan-15-2025 | 0.57 $* | 0.55 $* |
Характеристики
Product Description

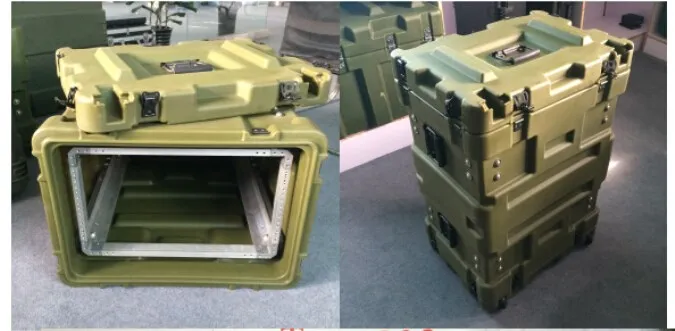

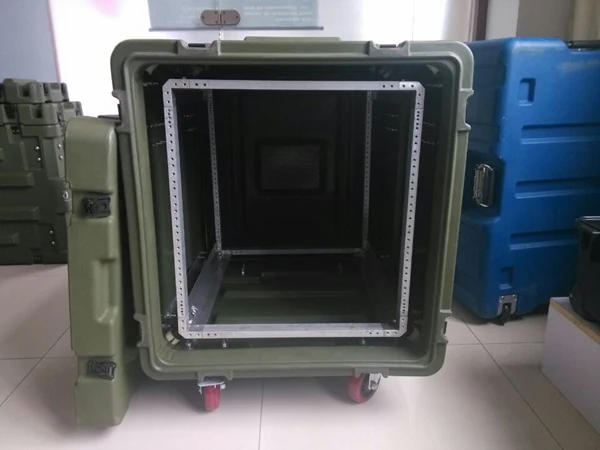

RU110 hard Plastic case shockproof waterproof Relay station rack case case
this is our other product
chiacjoi
Product Description
| Small hard plastic protective case with IP67 rating | |
| Model Name | RU110 |
| External Dimension (L*W*D) | 850*621*675mm |
| Internal Dimension (L*W*D) | 764*575*617.5mm |
| 19inch Rack Dimension (L*W*D) | 550*451*493mm |
| Type | watertight airtight shockproof case |
| Waterproof | IP67 |
| Material | Engineer PP |
| Wall thickness | 4mm |
| Process | Rotational molding |
| Warranty | Life-time warranty |
| Bearing Weight | 250Pond |
| Fragility of Bearing Device | 60-80G |
| Wheels and Pull rod | YES |
| Colors | Black/green |
| Range Temperture(°C) | —40~90 °C |
Passed below test:
· ASTM IP67
· Fed-Sad-101C
· MIL-STD-810F 512.4
· ASTM B 4169.DC-18
· ATA300 STANAG 4280
· MIL C-4150J
| M Series- Injection Moulding Middle and Small Size | |||||||
| Item | External size(mm) | Internal size(mm) | Depth(mm) | Color | Net Weight(kg) | Pull rod | Wheels |
| M2100 | 395*299*148 | 334*237*132 | 32+100 | Black/Yellow/Green | 1.78 | No | No |
| M2200 | 413*328*168 | 381*267*152 | 48+104 | Black/Yellow | 2.3 | No | No |
| M2360 | 464*358*208 | 432*297*193 | 48+145 | Black/Yellow | 2.86 | No | No |
| M2400 | 493*395*185 | 462*334*170 | 48+122 | Black/Yellow | 2.916 | No | No |
| M2500 | 587*358*221 | 525*297*192 | 48+144 | Black/Yellow | 4.95 | Yes | 2 |
| M2608 | 570*418*228 | 508*356*220 | 48+172 | Black/Green | 4 | No | No |
| M2610 | 570*418*285 | 508*356*254 | 48+206 | Black/Green | 4.8 | No | No |
| M2620 | 570*418*285 | 508*356*254 | 48+206 | Black/Green | 5.2 | Yes | 2 |
| M2720 | 624*498*285 | 563*437*254 | 48+206 | Black | 7.5 | Yes | 2 |
| M2750 | 624*498*353 | 563*437*323 | 48+275 | Black | 8 | Yes | 2 |
| M2950 | 802*522*298 | 741*461*267 | 78*189 | Black | 8.9 | Yes | 2 |
| RS Series- Rotational Moulding cases | |||||||
| Item | External size(mm) | Internal size(mm) | Net weight(kg) | Volume(L) | Wheels | Color | Level |
| RS820 | 800*530*380 | 700*445*350 | 15 | 100 | Yes | Green | IP65 |
| RS830 | 800*600*560 | 730*530*450 | 18 | 170 | No | Green | IP65 |
| RS860 | 961*697*398 | 871*615*355 | 20 | 190 | Yes | Green | IP65 |
| RS870 | 1100*530*360 | 1020*450*340 | 18 | 150 | Yes | Green | IP65 |
| RS880A | 1200*800*620 | 1100*730*600 | 33 | 480 | No | Green | IP65 |
| RS880B | 1200*800*700 | 1100*730*680 | 37 | 550 | No | Green | IP65 |
| RS890 | 2120*1070*625 | 2000*960*600 | 65 | 1150 | Yes | Green | IP65 |
| RU Series- Rotational Moulding Rack cases | |||||||
| Item | External size | 19 inch size | Depth(mm) | Dampener | Wheels | Pull Rod | Color |
| RU040 | 760*621*364 mm | 181*483*450 mm | 100+560 | 8/or without | Yes | 4 | Green |
| RU060 | 860*592*446 mm | 270.5*483*600 mm | 90+680 | 8/or without | Yes | 4 | Green |
| RU080 | 860*592*535 mm | 359.5*483*600 mm | 90+680 | 8/or without | Yes | 4 | Green |
| RU110 | 850*621*675 mm | 493*483*550 mm | 100+650 | 8/or without | Yes | 4 | Green |
Note:
1.Color can be customized(need color swatch),but we have MOQ
2.The material can be changed as your request but we also have MOQ
3.All the products are designed under the regulations of certain protections and we can offer test report
4.For some special requirements, please contact us in advance and describe this in your PO
Packaging & Shipping
Packing:1pcs/PE bag/CTN or up to customers' request
Sample lead time:3 working days after payment
Production lead time:10-15 working days after payment
Company Information
Our new factory shanghai shangrong Plastic Tenchnology Co,Ltd locastes at shanghai fengxian,close to Pudong airport and shanghai Yangshan port.We are a manufacturer on prodviding best transportation cases for global user.
Our first company(The Kunshan Friends of Rong Plastic Products Co.,Ltd)get the right of import and export.
Our main products are made in PP with injection moulding,IP67 proctection lever. widely used in police, fire fighting, military, aviation, field trip, technology exploring, photographic and petrochemical engineering etc.
Our Services
Why chose us?
1.We have rich experience in rotational molding processing, professional in the rotational moulding products.
2.We can offer the whole system services, from product & mould design to the finished plastic products.
3.Our experienced and highly skilled technical design team use advanced CAM software (like UG, Solidworks, Auto CAD , Pro/E) to translate your ideas, pictures, drawings and prototypes into high quality, accurate molds with no pinholes at all-ensuring that the end product has uniform wall thickness and smooth surface. Full design, manufacturing process control rotational mold, CNC machining ,allows us to efficiently ,durability complete rotational mold.
4.High-efficiency lead time-Generally speaking, we can finish one mould and the first sample in around 30 days. Even much shorter for the smaller projects.
5.OEM: We have high –tech equipments in mold workshop, such as rotational equipment,Rock and Roll, Pulveriser and so on.
