1.Specific parameters

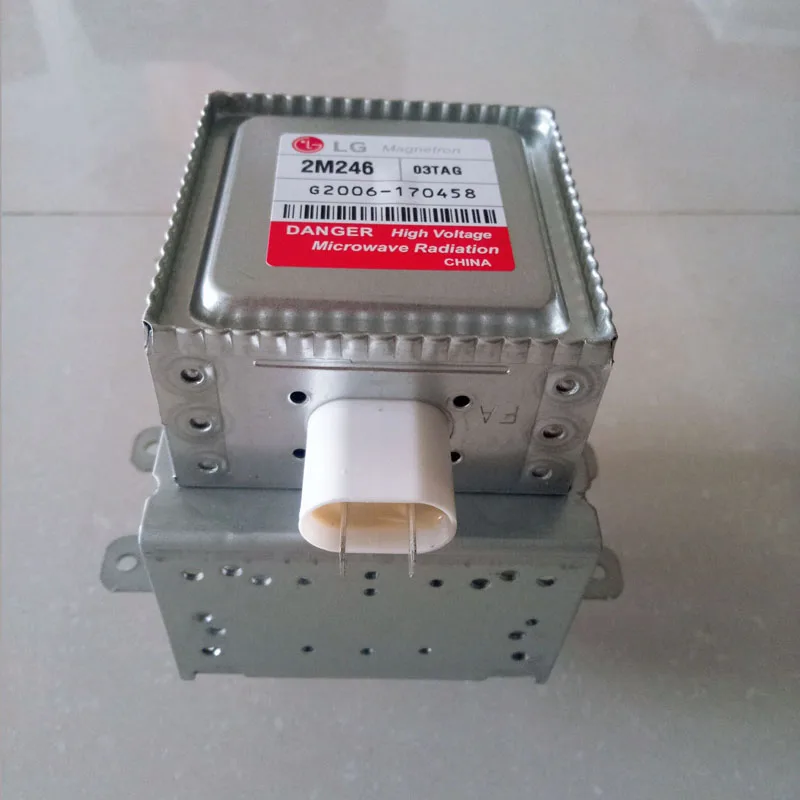

Model: 2M246-03TAG
Power: 1050W
Frequency: 2460Mhz
Filament voltage: 3.15V
Anode current: 330mA
Anode voltage: 4.5KV
Filament current: 10.5A
Weight: 0.8kg/1.0kg
Life: 2000 Hours
Appearance size: 93mm*80mm*125mm
2.Usage
(1)Fixed the magnetron on the waveguide correctly.
(2)Connect the circuit according to the circuit diagram.
(3)Electricity and test, magnetron makes heat after 3 minutes.

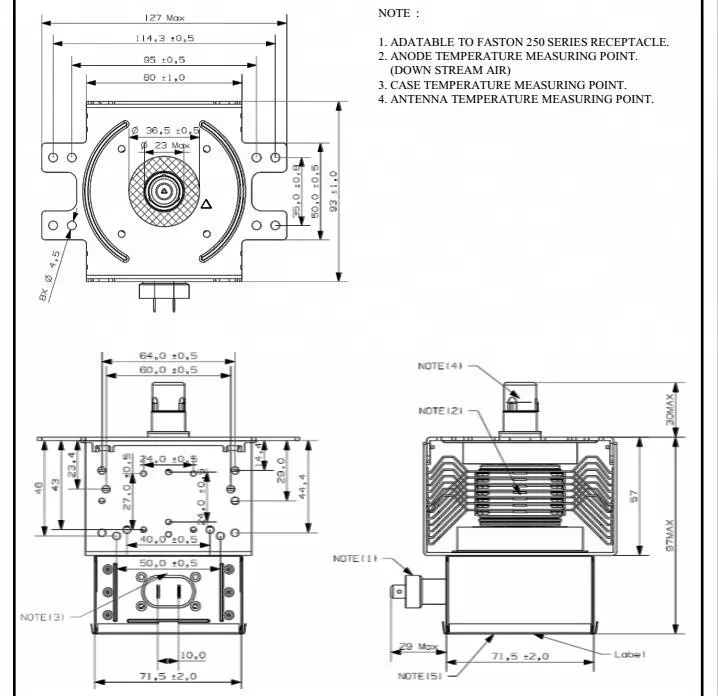

3.Air-cooled magnetron and parts connection diagram
We have a strong group at the industry, and technology in a leading position. Our company slogan: super large industrial microwave components supplier real oil cooling expert.
1. All the parts we offer is new and original.
2. If the goods you buy from our company is not complete, the goods must remain their original condition. We can give you a replacement, but the freight must be paid by the buyers. If it really our problem. Then we will separate decision.
Carton package for
Single item(1pc)
Size: 16*15*23cm
Weight: NW: 0.8KG GW: 1.2KG
Standard item(40pcs)
Size: 56*58*35cm
Weight: NW: 32KG GW: 35KG
Shipping information
1. We will discuss the shipping details with our customers, and choose the best option, and help them shipping.
2. We also accept picked up from our company by the carrier, who cooperated with our customers and got a authorization from our customers.
3. Generally we will use DHL, UPS, EMS, FEDEX, TNT or airfreight, if need to by send by sea, we can discuss together.
