Характеристики
50 amps crane current collector 100 amperes travelling crane current collector 250A factory yard crane current collector
Product Description
1. Product Name: 50 amps crane current collector 100 amperes travelling crane current collector 250A factory yard crane current collector
2. current collector contact shoe material : Copper/Graphite
3. Type: conductor bar system components ,travelling crane,
4. Rated current: 250A, 500A
5. Certificate: ISO CCC CE
6. 250A current collector head : 1
7. 500a current collector head : 2
8. Application: factory yard travelling crane ,mobile power supply equipment
Current collector
50A-500A Insulated conductor busbar Current collector
| Rated current (A) | Head | Vertical movement (mm) | Horizontal movement (mm) | Setting height (mm) | Weight (kg) | Shoe material |
| 50 | 1 | - | - | - | 0.4 | Copper/Graphite |
| 100 | 1 | +80/-20 | -63/+63 | 102 | 0.8 | Copper/Graphite |
| 200 | 2 | +80/-20 | 63/+63 | 102 | 1.6 | Copper/Graphite |
| 250 | 1 | -50/+50 | -50/+50 | 230 | 3.5 | Copper /Graphite |
| 500 | 2 | -50/+50 | -50/+50 | 230 | 7 | Copper /Graphite |
Contact area : 360mm2 &1088 mm2
Shoe Pressure :0.007 k/mm2
Allowed Wearing : 5mm & 8mm
Max Speed: 200 m/min
Spring Load Weight :2.5KG & 8KG

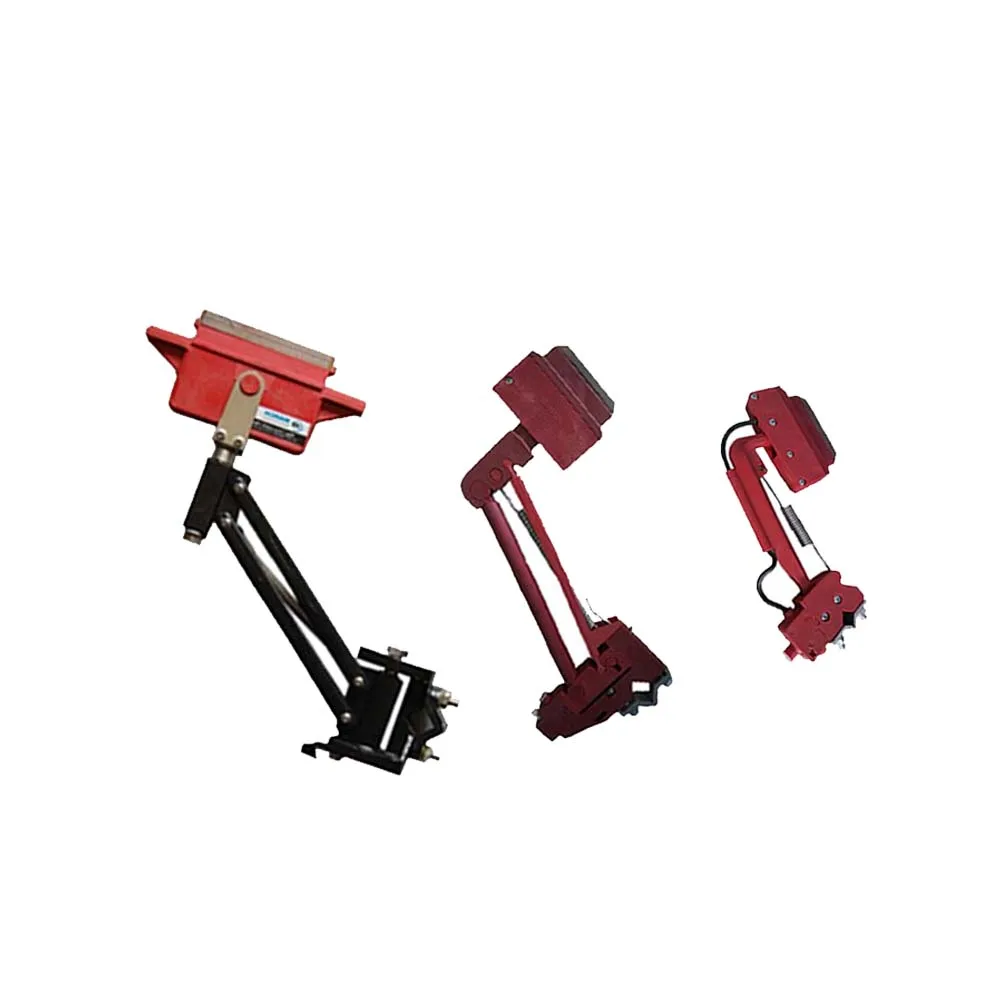

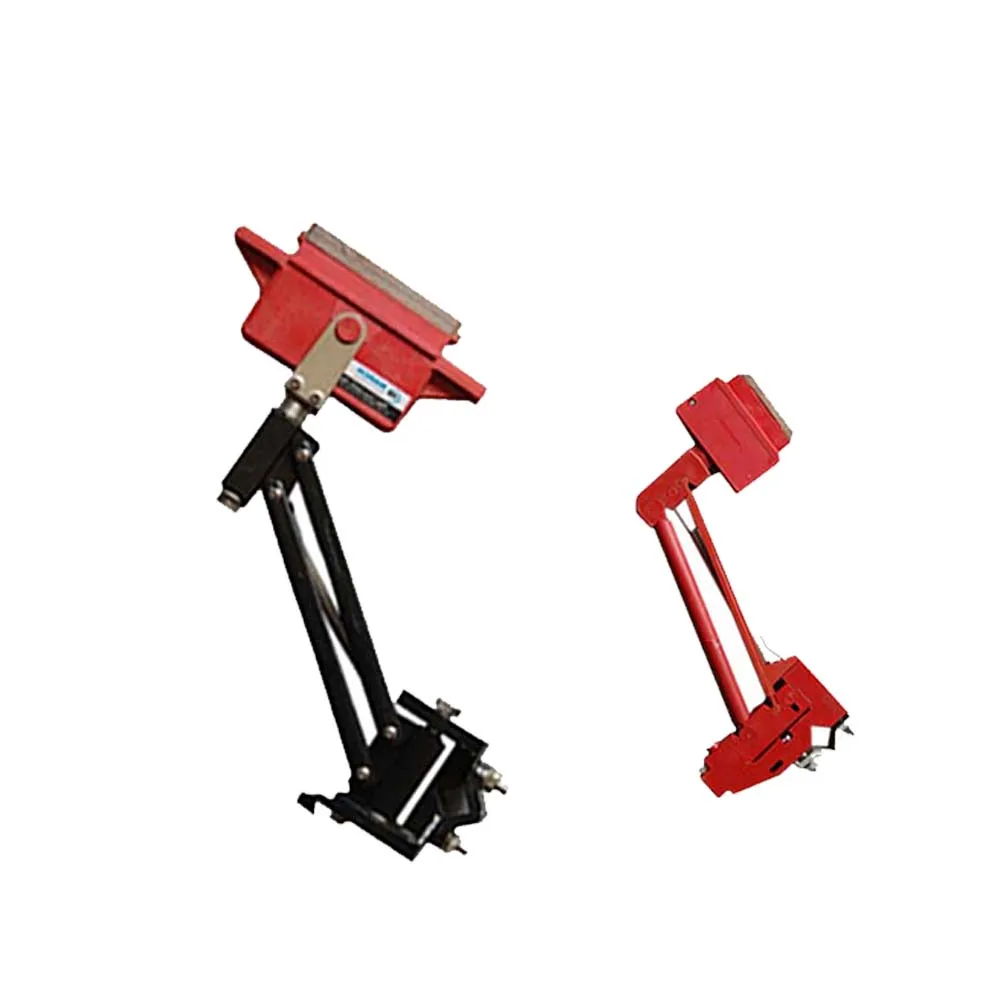

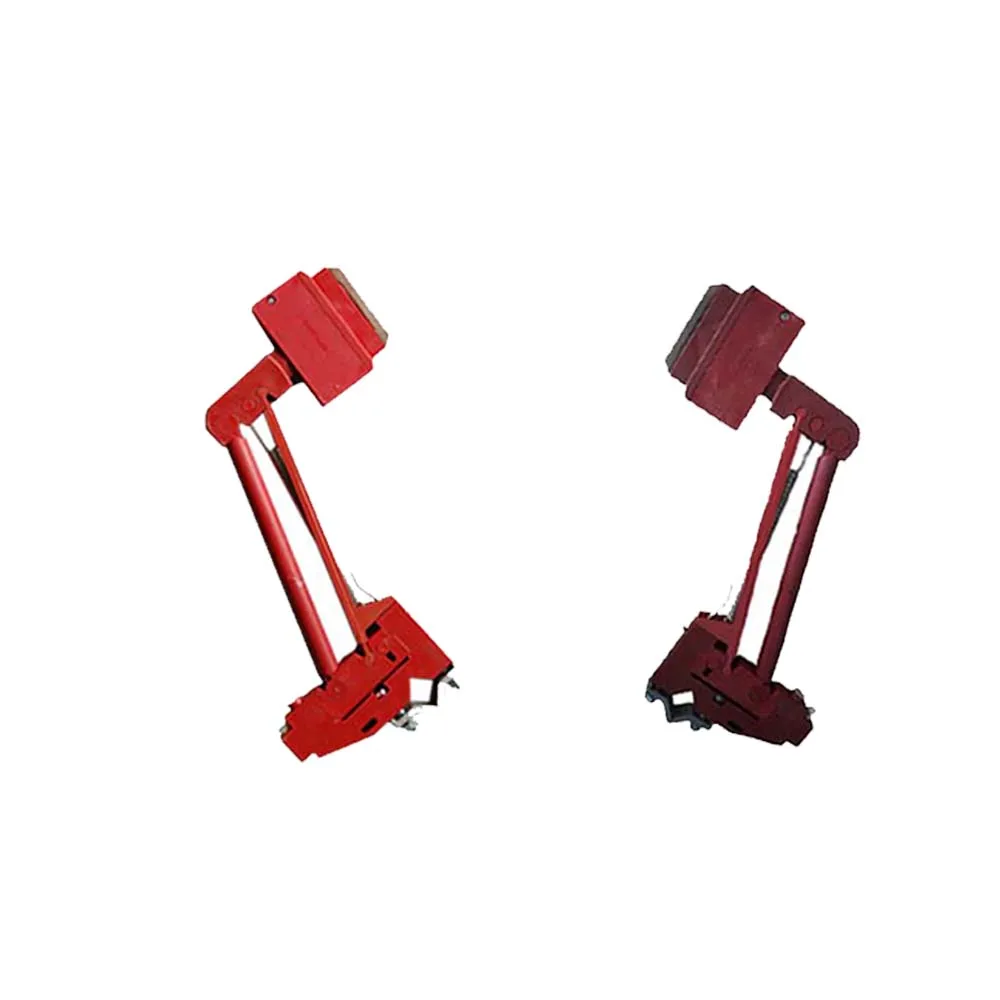

Detailed photos
Accessories
Packaging & Shipping
Payment : T/T, L/C, paypal
Packing :Wooden case or carton
Delivery time: 7-15 days after confirm the order
Application project
Application project ---Feedback from Customer
They are Widely used in :
Automobile Manufacturing, Coking, Metallurgy, Hoisting Machinery, Automated production lines , Automatic, Storage system, Port, Air port, Shipbuilding, Power Generation, Petrochemical industry, papermaking, Rapid rail transit system , play ground and many other areas.
