Amerigo C9370C тормозной токарный станок комбинированный

Цена:*

Количество:

Product Description

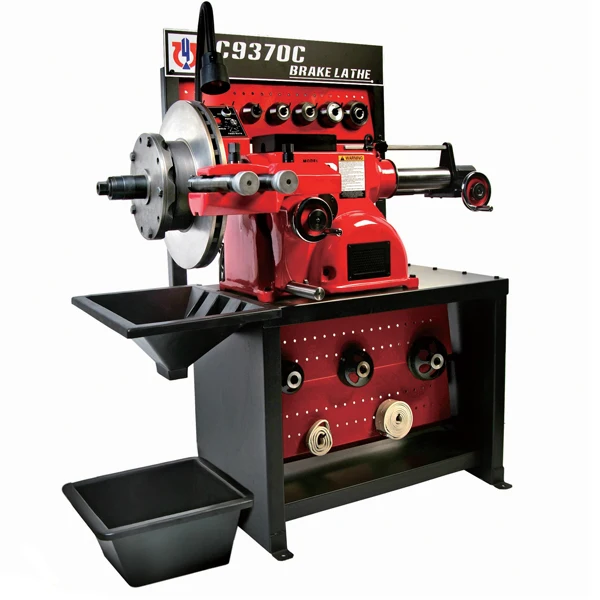

Amerigo C9370C Brake Lathe Combination Disk/Drum Lathe Machine

Feature

The lathe use precision electric DC servo motors designed to meet the demanding requirement of industrial motion control.

The"Change Adapter"system eliminates the need for conventional bell clamps and cones and features built-in springs ensure you don't lose them.

The precision twin cutter tools and a quick drum-to-totor changeover to help increase your service capability.

Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts.

A convenient top storage tray means you can easy to take that are your favorite adapters and tools.

Separate motors on the drum and rotor feed help maximize the main motor's efficiency.

The variety of adapters lets you machine all standard and composite rotors for foreign and domestic cars and light trucks.

Positive rake cutter tip angle provides for a one pass finish virtually every time,allowing you to complete your work fast.

Specification

c9370c BRAKE LATHE.jpg

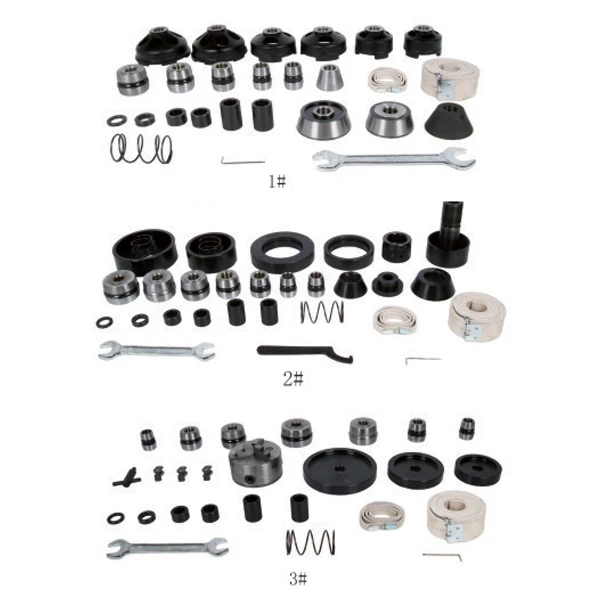

Optional adapter

1# (26 pcs) Adaptor kit for 1/2 ton

2# (28 pcs) Adaptor kit for 3/4 ton

3# (23 pcs) adaptor kit for 1 ton

C9370C1 brake lathe accessories.jpg

No	Description	Qty	1#	2#	3#
1	Double Taper Cone1.34″X1.66″(34X42mm)	1	√	√	√
2	Double Taper Cone1.36″X1.69″(35X43mm)	1	√	√	√
3	Double Taper Cone1.72″X2.06″(44X52mm)	1	√	√	√
4	Double Taper Cone2.06″X2.44″(52X62mm)	1	√	√	√
5	Double Taper Cone2.45″X2.81″(62X71mm)	1	√	√	√
6	Spacer(5,10,20,25.4,50.8,50.8mm)	6	√	√	√
7	Open End Wrench27-30mm	1	√	√	√
8	Special Wrench	1	√	√	√
9	Spring	1	√	√	√
10	Silencing Belt For Rotor And Drum	2	√	√	√
11	Double Taper Cone2.84″X3.19″(72X81mm)	1		√	√
12	Double Taper Cone3.19″X3.54″(81X90mm)	1		√	√
13	Chuck Adapter Set(5PCS)	1			√
14	Clamp4.57″(116mm)	2	√
15	Clamp3.7″(94mm)	2	√
16	Clamp5.75″(146mm)	2	√
17	Taper Cone2.91″X3.56″(74X90mm)	1	√
18	Taper Cone3.38″X4.05″(85.8X103mm)	1	√
19	Taper Cone1-5/8″X2-3/8″(41X60mm)	1	√
20	Taper Cone1-31/32″X3-7/16″(50X87mm)	1	√
21	Hubless And Composite Rotor Adapter Set(10PCS)	1	√	√
