85T Переменный насос полная автоматическая машина injeksi пластик sederhana литьевых машин производитель
- Категория: Plastic Injection Machines >>>
- Поставщик: Dongguan,Hommar,Hardware,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.13 $* | 0.93 $* |
| Aug-19-2025 | 0.38 $* | 0.15 $* |
| Jul-19-2025 | 0.82 $* | 0.30 $* |
| Jun-19-2025 | 0.12 $* | 0.53 $* |
| May-19-2025 | 0.89 $* | 0.38 $* |
| Apr-19-2025 | 0.44 $* | 0.65 $* |
| Mar-19-2025 | 0.99 $* | 0.0 $* |
| Feb-19-2025 | 0.49 $* | 0.38 $* |
| Jan-19-2025 | 0.19 $* | 0.40 $* |
Характеристики

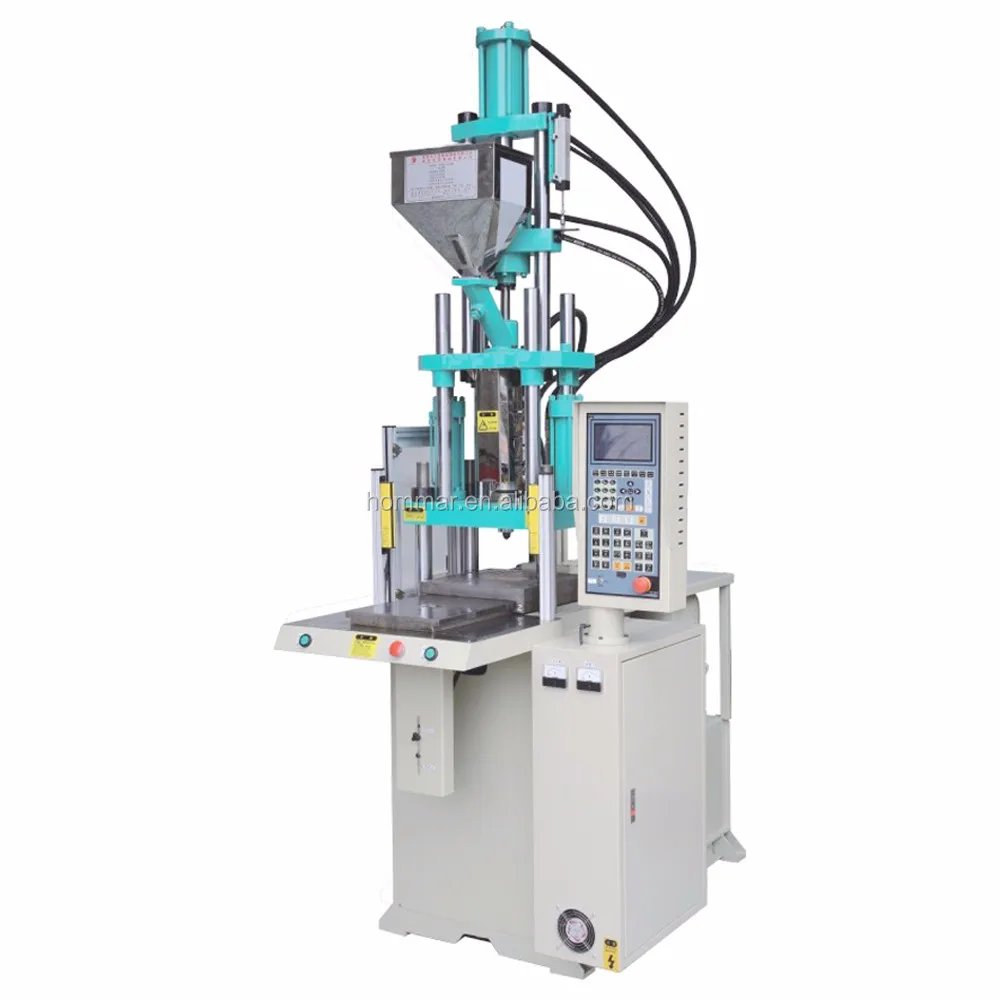

85T Variable Pump Full Automatic mesin injeksi plastik sederhana Injection machines manufacturer HM0113-30
Product Description
| Spec | ||||
| Model | HM-85T-1S | |||
| Injection unit | Screw Diameter | mm | 36 | 42 |
| Injection Pressure | Kgf/cm3 | 2176 | 1599 | |
| Injection Capacity | cm3 | 158 | 215 | |
| Injection Weight | gr | 141 | 194 | |
| oz | 5 | 7 | ||
| Injection Rate | cc/s | 61 | 83 | |
| Screw Speed | r.p.m | 0-180 | ||
| Screw Stroke | mm | 155 | ||
| Nozzle Stroke | mm | 200 | ||
| Nozzle Contact Force | tf | 3.5 | ||
| Clamping unit | Clamping System | |||
| Clamping Force | tf | 85 | ||
| Clamping Stroke | mm | 200 | ||
| Max.Mould Space | mm | 380 | ||
| Min.Mould Height | mm | 180 | ||
| Space between columns | 540*340 | |||
| Hydraulic Ejector Force | tf | 2.7 | ||
| Ejector Stroke | mm | 50 | ||
| Slidable Stroke | ° | 500 | ||
| Tableda | Overall Size of Slipform | mm | 520*550 | |
| Number of Molds | set | 1 | ||
| Drive Motor | kw | 11.1(15HP) | ||
| Electrical Parts | Heater | kw | 6.7 | |
| Oil Tank Capacity | L | 260 | ||
| Cooling Water | L/hr | 800-1000 | ||
| Dimension of Machine | M | 1.745*1.9*4.1 | ||
| Packing | Weight of Machine | T | 4.4 | |
| Shipping size | M | 2.6*1.7*3.6 | ||
| Shipping weight | T | 5.1 | ||
| Key Parts List | |||
| Part Name | Brand | Original of Country | Features |
| Computer | Star Denshi | Japan | High Precise Control, High sensitive response, TFT Color display |
| Servo Motor | YASKAWA | Japan | Energy Saving |
| Electromagnetic valve/ solenoid valve | Yuken | Japan | High sensitive response |
| hydraulic valve | HSUTIEN | Taiwan | Longer span life |
| Material Cylinder | Tan Star | Taiwan | Antia brasive corrosion resistance Longer span life |
| Electronic parts | Schneider Fuji Fotek | France/Japan/Taiwan | Stable High sensitive |
| hydraulic Motor | White | USA | Low noise |
| Servo Pump | Eckerle | Germany | Low noise |
| Electrical Ruler | Gefran | Italy | High Precise Control |
| Tiebar | Genaral | Taiwan | High hardness |
| Seal | HALLITE | UK | Longer span life |
| Proportional rejection valve | Yuken | Japan | High Precise Control Longer span life |
| Oil Cylinder | Lianhuei | Taiwan | Antia brasive |
