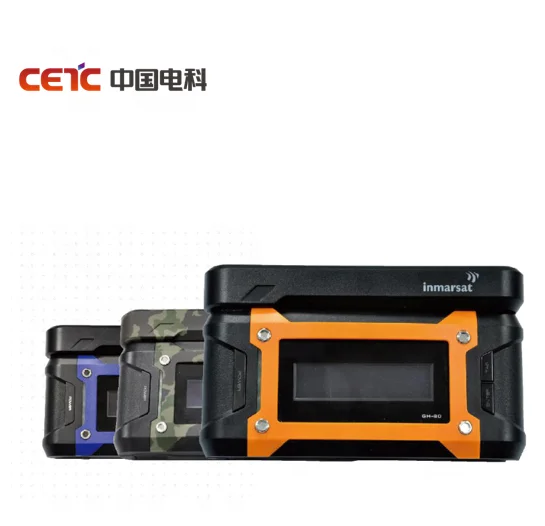

Specification of Inmarsat GSPS Hub-GH80 :



Brief  Introduction(What is it?):

Portable hot-spot access for satellite communicationunication

Support voice, SMS. Email, tracking and Low speed data

transmission Support multiple users sharing of network

Resources (up to7 users)

Special protective design:

Protection grade:IP65

Collision avoidance grade:IK05

Compact structure design (1170mm*100mm*35mm)

Allow users to turn their smart phone into global communication

equipment, using both cellular and satellite communication

GPS:real-time position tracking

Periodical position info report

Network co-sharing

Ultra-low power consumption

Smart account management

Ultra-long stand-by time

Target contacts presetting

Friendly UI



How it performs?

Voice

Bi-way voice call

Phonebook

Call Log

Hand-free

Instant call/SMS

Echo cancellation

SMS service

Maximum 160 Latin and 70

Non-Latin characters

SMS/SMS-to-Email

Combined with smart terminal

Data Transmission:2.4kbps

Tracking:periodical location report

Battery Capacity:4000mAh

Adjustable time interval of periodical track info report



Where you can use it?



Inland and offshore communications/Ourdoor activities/Track monitoring/Goverment services/Scientific expedition



Technical Specifications:



Frequency range:

Transmission:1626.5MHz-1660.5MHz

Receiving:1525.0MHz-1559.0MHz

EIRP:

34.5dBm

Antenna:

Impedance:50Ω

Gain:0dBi

Beam width:110°

Battery:

Rated voltage:3.7V

Capacity:4000mAh

Stand-by time:16h

Speaking time:5.5h

External interface

Micro-USB/USB2.0 full speed

Wi-Fi parameters

Protocol:802.11b/g/n

Transmission range:30m

Display

Size:2.8"

Resolution:256*64

Material:OLED

Dimensions

170*100*35mm

Weight

410g

Application environment

Application temperature:-20℃~55℃

Application humidity:5%-95%

Storage temperature:

-20℃~75℃(without battery)

-20℃~45℃(with battery)

Charging temperature:0℃~45℃

Protection design

IP code:IP65

IK code:IK05

Certification&Qualification

Inmarsat Type Approval,CE,FCC
