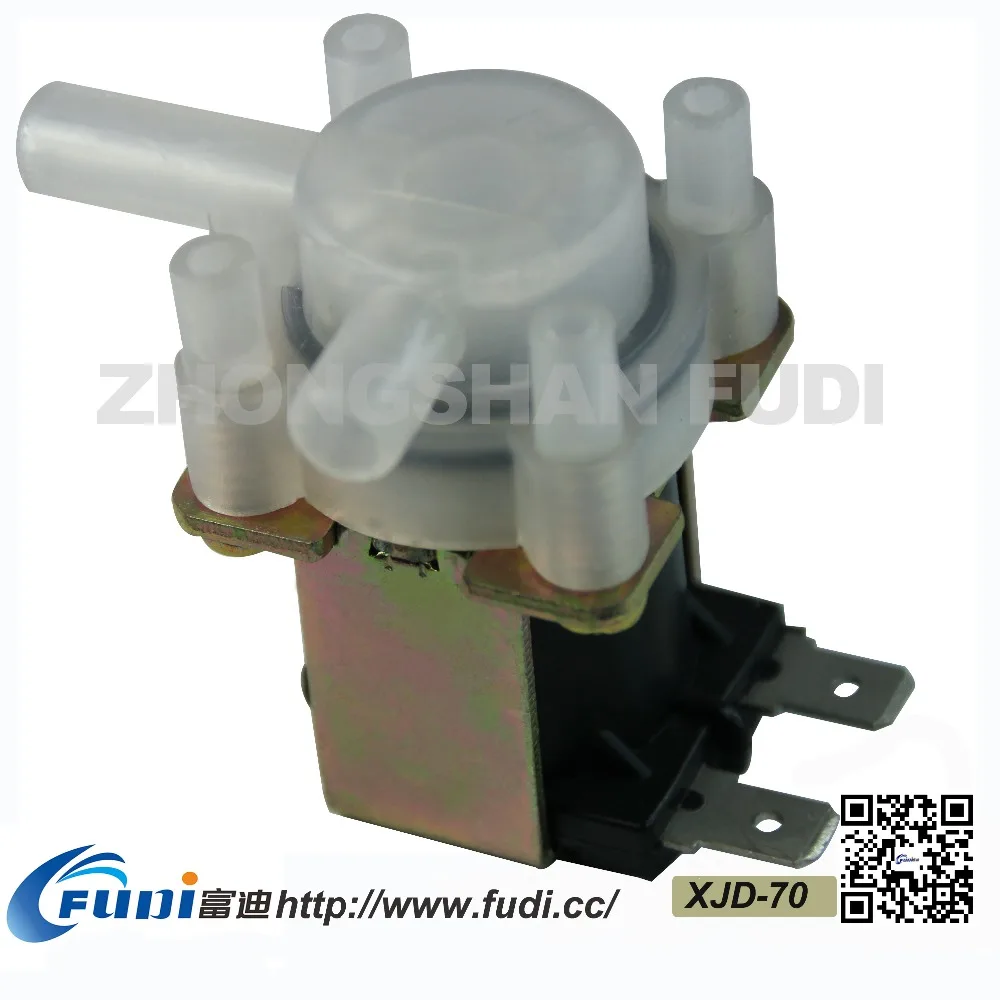

Водозаборный клапан/дренажный клапан для Pentair Tanawater Paragon Clensui Royalstar Huayu Aucma (6 5*6 5
- Категория: Water Dispenser Parts >>>
- Поставщик: Zhongshan,City,Fudi,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.53 $* | 1.79 $* |
| Jul-16-2025 | 1.51 $* | 1.92 $* |
| Jun-16-2025 | 1.64 $* | 1.70 $* |
| May-16-2025 | 1.45 $* | 1.72 $* |
| Apr-16-2025 | 1.67 $* | 1.12 $* |
| Mar-16-2025 | 1.67 $* | 1.63 $* |
| Feb-16-2025 | 1.24 $* | 1.61 $* |
| Jan-16-2025 | 1.21 $* | 1.51 $* |
Характеристики
Water inlet valve/ Drainage valve-Use in Washing machine,dishwashers,drinking fountain,showers,air conditioning systems and other domestic or commercial applications.
Materials:
The materials from which the valve is made are suitable for both hot and cold water,the plastic parts are made from PP to ensure high resistance to water,the internal metal parts are stainless steel and the external metal parts are zinc plated steel.
Rated voltage | 110V-120V, 220V-240V,12VAC&DC,24VAC&DC |
Rated Frequency | 50hz/60hz |
Power Draw | 6 watt at 230v |
Inlet/outlet direction option | 90°C |
Coil Terminals | (4.8x0.5mm) or ( 6.3x0.8mm) |
Coil Insulation | Class F(140°C wire operating temperature) |
Terminal mounting direction | 0°C/90°C/180°C/270°C or upen request |
Operating pressure range | 0.02-1.0Mpa / 0.2-10bar (0-80°C) |
Insulation | Class II to water no grounding required |
Fluid | Drinking water |
Flow rate | 2L / 2.5L / 4L / 6L / 10L / 12L / 17L / 21L or upon request |
Internal leakage | Maximum 1 drop/minute on pressure range 0.2 to 10 bar |
Temperature rise | ≤105k |
Water Temperature | 90°C maximum according water temp.&duty cycle |
Ambient temperature | 85°C maximum according water temp.&duty cycle |
Noise | ≤40dB(A) |
Operating duty cycle(220V) | Tu 25°C,Tm 90°C&Tu 60°C,Tm 25°C,continuousS(100%ED) |
Life under extreme conditions
| >50000 cycles (10bar-60°C amb.T.-90°C water temp./3’’on/3’’off |
>200000 cycles (5bar-60°C amb.T.-70°C water temp./3’’on/3’’off | |
>500000 cycles (5bar-60°C amb.T.-25°C water temp./3’’on/3’’off |
