Двигатель tt с высокой скоростью вращения 775 и двигатель 24 В постоянного
- Категория: Motors >>>
- Поставщик: TT,Motor,(Shenzhen),Industrial,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 4.88 $* | 4.83 $* |
| Jul-17-2025 | 3.65 $* | 3.46 $* |
| Jun-17-2025 | 4.15 $* | 4.71 $* |
| May-17-2025 | 4.64 $* | 4.44 $* |
| Apr-17-2025 | 3.39 $* | 3.88 $* |
| Mar-17-2025 | 4.98 $* | 4.44 $* |
| Feb-17-2025 | 4.54 $* | 4.73 $* |
| Jan-17-2025 | 4.97 $* | 4.47 $* |
Характеристики

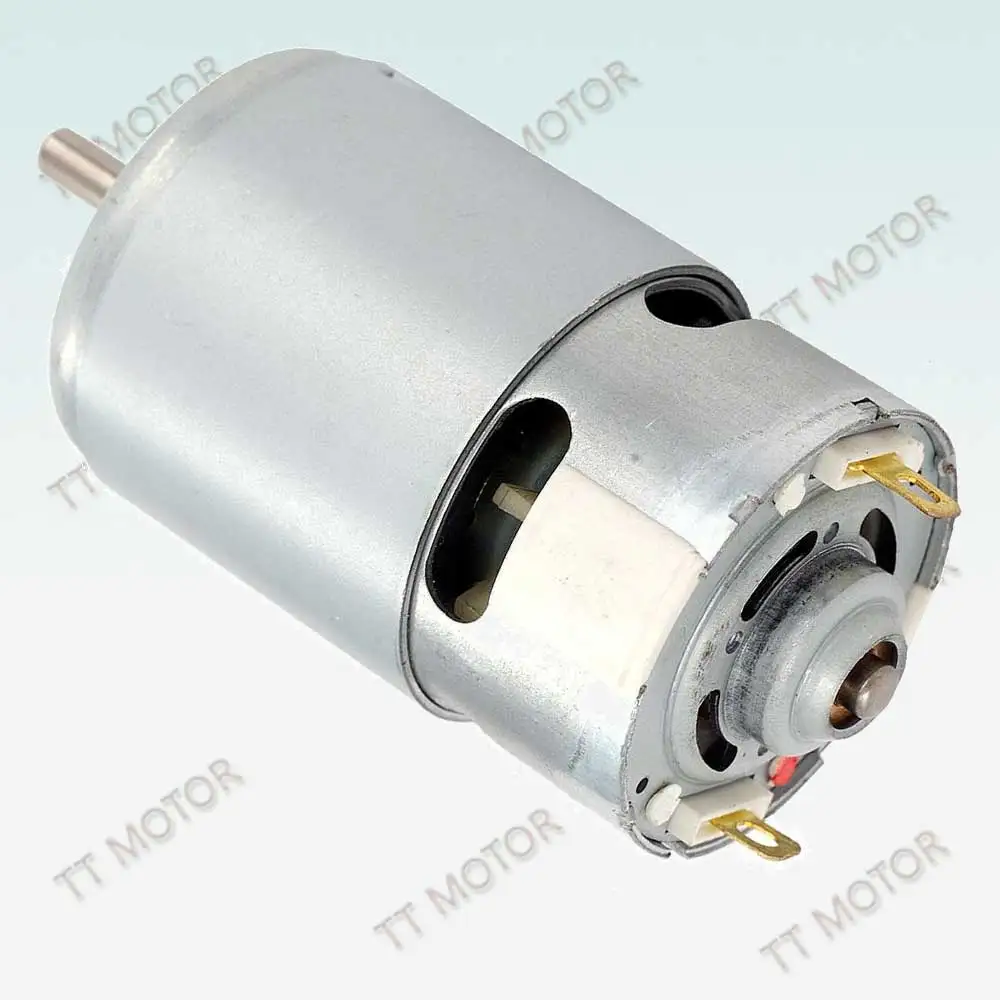

tt motor high rpm 775 motor and 24v dc motor
1.Typical Applications:Printer,Copy Machine,Sewing Machine,
Water Pump,Hair Dryer,Circular Saw,String Trimmer,etc
2.high efficiency,less noise,and low current,24v dc motor
3.can match with 45mm planetary gearbox,or 51mm gear box

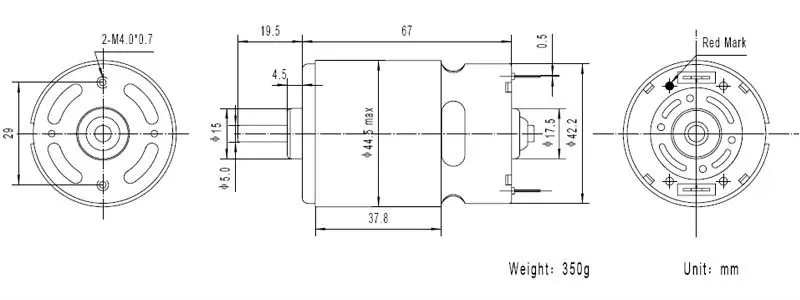

4.shaft:5.0mm diamter,shaft length 14.5/19.5mm
5.mounting holes:2-M4.0x0.7
6.double shaft for encoder,12ppr
7.we can provide samples for your test.
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
V | rpm | A | rpm | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
TRS-775PM | 2765 | 6.0-30.0 | 24.0 | 7600 | 0.37 | 5810 | 0.22 | 73.53 | 750 | 44.7 | 312.35 | 3186 | 8.23 |
4045 | 6.0-15.0 | 12.0 | 4600 | 0.60 | 3500 | 4.30 | 84.31 | 860 | 36.6 | 352.94 | 3600 | 16.1 | |
