Introduction of 2000L 20HL  Stainless steel direct fire heating 3 vessel local beer making supplies



1. Description:

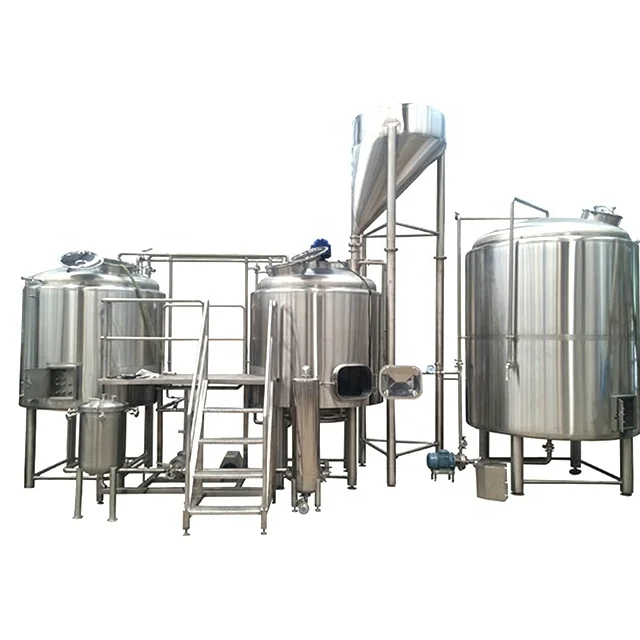

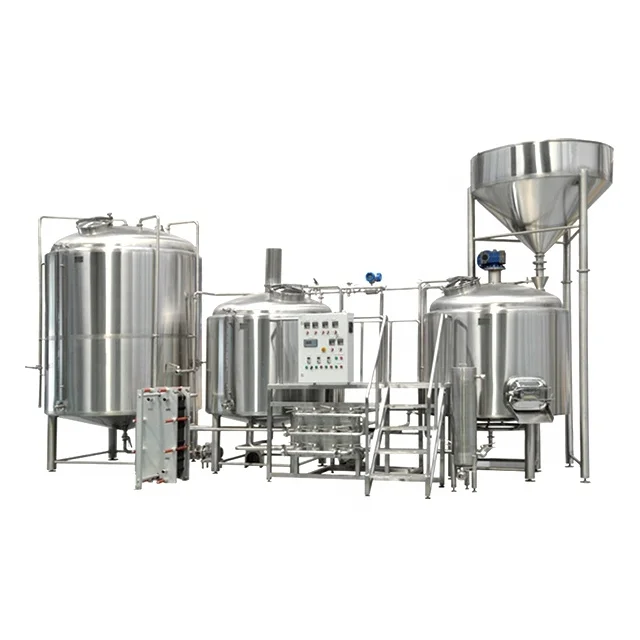

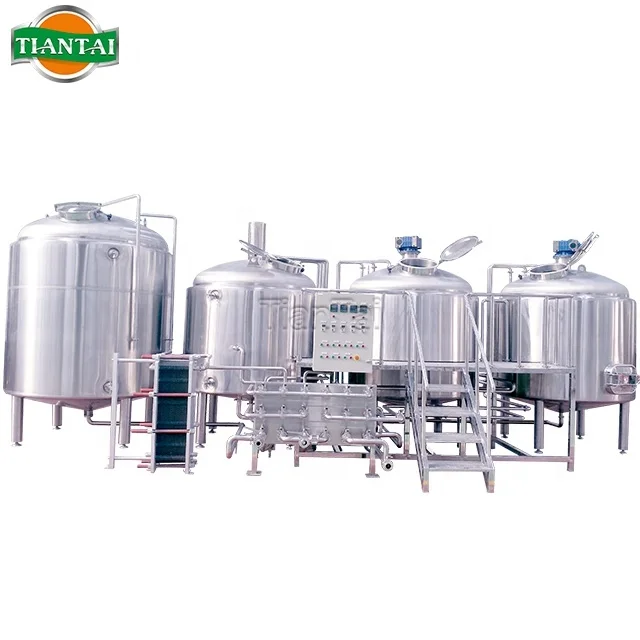

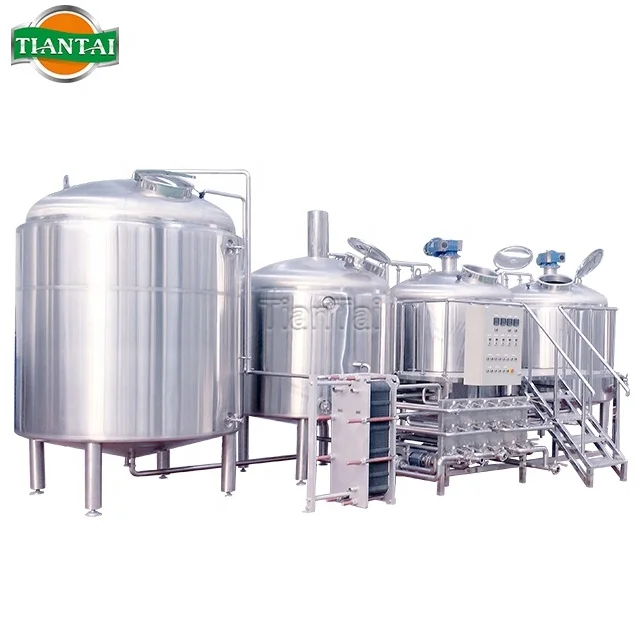

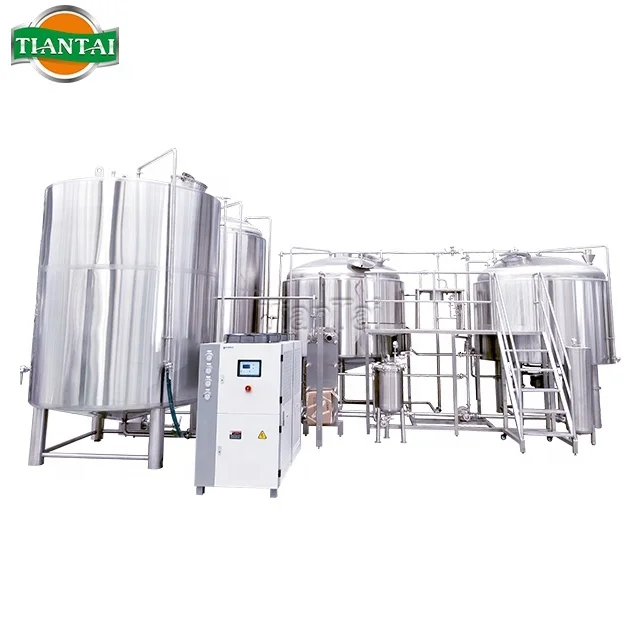

2000L 20HL Stainless steel direct fire heating 3 vessel local beer making supplies is often used in small breweries or bars. The system consists of three brewhouse vessels---Mash Tun and Lauter Tun and Kettle/Whirlpool Tun. Mashing process is worked in one tank and lauter process is worked in one tank, and the kettle and whirlpool process are worked in one tank,this configuration can save brewery cost and floor space.

This system usually brews one batch per day. If the second batch is required,it will need about 3.5 hours more. This system can cope with a temporary increase in production but not suitable for planned multi-batch brewing.

According to different fermentation time, usually 6 sets of 4000L fermenters or 12 sets of 2000L fermenters can be configured. 4 sets of 4000L fermenters and 4 sets of 2000L fermenters can also be configured to meet the needs of various beer types.

This brewery system also needs to be equipped with a complete automatic or manual control system, malt milling system, CIP system,glycol cooling system, direct fire  system, air system, etc.



2. Our Advantages:

1) Passed ISO TUV SGS production process inspection, Tiantai beer equipment meets the GB CE PED ASME standard

2) Five years guarantee for a long time sales service

3) Local service in EUROPE, AUSTRALIA ETC

4) 0 trade risk verified by more than 1100 breweries

5) Direct food grade completely certificated 304 stainless steel



3. Features:

1) Three vessels with hot water tank, 2000L per batch, the first batch takes about 8 hours, and two batches in 11.5 hours is allowed ;

2) Completely SUS304 stainless steel material, easy to clean; Red copper outside can also be used to adapt to special environments such as bars;

3) Direct fire and kettle process can get high thermal efficiency;

4) The wort is cooled by city water and -5 degrees glycol water in two stages, and it can also be designed to cool in a single stage;

5) Brewhouse heating temperature and fermentation cooling temperature are automatically controlled, manual control can be switched at any time;

6) Manual valve control, humanized operation, low investment, high cost performance; PLC automatic control can be optional;

7) Filling system can fill stainless steel beer barrels, glass bottles or cans



>>>>>>Click here for a free quotation now!



4. Technical Details:

Part 1: 500-800kg/hr Malt Milling Unit
	500-800kg/hr Malt Miller	1set
	Flexible Auger	1set
	Milling Controling Cabinet	1set
Part 2: 2000L Three Vessel/HLT Brewhouse
	20HL Mash Tun	1set
	20HL Lauter Tun	1set
	20HL Kettle/Whirlpool Tun	1set
	40HL Hot Water Tank	1set
Part 3: Fermentation Unit

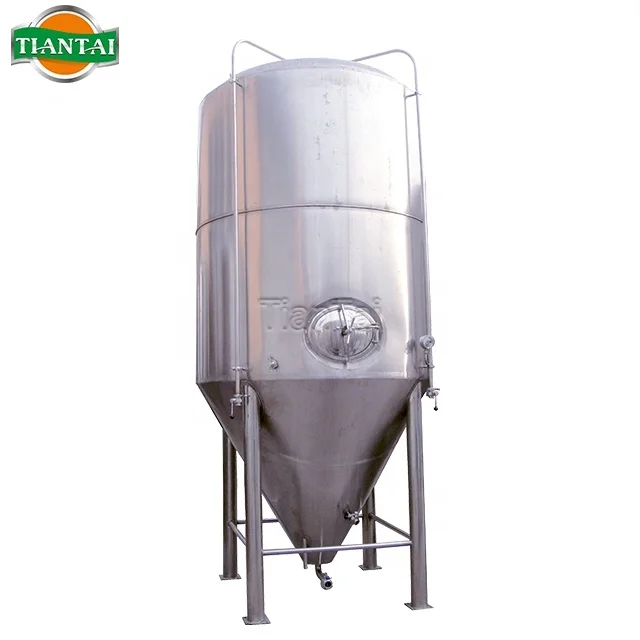

	4000L Fermentation Tank/Unitank	4sets
	2000L Fermentation Tank/Unitank	4sets
	4000L Bright Beer Tank	1set
	4000L Bright Beer Tank	1set
Part 4: Glycol Cooling Unit
	4000L Glycol Water Tank	1set
	8HP Glycol Water Chiller	2sets
	Glycol Water Pipeline	1unit
Part 5: Electric Control Unit
	Brewhouse Control Cabinet	1set
	Fermentation Control Cabinet	1set
Part 6: 200L Portable CIP Cart [Two Tanks]
	200L Single Wall Caustic Tank	1set
	200L Single Wall Acid Tank	1set
	Sanitary Centrifugal Pump	1set
Part 8: Keg Filling Unit
	1-Station Keg Filler	1set
	2-Station 2-Tank Auto Keg Rinser	1set
Part 9: Bottle Filling Unit
	8-Station Automatic Bottling Machine	1set
