Высокоэффективная машина для запечатывания мешков футболок с одним большим и боковым фланцевым устройством продольной Резки Горячего

Brief Introduction

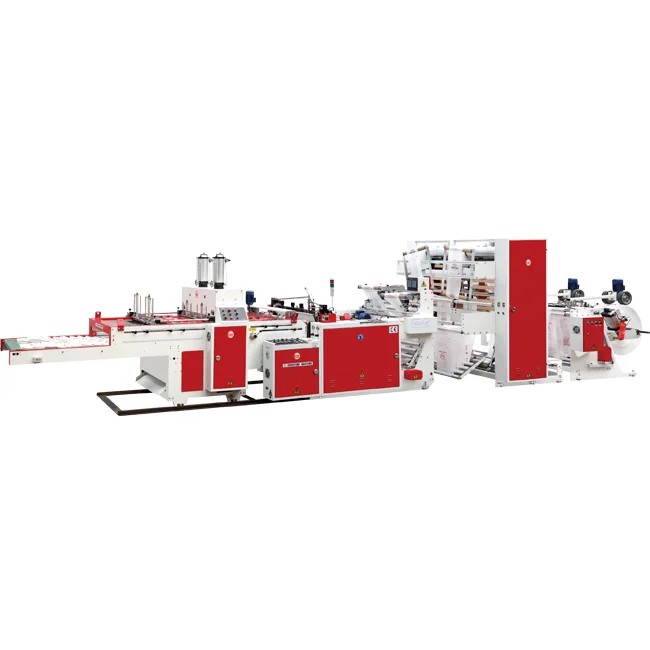

New designed super high speed T-shirt bag making machine,is specially for making T-shirt bags,which it two lines and three lines high speed production,easy to operate,high output,special servo motor driving.

Main Features

1.Unwinding tension with AC inverter automatic control.
2.Easy operate and adjustment side fold device.
3.Turnover sealing knife,easy clean design.
4.The whole set of bags has design of swaying,no paste between two bags mouth.
5.Multitem automatic warning,automatic stop design.

Optional

1.Two line hot slitting device +ST2 ( 2 line printing bags )
2.Three line hot slitting device +ST3 ( 3 line printing bags )

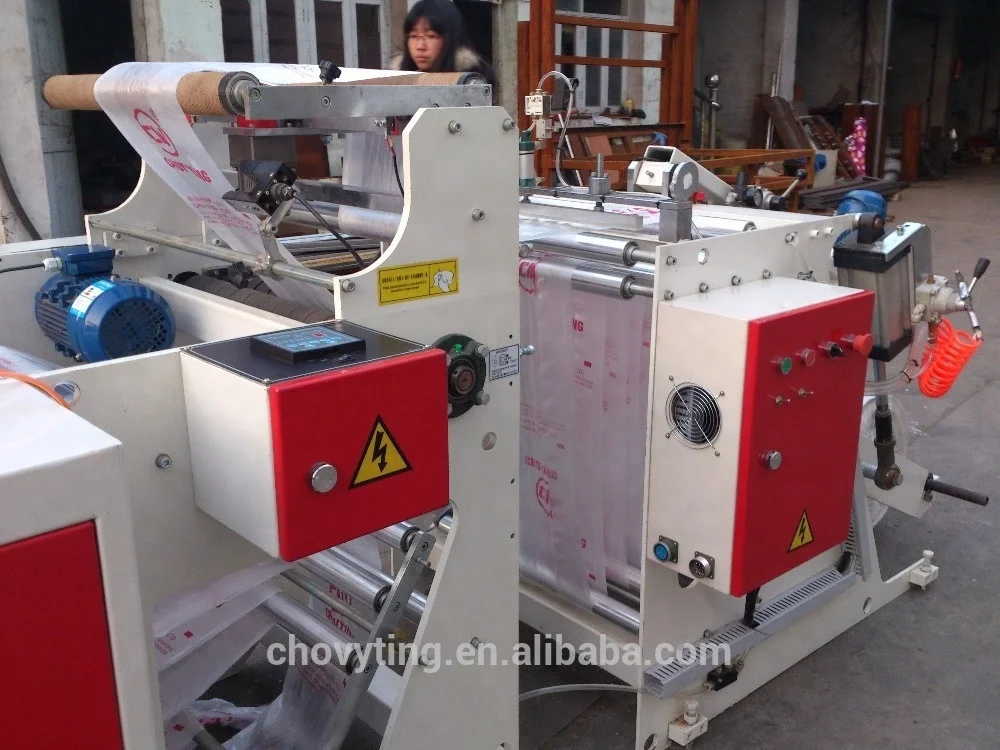

Unwinding Part

1.Unwinding adopts air cylinder automatic load design.
2. Adopts AC frequency motor driving constant tension control,feeding speed is according to the producing speed.
3. Automatic stop design when rolls film finish or damage.

Automatic Collect Table

1. Collect table adopt automatic collecting bag feeding (intermission model and continuum model).
2.When the bag reach to a certainty quantity, collect table will move automatically, and continue producing.
3.Collect table is driven by Micro-motor reducing servo.
