          Product specification

Pressure range	Pressure Type	gauge pressure  absolute pressure  sealed pressure
	Pressure range	1-1000Bar (optional)
Technical Index	Power supply	24VDC    12VDC        12-36VDC
	Signal output	4-20mA   0-20mA     1-5V       0-5V
	Signal line specification	2wire        2wire        3wire         3wire
	Zero Drift	±0.03%FS/°C
	Accuracy	±0.1%FS  ±0.3%FS  ±0.5%FS
	Thermal Sensitivity Shift	±0.03%FS/°C
	Longterm Stability (1 Year)	<=0.21%FS
	Frequency Response (-3dB)	5kHz~650kHz
	Compensated Temperature	-10~70℃
	Working Temperature	-40~85℃
	Storage Temperature	-40~125℃
	Overload pressure	200%FS
	Protection Classification	IP65
	Body materials	316 stainless steel (standard)
	Transmission distance	<= 100m (No electromagnetic interference)
	Pressure connection	G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5, M20*1.5 etc. (optional)
	Measure media	Gas, water, oil or other media can be compated with stainless
	Accuracy	±0.1%FS  ±0.3%FS  ±0.5%FS
	Terminal Block Specifications	Hirschmann connector, aviation conncetor, direct lead connector



           How to choose the pressure transmitter?

Product Name

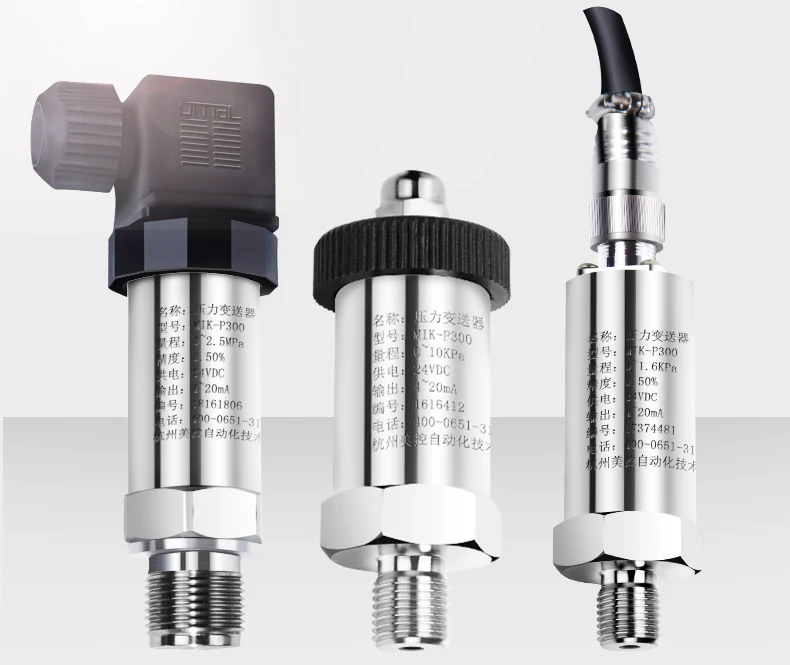

MIK-P300
	Pressure Range
	1Bar-1000Bar (optional)
		Power supply
		V1: 24V(9-32V),V2: 12V,V3:±12V
			Signal output
			B1: 4-20mA,B2:0-10V,B3:1-5V,B4:0-5V
				Electrical connector
				C1:M20*1.5,C2:G1/2,C3:G1/4,C4:M14*1.5
					Addition information
					J1:Hirschmann connector,J2:Direct wire,J3:Aviation plugs
					P1: 0.5%,P2:0.3%,P3:0.1%
					I: Bile diaphragm
					D: Seismic requirements
					E: Customer requirment
MIK-P300-2Mpa       V1            B1           C1        J1P1E   For example:  MIK-P300-2Mpa-V1-B1-C1-J1P1E
