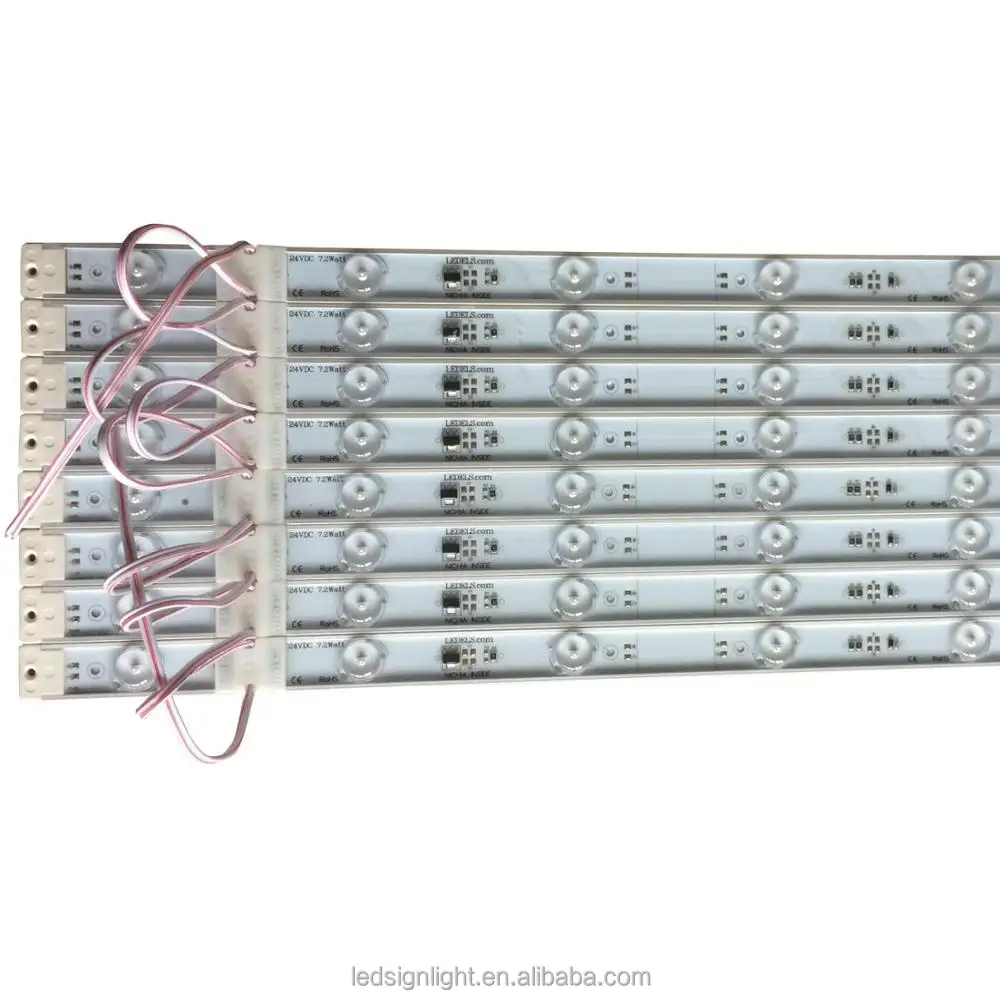

Display case lighting led lightbar with 175degree,

Nichia 3030 LED, 24v 7.2w 720LM backlight waterproof led sign module strips for light box signs whose 30mm-80mm deeps

Exhibitions



Product Feature:

1   Powered by original Nichia 1.0Watt LED*6PCS per 500mm length.
2    Wide viewing angle with even light output: 175 degrees
3    Backlighting to slim /single-side light boxes whose depth is 30~80mm.
4    Energy saving on lightbox illumination

5    Cost effective on lightbox illumination
6    Fire retardant, waterproof, IP65, ideal for outdoor use

7 . 24VDC, 7.2W rigid led strips for single-side lightbox, 700~800lm



Specifications



Model No.	LL-F24P600W1L06B50
LED Type	NICHIA LED
Beam angle	175 degree(Customrize Lens)
Emitting color	White
luminous flux	720-800lm
Color temperature	6000K-7000K
Operating Temperature	24VDC+-0.5
Operating Current	300MA
Power	7.2Watt
Positioning	Screw& blue Autoadhesive Tape
Shell material	U shell &Aluminum PCB
Other colors	warm white(2800-3500K)
warranty	5 years

Physical Parameters:

LED number	6pcs
pcs per link	10pcs per roll
IP Grade	Waterproof IP65
Shell material	ABS Material
Driven by	constant current
Application	Backlighting in Lightbox signs and cabinet case(30-80mm)
Operating temperature	-30°c ---+60 °c
Storage Temperature	-40°c ---+50 °c





Product characteristics:

1.Powered by NICHIA 1W 3030LED.

2.Aluminium base for good heat sinking

3.Brightness:700-800LM

4.Driven by constant voltage DC24V

5.If powered maximun 12 hours a day,5 years warranty

6.Application:backlighting for display case,large lightbox signs depth is 30-80mm single-side.

7. Optical Lens with 175degrees beam angle for slim lightbox

8. CE ROHS Compliant 7.2W 720LM 24Volt UL NICHIA LED Modules UL listed injection for light box signs





Features:

·Easy Installation
LED Modules can be easily installed with blue double-sided sticking tape and connectors.



·Friendly environment
Pb free. With CE/RoHS and UL certificate, Waterproof LED Modules are up to 60% more energy efficient than neon.



Application Case

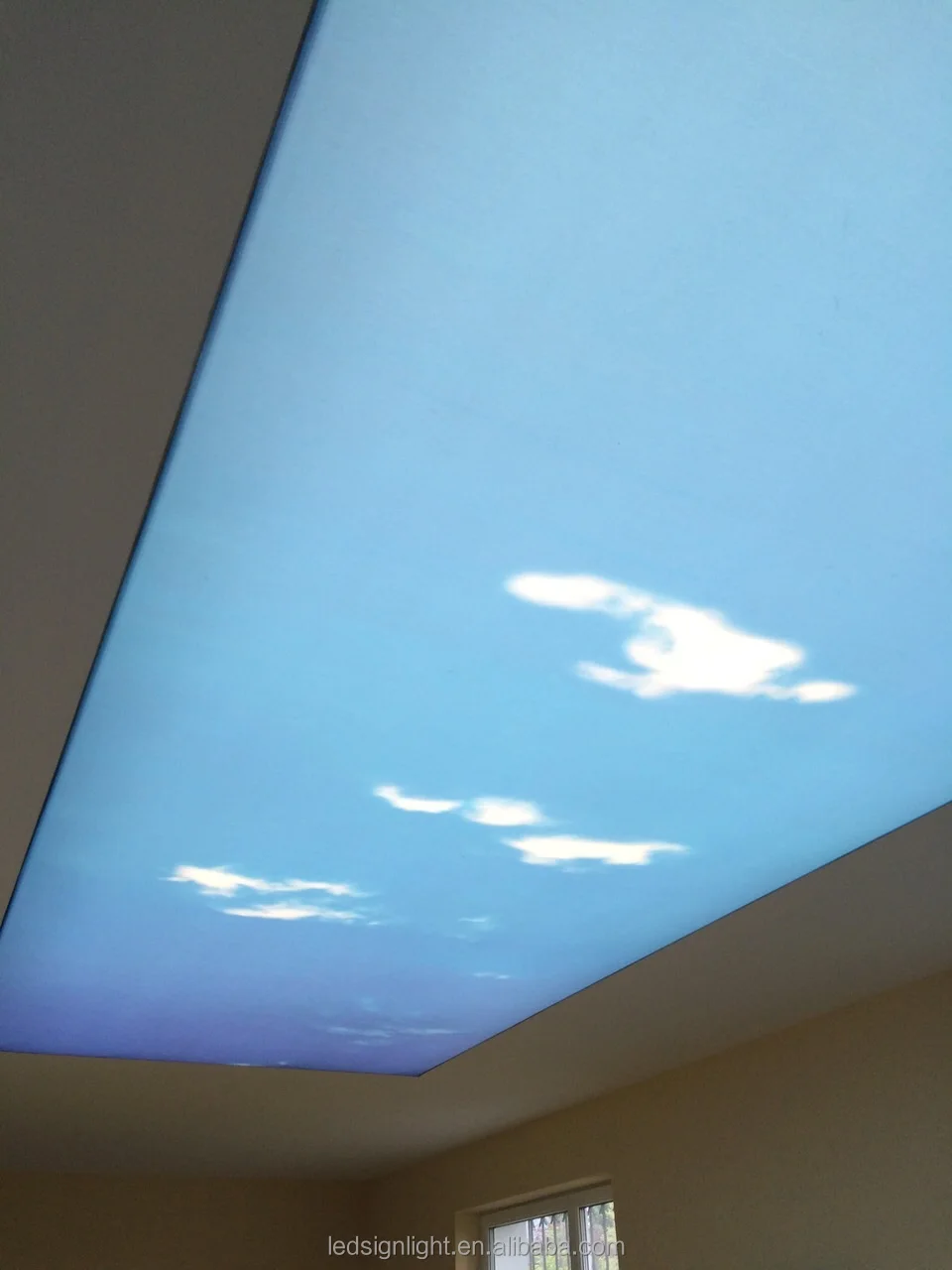

a. Widely Used in Household Lighting.



b. Backlighting for Advertisement ,Signboard and Billboard.

c. Backlighting for advertising Lighting box.

d. Backlighting for local lighting and advertising signage.



E. Back emitting to light boxes, outdoor, signage, display case, shadow boxes, vending machines and under cabinet lights

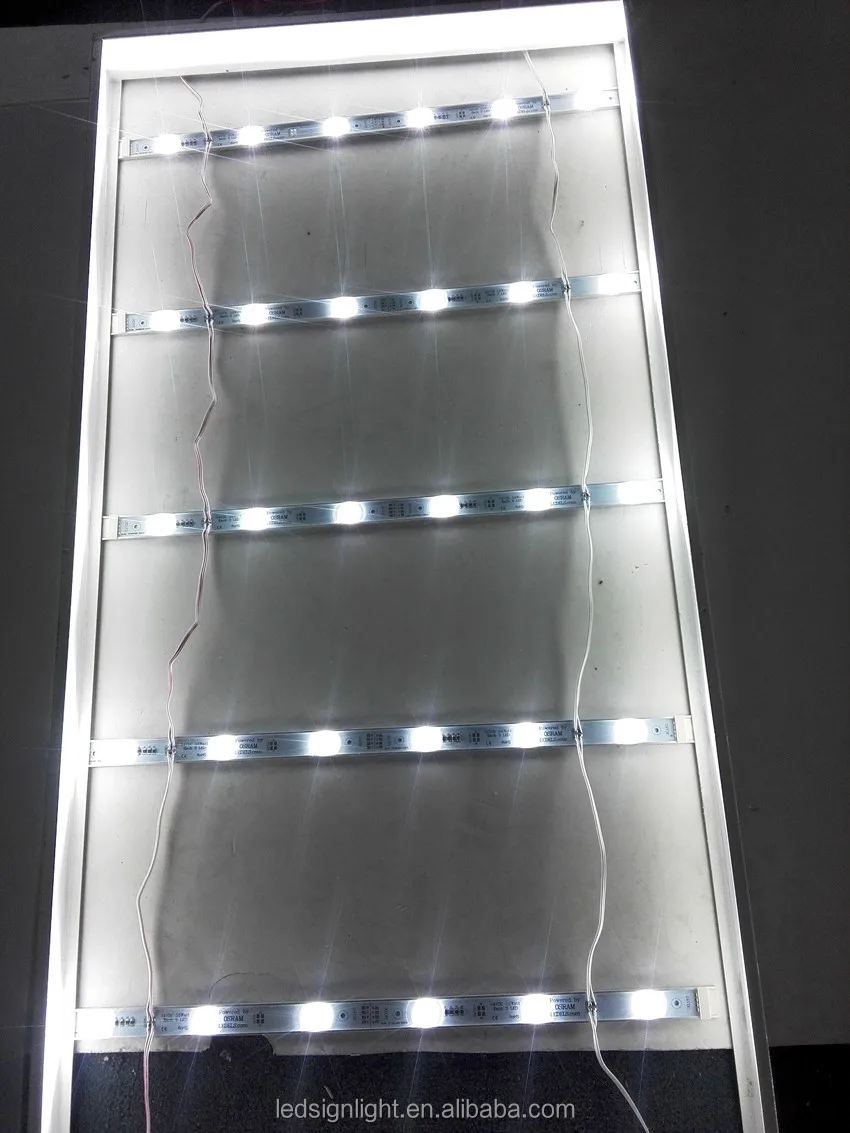

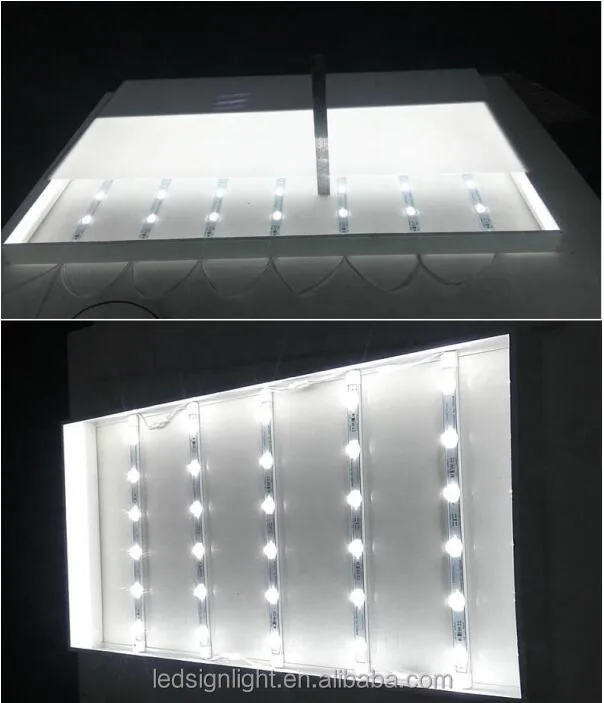

LED Strips for Slim/thin Lightbox signs:





Order infomation



 MOQ: 300pcs



 Trade term: EXW / FOB Shenzhen



 Delivery time: 3-5 working days for sample order, 7-15 working days for mass order



Warranty



Five years since the date of purchase



Trade Terms:



1. Payment term: T/T 100% payment in advance, or for over 10,000USD, T/T 30% deposit after order confirmed, the balance after goods ready before shipping .or Western Union for small amount .



2. Lead time : normally in 5~10 days after deposit received



3. Sample policy : Samples are always availble for each model .Samples can be ready in 3~7 days once payment received.



4. Discounts : We offer discount for big quantity.



Package



Why Choose  LEDELS Lighting CO.,LTD ?

Quality Control: 100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.

 Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.

Over 12 years experience in this industry,own lots of customer in home and abroad.good quality and innovation win good reputation.





If you need to know more about this product,welcome to send a inquiry to us!!
