Поворотный механизм Rushi
- Категория: Нефтяная буровая установка >>>
- Поставщик: Chengdu,Zhonghang,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.71 $* | 0.98 $* |
| Aug-16-2025 | 0.48 $* | 0.60 $* |
| Jul-16-2025 | 0.4 $* | 0.76 $* |
| Jun-16-2025 | 0.60 $* | 0.45 $* |
| May-16-2025 | 0.84 $* | 0.41 $* |
| Apr-16-2025 | 0.2 $* | 0.17 $* |
| Mar-16-2025 | 0.33 $* | 0.42 $* |
| Feb-16-2025 | 0.86 $* | 0.88 $* |
| Jan-16-2025 | 0.7 $* | 0.61 $* |
Характеристики
Product Overviews
specification

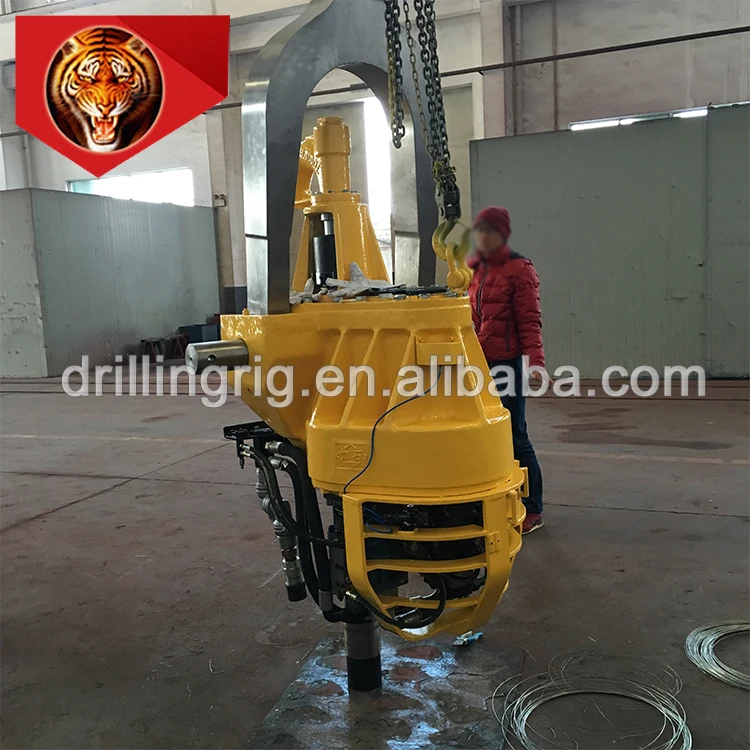

DSL135 POWER SWIVELS
YSL-135 Power Swivel is the device installing on the derrick of servicing rig, to provide rotating power. Except the use for such workover jobs as casing milling, milling, drilling cement plug and bridge plug and fishing, it is also used for sidetracking drilling, drilling open hole and coring. The product is designed and manufactured according to API 8C specifications.
Model | DSL60 | DSL120 | DSL135 | DSL160 | DSL225 |
Rated loads (lbs) | 134000 | 269000 | 303000 | 359000 | 505000 |
Rated loads per 100 rpm (lbs) | 78000 | 146000 | 218000 | 269000 | 359000 |
Max torques (ft.lbf) | 1400 | 5900 | 10300 | 14700 | 20600 |
Max speed (r/min) | 160 | 160 | 160 | 180 | 180 |
ID of the center pipe (in) | 2 | 2 3/8 | 3 | 3 | 3 |
Connection type | 3 1/2″FH LH | 3 1/2″FH LH | 4 1/2″FH LH | 4″REG LH | 6 5/8″REG LH |
Max pressure of the mud system (psi) | 5000 | 5000 | 5000 | 5000 | 5000 |
Max pressure of the hydraulic system (psi) | 5000 | 5000 | 5000 | 5000 | 5000 |
Engine power (hp) | 107 | 148 | 355 | 469 | 637 |
Control mode | Air control+ hydraulic control | Air control+ hydraulic control | Air control+ hydraulic control( or electrical control) | Air control+ hydraulic control( or electrical control) | Air control+ hydraulic control( or electrical control) |
brochure
