USES:
This product have one normally open contact, for electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.













ECHNICAL PARAMETERS:

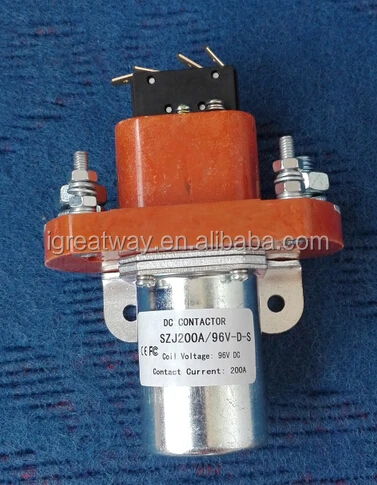

Product Type	SZJ200A-D
Rated voltage	6V,12V,24V,36V,48V,60V,72V,84V,120V,150V
Contact circuit rated load current (A)	200A
Typical voltage drop across contacts per 100A	No more than 80mV
the cooling pull-in voltage at (20±5)℃ (V)	no more than70%
the cooling drop-out voltage at (20±5)℃(V)	no morte than30%,no less than 5%
the allowed range of coil voltage	±20%
Drop-out time(n/o contacts to open)	8ms
Pull-in time (n/o contacts to close)	30ms
Disconnect the maximum contact bounce time	3ms
Insulation resistance	20MΩ
Electric strength to resist	50Hz/60Hz 1000VAC 1minute
Typical fault currents which can be ruptured	1000A/5ms at 48V/DC
Coil power (W)	6-15
Electric life	20000 times
Mechanical life	1 million times
Work specification	Continuous
Contact form	1 NO
Contact material	AgCdO(12)

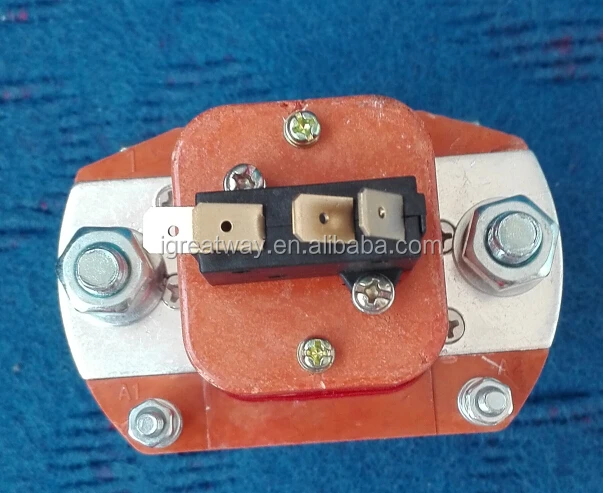

Auxiliary contact rated load (choose)	2A/48VDC, 5A/24VDC
Testing organization certification	CE,FCC

Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on.
