C прогонами Профилегибочная машина Канал стальная структура материала делая машину холодная формованная
- Категория: Обрешечивающие машины и машины для стальной рамы >>>
- Поставщик: Shijiazhuang,Yingyee,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 51170.98 $* | 53729.69 $* |
| Aug-16-2025 | 50740.51 $* | 53277.81 $* |
| Jul-16-2025 | 42570.73 $* | 44699.81 $* |
| Jun-16-2025 | 49880.96 $* | 52374.63 $* |
| May-16-2025 | 43430.52 $* | 45602.22 $* |
| Apr-16-2025 | 49020.93 $* | 51471.6 $* |
| Mar-16-2025 | 48590.77 $* | 51020.12 $* |
| Feb-16-2025 | 48160.3 $* | 50568.36 $* |
| Jan-16-2025 | 47730.31 $* | 50117.21 $* |
Характеристики

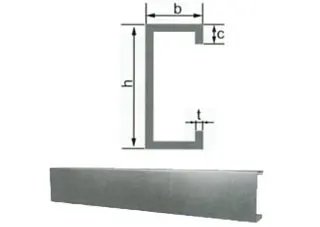

China supplier hydraulic c z purlin roll forming machine
With the gimbal driving system, the C purlin roll forming machine has much stronger driving power and is more stable when forming the purlins. Using the PLC control system or handle wheel, the C purlin forming machine automatically adjusts while forming any width of the purlins. It saves time and is much easier than adjusting the spacers of the rollers.
Machine Configuration:
Decoiler, Feeding Applicator, Roll Forming Unit, Straightening Unit,Computer Control System, Hydraulic Cutting, Output Table
Working Flow:
Decoiler—Feeding Applicator—Roll Forming Unit—Computer Contol System—Hydraulic Cutting—Output Table
Product Description
Technical parameters:
1. Suitable Material: Cold-rolled steel strip and heat-treated galvanized steel strip;
2. Thickness of raw material: 1.5-3.0mm
3. Material of roller: Cr12 mould steel being quenched treatment, with digital-controlled procession, which ensures the rollers' hardness to be HR60 and durable.
4. Cutter blade Cr12 mould steel with quenched treatment
5. Forming speed: About 10-12m/min
6. Power Requirement Main motor power: 15 Kw(Depend on final design)
Hydraulic station power: 5.5Kw (Depend on final design)
7. Uncoiler's loading capacity Max. Capacity: 5000kgs (can be increased to be 10T)
8. Controlling system: Mitsubishi PLC & converter
9. Voltage: 380V *3 phase* 50Hz or as per the customer's requirement
10. Machine's size: About 1800mm*2400mm*1400mm (Depend on final design)

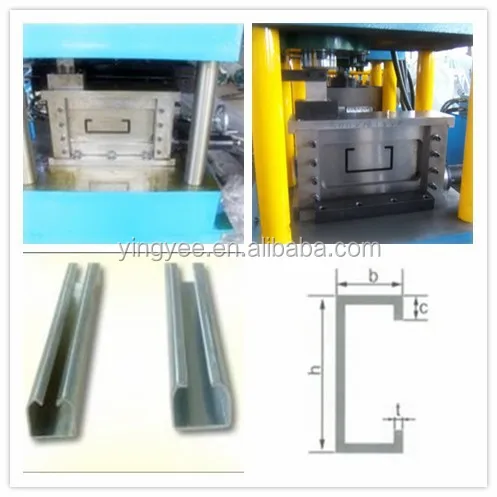

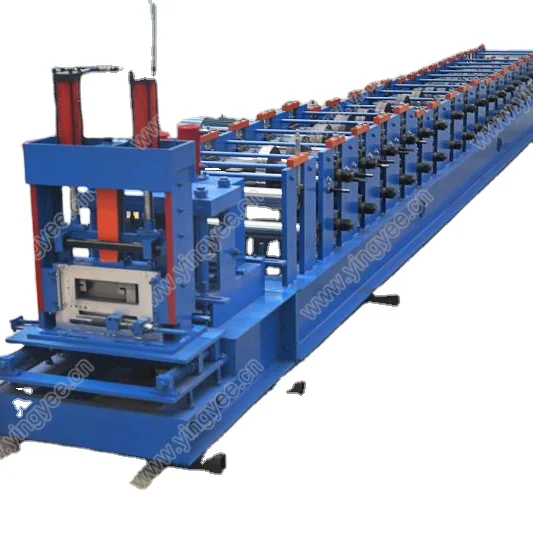

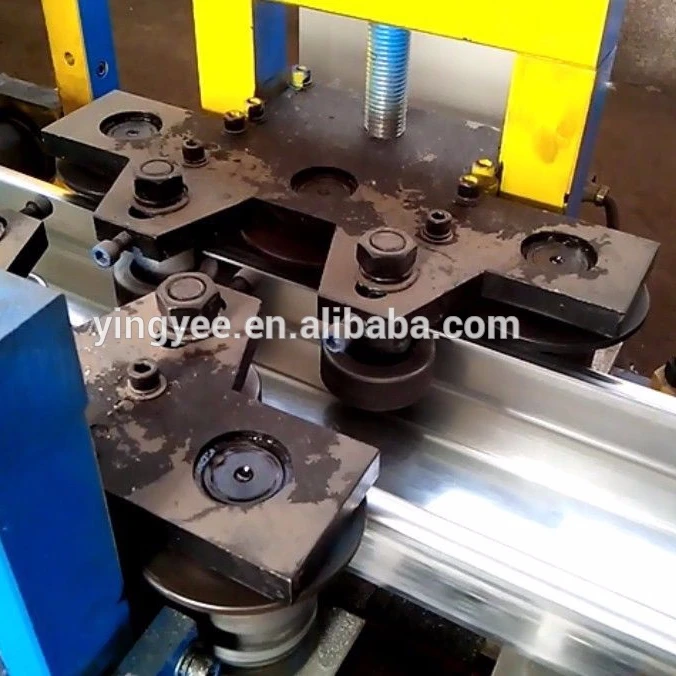

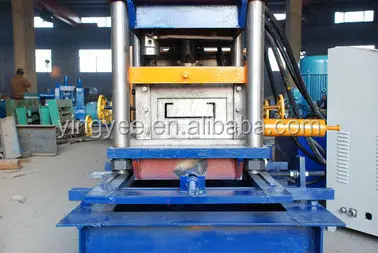

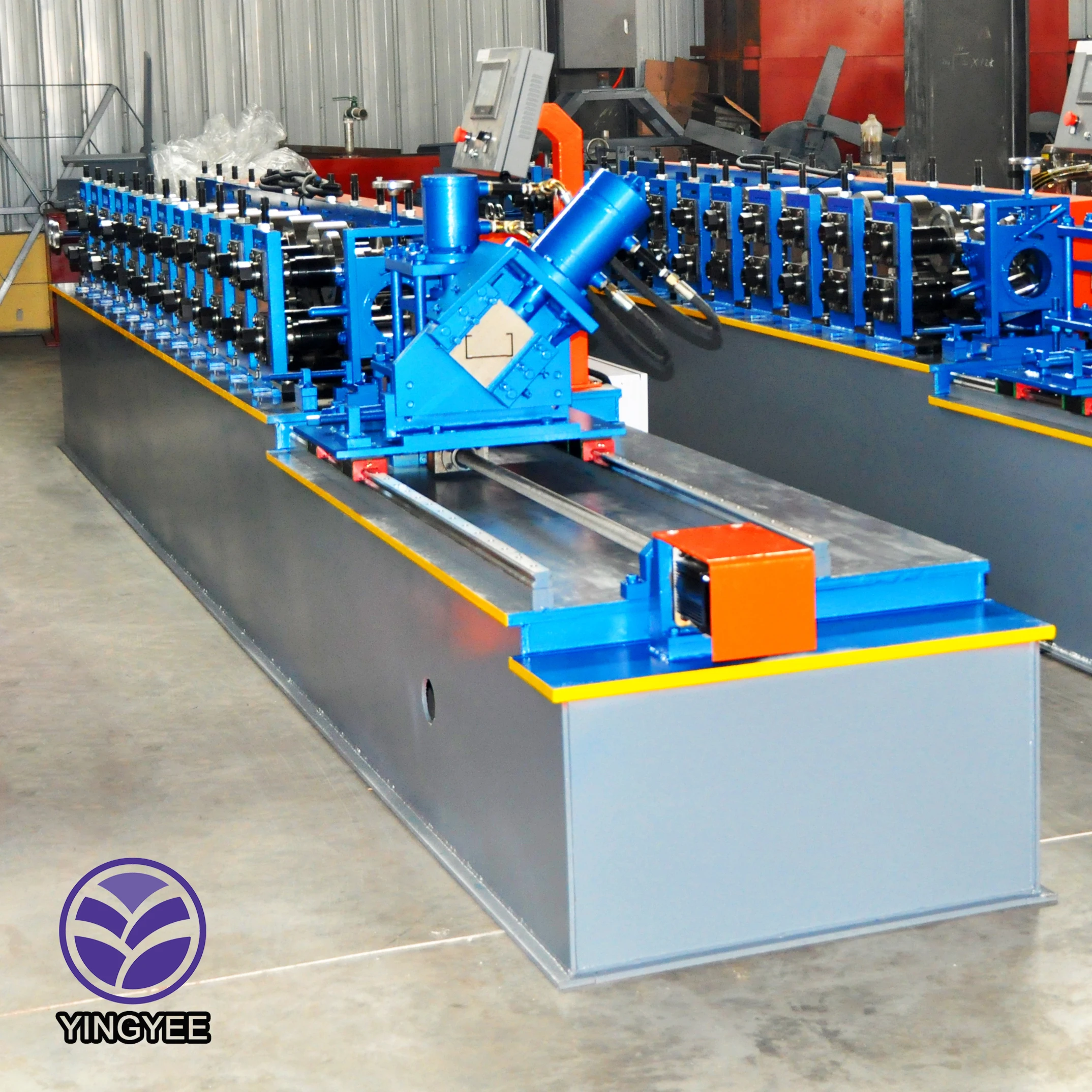

Pictures of machine:
We can design kinds of roll forming machine according to your specific panel profile.
Our Services
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Company Information
Shijiazhuang Yingyee Import&Export Co., Ltd.
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor fromall the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.
Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :
- Roof roll forming machine
- Roller shutter door roll forming machine
- C and Z purlin roll forming machine
- Downpipe roll forming machine
- Light keel roll forming machine
- Shearing machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
