Бесперебойный источник питания UPS без разрывов 1 кВт 3 5 10
- Категория: Источники бесперебойного питания >>>
- Поставщик: Guangdong,Xindun,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 238.23 $* | 250.64 $* |
| Aug-16-2025 | 236.96 $* | 248.33 $* |
| Jul-16-2025 | 198.62 $* | 208.89 $* |
| Jun-16-2025 | 232.39 $* | 244.73 $* |
| May-16-2025 | 202.15 $* | 212.57 $* |
| Apr-16-2025 | 228.83 $* | 239.56 $* |
| Mar-16-2025 | 226.50 $* | 237.69 $* |
| Feb-16-2025 | 224.37 $* | 235.22 $* |
| Jan-16-2025 | 222.18 $* | 233.0 $* |
Характеристики
| UPS feature |
General feature
- Three phase line interactive inverter UPS
- Low frequency transformer, pure sine wave output, strong load capacity
- Intelligent LCD display
- Self protection against under voltage, over voltage, overload, short circuit and high temperature
- Battery type: Gel, AGM, Sealed lead Acid, Open lead Acid, Calcuim(open), Sulphation cycle, other customize battery.
Exclusive feature
- Low DC voltage, relieving battery cost
- 100% unblance load design
- Mains first/ battery first working mode (optional)
| UPS specification |
| Model HDSX | 4KVA | 6KVA | 7KVA | 8KVA | 10KVA | 15KVA | 20KVA | 25KVA | |
| Rated Power | 3.2KW | 4.8KW | 5.6KW | 6.4KW | 8KW | 12KW | 16KW | 20KW | |
| Peak Power(20ms) | 9.6KW | 14.4KW | 16.8KW | 19.2KW | 24KW | 36KW | 48KW | 60KW | |
| Start Motor | 3HP | 4HP | 4HP | 4HP | 5HP | 7HP | 10HP | 10HP | |
| Battery Voltage | 48/96/192VDC | 96/192/384VDC | |||||||
| Size(L*W*Hmm) | 565*300*775 | 725*365*1010 | |||||||
| Packing Size(L*W*Hmm) | 625*360*895 | 785*425*1135 | |||||||
| N.W.(kg) | 65 | 73 | 75 | 80 | 122 | 134 | 160 | 176 | |
| G.W.(kg)(Wooden Packing) | 78 | 86 | 88 | 93 | 146 | 158 | 184 | 200 | |
| Model HDSX | 30KVA | 40KVA | 50KVA | 60KVA | 80KVA | 100KVA | 125KVA | 150KVA | |
| Rated Power | 24KW | 32KW | 40KW | 48KW | 64KW | 80KW | 100KW | 120KW | |
| Peak Power(20ms) | 72KW | 96KW | 120KW | 144KW | 192KW | 240KW | 300KW | 360KW | |
| Starter Motor | 15HP | 15HP | 20HP | 25HP | 30HP | 40HP | 50HP | 60HP | |
| Battery Voltage | 192/384VDC | 384VDC | |||||||
| Size(L*W*Hmm) | 715*575*1275 | 925*760*1450 | |||||||
| Packing Size(L*W*Hmm) | 775*635*1400 | 990*825*1590 | |||||||
| N.W.(kg) | 257 | 287 | 307 | 337 | 355 | 512 | 552 | 612 | |
| G.W.(kg)(Wooden Packing) | 290 | 320 | 340 | 370 | 388 | 552 | 592 | 652 | |
| Input | DC Input Voltage Range | 10.5VDC-15VDC(Single battery voltage) | |||||||
| AC Input Voltage Range | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||||||
| AC Input Frequency Range | 45Hz-65Hz | ||||||||
| Max AC charging current | 20A/10A/5A | 20A/10A/5A | 20A/10A/5A | 25A/15A/10A | 25A/15A/10A | 30A/20A/10A | 30A/20A/10A | 45A/30A/15A | |
| 30A/15A | 40A/20A | 45A/25A | 45A/30A | 30A | 45A | 45A | 45A | ||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||||
| Phase | 3/N/PE | ||||||||
| Output | Efficiency(Battery Mode) | ≥85% | |||||||
| Output Voltage(Battery Mode) | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||||||
| Output Frequency(Battery Mode) | 50/60Hz ±1% | ||||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||||
| Output waveform distortion | Linear load≤3% | ||||||||
| Efficiency(AC Mode) | >99% | ||||||||
| Output Voltage(AC Mode) | Conforming to AC input | ||||||||
| Output Frequency(AC Mode) | Conforming to AC input | ||||||||
| No load loss(Battery Mode) | ≤1% rated power | ||||||||
| No load loss(AC Mode) | ≤2% rated power( charger does not work in AC mode) | ||||||||
| No load loss(Energy saving Mode) | ≤10W | ||||||||
| Phase | 3/N/PE | ||||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||||||
| Environment | Operating temperature | -10℃~40℃ | |||||||
| Storage temperature | -15℃~60℃ | ||||||||
| Noise | 2000m(More than derating) | ||||||||
| Elevation | ≤65dB | ||||||||
| Humidity | 0%~95% ,No condensation | ||||||||
| UPS pictures |

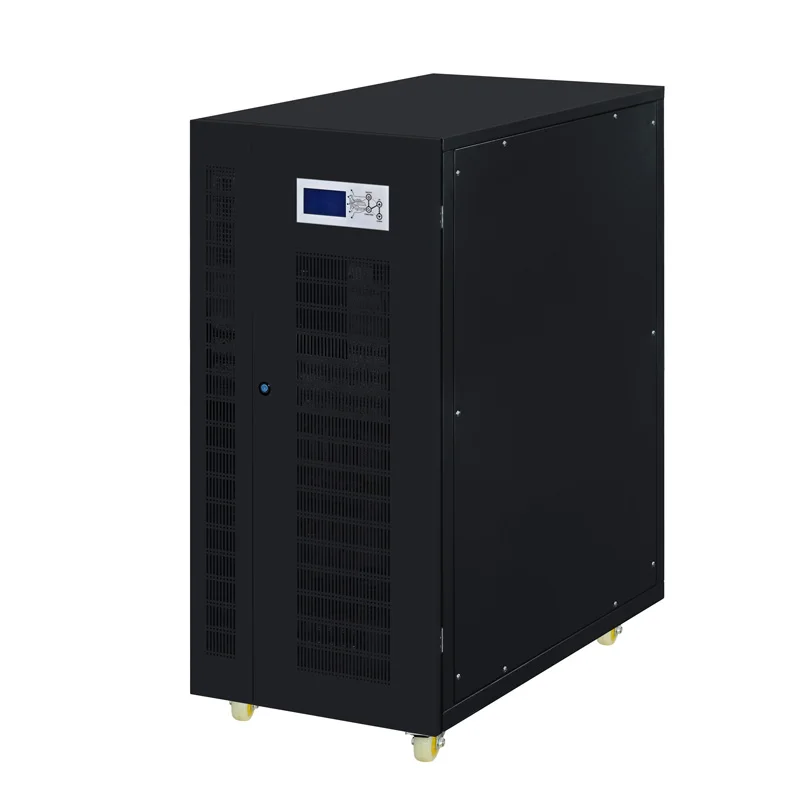

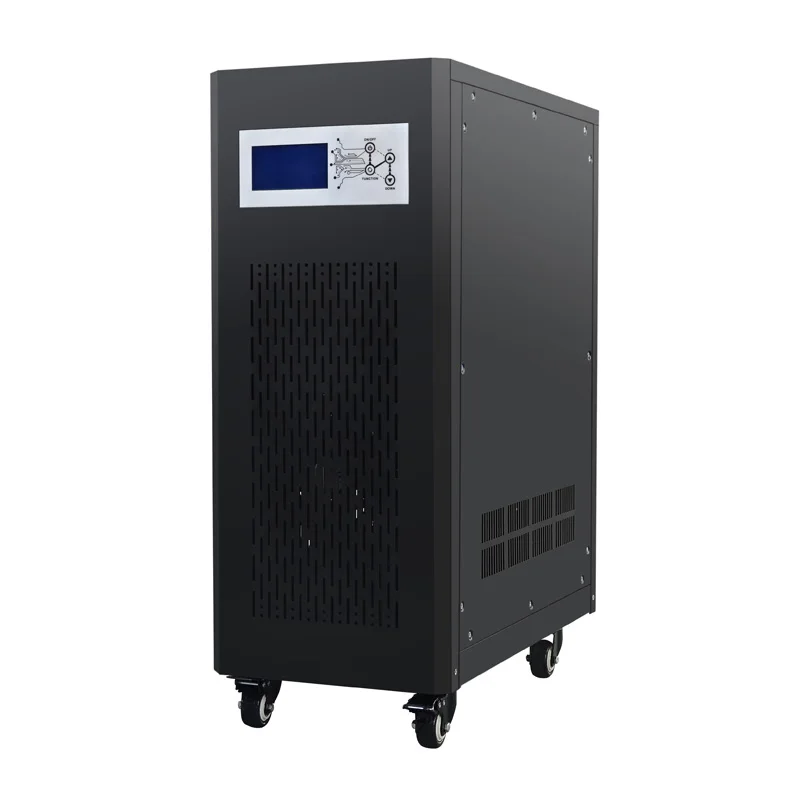

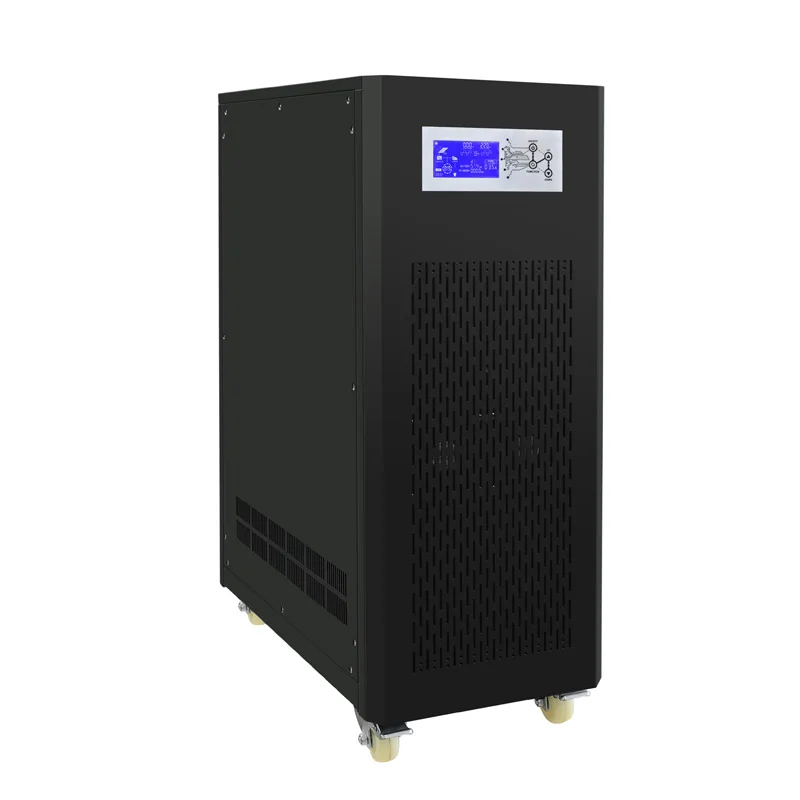

3 phase inverter 220v 380v 4kva-8kva:

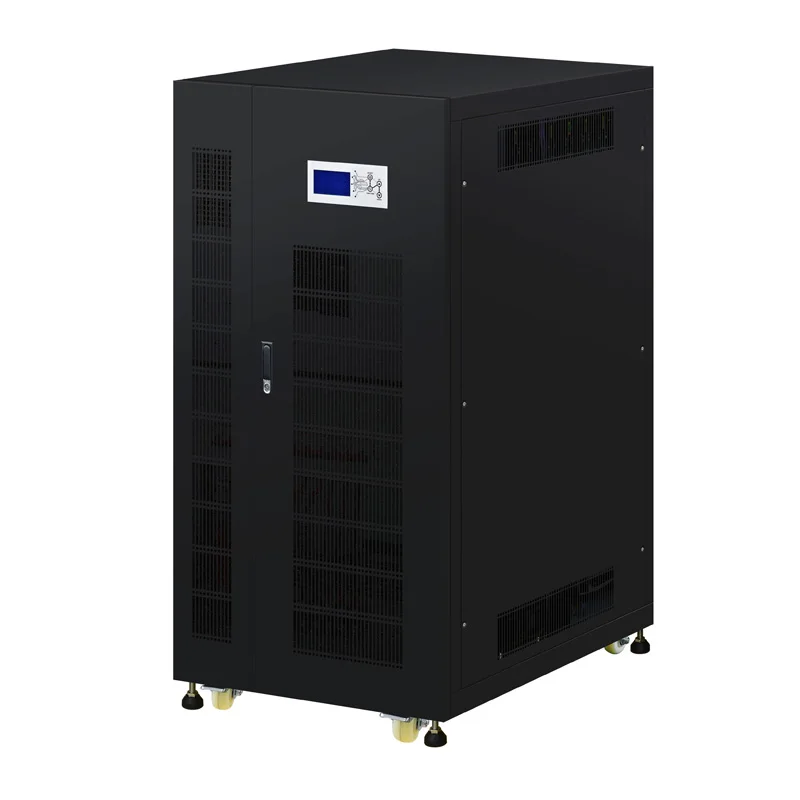

3 phase inverter 220v 380v 10kva-30kva:

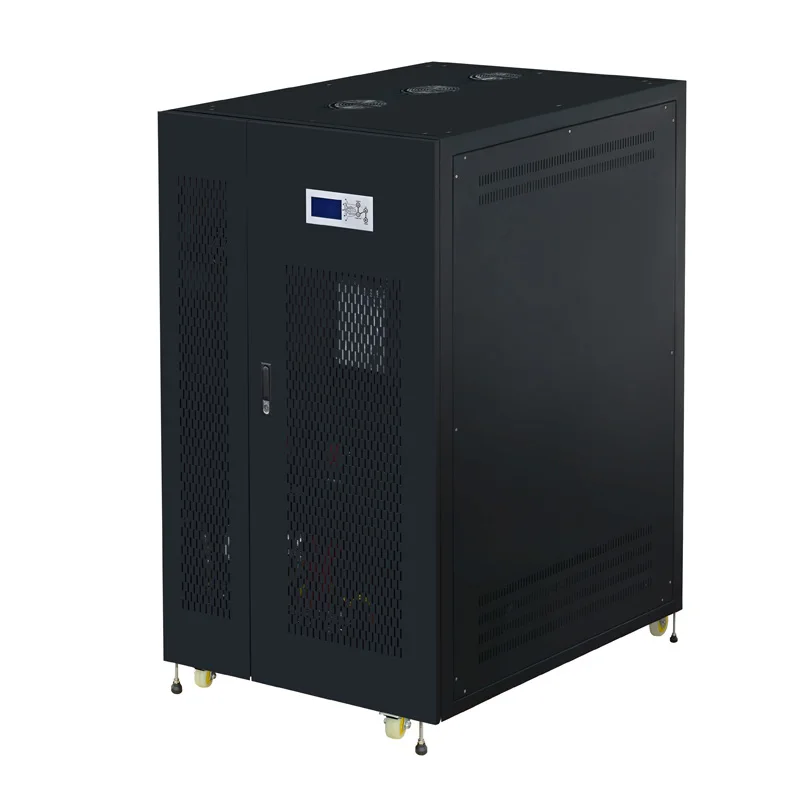

3 phase inverter 220v 380v 40kva-80kva:
3 phase inverter 220v 380v 100kva-150kva:
3 phase inverter 220v 380v 200kva:
| UPS application |
Packaging & Shipping
Shipping
1. By air or by sea, for FCL, Air port/ Port receiving.
2. Customers specifying freight forwarders or negotiable shipping methods.
3. Delivery time: 15-30 days.
Payment
1. Payment: T/T, Western Union, Paypal, Moneygram. 30% deposits, 70% balance before delivery.
2. MOQ: 1 PCS
3. Warranty: 3 years.
Related Products
Company Information
| Why Choose Xindun Power? |
| About us |
| Guangdong Xindun Power Technology Co.,Ltd | |
Factory Location | Foshan,Guangdong,China |
| Industry Experience | 13-year manufacturer, 16-year trading, 8-year alibaba gold supplier |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system |
| Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) |
| Factory | 6000 Square Meters, 60+ workers |
| Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department |
| Certificate | ISO9001:2015, CE, IEC, etc. |
| Patent | Software Paten, Design Patent, Project Pantent |
| Workshop |
| Production Process |
| EXHIBITION & CUSTOMER |
| CREDIBILITY |
FAQ
| FAQ |
A: Are your inverters pure sine wave output?
Q: A Yes, All are true pure sine wave.
A: What kind of output you can do?
Q: Normally we produce inverter with 110V 115V 120V 220V 230V 240V, 50/60Hz self-adaption. If you have special requirements, please tell us for engineer consulting.
A: What' s the difference between low frequency and high frequency inverter?
Q: Low frequency inverter has various protections, strong ability to adapt to the environment. more reliable, with voltage regulation.
A: What's the difference between pure sine wave inverter and modified sine wave inverter?
Q: Pure sine wave output inverter is just as good as the Public power grid. Even better. Low repaired rate, long lifespan, Without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.
A: What appliances your inverters can load?
Q: Our inverter can be used in household, Office, agricultural appliances and other inductive load such as refrigerator, air conditioner, water pump, etc.
A: Can you print our company logo on inverters, nameplates and packaging?
Q: Yes, we accept OEM orders.
A: How to choose a right inverter?
Q: Tell us your demand, then our sales will recommend a suitable inverter to you.
A: How to solve the technical problem?
Q: 24 hours after-service consultancy just for you and to make your problem to solveeasily.
A: Do I Need A Power Inverter?
Q: Actually, no. This is the only component of a solar energy system that is not absolutely required. However, if you don't use one, you will not have 220 or 230 volts AC and will have use battery power alone. This might be acceptable in a small RV or cabin, but most people want to use normal AC appliances.
A: What's The Difference Between 12, 24, And 48 Volt Inverters?
Q: This refers to the input voltage from the battery bank. The main consideration is that at higher voltages the current is less so that you can use smaller wires between your solar panel array and your battery bank. Of course, when you decide on a system voltage, the Solar Panels, Inverter, and Battery Bank all need to use the same voltage.
A: What to do if the product is broken?
Q: If any product is faulty, you can send the picture or video to us, we sill study it and supply the spare parts of PCB board free for after sale service.
