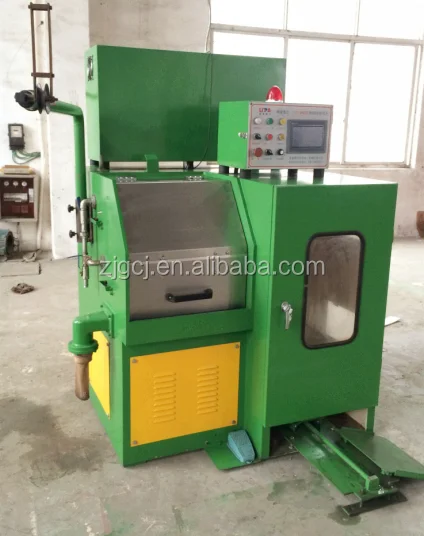

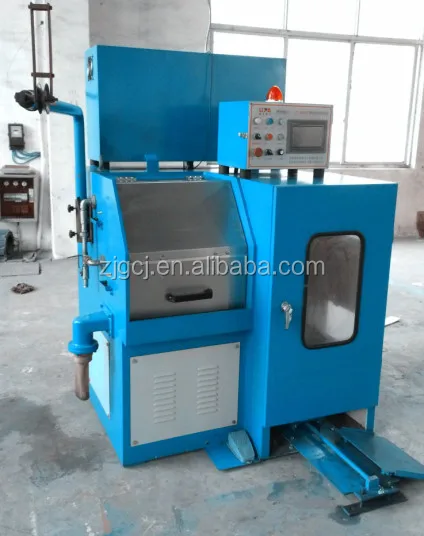

22D small wire drawing machine price



1. Usage for 22D small wire drawing machine price:

The high speed fine wire drawing machine is used for drawing wire from diameter 0.50-1.20mm to 0.08-0.40mm.



2. Technical Parameter for 22D small wire drawing machine price:

Machine Type	22DS	24DS
Inlet Diameter(mm)	Ø0.60-Ø1.20	Ø0.50-Ø1.00
Outlet Diameter (mm)	Ø0.10-Ø0.40	Ø0.08-Ø0.25
Max. Drawing Speed (m/min)	2500
Max. Drawing Dies No.	22	24
Slip Ratio of m/c	15%	13%
Fix Speed Capstan Slip Ratio	8%
Capstan	Ceramic Plasma
Max. Capstan Dia. (mm)	Ø242
Fix Speed Capstan Dia. (mm)	Ø207
Frame	Ironed Cast
Main Motor	11KW Three Phase Inductor Motor
Spooler Motor	3.7KW Three Phase Inductor Motor
Revise System	PID Synchronous Spooler
Inverter Control	Dual Inverter Control
Transmission	Flat Belt
Send-Out Method	Over Head
Traversing Unit	Flat Belt + Timing Motor
Tension Control	Weight Balance by Swing Arm
Lubrication	Spray
Suitable Dia. of Spool (mm)	Ø300
Capacity for Wire Receiving (KG)	50-60
Bobbin Loading & Unloading Type	Shaft
Power Source	380V
Brake	Pneumatic
Machine Dimension (L×W×H) (mm)	2050×1600×1900
Weight (KG)	2500









After-Sale Service for 22D/24D High Speed Fine Wire Drawing Machine:

1: In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.

2: Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
