Горячая продажа полуавтоматическая разливочная машина для

Горячая продажа полуавтоматическая разливочная машина для

Категория: Фармацевтическая машина завалки >>>
Поставщик: Guangzhou,Ailusi,Machinery,Co.,Ltd.

Цена:1 150,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	1369.36 $*	1437.64 $*
Aug-17-2025	1357.42 $*	1425.33 $*
Jul-17-2025	1139.15 $*	1196.30 $*
Jun-17-2025	1334.63 $*	1401.67 $*
May-17-2025	1162.44 $*	1220.61 $*
Apr-17-2025	1311.40 $*	1377.79 $*
Mar-17-2025	1300.20 $*	1365.1 $*
Feb-17-2025	1288.90 $*	1352.55 $*
Jan-17-2025	1277.25 $*	1341.15 $*

Характеристики

Product Description:

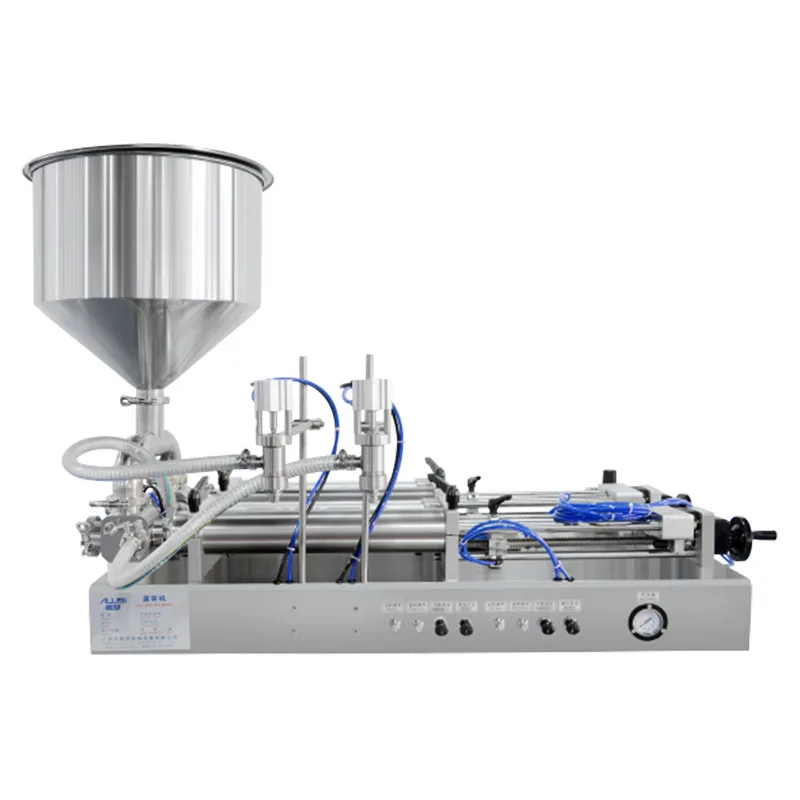

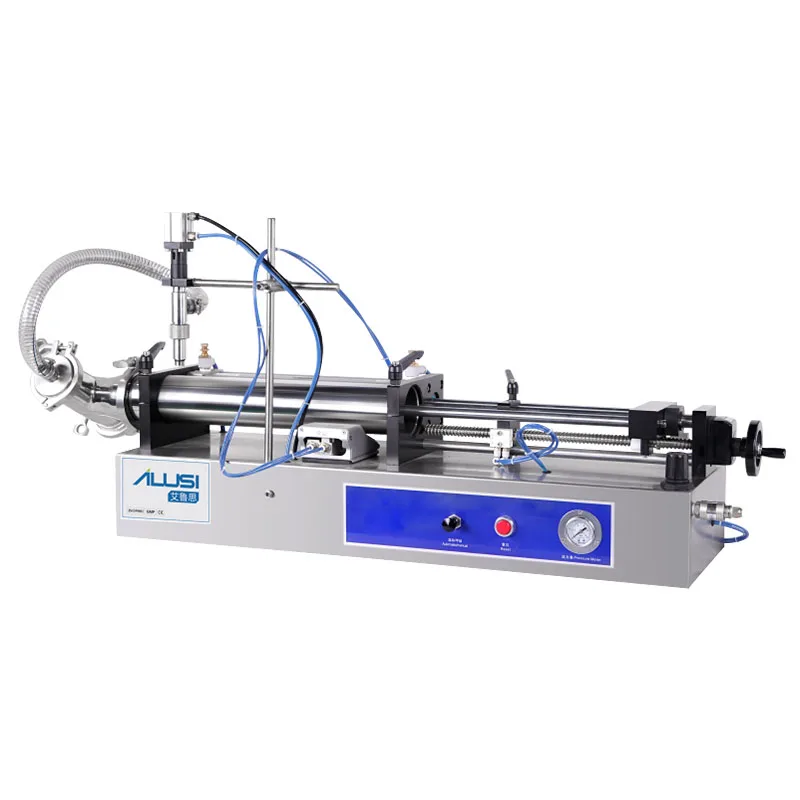

shampoo liquid filling machines semi automatic is a pneumatic type filling machine, it through the cylinder's movement of forward and backward to make the piston which is located in the cylinder do reciprocating movement, so as to occur the negative pressure in the preceding chest of the cylinder. All adopt compressed air as the control, so they are quite suitable for the use in the request of anti-explosion environment, has high safety.

It's mainly use in filling It's mainly use in filling Water, honey sugar, acid cheese, fruit juice, shower, gear oil, liquid coffee, ink, eye shadow, fluid tea, shampoo, glue, food/paint, washing hand fluid, cream, milk, liquid soap, butter, syrup, plant oil.

SPECIFICATIONS FOR SEMI-AUTOMATIC LIQUID FILLING MACHINE

Specification

Fillingrange(ml)

5-120

10-250

50-500

100-1000

250-2500

500-5000

Filling speed

20-30 bottles/min(adjustable)

Working Pressure

0.5-0.8Mpa

Material

SS316L for all contact product parts,Other parts SS304

Performance

Full pneumatic control

Horizontal style, normal gravity type feeding products

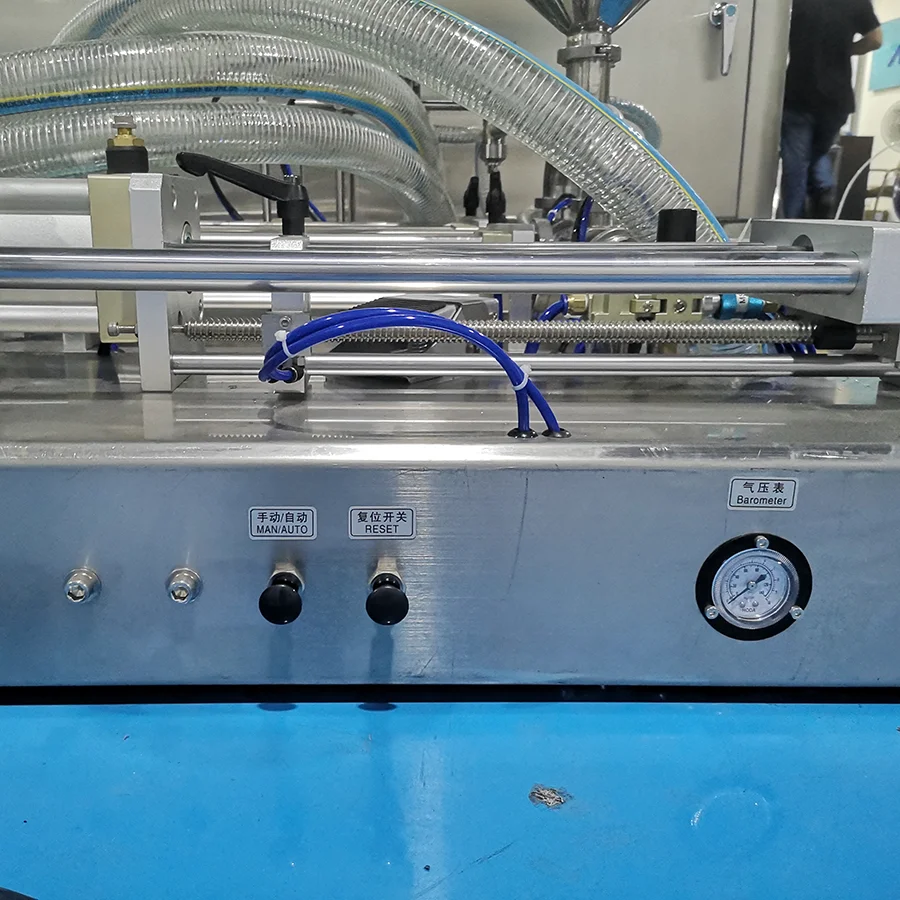

Change "manual" and "automatic" filling state

Emergency switch, piston automatically retreat back to initial bits, filling stop.

Main Features

1) semi automatic water bottle liquid filling machine all adopt compressed air as the control, so they are quite suitable for the use in the request of anti-explosion environment, has high safety.
2) Does not appear the phenomenon of static electricity, the leakage of electricity and no need to connect the ground wire.
3) All adopt pneumatic control besides hardware positioning, so they have high filling precision as the precision can be controlled within 0.5%. (with the greatest amount of filling as standards).

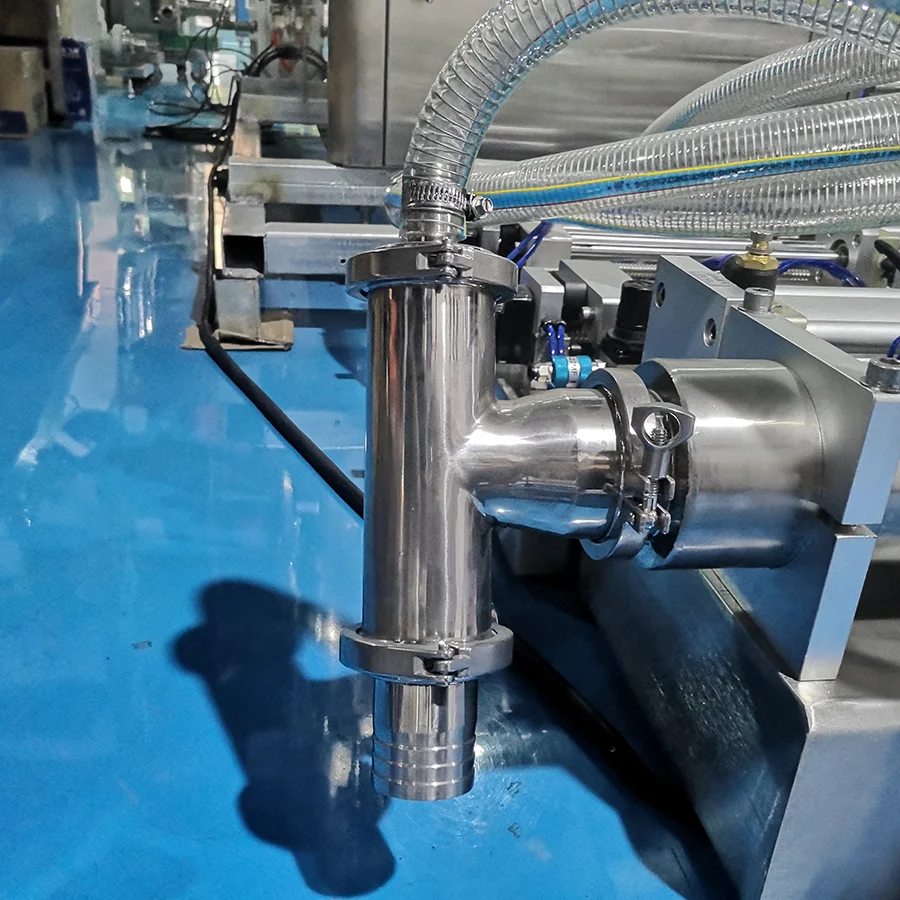

Interface Parts

Name: Material interface

Material: SUS316L

use steel pipe connect with material barrel

Air source Parts

Name: air interface
Connecting air compressor to provide power for the whole machine

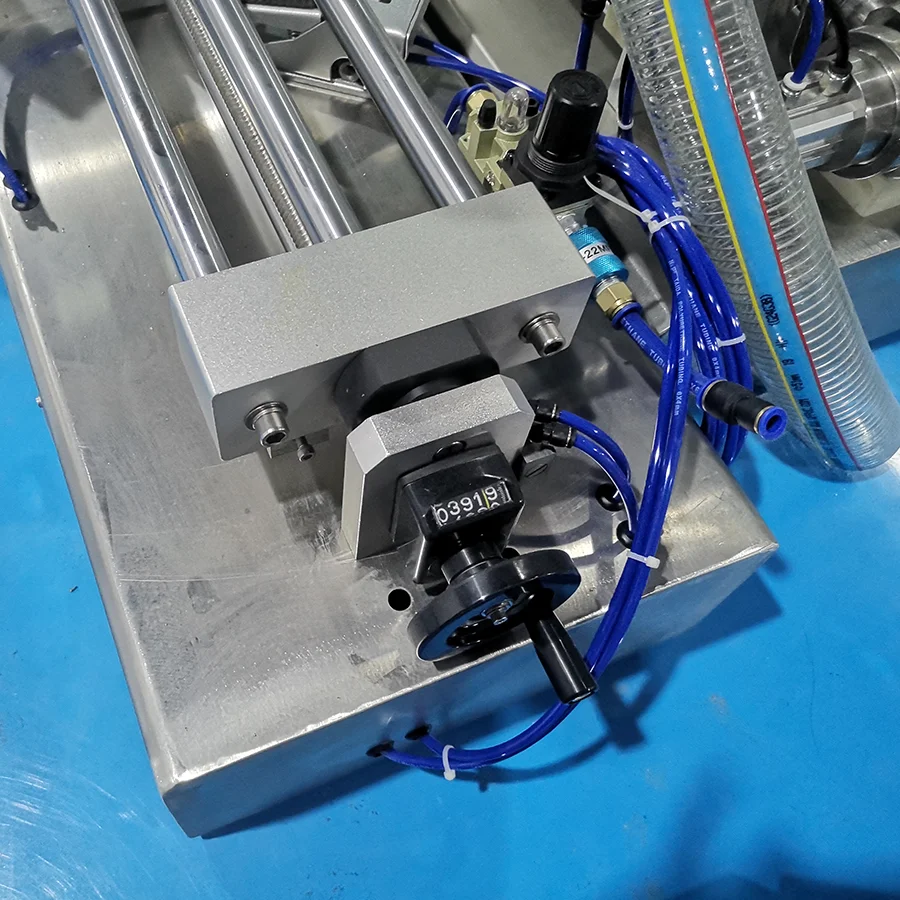

Cylinder Parts

Name: Cylinder

Brand: FESTO/AIRTAC
Famous imported brands, Low gas consumption, strong driving force.

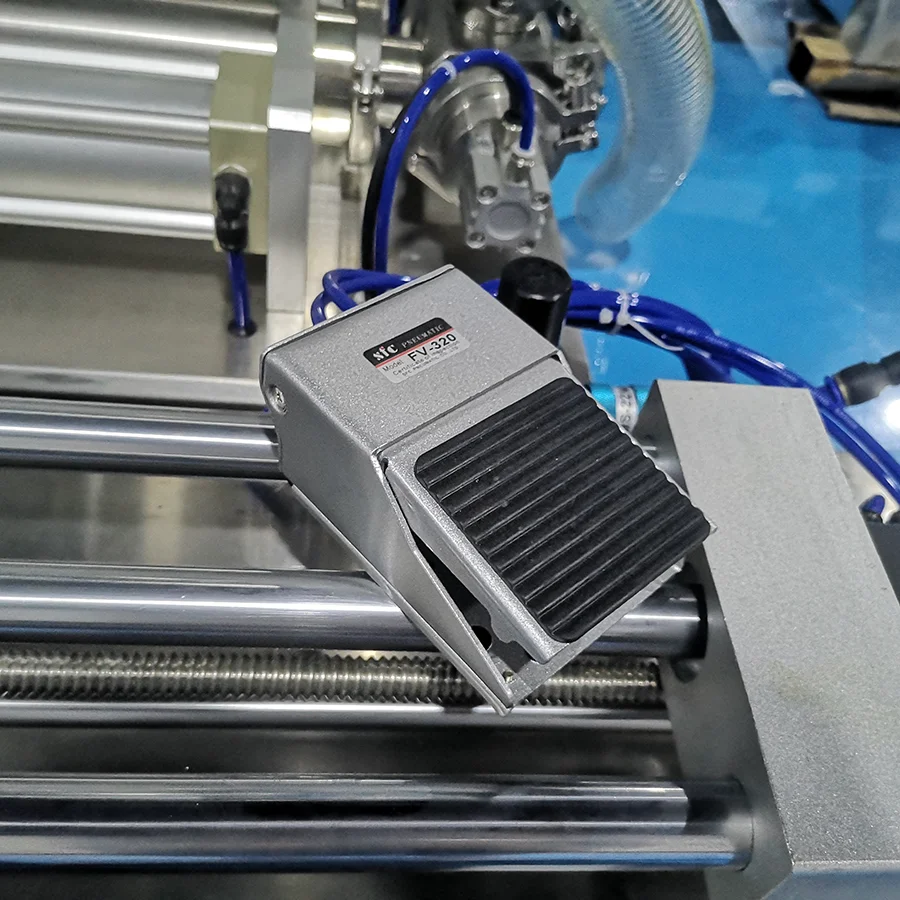

Pannel Part

Name: Foot control pannel

Controled by foot, materials are filled into bottles when press this pannel.

Manual Filling Machine

91.8% Response Rate

Semi-automatic Vertical Cream Filiing Machine

91.8% Response Rate

Semi-automatic Single Nozzle Liquid Filling Machine

91.8% Response Rate

Packaging
Size	1360(L) * 430 (W) *460(H)
Weight	45KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
