Мини-холодильник Monoblock для выращивания
- Категория: Refrigeration & Heat Exchange Parts >>>
- Поставщик: Taizhou,Zjbanco,Refrigeration,Equipment,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 714.33 $* | 750.12 $* |
| Aug-20-2025 | 708.46 $* | 743.32 $* |
| Jul-20-2025 | 594.72 $* | 624.13 $* |
| Jun-20-2025 | 696.75 $* | 731.52 $* |
| May-20-2025 | 606.29 $* | 636.74 $* |
| Apr-20-2025 | 684.60 $* | 718.12 $* |
| Mar-20-2025 | 678.52 $* | 712.79 $* |
| Feb-20-2025 | 672.58 $* | 706.77 $* |
| Jan-20-2025 | 666.96 $* | 699.13 $* |
Характеристики

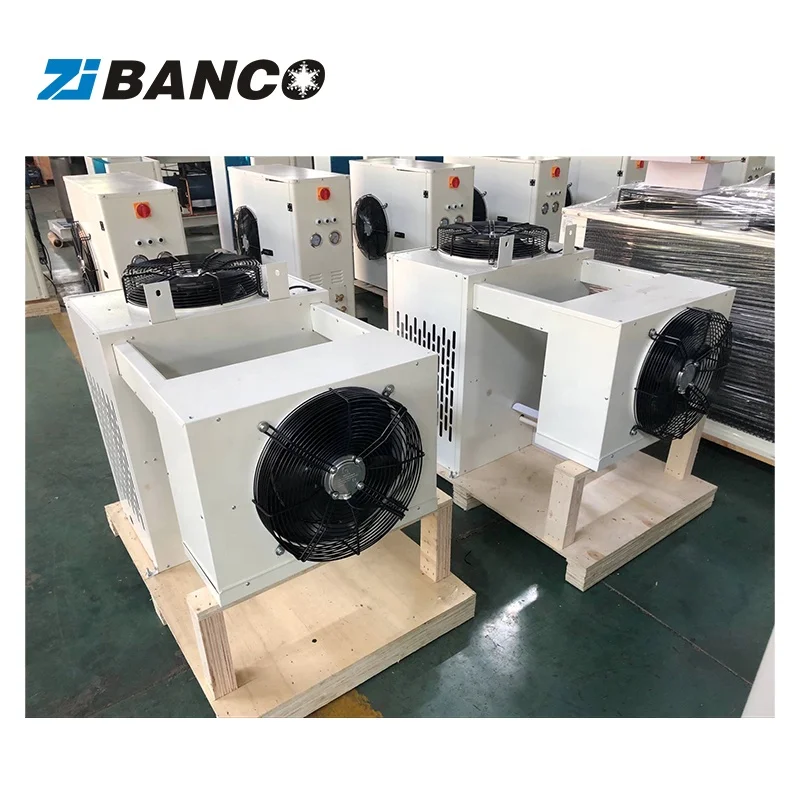

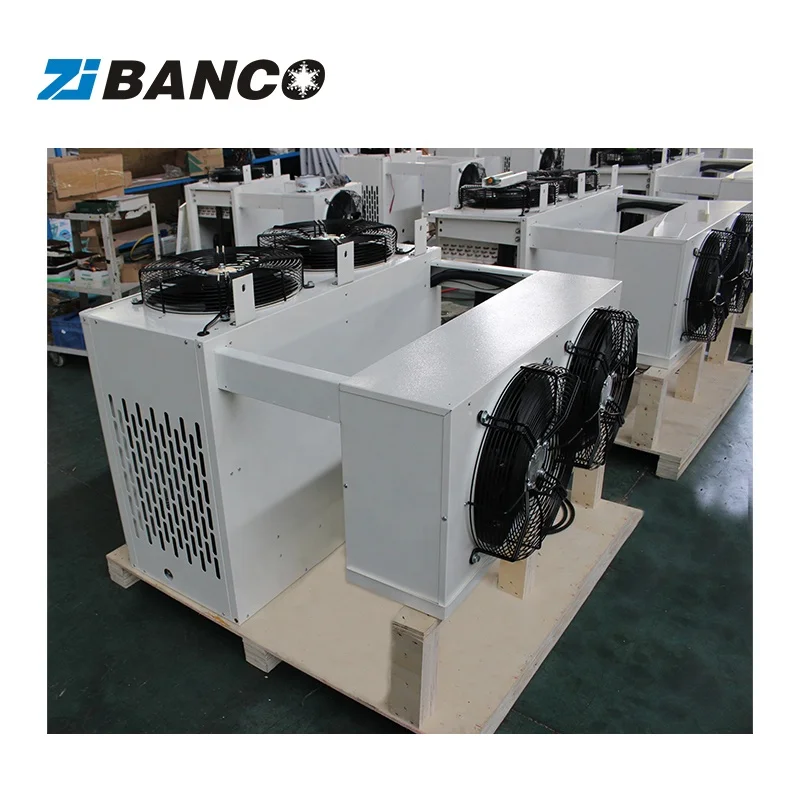

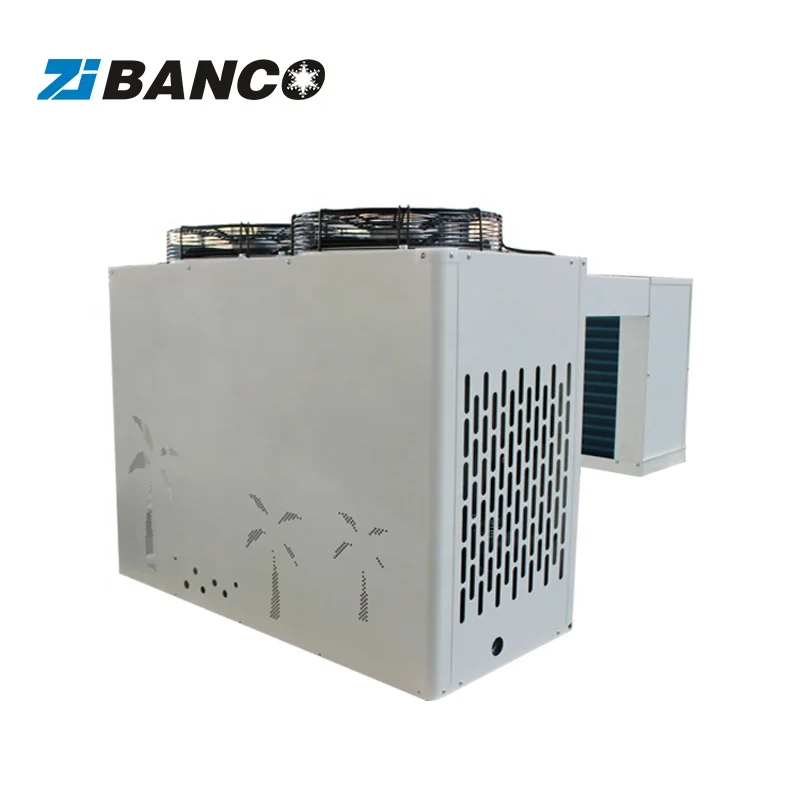

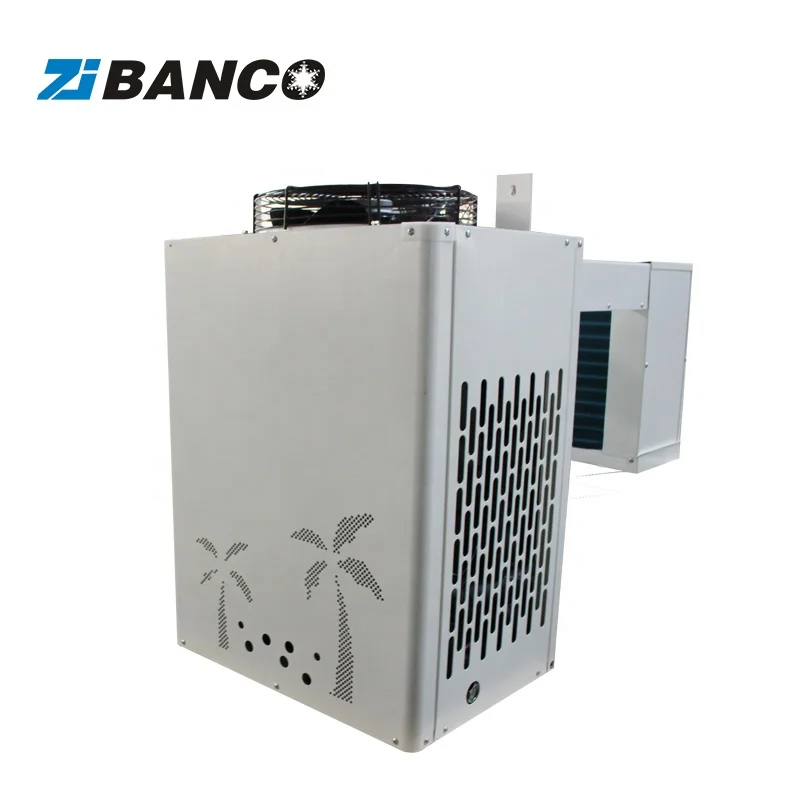

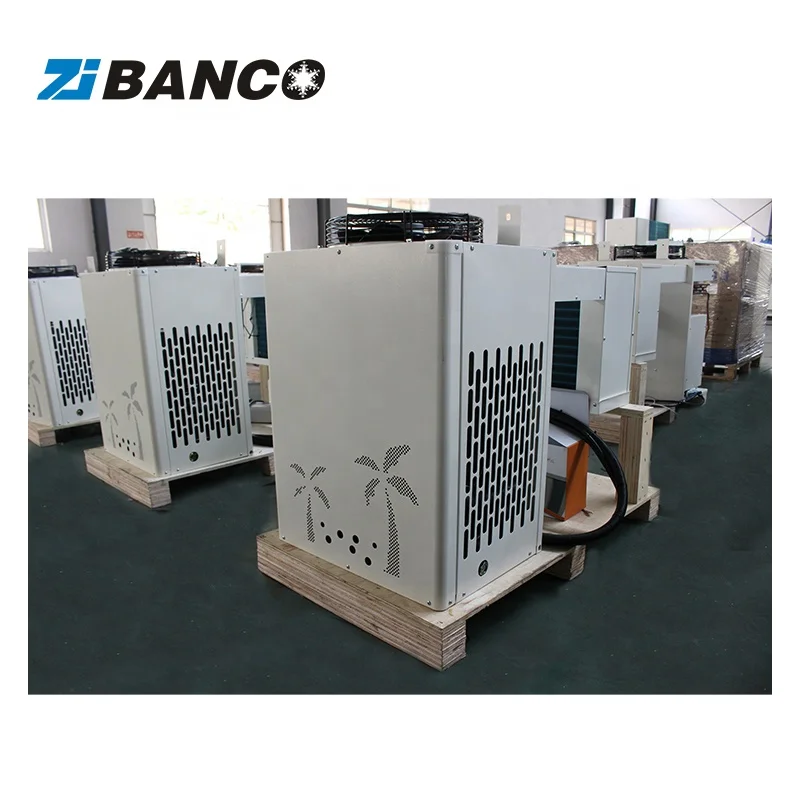

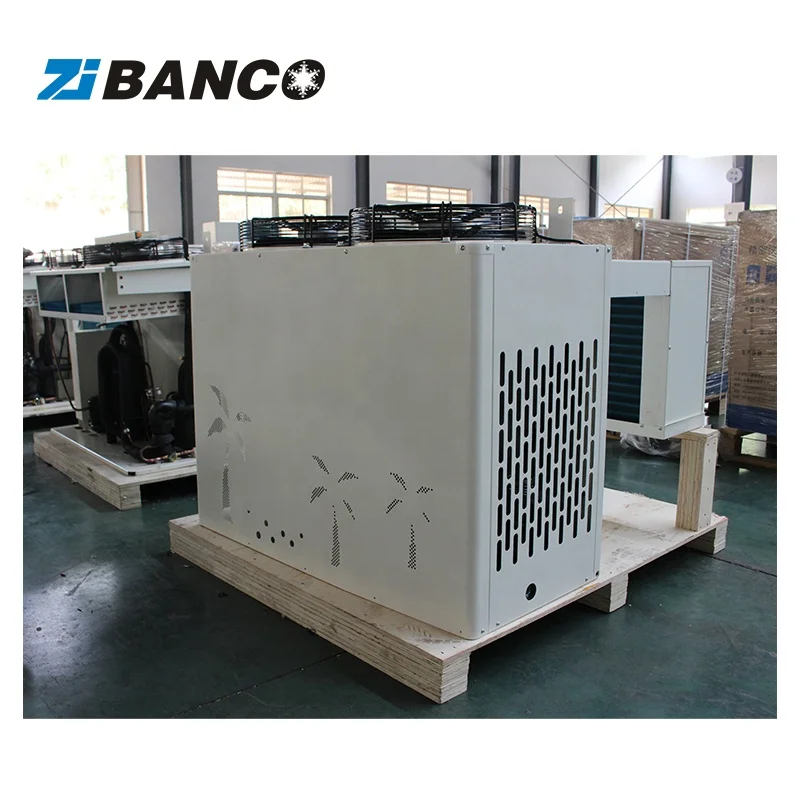

The BC series of machine, called Monoblock Unit for cold room, that integrate evaporator, condenser, compressor, electrical control units into one compact body. It can be widely used for cold room of temperature of -5℃~5℃ or - 15℃~-25℃, in hotels, restaurants, medicines, agricultural, chemicals industries all other place where cold room is needed.
| Model BC~ | 10GM | 15GM | 18GM | 28GM | 35GM | 18GL | 28GL | 35GL | |
| Applicable cold room area(m³) | 10m³ | 16m³ | 29m³ | 65m³ | 95m³ | 9m³ | 14m³ | 16m³ | |
| Cooling capacity(KW) | 1.55 | 2.09 | 2.70 | 3.95 | 5.56 | 1.54 | 2.28 | 3.31 | |
| Power(KW) | 1.03 | 1.32 | 1.83 | 2.71 | 3.57 | 1.73 | 2.52 | 3.14 | |
| Refrigerant | R404A/R507C/R410A | R404A/R507C/R410A | |||||||
| Power supply | 220V-50Hz-1Ph | 380V-50Hz-3Ph | 220V-50Hz-1Ph | 380V-50Hz-3Ph | |||||
| Applicable tem range(℃) | -5℃~5℃ | -15℃~-25℃ | |||||||
| Overall dimension(MM) | 520×375×680 | 630×425×720 | 970×425×720 | 630×425×720 | 970×425×720 | ||||
| Installation dimension(MM) | 490×400 | 600×450 | 940×450 | 600×450 | 940×450 | ||||
| Condensing Motor | Motor power(W) | 1×90 | 1×150 | 2×150 | 1×150 | 2×150 | |||
| Fan diameter(MM) | 1×300 | 1×350 | 2×350 | 1×350 | 2×350 | ||||
| Evaporating Motor | Motor power(W) | 1×90 | 1×150 | 2×150 | 1×150 | 2×150 | |||
| Fan diameter(MM) | 1×300 | 1×350 | 2×350 | 1×350 | 2×350 | ||||
| Defrost Type | Hot freon defrosting | Hot freon defrosting | |||||||
Main components
World famous brand refrigeration parts are employed for all products;
Highly compressor(Shanghai Hitachi);
Heat exchanger with high efficient in grooved copper tube and aluminum fin;
Electronic control board with functions of automatic temperature set, control, and hot gas defrosting;
Protection devices for over loading, sub-heating, lack of phase, high & low pressure etc;
Eeasy installation.
