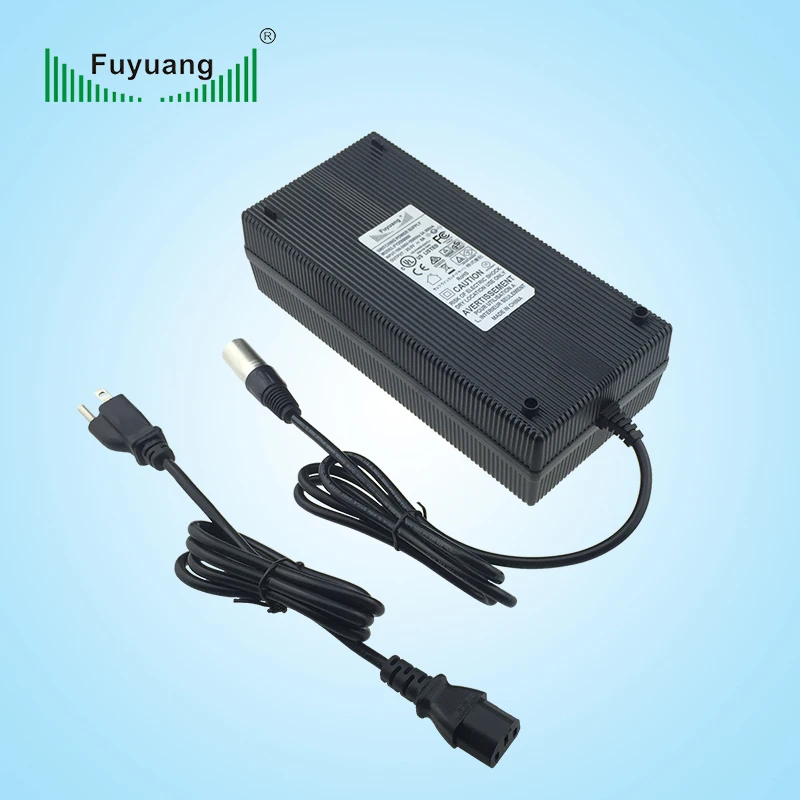

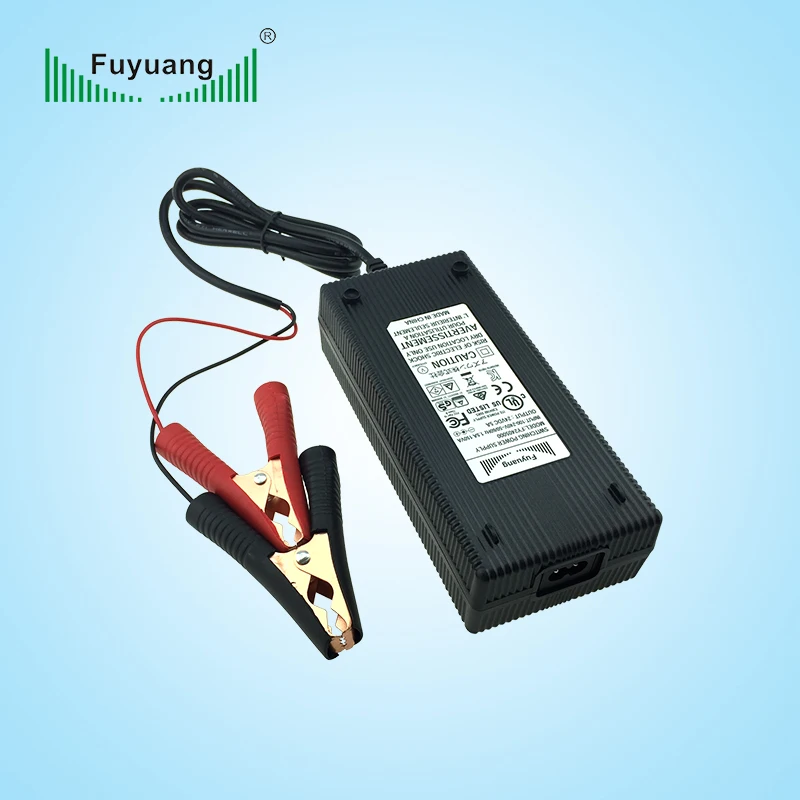

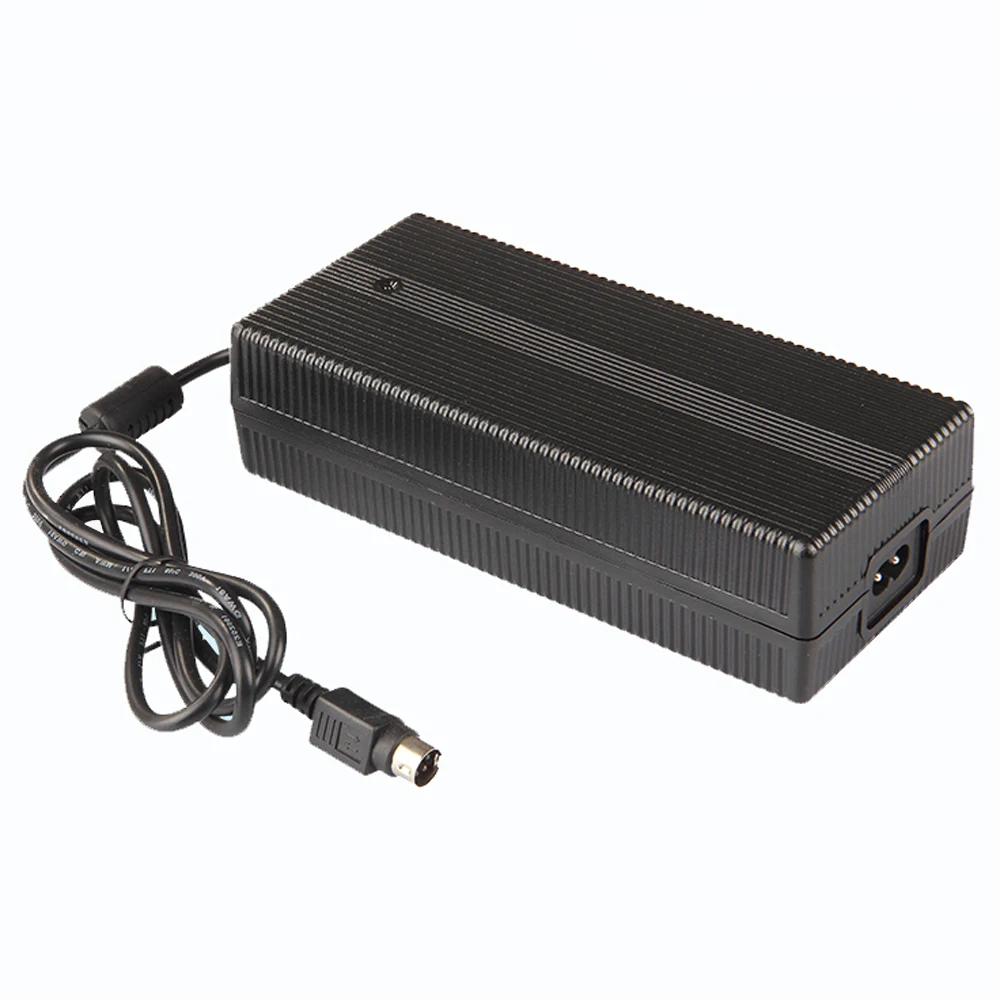

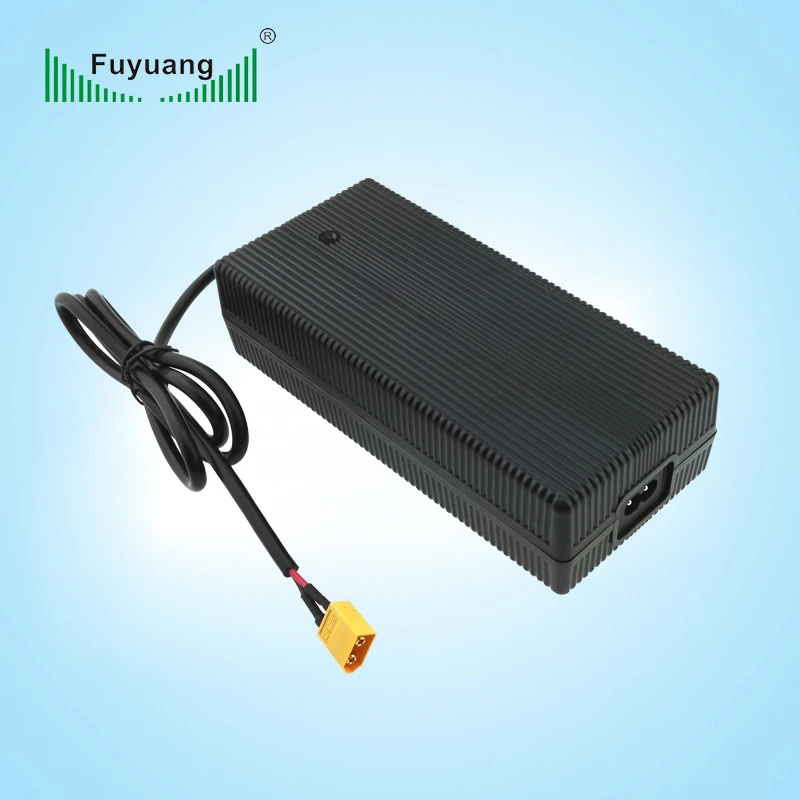

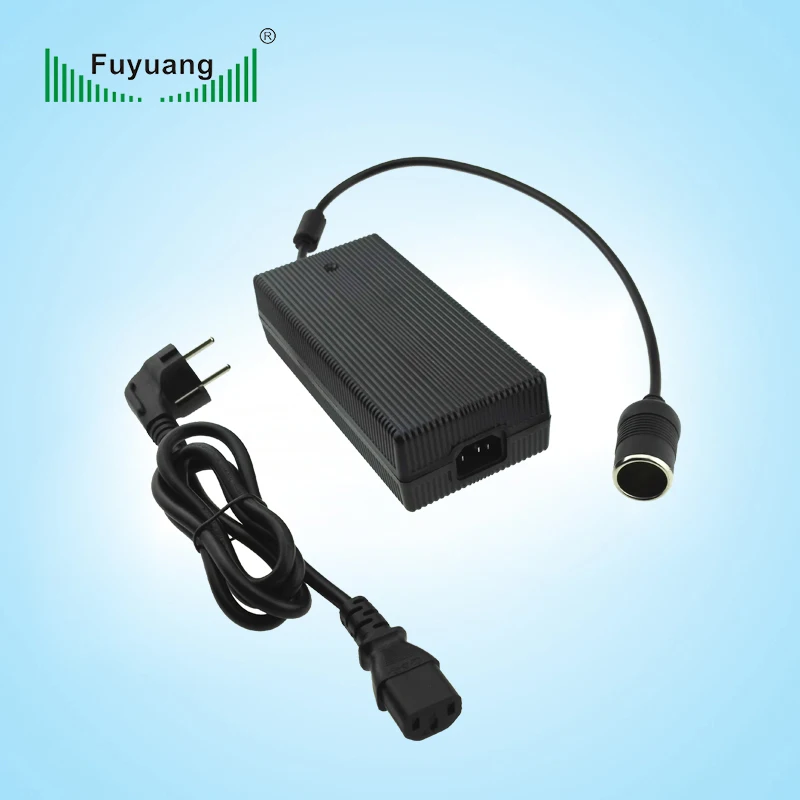

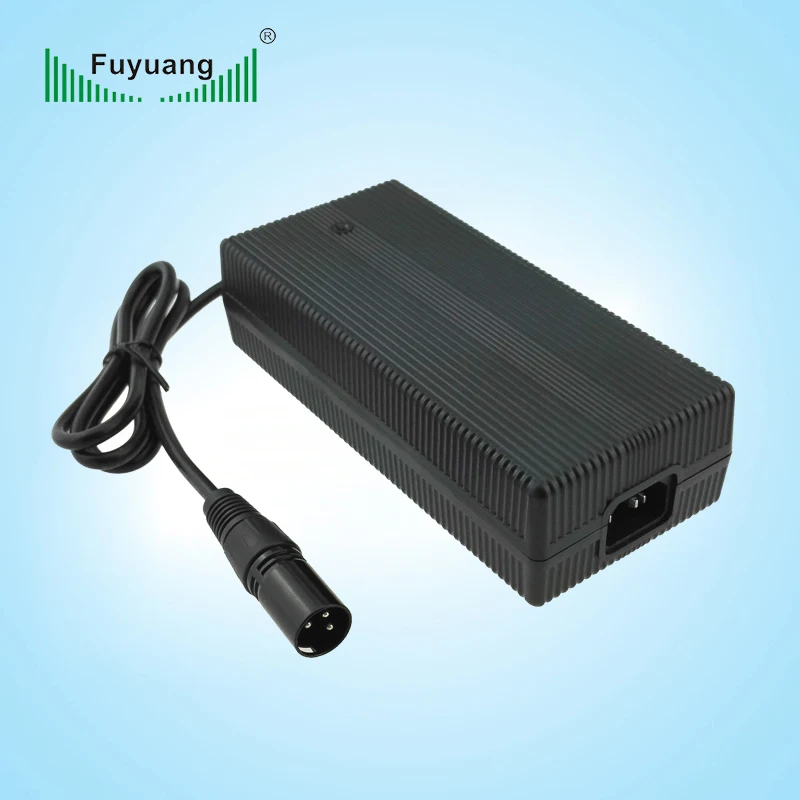

Fuyuan IEC EN 62368 UL approved AC DC switching power supply 24vdc 7.5a power adapter 24v 6.25a





Based on 25 years' engineering experience, we specialized in 60-500W high-power power supply products. Our power adapter,battery charger and LED power supply are widely used in battery pack (Lithium battery, LifePO4 battery, Lead acid battery, Ni-MH battery), iRobot Scooba, Roomba Vacuum Cleaner, E-bike, Electric Golf Cart, Electric Vehicle, Electric Toys, Power tools, Motor, Massage, Equipment, Monitoring System, Beauty instruments, medical instruments, Safety Security Products, Humidifier, Water-pump, Wheel Chair, Self-balance Scoober, Air Cleaner, Print Device, Precise Digital Measuring Apparatus, Audio Amplifier, LED Lighting, Digital Communication Products, LCD, LED Display ,etc



 Self-built factory 6800sqm, 260 employee, sales dept: 10 , R&D dept: 9, Purchasing: 2, Quality dept: 6,  Administration dept: 4, Logistics dept:6



Fuyuan Electronic Co., Ltd (Abbreviation: Fuyuan) is specializing in switching power supply, power adapter, battery charger,and LED driver power supply. 25 years of experience in team of engineers relying on technology as the core, 60W-500W high-power products in the power industry leader, enhance the "Fuyuang," the brand's core competitiveness.

Our main customers are Bosch, Stanley, Pentair, CDVI, YikeBike, iROBOT, Hitachi and TC Electronic. Products from 0.9W-500W (output voltage 3V-58V, output current 300mA-9900mA),900 series models all through the United States UL FCC, Canadian cUL NRcan, European TUV / GS, CE, British BS, Australia SAA, C-Tick South Korea EK,KC. Japan PSE,and ROHS, LVD, EMC, CEC, MEPS, EUP, CB and CCC China Compulsory
Certification.

Products are mainly using in the QQ sweeping machines, electric vehicles, electric toys, motor massage equipment, monitoring systems,precision testing measuring instruments, computer peripherals, printed image equipment, home audio amplifiers, digital communications, LCD, LED LCD , batteries (lead-acid batteries, lithium polymer batteries, lithium iron phosphate lithium batteries, nickel metal hydride batteries, nickel cadmium batteries),LED interior lighting, LED outdoor lighting and other production companies exporting countries or regions of the major suppliers.



 Production Capability:



  Producttion dept consist of coiling team, DIP team, injection, rework, assembling, packing, wire processing etc.



Certifications File No:

1. UL file No.:Power Supply: E304160 ; Waterproof LED driver -E343215  Check here:www.ul.com


2. TUV/GS file No.:S1 50224721& S150205925 & S150203696 & S1 50272098& S1 50278124& S1 50270517 Check here:www.tuv.com


3. SAA file No.:ESO110651(replace of Q061232)& SAA131909EA & SAA130561 & EAE1308371 Check here https://equipment.erac.gov.au/Public/


4. C-tick file No.:N17653 & N136,  Check here: http://www.cotek.sg/approval.html


5. PSE file No.:JD50195547 & JD50248227   &  JD 50287481 Check here: http://www.certipedia.com


6. EK file No.:HU10419-7001A  Check here: www.ktc.re.kr,


7. KC file No.:HU10419-9002A  Check here: www.ktc.re.kr


8. CE file No.:E0604412-01&S1403017 Check here:www.usai.cn


9. RoHS file No.:CANEC1313005401 Check here: http://rsts.cn.sgs.com/zh-cn/cheres_cn.asp


10. CCC file No.:2014010907681379 Check here: http://www.cnca.gov.cn


11. CB Certification No.:JPTUV-042130&JPTUV-037849&DE 2-014922&DE 2-017489 Check here:www.tuv.com



Buying Guides:

The range of li-ion battery charger we can make

Battery Qty (cell)	1	2	3	4	5	6	7	8	9	10	11	12	13	14
Max charging voltage(V)	4.2	8.4	12.6	16.8	21	25.2	29.4	33.6	37.8	42	46.2	50.4	54.6	58.8
Max charging current(A)	≤10A				≤8.5A		≤7.5A	≤6.5A	≤5.5A	≤5A	≤4.5A	≤4A		≤3.6A



The range of lifepo4 battery charger we can make

Battery Qty (cell)	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Max charging voltage(V)	3.65	7.3	10.95	14.6	18.25	21.9	25.55	29.20	32.85	36.5	40.15	43.8	47.45	51.1	54.75	58.4
Max charging current(A)	≤10A					≤9.5A	≤8.5A	≤7.5A	≤6.5A	≤6A	≤5A		≤4.5A	≤4A		≤3.5A



The range of Lead acid battery charger we can make

Battery Qty (cell)	1	2	3	4
Max charging voltage(V)	14.5	29	43.5	58
Max charging current(A)	≤10A	≤7.5A	≤5A	≤3.5A



MTBF and Life Cycle are both indicators of reliability. MEAN WELL uses MIL-HDBK-217F as the core of MTBF. An expected reliability is forecasted through accounting component's number (exclude fans). The exact meaning of MTBF is after continuously using of power supply in a certain time, the probability of operating properly is 36.8%(e-1=0.368). If power supply is continuously used at double the MTBF time, the probability of operating properly becomes 13.5%(e-2=0.135).
Life Cycle is found through using the temperature rise of electrolytic capacitor to estimate the approximate life of power supply. For example, SP-750-12 MTBF=769.3K hours; electrolytic capacitor C108 Life Cycle=202.2K hours (Ta=45° C)

Why the input voltage marked Spec sheet is 88~264 VAC but label is 100V~240VAC ?
During safety verification process, the agency will use a stricter standard -- ±10%(IEC60950 uses +6%, -10%) of the input voltage range labeled on the power supply to conduct the test. So, operating at the wider input voltage range as specified on the spec. sheet should be fine. The narrower range of input voltage labeled on the power supply is to fulfill the test standard of safety regulation and make sure that users insert input voltage correctly.

How do we choose a power supply to charge a battery?

 FuYuan has a wide range for battery charger purpose (0.25~250W). If these series does not meet customers' demands and they like to choose a power supply as a charger, we advice to pick up one which over load protection (OLP) mode is constant current limiting. The models in this mode provide constant current even when the protection circuit is triggered.
The second choice is fold-back current limiting or constant wattage model. In this model, when a battery is running low, the output current of the power supply will gently increase. The level of increase depends on battery's capacity and degree of exhaustion.
Hiccup or shut down model are not recommended because it will stop to generate current when OLP happens.

Notes on choosing a switching power supply?

To increase the reliability of the switching power supply (S.P.S.). we suggest users choose a unit that has a rating of 30% more power than actual need. For example, if the system needs a 100W source, we suggest that users choose a S.P.S. with 130W of output power or more. By doing this, you can effectively boost the reliability of the S.P.S. in your system.
We also need to consider about ambient temperature of the S.P.S. and whether there is additional device for dissipating the heat. If the S.P.S. is working in a high temperature environment, we need to make some derating to the output power. The derating curve of "ambient temperature" versus "output power" can be found on our spec sheets.
Choosing functions based on your application:
Protection function: Over Voltage Protection (OVP), Over Temperature Protection (OVP), Over Load Protection (OLP), and etc.
Application function: Signaling Function (Power Good, Power Fail), Remote Control, Remote Sensing, and etc.
Special function: Power Factor Correction (PFC), Uninterruptible Power Supply (UPS) function.
Make sure that the model qualifies for the safety standards and EMC regulations you need.
