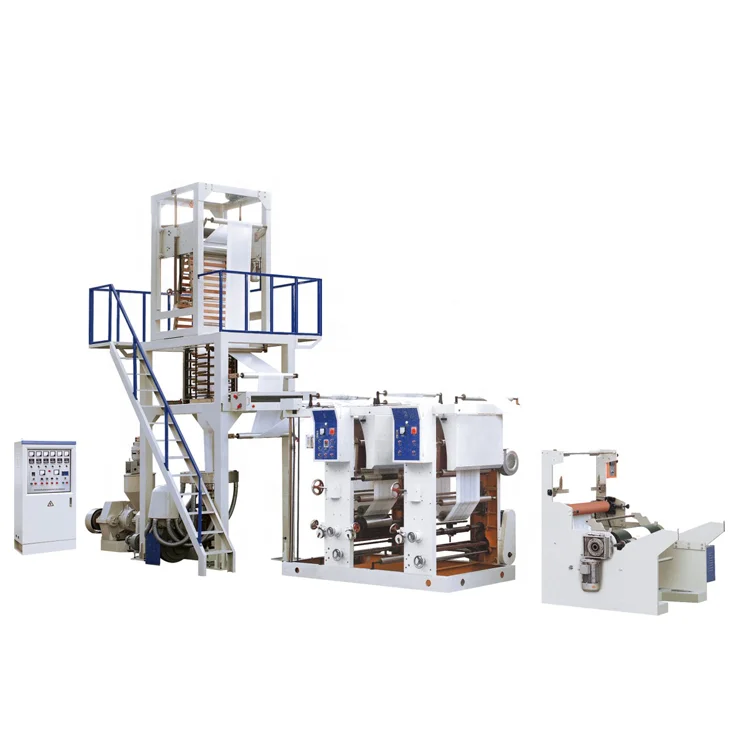

SJ50-YT2600 пленки дуя машина с флексографской печатной комплект вместе в одной линии
- Категория: Рукавных пленок производственная линия >>>
- Поставщик: Ruian,Ruiting,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.77 $* | 0.74 $* |
| Aug-16-2025 | 0.73 $* | 0.26 $* |
| Jul-16-2025 | 0.98 $* | 0.88 $* |
| Jun-16-2025 | 0.61 $* | 0.68 $* |
| May-16-2025 | 0.71 $* | 0.44 $* |
| Apr-16-2025 | 0.53 $* | 0.74 $* |
| Mar-16-2025 | 0.29 $* | 0.54 $* |
| Feb-16-2025 | 0.65 $* | 0.33 $* |
| Jan-16-2025 | 0.49 $* | 0.65 $* |
Характеристики
CHARACTERISTICS
Its extruder, cylinder and screw rods are made of quality alloy steel, that have been nitrogen treatment and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polyethylene (LDPE), high density polyethylene (HDPE)and linear low density polyethylene(LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Main Technical Parameter
Model | SJ50-YT(SY)2600 | SJ55-YT(SY)2800 | SJ65-YT(SY)21000 |
Screw Diameter | Φ50 | Φ55 | Φ60 |
Screw Ratio L/D | 28:1 | 28:1 | 28:1 |
Screw Speed | 15-120r/min | 15-120r/min | 15-120r/min |
Main Motor Power | 11kw | 15kw | 18.5kw |
Main Output | 35kg/h | 45kg/h | 65kg/h |
Film Head DIA | Φ60\\100 | Φ80/150 | Φ100/200 |
Single-sided Thickness of Film | 0.008-0.08mm | 0.008-0.08 mm | 0.008-0.08 mm |
Max. Folding Width of Film | 600mm | 800mm | 1000mm |
Length Range of Printing | 191-1200 | 191-1200 | 191-1200 |
Printing Width | 600mm | 800mm | 1000mm |
Total Power | 28kw | 32kw | 40kw |
Overall Dimension | 6000*2400*3800mm | 6200*2600*4700mm | 6400*2800*4800mm |
Weight of Machine | 3.5T | 4T | 5T |
