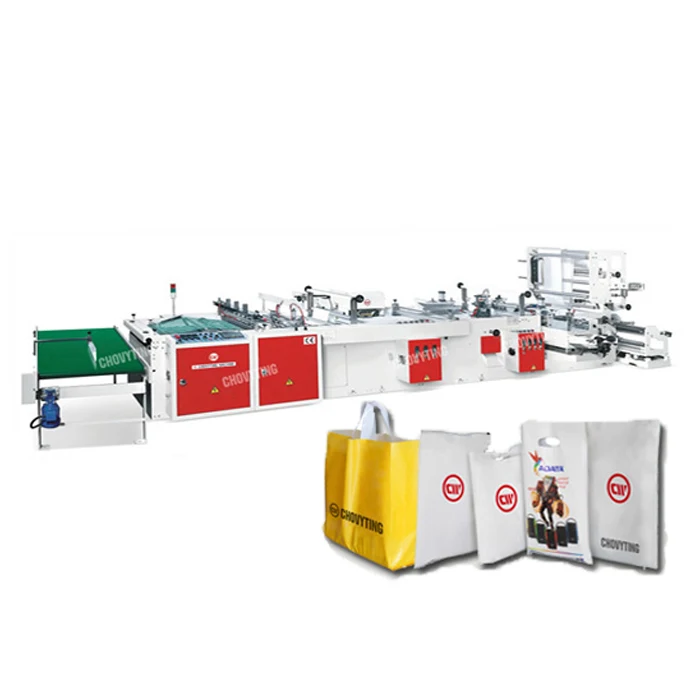

Био-пластиковый шоппинг машина для изготовления высекальных пакетов с высокой речью автоматическая биоразлагаемая ручка

pneumatic unwind device

 1)Unwinding adopt pneumatic loading , max diameter of raw rolling material is φ600mm

 2)Adopt magnetic powder tension control. Manual adjust the tension.

 3)Unwinding with EPC

Top-folding continuously sealing device

1)The adjustable heat sealing available after top folding,seals top fold longitudinally and continuously,the width size of bag is not be limited

2) Inside heating wire sealing, which suitfor full colours of bag.

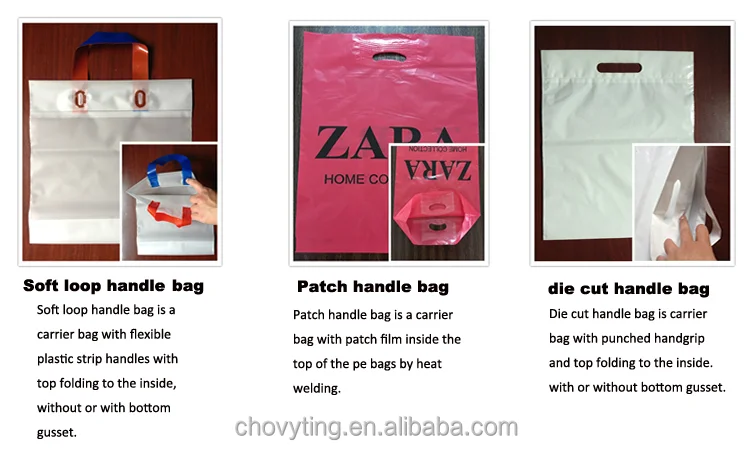

Soft loop handle bag device

1)Double layer unwinder

2)90 degree turnabout gear rotary soft loop

3)Special oblique drag style rotary soft loop

4)The whole type steel plate base, and special support bag structure.

Patch handle device

1)One pcs servo motor control feeding

2)Turnabout cylinder control patch

3)With flying knife cutting fast，so the patch film is Circular arc

Side sealing parts

1)Side sealing knife principal axis transmission belt cylinder lifting and down.

2)Side sealing knife adopt best of breed material, high temperature heating ametabolic.

3)Side sealing knife with concealed style heating tube, temperature steady

Convey collect device

1)Collect table adopt automatic collecting bag feeding.

2)When the bag reach to a certainty quantity, collect table will move automatically, and continue producing.
