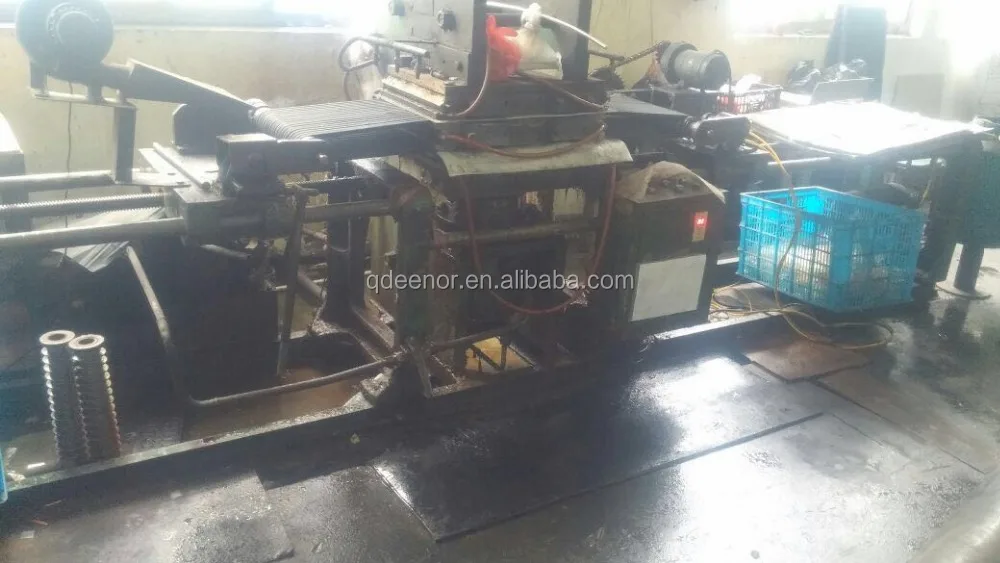

Rubber v belt making machine/rubber v-belt making machine:

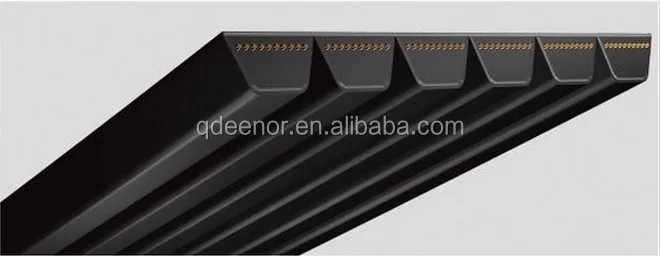

Rubber v belt/banded classical v-belt details:

Banded classical v-belt general triangle by the same or a narrow belt of the top surface of the formation of joint as one of the joint zone. Joint group with the link layer allows a single vibration of V consistent with the formation of mutual non-elimination, and thus to minimize vibration, and through joint group to give the root to lateral rigidity and stability, thereby eliminating the vibration of a single phenomenon, between the horizontal direction with good stability and easy in operation and not interfere with each other out with, suitable for high power transmission. It is made of high modulus cord, and composed of specially formulated neoprene compound, forming a sulfide, has good integrity. The bands are evenly, smooth operation, high load force transmission, long life is not easy turning with jitter and for the impact of fluctuating load and vibration of the occasion, especially for high straight drive shaft parallel to the ground.

What is the features of rubber v belt machine?

1. The wrapper protects the inner layer,strong durability.

2. Special core rubber used,small elongation and long service life

3. Excellent heat-resistance,oil-proof,and wearing resistance

4. Prevent the generation of the static and keep safe use

5. Small friction coeffion coefficient and large transmission effect during operation

6. Less noise during operation

What is the structure of rubber v belt machine?

No.	Name	Function	Material
1	Outside Fabric	Protect the linling tensile member	Polyester Cotton Canvas
2	Outside Fabric	Core material to pass the dynamic force	Polyester Cotton Canvas
3	Top Rubber	Maintain the top shape of the adhesive tape	NR,CR
4	Buffer Rubber	Support and protect the adhesive force of the tensile member	NR,CR
5	Buttom Rubber	Maintain the bottom shape of the adhesive tape	NR,CR

 Size of section of classical v belt

Type	Top width (mm)	Beit Thickness(mm)	Angle (°)	Production scope          (lnch)
O (M)	10	6	40	15-120
A	13	8	40	18-360
B	17	11	40	22-550
C	22	14	40	33-600
D	32	19	40	80-600
E	38	23	40	110-600

Type and Size of classical v belt:

Loading container:

our customers:

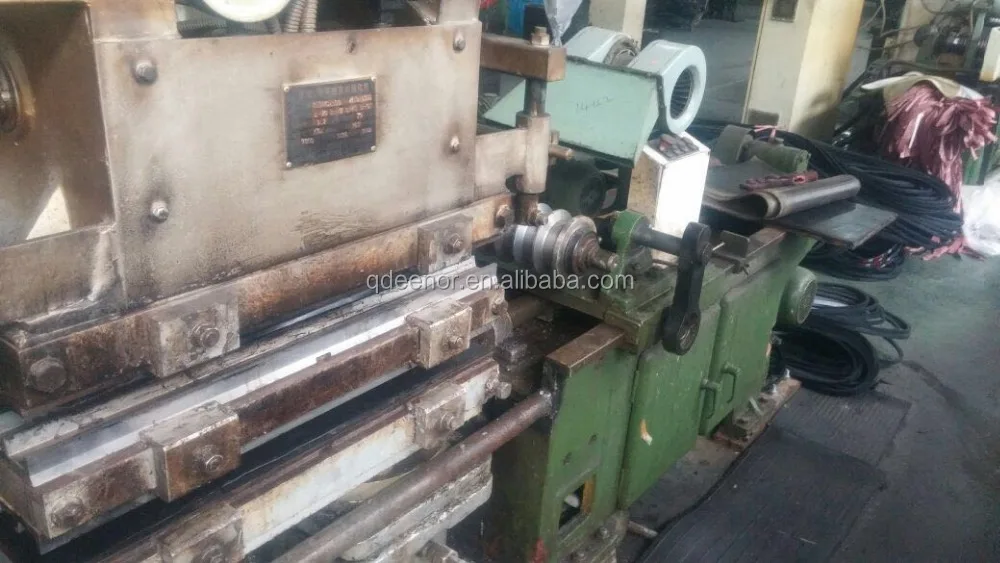

our workshop:



FAQ:

1.Q:Are you a factory or trading company?

   A:We are factory.

2.Q:Where is your factory?How can i visit ?

   A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome visit us.



3.Q:How does your factory control the quality of machines and after sales service?



   A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
