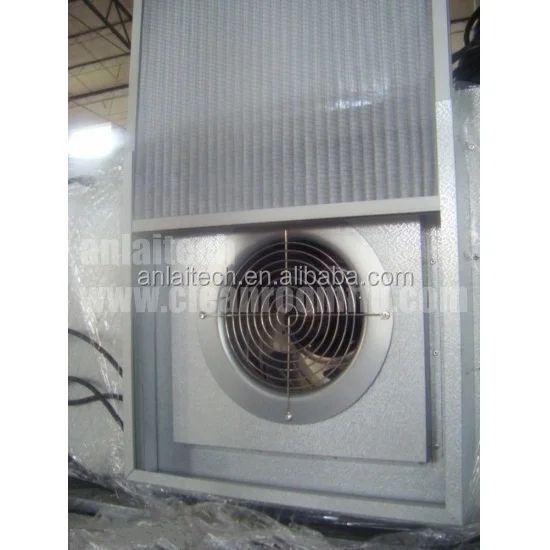

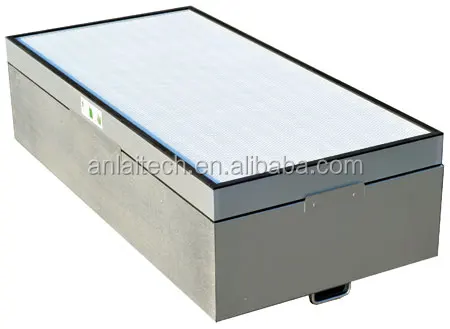

FFU fan filter unit is type of unit used for filtering laminar air and supplying clean air. FFU can be used stand alone or installed modularly. FFU is the core when making clean room equipment for a given space including clean booth, clean bench and clean room assembly.



External Dimension (W * L * H): 575mm * 1175mm * 300mm

HEPA filter Size (W * L * H): 570mm * 1170mm * 69mm

Efficiency: HEPA 0.3μm@≥99.99% OR ULPA 0.12μm@≥99.9995%

Pre-filter (Optional): Washable non-woven fiber

Construction: Electro-galvanized metal sheet OR stainless steel OR quality Aluminum

Air Velocity (m/s): 0.35 ~ 0.6

Air Flow (CMH): 1290 ~ 1650

Speed Control: 3 modes, 5 modes or induction control

Noise (dB): 48 ~ 52

Consumption (W): AC: ≤ 150; DC: ≤ 90

AC Single-phase 110/220V OR AC Three-phase 220/380V 60/60HZ OR DC 220V

Overload Protector: Included (terminals or quick coupling are optional)

Weight: 35kg



Technical Parameters:



Model		FFU-2*2		FFU-2*4		FFU-3*4		FFU-4*4
Overall size  W * L * H (mm)		575 * 575 * 300		575 * 1175 * 300		875 * 1175 * 300		1175 * 1175 * 380
HEPA filter size   W * L * H (mm)		570 * 570 * 69		570 * 1170 * 69		870 * 1170 * 69		1170 * 1170 * 69
Efficiency		HEPA 0.3μm@≥99.99% OR ULPA 0.12@≥99.9995%
Prefilter (optional)		Washable non-woven fabric
Construction		Electro galvanized metal sheet OR stainless steel or high quality aluminum sheet
Air velocity (m/s)		0.35~0.45	0.35~0.45		0.35~0.45		0.35~0.45
Air flow (CMH)		410~513	840~1080		1290~1650		1720~2160
Speed control		3 modes, 5 modes, or induction control
Noise (dB)		48 ~ 50	48 ~ 52		50 ~ 56		52 ~ 58
Consumption	AC	≤ 98	≤ 150		≤ 180		≤200
	DC	≤ 65	≤ 90		≤ 130		≤160
Power		AC single phase 110/220V OR three phase 220/380V 50/60Hz Or DC 220V
Overload protection		Included (terminals or quick coupling are optional)
Weight (KG)		28	40		47		55







Features:

The master switch inner set with insurance and indicator light

The control mode is flexible, can be three or five air velocity speed adjustment

Abnormal indicator light to understand the operation state of the equipment





Options available:

1. ULPA filter (99.9995 @0.1μm)
2. stainless steel or AL case
3. super thin design
4. other requirements









All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.

Factory test include:

--appearance testing

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--noise testing



Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.
