XG3-A металлические таблички точечная гравюрная по маркировки Нержавеющей стали гравировальный
- Категория: Metal Engraving Machinery >>>
- Поставщик: Jiangsu,Xinguang,Numerical,Control,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1428.58 $* | 1499.53 $* |
| Aug-16-2025 | 1416.60 $* | 1487.32 $* |
| Jul-16-2025 | 1188.10 $* | 1247.76 $* |
| Jun-16-2025 | 1392.14 $* | 1462.49 $* |
| May-16-2025 | 1212.34 $* | 1273.4 $* |
| Apr-16-2025 | 1368.38 $* | 1436.85 $* |
| Mar-16-2025 | 1356.44 $* | 1424.67 $* |
| Feb-16-2025 | 1344.94 $* | 1411.93 $* |
| Jan-16-2025 | 1332.46 $* | 1399.80 $* |
Характеристики
Description

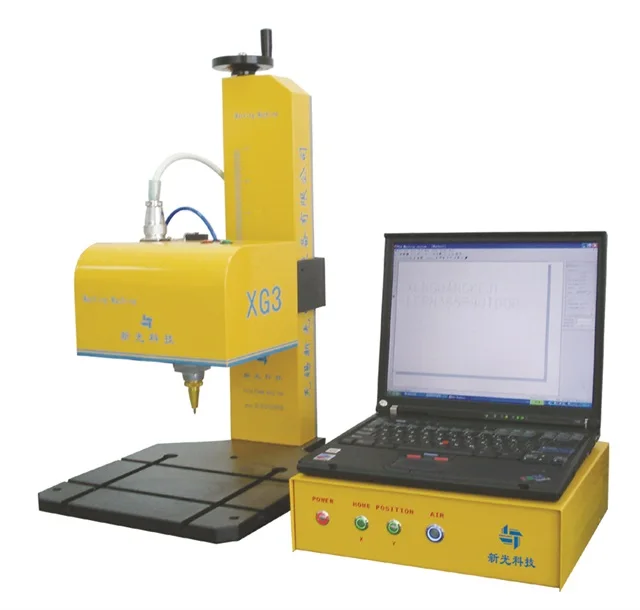

XG3-A elbow marking machine-combined with computer, electrical and precision machinery techniques. It is industrial marking equipment which can make logo (character, VIN code, serial number, date and graph) on workpiece (metal or no-metal materials) permanently. Computer controls the pin to move in X-Y plane and mark the logo on the certain location of workpiece.
Packaging & Shipping
1. Outside package : standard export polywood box . inside package : stretch film and foams
2. Delivery detail : 2 days after payments
HIGH PERFORMANCE
Marking contents: all kinds of logo (characters , Alphanumeric , date, numbers , serial NO, VIN codes, graph ,ect) on any metal or non-metal material.
support plane marking (curve or any angle)
support flat or regular convex surface marking
Support line and dot marking
Support Multi-lines content marking
Marking software
Support WINDOWS98/ME/XP
USB CONNECTION
Support multi-kinds fond
Support linear ,angular , radial , indination, inverted ,mirrored marking .
All the logo size could changeable as will
Marking speed is changeable as will
Support . wmf .plt format graph from CAD ,CORLEDRAW
ALL marking text could be saved as .xls format file.
Simple graph could draw directly by our marking software
support series No , VIN CODE marking one by one automatically
Tech-specification
Marking speed | 2-3 character/S 5*7MM |
Hitting frequency | 300HZ |
Marking depth | 0.1-1mm(according to the workpiece material ) |
Marking accuracy | 0.02mm |
Marking scope | 110*80mm (customrization any marking area )/360 degreen |
Pinhead hardness | HRA92 |
Workpiece hardness allowed | ≤HRC62 |
Inputting air pressure | 0.3-0.6MPA |
Power consumption | ≤350W |
Voltage | AC220V±10%,50Hz |
Working Temperature | 0-40 |
Relative humidity | ≤90% |
Marking head Dimension | 240*200*150mm |
Controller | 280*180mm (2.5kg) |
ACCESSORY :
APPLICATION

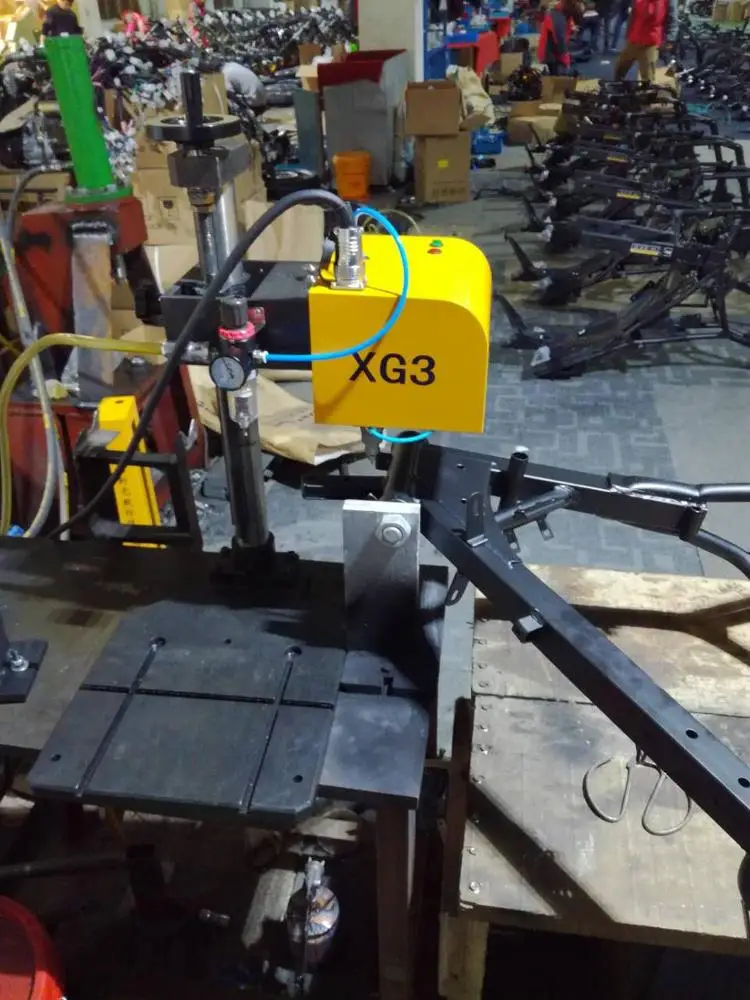

It is adequate for marking characters, serials numbers and VIN codes on automobile
or bodywork of motorcycles, car frames, automotive chassis, connecting rods, engines,
cylinder various stepper motors and mechanical parts, machine tools, metal
pipes, pump bodies, valves and fastening pieces.

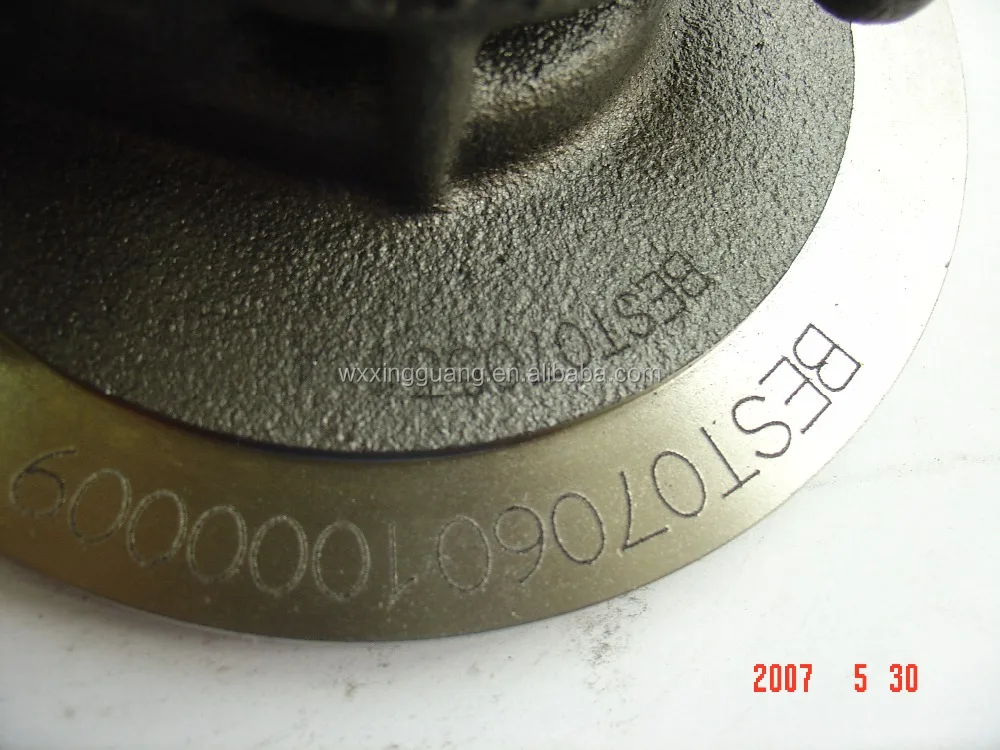

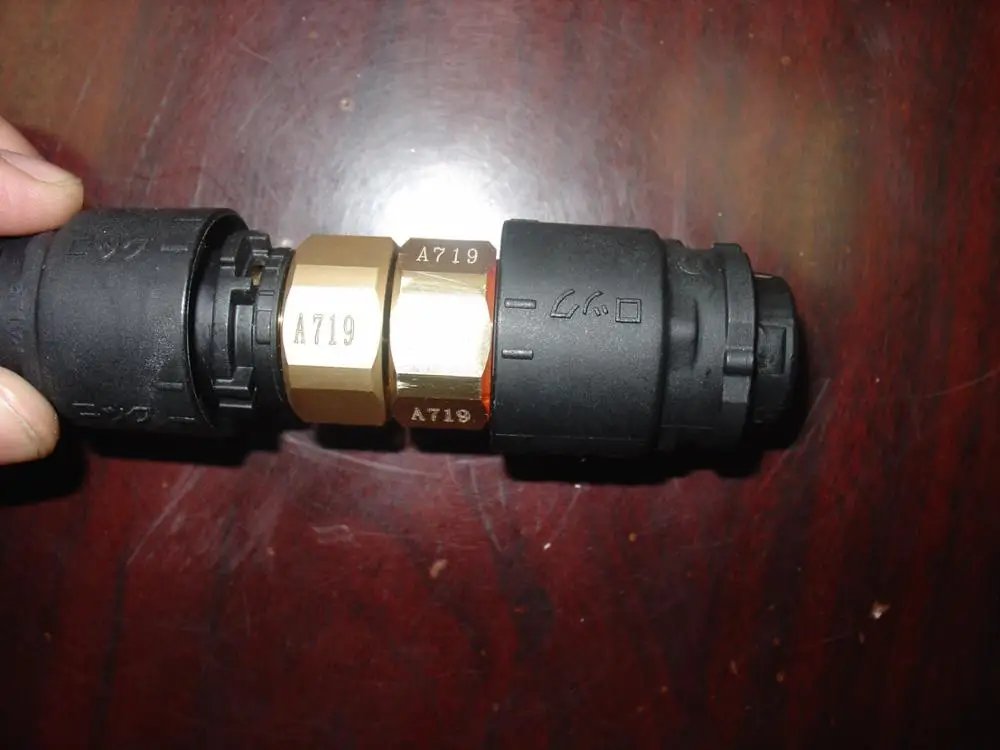

XG3 MARKING SAMPLE
others
Quality control :
we always pay more attention to quality of pin marker and laser marker .
XG MARKER CUSTOMERS

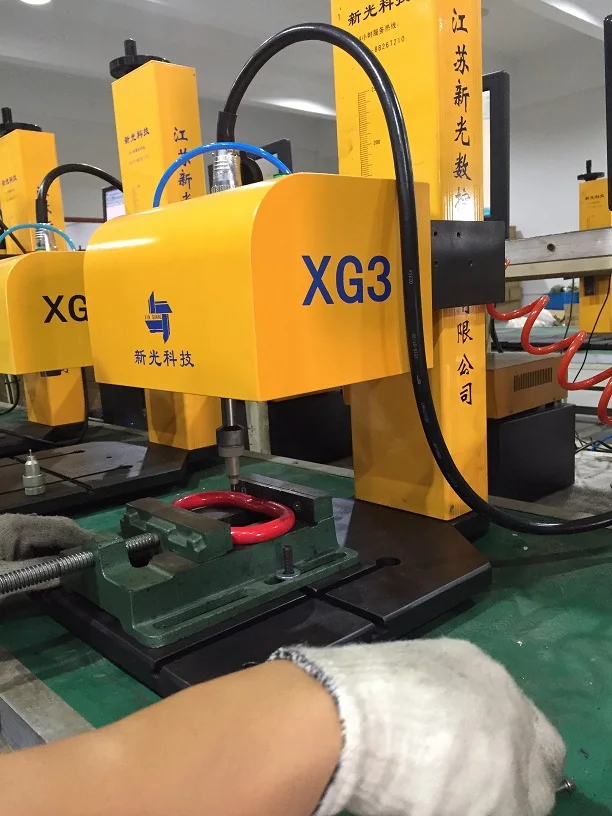

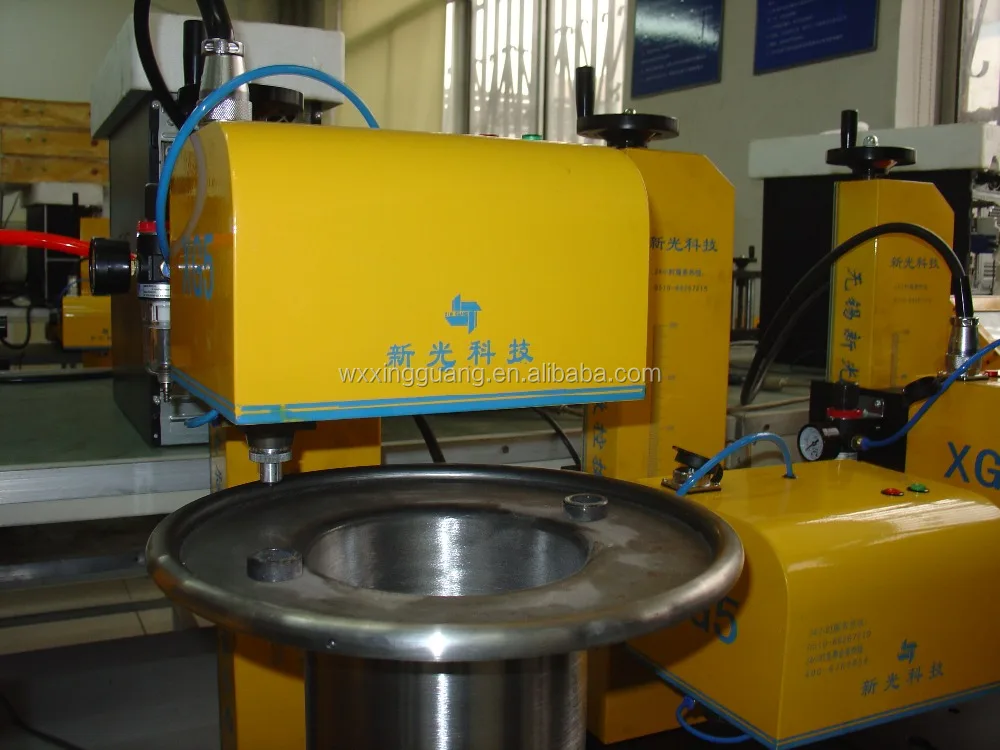

OUR FACOTRY PHOTO
