Бесщеточный двигатель постоянного тока Freerchobby 5065 270kv 24 в 36 48 В для электронных досок скейтборда скутера
- Категория: Skateboards >>>
- Поставщик: Dongguan,Freerchobby,Model,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 31.44 $* | 33.40 $* |
| Aug-18-2025 | 31.85 $* | 33.87 $* |
| Jul-18-2025 | 26.13 $* | 27.42 $* |
| Jun-18-2025 | 30.7 $* | 32.37 $* |
| May-18-2025 | 26.94 $* | 27.14 $* |
| Apr-18-2025 | 30.45 $* | 32.69 $* |
| Mar-18-2025 | 29.90 $* | 30.19 $* |
| Feb-18-2025 | 29.51 $* | 30.28 $* |
| Jan-18-2025 | 29.64 $* | 30.85 $* |
Характеристики
5065 270KV 1550W DIY Electric Skateboard DC BLDC Brushless Motor
Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
VESC Sensor Wires required to use with VESC.
Wire configuration:
Red = 5v
White = Temp
Blue = A
Yellow = C
Green = B
Black = GND
PRODUCT DESCRIPTION:
| Max Power | 1550 Watts |
| Max Current | 80 Amps |
| No-load Current | 1.12A 10V |
| Max Volts | 41.5V |
| Lipo | DC, BLDC, FOC (sinusoidal) |
| 3S-8S (11.1V-29.6V) | ABI, HALL, AS5047 |
| Max Torque | 4Nm |
| Motor Resistance | 64mΩ |
| Weight | 0.99 lb / 0.45 kg |
| SHAFT | Diameter 8mm, 20mm length, 3x1.5 keyway slot. |
| Motor Wire | 160mm silicone 16AWG wire with 4.0mm Gold Bullet Connector Male. |
| Wire configuration | Blue(Heat shrinkable film) = A Black(Heat shrinkable film)= B Yellow(Heat shrinkable film)= C |
| Stator | 0.2mm thickness lamination japan steel |
| Magnet | N42SH high temp curve magnet |
| Brushless Motor Fits | 50mm Motor Mount |
| The number of pole | 14 |
Reference Information:
The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
Screws to mount the motor are not included with the motor.
The key for keyway is not included with motors for shipping
package just include 1pcs motor
If you need more motors, esc and remote controller, pls feel free to contact us.

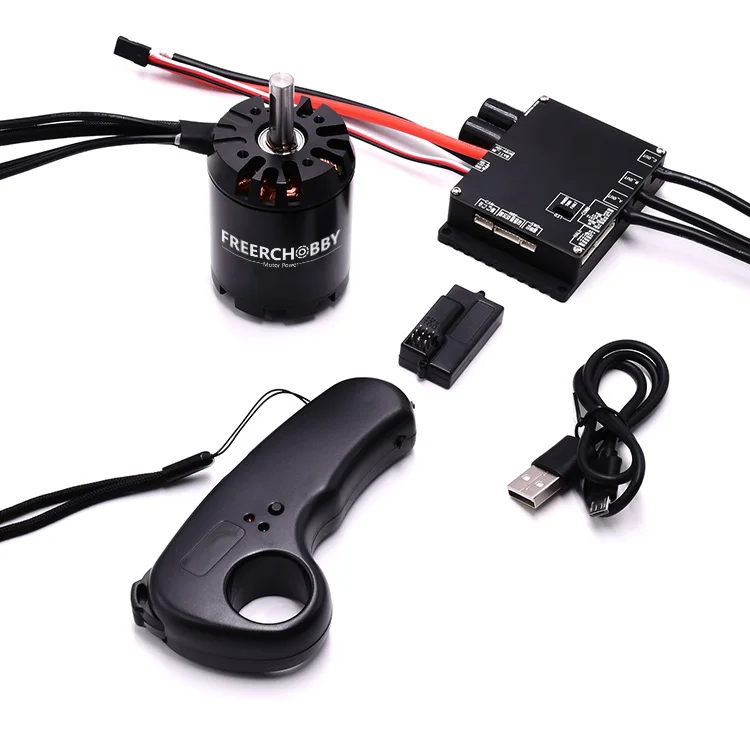

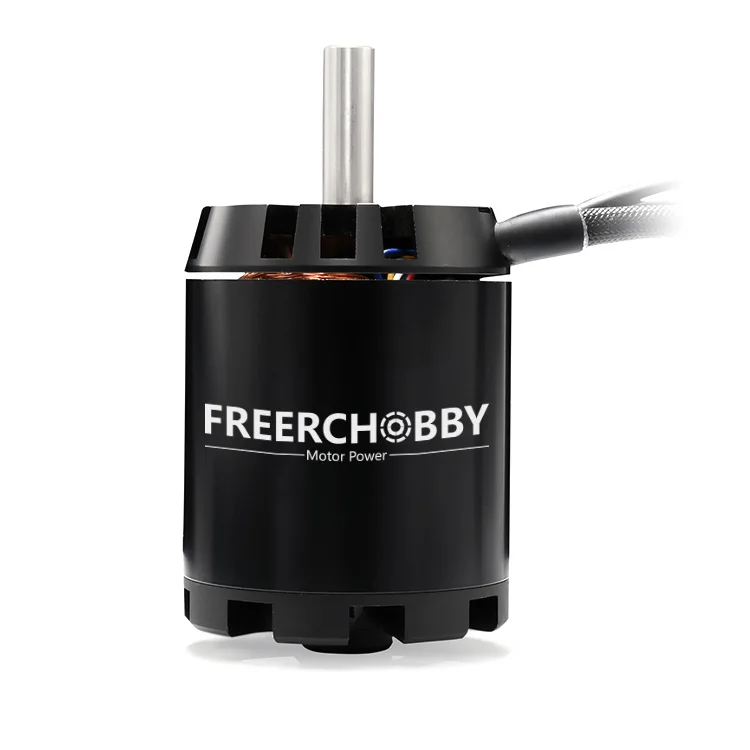

Motor Photos:
Motor drawing:
Company Introduction:
Dongguan Freerchobby Co.,Limited is a private-owned enterprise, located in Dongguan, which is famous for the world factory with highly developed economy. The company has 1500 square meters of modern industrial plants and advanced assembly line equipment. We are specialized in manufacturing brushless dc motor, controller, model parts, hardware parts and so on. The company has 10 CNC lathes, 5 BLDCM winders and various advanced automatic processing equipment. Our company has a very stable supply capacity, monthly production more than 15000 sets of brushless motor and motor and controller accessories as well as hardware accessories 100000. The products sell well in more than 50 countries and regions from the whole world.
The company strictly controls each process to be standardization, systematization and unification. The company has testing equipment such as dynamic balancing machine, comprehensive tester for BLDCM, noise tester, Gauss tester, tension tester, oscilloscope, etc. to test the performance of motor and controller in a full range and ensure that each performance index can reach the international leading level. All products and parts are in line with ROHS standards, and have won CE and ROHS certification.
The company adheres to the tenet of "quality first, reputation first and service superior", improves the brand awareness, gives full play to the brand advantages, maintains the brand image, and provides the most reliable quality, the best service and the fastest delivery for customers at home and abroad with exquisite technology and standardized management.
Our slogan is "we can do what you need"! We are looking forward to cooperating with you!
