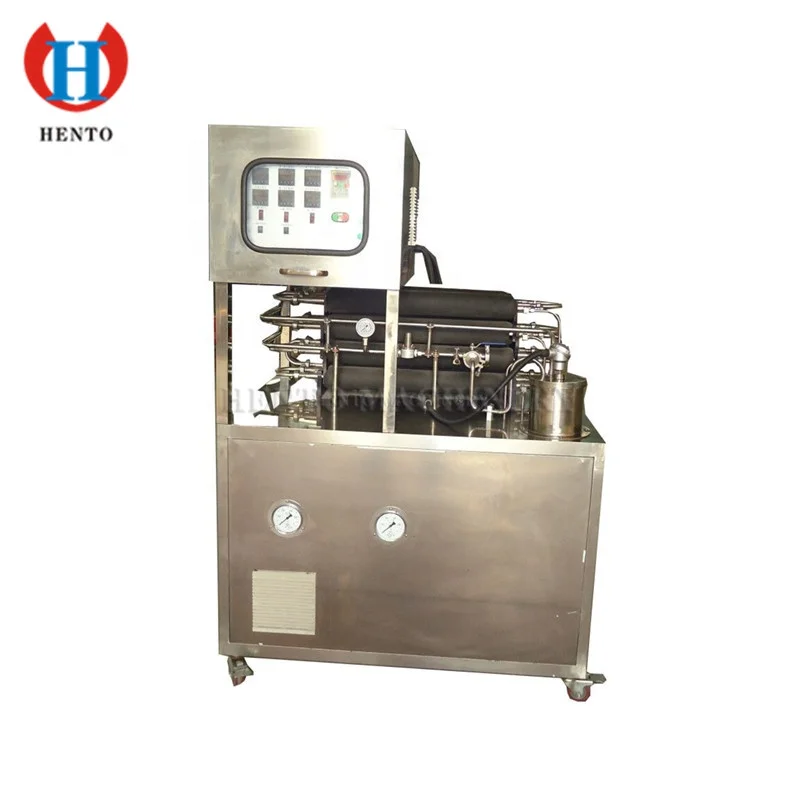

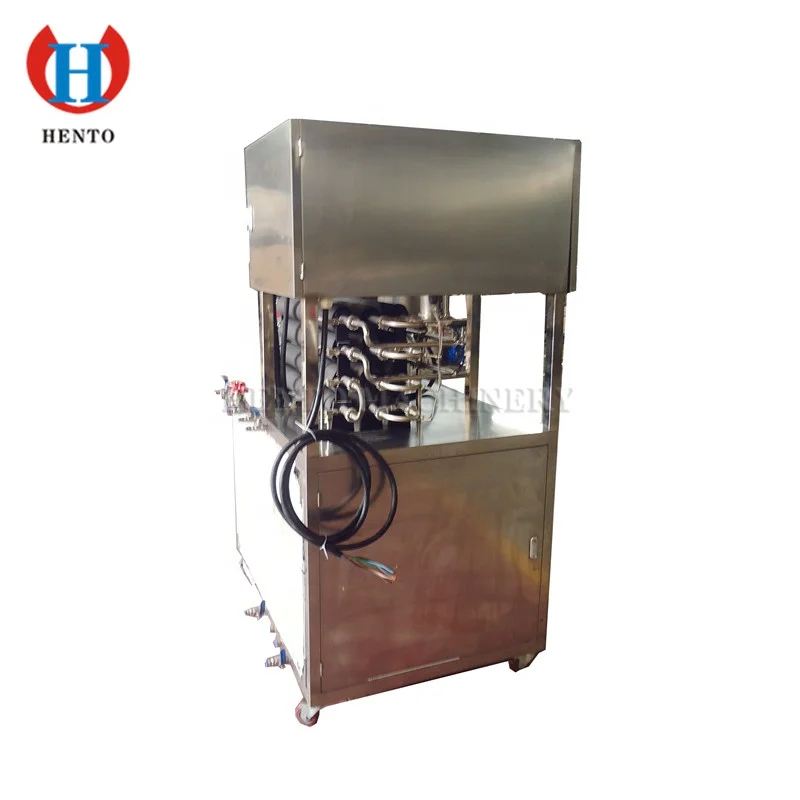

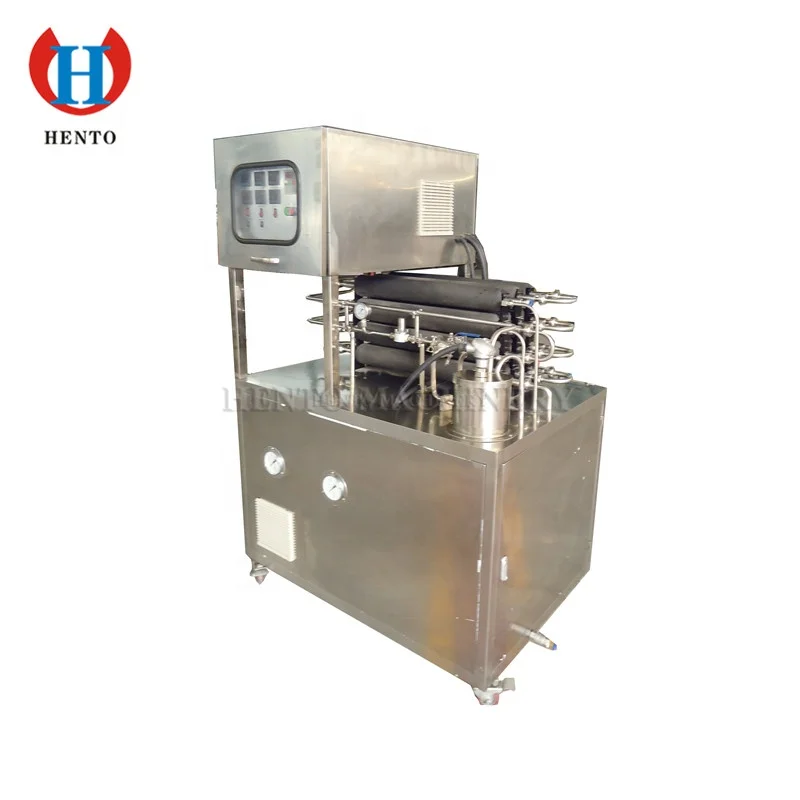

High Performance Lab UHT Milk Processing Plant / UHT Pasteurizer / UHT Sterilization Machine

      Tube size 13mm

•       thimble's materials:SUS304


•       Built-in jet mixing heater


•       Built-in two extra high pressure high temperature magnetic pump


•      System is equipped with 5 litre capacity material tank,


•      Through the particles:Max 0.8mm


•      Electric: Three phase 380 v  5lines  , grounding,


•      Demension: 1200(H)*1100(L)*2108(W)mm


•      Weight 220KG



   This UHT system, duringJet mixing heating,heating the liquid material to 100℃-140℃. When heating, Heavy pressure mixed(The heat conduction oil system pressure mix injection line delay sterilization).Rebirth period maximum temperature is 150℃.3-20L per hour.The coolign water cooling to the normal temperature. When the flow rate of the product to maintain the temperature is 20L/hour.

 All of the devices, controllers, valve parts and components are clearly marked with the respective function.

 All contact with the product material tube, etc. Are all made of the food grade stainless steel SUS304. The host body and electric cabinet adopts stainless steel 304. The control panel cover and back in closing, narrowed class can reach IP65.

The device is equipped with a temperature tube. All the joint line can provide  such as 5 s, 10 s, 15s.



Model	HT-SJJ20
Electric	three phase current 380V,50HZ,per phase 25A
screw pump	Capacity 10~50L/H
Mixed sterilization	Preheat to 100 °C(50L/h)
Cooling	Water cooling
The heat conduction oil generator(withstand voltage)	The drum type heater 8×1.6mpa
Tubular material pathways	From the aperture for DN25 food-grade stainless steel tube to enter,The inner surface precision of less than 10 microns
	1 renewable period (preheating section) 2 Period of heating(Sterilization period) 3 Section of the cooling 4 SIP Section
Material tube under the biggest pressure	1.6Bar
temperature sensor	RTD’s(PT100)





No.	thermal death point	Pressure	frequency	Flow
1	110℃	1.75bar	50	50 L/H
2	120℃	2.5 bar	45	40 L/H
3	130℃	3.5 bar	40	30 L/H
4	145℃	4.5 bar	30	10 L/H
