2 метра Регулируемый алюминиевый сплав осевой вентилятор лопасть

Описание и отзывы

Трекер стоимости

Характеристики

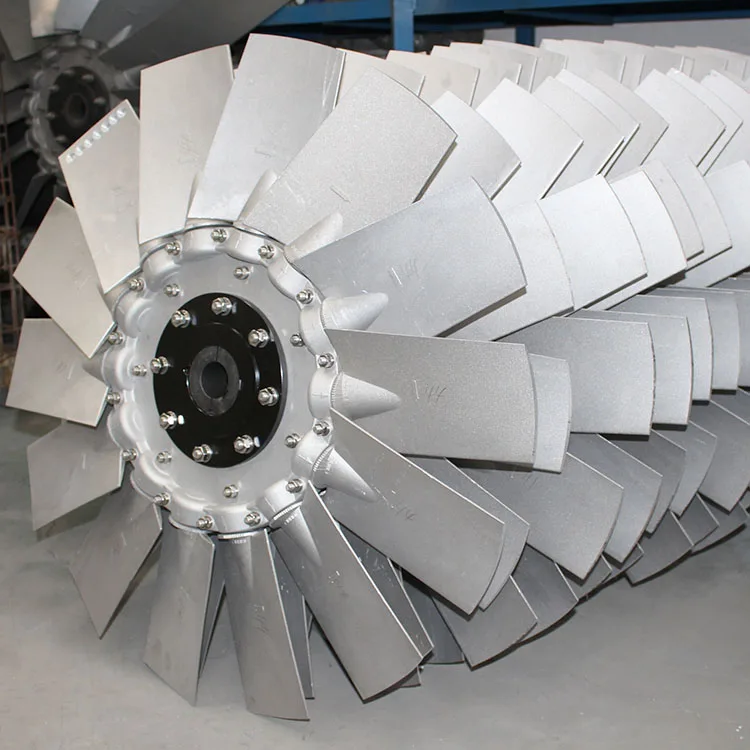

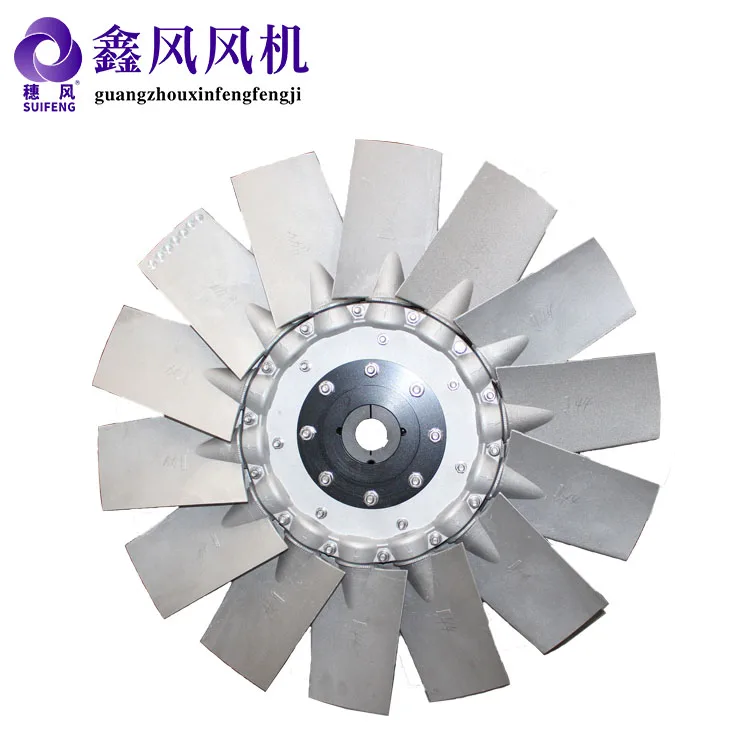

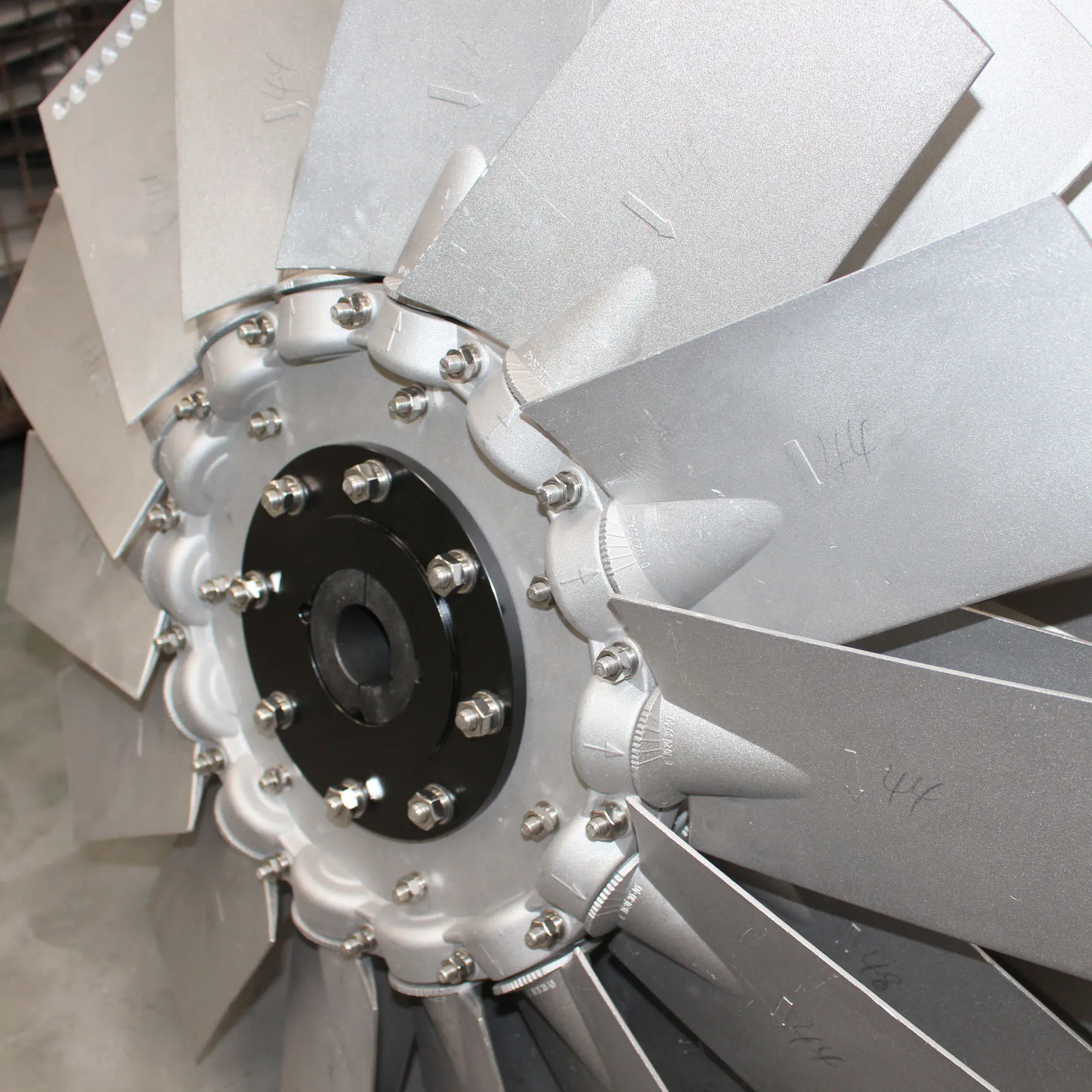

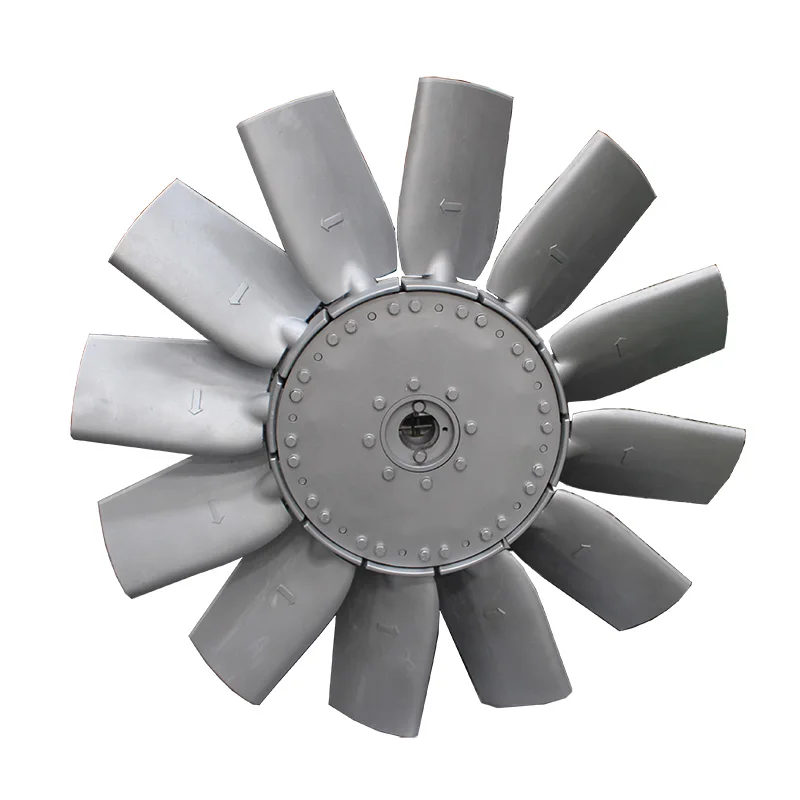

 Adjustable aluminum alloy blades:

The blade is a variable cross-section space warp wing blade, Wheel housing with no wind on the clip, Structure is Precision die casting aluminum alloy forming, the blade of a clamping type wheel housing location, The blade fixed position by a clamping type wheel casing, The blade installation angle can be adjusted according to user needs, Can also be adjusted to make the blades generate the reverse flow, Realization of the need to reverse ventilation.Can be divided into positive and negative blade symmetric positive and reverse direction ventilation. There are six kind of blade installation angle ,is from 15° to 40°, can be used for static stepless regulation.















Fourteen  blades,big blade
Model	Description	axle hole (mm)	outside diameters (mm)	hub diameter (mm)	Leaf blade width (mm)	safe speed of rotation (r/min)
7	1,The structure is use aluminum alloy  Accurate Die Casting.                        2,The blade installation angle can be adjusted according to user needs.       3,There are six kind of the installation angle,there are 15 - 40, can be used for static stepless regulation.	38,42,48	690	350	150X100	2900
8		38,42,48	790	350	150X100	2900
9		38,42,48	890	350	150X100	2000
10		38,42,48	990	350	150X100	1450
11.2		38,42,48	1110	350	150X100	1450
12.5		38,42,48	1240	350	150X100	1450
14		38,42,48	1380	350	150X100	960
16		38,42,48	1580	350	180X120	960
