Разъем RJ45 PCB JACK 8PIN вертикального
- Категория: Разъемы и аксессуары >>>
- Поставщик: Dongguan,Filshu,Electronics,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.1 $* | 0.60 $* |
| Aug-15-2025 | 0.73 $* | 0.89 $* |
| Jul-15-2025 | 0.98 $* | 0.78 $* |
| Jun-15-2025 | 0.26 $* | 0.81 $* |
| May-15-2025 | 0.65 $* | 0.18 $* |
| Apr-15-2025 | 0.91 $* | 0.62 $* |
| Mar-15-2025 | 0.72 $* | 0.63 $* |
| Feb-15-2025 | 0.86 $* | 0.62 $* |
| Jan-15-2025 | 0.91 $* | 0.60 $* |
Характеристики
Product Description

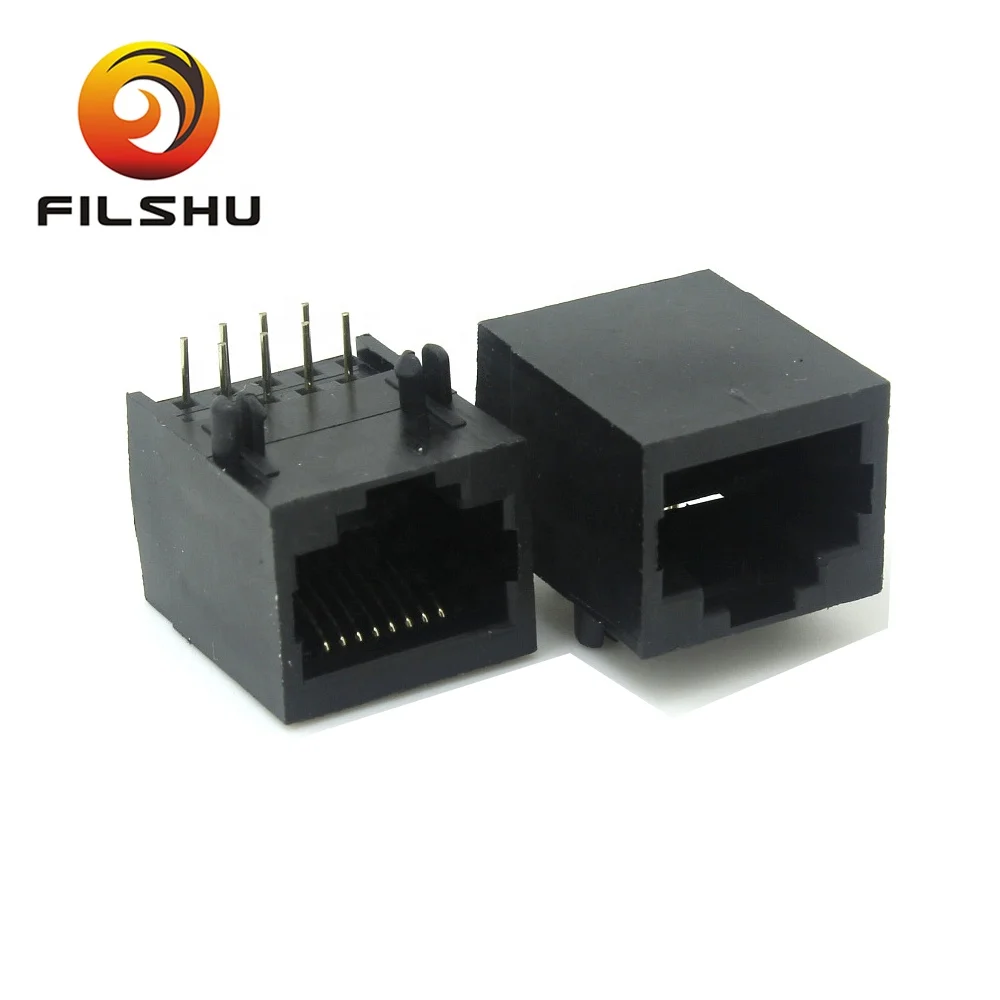

RJ45 PCB JACK Socket 8PIN VERTICAL TYPE
Specifications
Rocker switch
1.UL,VDE, RoHS approved..ISO9001:2008;
2. 1.5A 125Vac with UL certificate ;
3.Can be 2,4,6,8 contacts;
4.Gold plating:Fu ,3U,6U,15U ,30U etc.
| Application - LAN | ETHERNET |
| Gender | Jack |
| No. of Ports | 1X2,1X4 |
| Number of position | 10 |
| Number of contacts | 2,4, 6,8 or 10 |
| Housing | PBT(UL94-V0),PA66(UL94-V0),PA46 (UL94-V0) |
| Contact Material | 0.45mm phosphor bronze gold plating over nickel |
| Shielding housing | 0.20-025mm thickness brass with nickel plated |
| Shield EMI Tabs | Option |
| LED | Option |
| Gold Plating | Gold Flash,3u",6u",15u",30u" or 50u" |
| PCB Mount Angle | Side entry |
| Insertion Force | 2.2KG.F max |
| Retention Strength | 7.7KG.F min between jack and plug |
| Durability | 750 mating cycles min |
| Working Temperature | -40°C~+70°C |
| Storage Temperature | -10°C~+40°C Relative Humidity |
| RoHS Compliant | Yes |
| Electrical: | |
| Current Rating | 1.5 Amps |
| Voltage Rating | 125VAC |
| Insulation Resistance | 500 MΩmin |
| Contact Resistance | 30 mΩmax |
| Withstanding Voltage | AC 1000V RMS 50Hz or 60Hz 1 min |
| RJ45 connector Application: | |
| Laptop | Telephone |
| Hub | Router |
| Printer | Broadband Switche |
| Server | Fitness Equipment |
| LCD and TV panel | Point of Sales Terminal |
| Set Top Box | Vending Machines |
| Surge protector | Television |
| Telecom box ATM Machine | Home Security |
| Security System | Copier |
Packaging & Shipping
1. Packaging: Cartons and plastic bags,depends on the customer's demand
2. Shipment: Shipping worldwidely by sea, air or Express (small quantity) like EMS,UPS,FedEx,DHL
Our Services
1. Quality guaranteed: Special supervision team control quality.
2. After service guaranteed: Assure you the best services at all times.
3. Delivery time: Your shipment will be loaded in 10-30 days,depends on quantity.
4. Payment terms: T/T,PayPal,Credit card
5. OEM & ODM are available.
Company Information
Filshu Electronics co.,limited has:
1. More than 10 years of experience specially for all kinds of switches ,sockets and Switch and cable assembly;
2.Our own R&D department ,we can accept both ODM and OEM ;
3.Our own QC department who charge of material,production in-line and final products` inspection;
4. Our own labs to test flame resistance/ electrical conductivity/ stability/corrosion resistance/life time
6. More than 300 workers with two shifts,clear responsibility management,high efficient work and fast delivery time.
7. offer 24 hours on-line professional engineer and business service.Just please feel free to contact us if any inquiry at anytime both by email and trademanager.
8.Our company regards “reasonable prices, efficient production time and satisfactory aftersales service” as our tenet. Customers are the first postion.
