Анкерный болт станок для скашивания кромки одноконцевой ключ бар
- Категория: Chamfering Machines >>>
- Поставщик: Lishui,Keensaw,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.69 $* | 0.33 $* |
| Aug-16-2025 | 0.71 $* | 0.29 $* |
| Jul-16-2025 | 0.11 $* | 0.14 $* |
| Jun-16-2025 | 0.95 $* | 0.91 $* |
| May-16-2025 | 0.41 $* | 0.90 $* |
| Apr-16-2025 | 0.28 $* | 0.76 $* |
| Mar-16-2025 | 0.54 $* | 0.67 $* |
| Feb-16-2025 | 0.17 $* | 0.55 $* |
| Jan-16-2025 | 0.38 $* | 0.57 $* |
Характеристики
Product Description
1.Specialized in finish chamfering and trimming surface of the interior/exterior angle of circular tube and round bar end surface once quickly and accurately.
2.The central line of the processing object and the cutter is precise. Specal design and standardization of the blade make adjusting blade easily.
3.Manual nest, automatic feeding, clamping and blade feeding and backing.
4.Only changing the cutter and adjusting the trip holder can make the machie available for different size of the workpiece.
5.Suitable materials: Stainless steel, Steel, Iron, Copper, Aluminum, Nelon, Plastic Pipe and Bar.
6.Processing speed: 3-6 second/piece
Product Parameters
Model | KCM-50SE | KCM-80SE | KCM-120SE | KCM-150SE |
Type | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
Pipe Diameter | 5-50mm | 8-80mm | 15-120mm | 20-150mm |
Bar Diameter | 3-10mm | 5-15mm | larger size can use hydraulic machine | larger size can use hydraulic machine |
Length | ≥30mm | ≥50mm | ≥50mm | ≥50mm |
Accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
Work Speed | 3-5s/pcs | 3-5s/pcs | 3-5s/pcs | 3-5s/pcs |
Motor | 1kw | 1.5kw | 2.2kw | 2.2kw |
Pressure | MPA 6-8KG | MPA 6-8KG | MPA 6-8KG | MPA 6-8KG |
Weight | 150kg | 200kg | 300kg | 400kg |
Size(mm) | 800*600*1100 | 1000*900*1400 | 1000*1200*1400 | 1100*1400*1400 |
Model | KCM-180SE | KCM-200SE | KCM-230SE | KCM-300SE | |||
Type | Pneumatic | Pneumatic | Pneumatic | Pneumatic | |||
Pipe Diameter | 20-180mm | 30-200mm | 30-230mm | 50-300mm | |||
Bar Diameter | larger size can use hydraulic machine | larger size can use hydraulic machine | larger size can use hydraulic machine | larger size can use hydraulic machine | |||
Length | ≥50mm | ≥50mm | ≥50mm | ≥50mm | |||
Accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | |||
Work Speed | 3-5s/pcs | 3-5s/pcs | 3-5s/pcs | 3-5s/pcs | |||
Motor | 4kw | 4kw | 5.5kw | 5.5kw | |||
Pressure | MPA 6-8KG | MPA 6-8KG | MPA 6-8KG | MPA 6-8KG | |||
Weight | 450kg | 500kg | 550kg | 650kg | |||
Size(mm) | 1200*1400*1400 | 1200*1400*1500 | 1250*1450*1550 | 1250*1500*1550 | |||
Applicable material | Steel, stainless steel, aluminum, cooper, Nylon, plastic Pipe and Bar | ||||||
Standard Accessories | One set standard cutter, One set clamp | ||||||

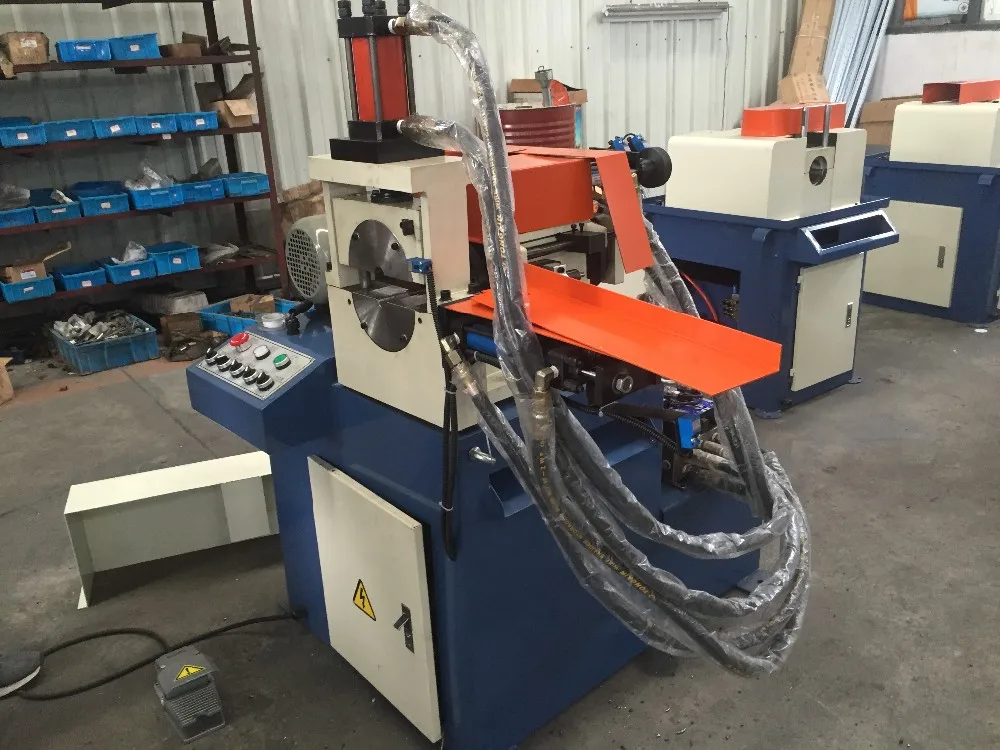

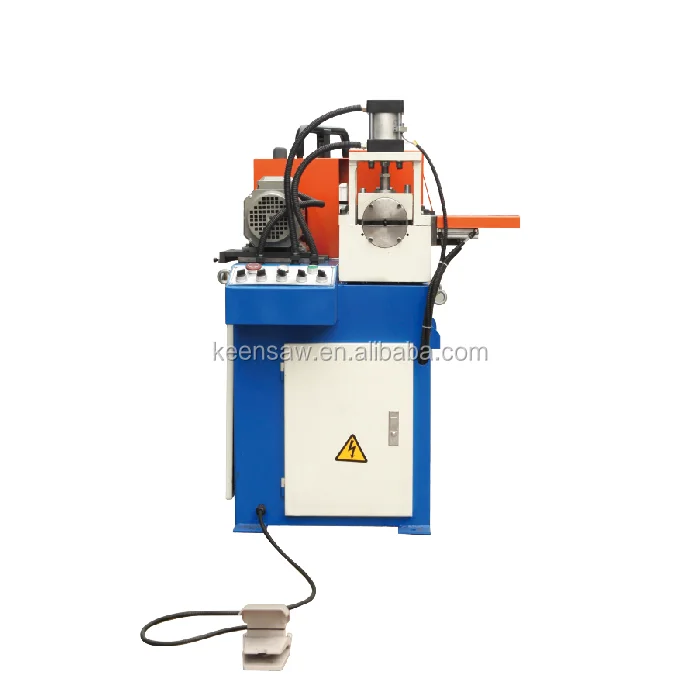

Products Show
Workshop
Packing & Delivery
\t\t\t\t\t\t\t\t\tExhibition \t\t\t\t\t\t\t
FAQ
1) Q: May i have your quotation?
A:please offer us the information of your material size,without these parameter, we are not able to recommend you the suitable machine
2) Q: Do you have overseas service?
A: No, but we normally help our clinets to solve the problems through phone, skype, internet video with high efficiency.
3) Q: Do you have quality guarantee?
A: Quality guarantee period within 1 year, during this year, if component breaks, It will be deliveried to you for free.
4) Q: How about your payment term?
A: T/T 30% deposit, 70% of balance paid before shipment.
5) Q: What is the delivery time?
A: Normally the delivery time is 30 days
