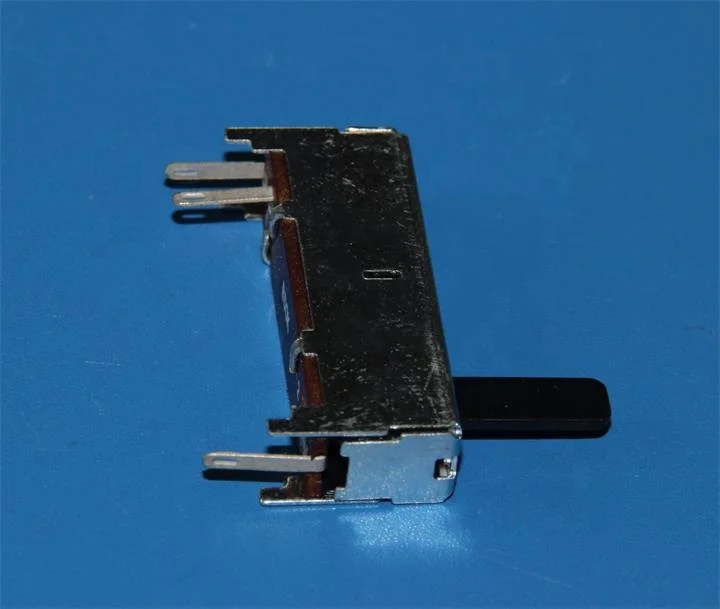

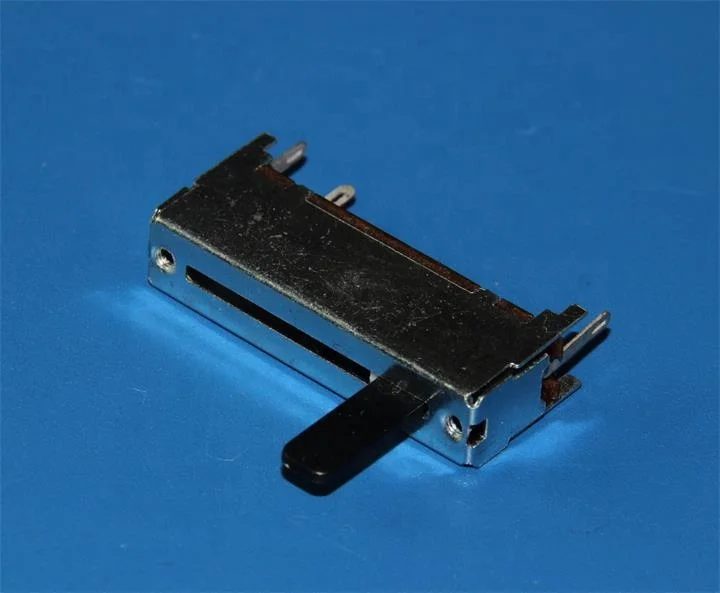

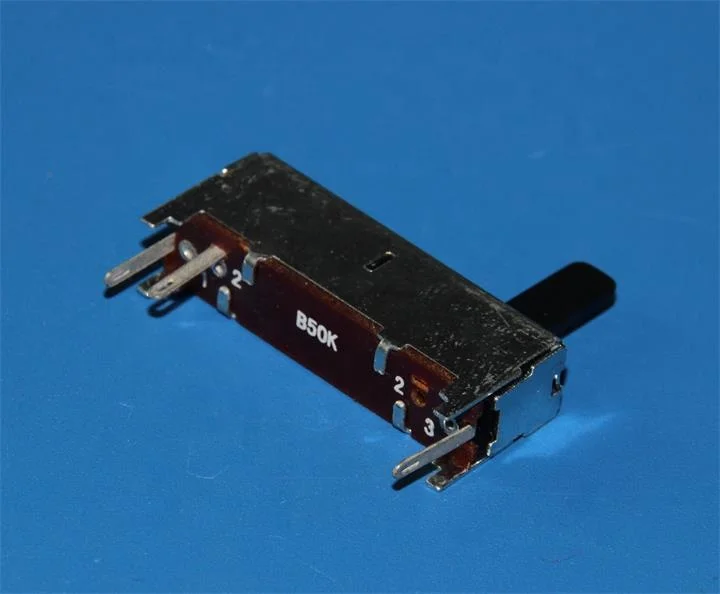

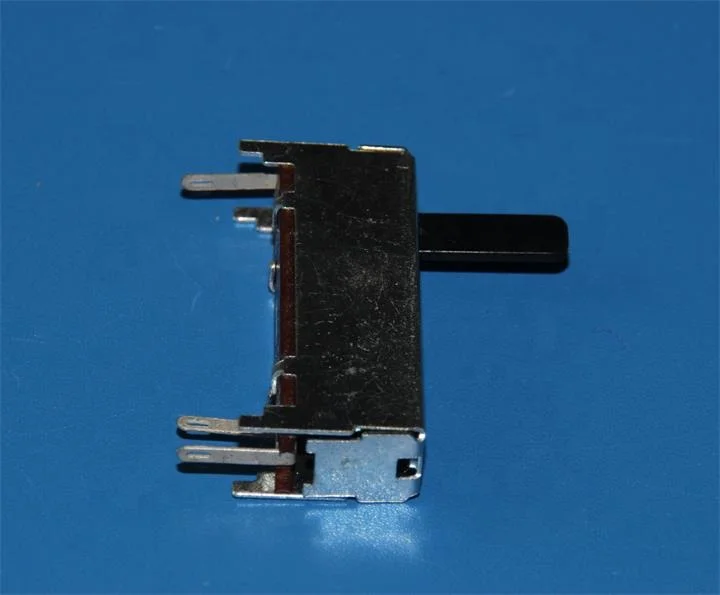

HW-206N 20 мм длина хода: Популярные для монтажа на печатной плате мини потенциометр подвижный
- Категория: Потенциометры >>>
- Поставщик: HUIZHOU,HOWANG,ELECTRONICS,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.71 $* | 0.13 $* |
| Aug-16-2025 | 0.59 $* | 0.25 $* |
| Jul-16-2025 | 0.70 $* | 0.44 $* |
| Jun-16-2025 | 0.97 $* | 0.81 $* |
| May-16-2025 | 0.11 $* | 0.28 $* |
| Apr-16-2025 | 0.37 $* | 0.49 $* |
| Mar-16-2025 | 0.3 $* | 0.9 $* |
| Feb-16-2025 | 0.58 $* | 0.0 $* |
| Jan-16-2025 | 0.5 $* | 0.23 $* |
Характеристики
Introdution
1.Metal housing.
2.Center detent option.
3.Plastic slide rod type.
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Total Resistance Tolerance | 500Ω1MΩ: ±30% |
| Resistance Taper | A, B, C |
| Withstand Voltage | 1 minute at AC 300V |
| Insulated Resistance | More than 10MΩ at DC 250V |
| Sliding Noise | Less than 100mV |
| Gang Error (Dual Units) | -40dB~0dB±3dB |
| Rated Voltage | Taper B: 20mm, 30mm, 45mm, 60mm:AC 200V ;Other Tapers: 20mm, 30mm, 45mm, 60mm AC 150 |
| Rated Power (Single Unit/Dual Unit) | Linear Taper B: 20mm:0.1W/0.05W, 30mm:0.2W/0.1W,45mm:0.25W/0.125W,60mm:0.2W/0.2W Other Tapers: 20mm:0.05W/0.025W; 30mm:0.1W/0.05W; 45mm:0.125W/0.06W; 60mm:0.1W/0.1W |
| Mechanical characteristics | |
| Detent torque (only center click) | 30gf~120gf |
| Slide torque | 10gf~100gf |
| Stopper Strength | 5.0Kgf.cm Min (from the base level to a point of 2 mm) |
| Center Detent Force | 50~200gf |
| Level Wobble | 2(2×L)/ 20mm Max (L: Level Length both sides) |
| Level Push-Pull Strength | 3.0Kgf Min. at 10Sec. |
| Durability | |
| Sliding Life | Standard life:15,000 Cycles Min.; Long life: 100,000 Cycles Min. |
Quality Certificates
| Quality Certificates & Environment Guideline HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC | |
 |  |
 |  |
 |  |
Company Information
Huizhou Howang Electronics CO.,LTD
As being one of the leading factory for electronics components, EQ guitar pickups and noise cancelling headphones, we have been in the industry for more than 10years' professional experience. We have served customers from more than 80 countries with our quality products and premium services. OEM and ODM services are welcome for our products.
Quality is in our first place. We value our customers' needs and do our best to satisfied your individual requirements.
Please feel free to contact us. Howang Electronics is your reliable and trust-worthy supplier for long term partnership.
FAQ
Q: Are you a factory or trading company?
A: We are a factory which own 3 manufacturing sites for electronics components, EQ guitar pickups and earphones & headphones with active noise cancelling (anc) features. All products are developed and manufactured by us. Our product ranges include potentiometers, encoders, switches, PCB, EQ pickups, anc neckband wireless earphones, anc wired earphones and anc headband headphones. Quality and service is at our first place. Except for earphones & headphones, we own another manufacturing site for electronic components. Welcome to contact with us anytime!
Q: Can you provide us samples, is it free or need to pay?
A: If you do not need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like FedEx,DHL,TNT, if you do not have we need to charge express fee properly.
Q: How to deliver?
A: By sea or by air or courier like UPS, DHL, FedEx.
Q: What’s your payment term?
A: T/T or Western Union
30% deposit, the 70% balance before shipment.
Q: Where is your factory located, is it convenient to visit?
A: Our factory located in Huizhou, Guangdong. It 's just 10 min drive away from our Shenzhen office.
