Характеристики

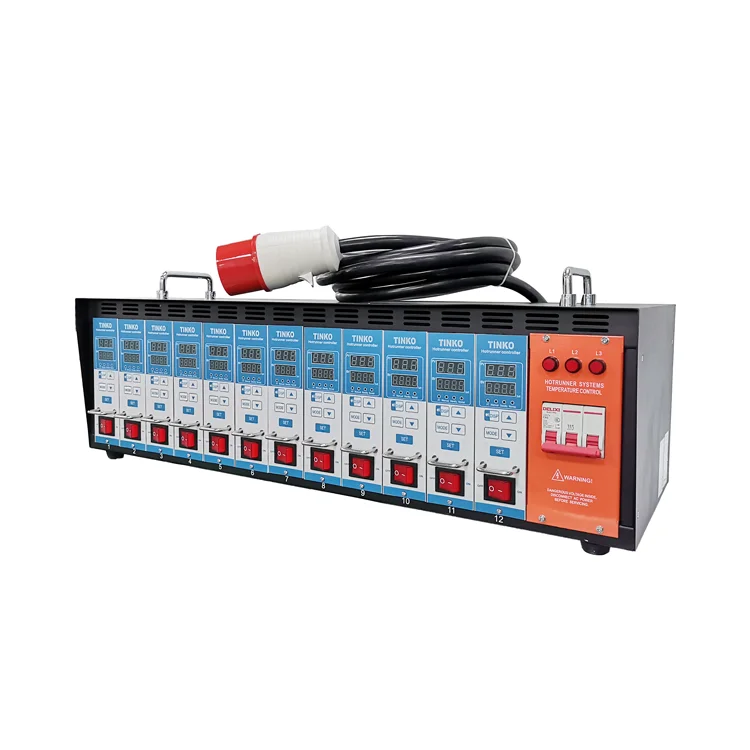

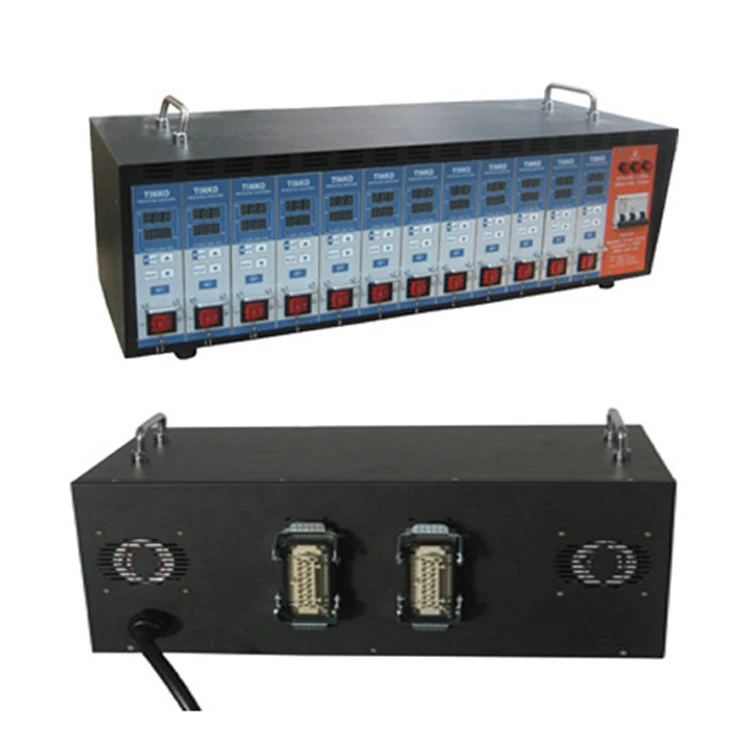

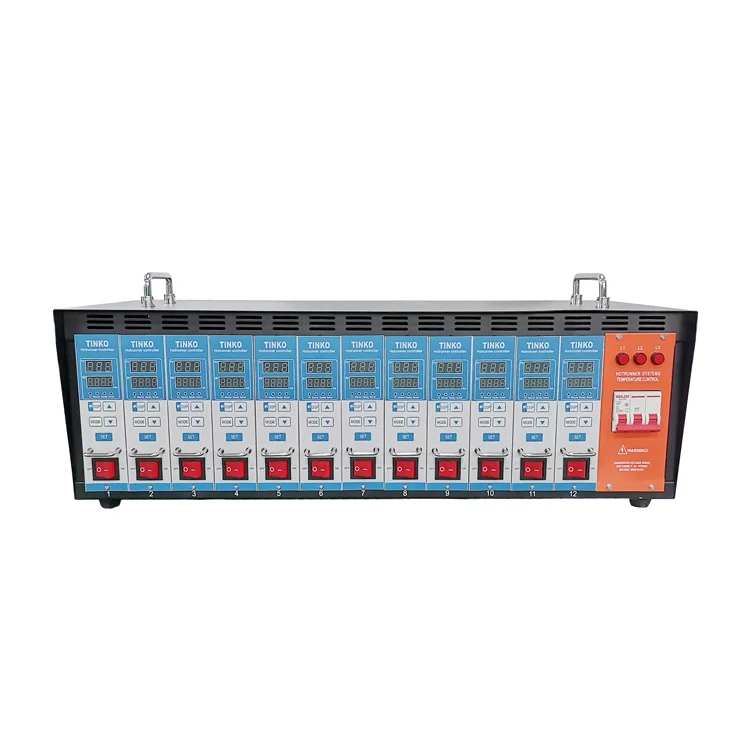

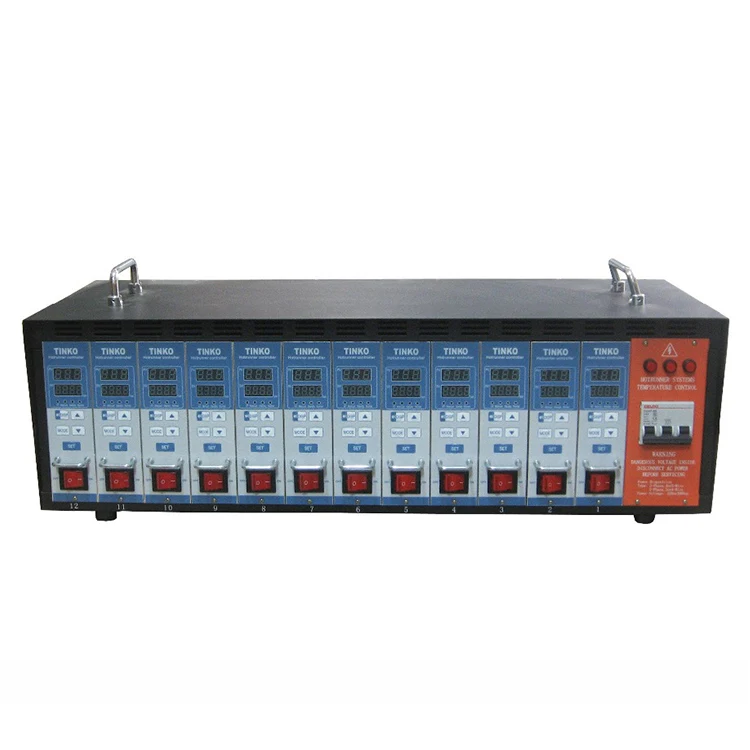

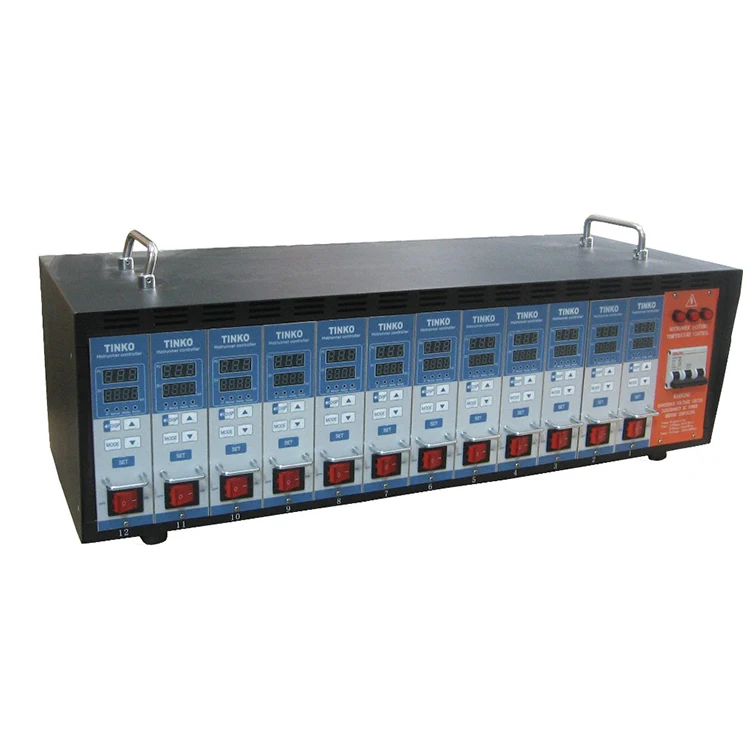

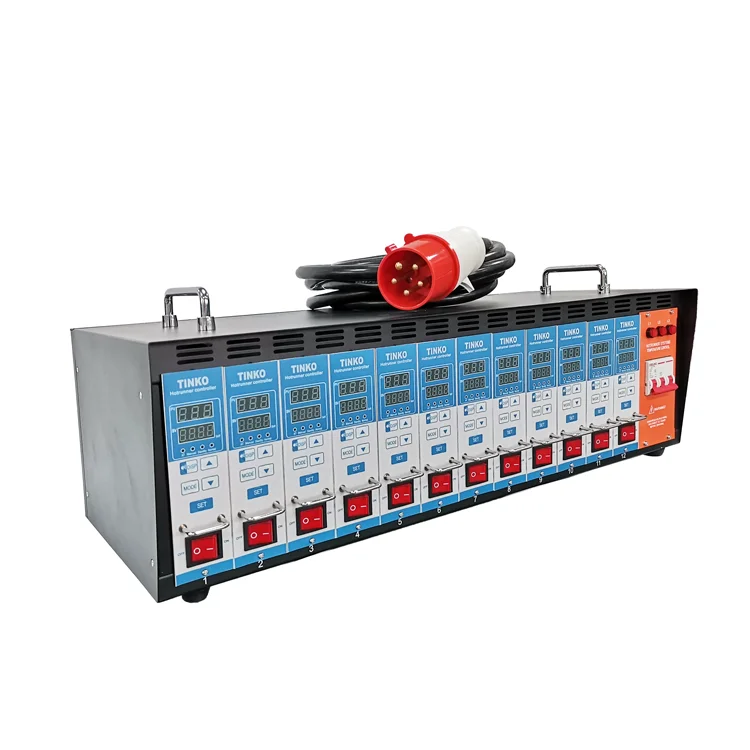

HRTC-12A
Hot Runner Temperature Controller Series
Products Description
1. General Specifications
Power Supply | 1-phase 3-wire, 240Vac, 50/60Hz 3-phase 4-wire, 240Vac, 50/60Hz 3-phase 5-wire, 380Vac, 50/60Hz | Mainframe | Black |
Control Module | HRTC-A / HRTC-B / HRTC-C / HRTC-G | ||
Sensor Type | Thermocouple J or K | Module Qt'y | 12 |
Temperature Control | 0~450℃(32~842℉) | Control Mode | Auto-PID / Manual |
Output Type | Zero Cross / Phase Angle | Control Accuracy | ±0.1%F.S |
Connector Type | Customized | Load Capacity | 15A, 3600W |
Wiring Mode | Customized | Storage Temperature | -20~70℃(-4~158℉) |
Working Temperature | 0~55℃(32~131℉) | Working Humidity | 10~80%RH(No condensing) |
2. Features
Light Handy and Easy to use
• Wide power supply range, AC85~400V
• There are 2, 4, 6, 8, 10, 12, 24 zones for customers to select
• Thermocouple input protection, prevent module damaged by mis-connection
• Thermocouple & heater inverse protection, prevent thermocouple damaged by mis-connection
• Thermocouple input protection, prevent module damaged by mis-connection
• Thermocouple & heater inverse protection, prevent thermocouple damaged by mis-connection
• Soft-start mode, avoid the humidity make the heater burn out
• Compatible with YUDO, Athena, DME, PCS, INCOE, etc.
Alarm when the followings occurred
1. Ultra-high or ultra-low Temperature
2. Thermocouple break, short or inverse
3. Thermocouple is out of its position
4. Heater break, short or overload
5. Output device is damaged
2. Thermocouple break, short or inverse
3. Thermocouple is out of its position
4. Heater break, short or overload
5. Output device is damaged
6. Over voltage of power supply
Protection activated in the following situations:
1. Over voltage self-protectd, max.AC500V
2. Thermocouple input protection, prevent module damaged by misconnection
3. Thermocouple & heater inverse protection, prevent thermocouple damaged by misconnection
4. Soft-start mode, avoid the moisture make the heater burn out
5.Heater dehumidified time can be extended
COMPONETS
■ Mainframe
■ Module
■ Connector
■ Cable
■ Blank plate (Exclude 2, 4, 6, 8, 10, 12, 24 zones or their integer multiple)
■ Connector
■ Cable
■ Blank plate (Exclude 2, 4, 6, 8, 10, 12, 24 zones or their integer multiple)
APPLICATIONS
Hot runner temperature controller controls heat application to either hot runner tips or mold manifolds, they provide precision temperature control using either a fixed PI, or full PID, control with either manual set-up, or automation.
Widely used in electronics, automobiles, medical, commodities, toys, packaging, architecture, office equipment and other industrial sectors.
More Options
APPLICABLE MODULES
Features | HRTC-A | HRTC-B | HRTC-G | ||
Zone | Single zone | single zone | Single zone | ||
Process Display | LED | LED | LCD | ||
Sensor Type | Thermocouple J or K | ||||
Power Switch | Pushbutton | Toggle switch | Pushbutton | ||
Control Mode | Auto PID or Manual | ||||
Control Accuracy | ±0.1%F.S | ±0.1%F.S | ±0.1%F.S | ||
Comply with DME/Athena/YUDO | YES | ||||
Communication | optional | optional | optional | ||
Hyperlinks | |||||
MAINFRAME
ZONE view more>>
■ 1~36 zones for you to choose
■ Customised to your requirement
Orange
■ Welding
■ Only for 5, 8, 12 zones
Black
■ Assenbling
■ For all zones
Blue
■ Assenbling
■ For all zones
HRTC ACCESSORIES
Hot Products
Don't know how to choose your product
If you have any doubt about the selection, don't hesitate to contact us. Just give us some pieces of information or pictures of your machine, we will assist you to pick up the suitable controller or module.
