Ультратонкий экран 46 '49' 55 '5x5 3x3 с бесшовной рамкой 3 5 мм ЖК-видео настенный
- Категория: Splicing Screen >>>
- Поставщик: Shenzhen,Pro,Vision,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 747.6 $* | 784.23 $* |
| Aug-18-2025 | 741.56 $* | 778.31 $* |
| Jul-18-2025 | 622.2 $* | 653.17 $* |
| Jun-18-2025 | 728.88 $* | 764.73 $* |
| May-18-2025 | 634.85 $* | 666.0 $* |
| Apr-18-2025 | 716.54 $* | 752.1 $* |
| Mar-18-2025 | 710.54 $* | 746.63 $* |
| Feb-18-2025 | 703.19 $* | 738.56 $* |
| Jan-18-2025 | 697.51 $* | 732.54 $* |
Характеристики

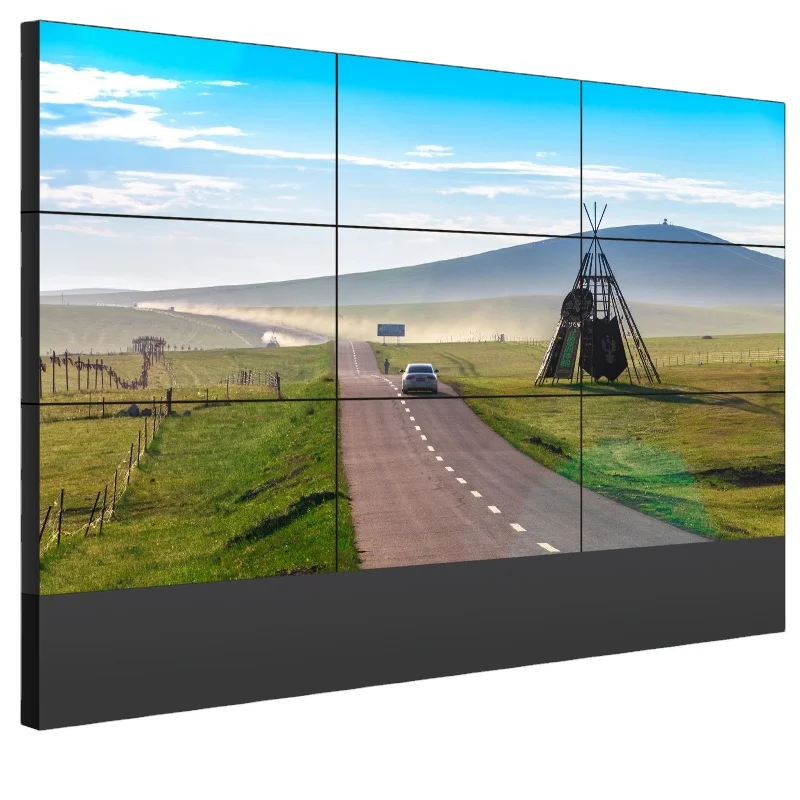

46''49''55'' 5x5 3x3 Ultra Thin Bezel Screen With Seamless Bezel 3.5mm lcd video wall vertical unit
1. Samsung/LG DID LCD screen, high brightness, high contrast, high resolution
2. Of ultra-thin narrow edge design, narrow border range 1.7 mm - 11 mm
3. Built-in splicing controller splicing unit
4.178 ° wide perspective
5. High stability, long life, life 60000 hours
6. Unitize, modular design, can be single use, also can use mosaics
7. Rich input signal output interface, may meet computer and all kinds of video equipment
Product Parameter
| VW4601 | VW4901 | VW5501 | ||
| PANEL | Screen Size | 46’’ | 49’’ | 55’’ |
| Panel technology | a-Si TFT-LCD/DID/IPS | |||
| Aspect Ratio | 16:9 | |||
| Native resolution | 1920X1080(FHD) | |||
| Brightness | 450 cd | 500 cd | 500 cd | |
| Contrast Ratio | 3000:1 | |||
| Visual Angle (HxV) | 89/89/89/89(Typ.)(CR≥10) | |||
| Response Time | 8 (Typ.)(G to G) ms | |||
| Surface Treatment | Hard coating(3H),Anti glare treatment of the front polarizer(Haze 25%) | |||
| Orientation | Portrait & Landscape | |||
| CONNECTIVITY | Input | HDMI,DVI,VGA,AV,CVBS | ||
| Output | LVDS,Backlight | |||
| External Control | RS232,RJ45,IR Receiver | |||
| PHYSICAL SPECIFICATION | Bezel Width | 1.7/1.8/1.7/1.8mm (Top/Bottom/Left/Right) /3.5mm B to B:Panel Bezel+Panel Bezel) | 1.7/1.8/1.7/1.8mm (Top/Bottom/Left/Right) /3.5mm B to B:Panel Bezel+Panel Bezel) | 1.7/1.8/1.7/1.8mm (Top/Bottom/Left/Right) /3.5mm B to B:Panel Bezel+Panel Bezel) |
| Monitor Dimension(WxHxD) | 1021.98x576x57x127.8mm | 1078.34x608.36x145.27mm | 1213.4x684.2x125.7mm | |
| Weight | 21kg | 25kg | 29kg | |
| Package Dimension(WxHxD) | 1250x900x300mm(2pcs) | 1270x900x300mm(2pcs) | 1360x960x365mm(2pcs) | |
| SPECIAL FEATURES | Timer on/off function, RJ45 Control, Intelligent Fans (temperature sensor), CE&ROHS, 7x24 running | |||
| ENVIRONMENTAL CONDITIONS | Operating Temperature Range | 0 ~ 50 °C | ||
| Storage Temperature Range | -20 ~ 65 °C | |||
| POWER | Power Supply | 110-240V,50/60Hz | ||
| Power Type | Built In Power | |||
| POWER CONSUMPTION | Type | 200 W | 200 W | 220 W |
| Max | 280 W | |||
| STANDARD (CERTIFICATION) | CE&ROHS&EMC&SASO | |||
| MEDIA PLAYER COMPATIBILITY | Pure Hardware structure,No CPU,No OS | |||
| SOFTWARE | Self developed software(can provide protocol to allow third party development) | |||
| ACCESSORIES | Basic | Remote control,Power cable,HDMI Cable,software copy,IR Receiver,RS232 cable,RJ45 cables,wall mount hooks,screws | ||
| Optional | Wall mount aluminum rack(40x40),Floor standing rack,Front access Mount. | |||

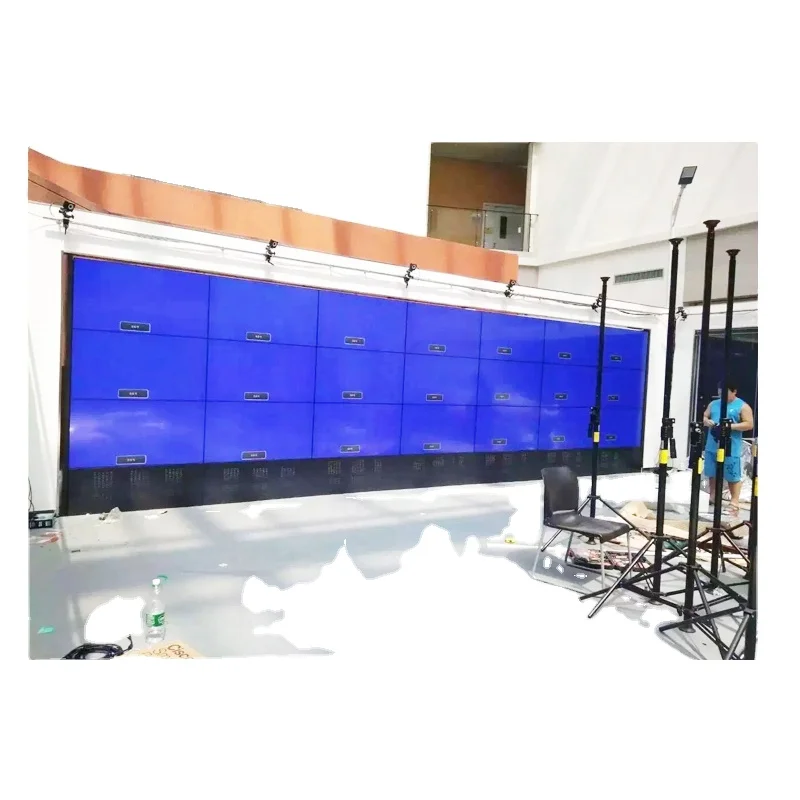

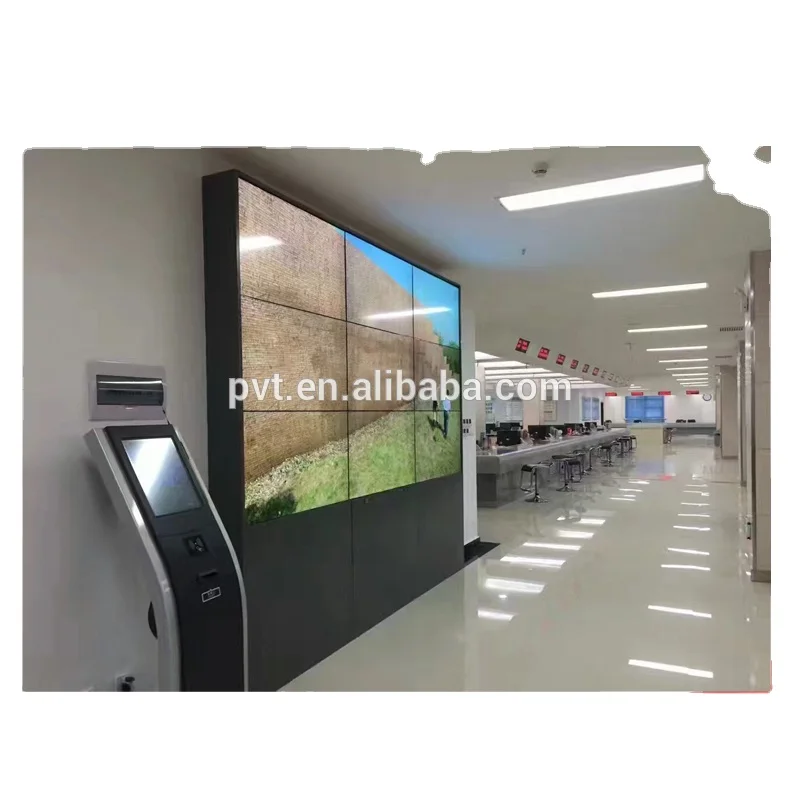

Detailed Images
FAQ
Q1:Are you manufacturer or trade company?
We have our own factory for production and assemble,we have an experience overseas sales team as well.
Q2:Does your company offer OEM/ODM service?
We accept OEM and ODM .
Q3:How can I trust your company as the first time to cooperation?
We are gold supplier on alibaba and have past the assement,meanwhile,every transaction can be protected by Trade asurance.
Our payment terms is based on 30% deposit and 70% balance before shippment.We will provide pictures or even video for you for the first time.
Q4:What's your warranty policy?
We normally provide one year warranty for the screen,as Panel manufacturer provide one year as well.
And we provide life long service for our products,we have a soluiton for after sale service,which depends on details.
Q5:Have you ever exported to the global market?
Yes,we have exported to US,Thailand,Pakistan,etc.
