Kaishan Brand Model KW30 Water Well Rotary Drilling Rig and Deep Water Well Drill Rig for Sale







1.The Features of Kaishan KW30  Hydraulic Water Well drilling rig And Geothermal Drilling Rig

KW 20series water well drilling rig is a kind of drilling equipment with high efficiency and multiple functions, it is mainly applied to borehole drilling wells, agricultural irrigation wells, ground source heat pump wells and other uses, water projects, especially applicable to the mountains and rock formations.



The rig can create jobs in different stratum, the maximum hole diameter of up to 300mm.



The rig using a new type of hydraulic technology, supporting large torque hydraulic motor rotation and large diameter hydraulic cylinder pushing, factory engine to provide power for the hydraulic system, the two stage air filter and the compression air intake design, prolong the service life of diesel engine.



Convenient pump group design unique repair, reduce repair cost. Hydraulic central control console, convenient operation. The series of drill by excavators crawler chassis, strong cross-country performance. Module design independently, can make the drill conveniently arranged in the truck, increase its mobility.



Two speeds of rotating and advancing speed can meet the different needs of excavating soil and rock. Positioner combined, can be adjusted according to the drill pipe and the impact of different types of replacing the positioning disk, to ensure the positioning accuracy, reliable centering. Hoisting of hoisting mechanism convenient drill pipe and the impactor, reduce labor intensity.





2.The Advantage of Hydraulic Water Well Drilling Rig And Geothermal Drilling Rig :



A. Powerful feeding mechanism and rotating system
1. Rotating system driven by high power hydraulic motor provides strong torque reserve and reduces the sticking drilling probability.
2. Feeding mechanism driven by high power hydraulic motor can generate 20KN lifting power. Adjusting the pressure regulating valve on the control valve can get favorable driving power required by the working condition.

B. Adjustable boom
Boom is adjustable. The angle of drilling hole and height of horizontal hole can be adjusted by controlling the stretch-out and draw-back of the hydro-cylinder.

C. Reliable Hydraulic Pump System

1. Oil supplied by two independent gear pumps, reliable operation, strong adaptability, easy maintenance. 2. Adopt gear transmission and soft connection, possessing compact structure and stable operation.
3. Adopt special hydraulic components. That improves the system’s stability and reliability.
4. Install oil liquid cooling device, to eliminate the exothermic hydraulic oil’s influence to the system.

D. Centralized Operating System

1. Designed with advanced hydraulic system and functional gas supply system, all actions can be centralized controlled, easy to operate.

2. Running the hydraulic operating valve can lift or swing the boom, and adjust the pitching, swing angle and forward or backward moving of drilling rig, and also level the crawler.

3. Running the pneumatic operating valve can open the oil pump, and realize the crawler drilling rig’s function of lifting, rotating and impacting, to ensure the high efficiency rock drilling.







3.Professional Kaishan KW30 Portable Water Well Drilling Rigs:

Model No:		KW30
Dia.hole (mm)		168-300
Drilling depth (mm)		300m
Air consumption:		16-40 m³/min
Working pressure:		10.5-24.6 bar
Ground clearance		280mm
Support cylinder stroke		/
Feed cylinder stroke		/
Feed power		50000N
Lift power:		150000N
Speed of rotator:	Low speed	43/52/69rpm
	High speed	85/102/125rpm
Rotation torque:		High 8000N.m,Low 4000N.m
Travellingspeed:		0-2.5 km/h
Climb capacity:		25°
Engine
Engine model		YC6B150Z-T21
power		110KW/150HP
Rotation speed		2100rpm
Matching Drilling components
Hammer
Dia. Of rod		89mm-102mm
Length of rod		3m/4m
Dia. Of bit		168-300mm
Weight (kg)		9500kgs
Dimension (mm)		5200×2300×3200

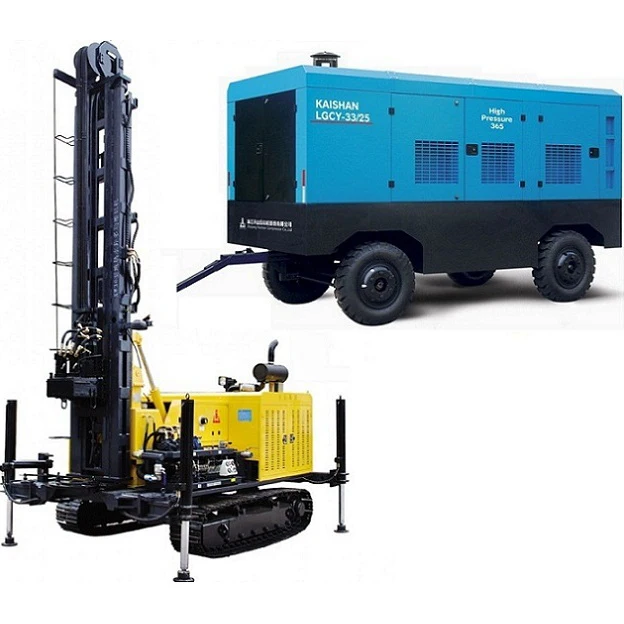

4. Mobile Screw Air Compressor For Hydraulic Water Well And Geothermal Drilling Rig :

 LGCY-26/20

Capacity m3/min(cfm):	26(920)
Pressure bar(psig)	20(290)
Compression Stage	Double
Diesel Engine
Engine Model No.	NTA855-P400
Capacity (L)	14
Rated RPM(r/min)	1800
Unload RPM(r/min)	1400
Rate RPM (kw/hp)	298(400)
Fuel capacity (L)	530
Package
Noise level dBa	80±3
Outlet cinnection	G2*1,G3/4*1
Dimensions	4450*1950*2650
Weight	4850KG
Whell Size *Qty	7.5-16*4





5.Picture Of Kaishan KW30  Hydraulic Water Well And Geothermal Drilling Rig :
